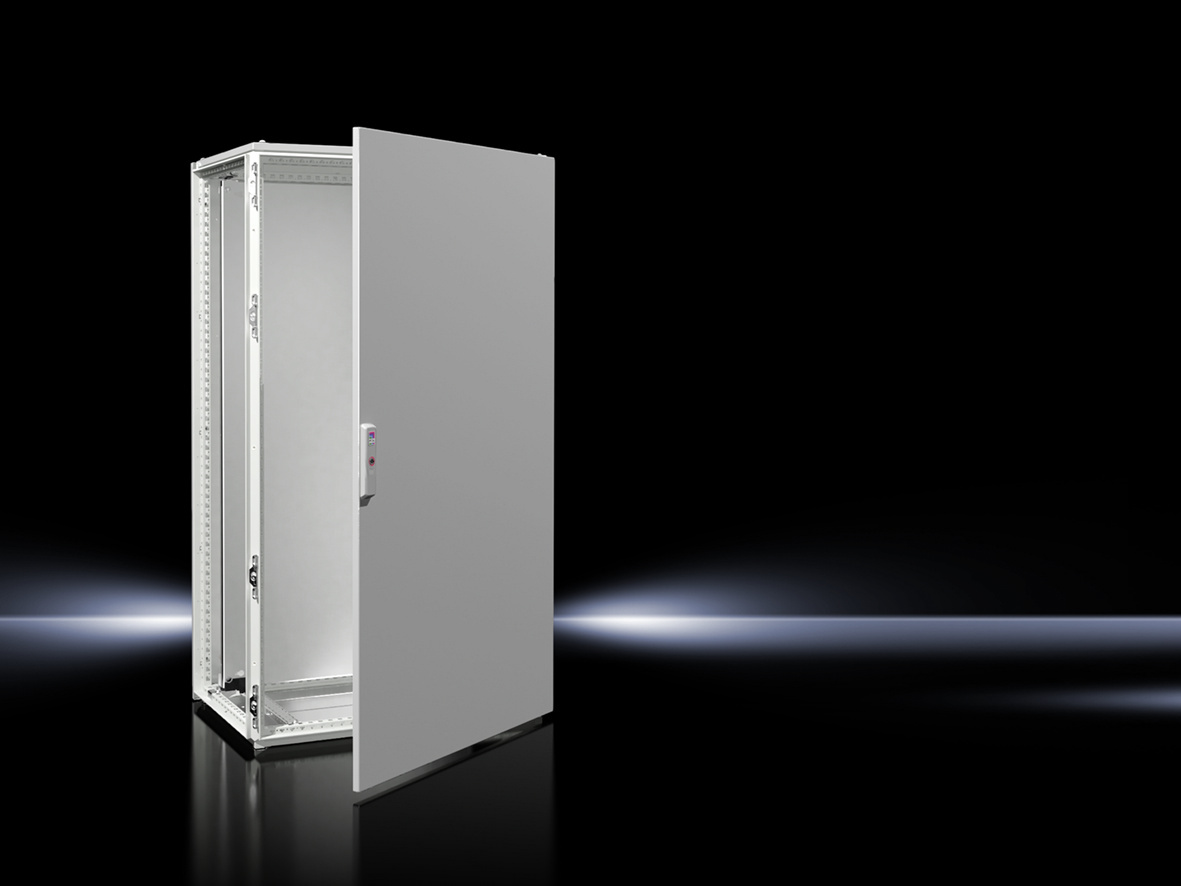

Rittal 8845000 VX bayed enclosure system, 1-door, W x H x D: 800x1400x500 mm
|
555,45 EUR 556,39 EUR |
|
|
( 660,99 EUR incl. VAT ) ≈ £464.91 | ≈ $610.44 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441159 |
| Mfg Part No: | 8845000 |
| UPC/EAN: | 4028177813885 |
| Weight: | 92.2 kg |
| Type: | VX 8845.000 |
Product information for Rittal 8845000:
Applications
This enclosure system is suitable for industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It can be mounted for baying on all sides, making it particularly suitable for modular enclosure installations. The load capacity is up to 15,000 N, enabling secure mounting even under high static loads. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, while the NEMA classification NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), confirm suitability for indoor environments with low to medium contamination risk. The IK code IK10 indicates high mechanical strength against mechanical impacts such as shocks and vibrations.
Functions and Equipment in Detail
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm, which is dip-primed. The door, also made of sheet steel (2.0 mm), as well as the roof plate and rear panel (each 1.5 mm), are dip-primed and externally powder-coated with textured lacquer in RAL 7035. The mounting plate, made of 3.0 mm thick sheet steel, is galvanized and side C-bent. The delivery includes the enclosure frame, a door with right-hand hinge (changeable to left), roof plate, rear panel, base plates, mounting plate, two mounting rails (18 x 39 mm), and a 3 mm double-bar lock. The door is fitted with a PU foam seal and features a four-point locking rod lock with double-bar insert according to DIN 43668. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame structure with closed and profiled hollow profiles, which are perforated in a 25 mm grid. The profiles are rounded at the edges and feature integrated blind rivet nuts M6, enabling protection-rated fastening of fittings. The horizontal profiles have an additional groove above the seal to protect the seal. The mounting plate is adjustable in depth in 25 mm increments and features integrated plastic gliding pieces as well as reusable mounting rails. The rear panel and roof plate are removable and fitted with PU foam seals. All flat parts (roof, door, rear panel, base plates) are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208 and providing preparation for additional earthing straps.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for enclosure assembly. These include circuit diagram pockets for various sub-assemblies, levelling feet with an adjustment height of 18–43 mm, cable routing spaces, mounting platforms for external mounting levels, C-profile rails, transport eyes, dust protection strips, monitor brackets, comfort handles, cable entry ferrules in various diameters, multi-point locking mechanisms, and system chassis in various sizes. These components enable flexible and application-specific equipment of the enclosure.
Mounting and Installation
Mounting is performed via the integrated mounting grid and reusable mounting rails. The mounting plate is adjustable in depth in 25 mm increments, allowing flexible positioning of components. The base plates are three-part, removable, and replaceable, ensuring easy cleaning and maintenance. The fastening to the floor is done via the welded base frame with integrated base reinforcement.
Advantages in Operation
The enclosure system offers high mechanical stability, reliable protection rating, and flexible mounting and expansion capabilities. The integrated mounting levels and 25 mm grid simplify the installation of components. The removable rear panel and roof plate enable easy maintenance and inspection. The conductive connection of all flat parts to the frame ensures safe equipotential bonding. The use of galvanized and powder-coated components ensures high corrosion resistance and longevity. QR codes on the roof, door, mounting plate, rear panel, and nameplate enable unique identification and labeling of the enclosure.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 1.400 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.296 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 264.57 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8845000 VX bayed enclosure system, 1-door, W x H x D: 800x1400x500 mm?
The article Rittal 8845000 VX bayed enclosure system, 1-door, W x H x D: 800x1400x500 mm is currently in stock
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8845000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8845000 VX bayed enclosure system, 1-door, W x H x D: 800x1400x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8845000 VX bayed enclosure system, 1-door, W x H x D: 800x1400x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
