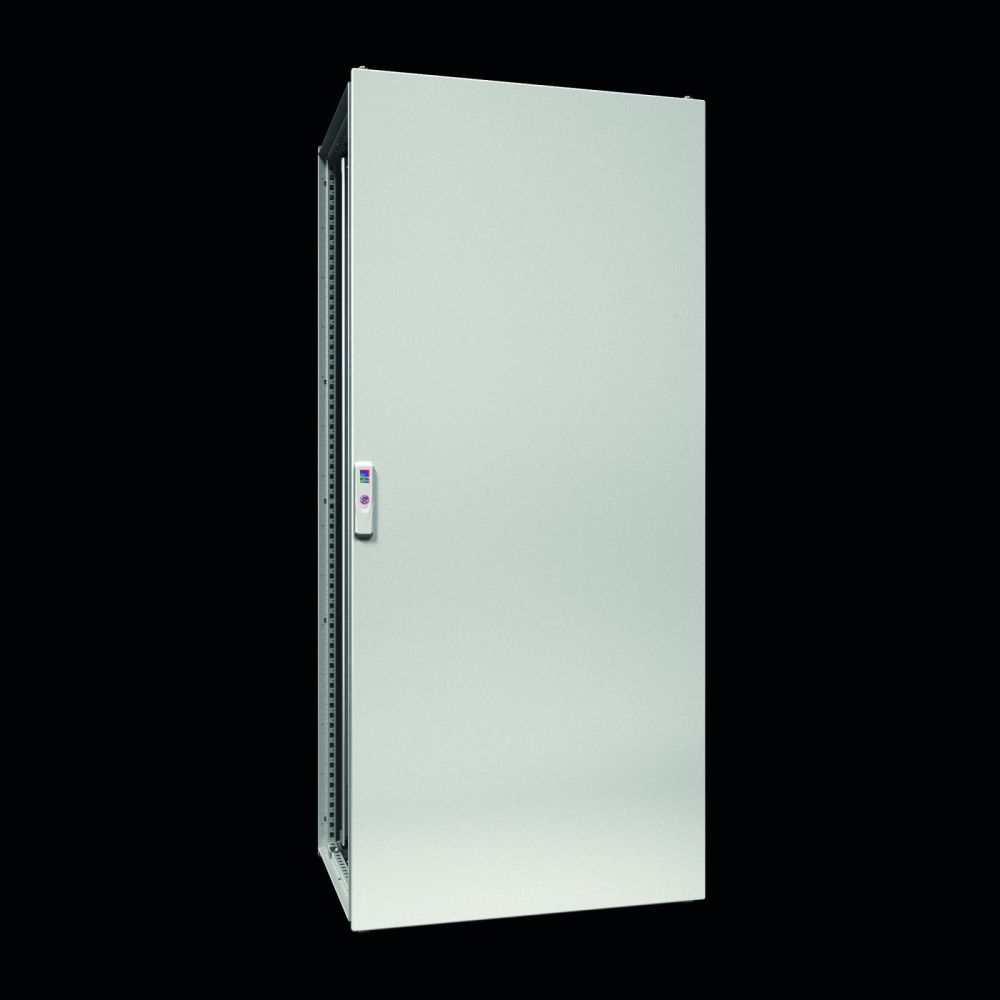

Rittal 8865000 VX bayed enclosure system, 1-door, W x H x D: 800x1600x500 mm,
|
583,05 EUR 592,02 EUR |
|
|
( 693,83 EUR incl. VAT ) ≈ £488.01 | ≈ $640.77 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441158 |
| Mfg Part No: | 8865000 |
| UPC/EAN: | 4028177813892 |
| Weight: | 102.4 kg |
| Type: | VX 8865.000 |
Product information for Rittal 8865000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable for building control enclosures, distribution enclosures, safety systems, and other electrical installations installed in production halls, factories, or technical rooms. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it also suitable for outdoor use. The NEMA classification includes NEMA 1 and NEMA 12, indicating suitability for use in dry indoor environments as well as environments with slight contamination risk. The type rating according to UL 50E includes Type 1 and Type 12, confirming suitability for enclosed and slightly contaminated environments.
Functions and Equipment in Detail
The enclosure features a front door made of 2.0 mm sheet steel, equipped with a PU foam seal and allowing a door opening of 130°. The door can be toollessly extended to 180° and is fitted with a 3 mm double-bar lock according to DIN 43668. Door hinges are standard right-hand mounted but can be changed to left-hand. The mounting plate, made of 3.0 mm sheet steel, is C-bent on the sides and adjustable in depth in 25 mm increments, enabling flexible adaptation to different components. Mounting is done via integrated plastic glides and reusable mounting rails (18 x 39 mm). The rear panel and roof plate are also fitted with PU foam seals and can be removed, enabling easy maintenance and installation.
Technology Explained Simply
The enclosure construction is based on a closed, profiled hollow profile with a 25 mm grid hole pattern, enabling flexible mounting of components. The horizontal profiles feature an additional groove above the seal, serving as protection against splashing water. The entire construction has rounded edges to minimize injury risks. The base sheets are divided into three parts, removable and replaceable, allowing easy cleaning and maintenance. Electrical conductivity between frame, rear panel, roof, and base sheets ensures automatic equipotential bonding according to DIN 62 208. The mounting plate and base sheets are galvanized, while the enclosure frame, door, roof, and rear panel are dip-primed and externally powder-coated with textured paint in RAL 7035. The IK code classification IK10 indicates high mechanical resistance against impact and shock.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for mounting and operation. These include circuit diagram pockets for various subcomponents, levelling feet with an adjustment height of 18–43 mm, cable routing spaces, mounting platforms for external mounting levels, C-profile rails, transport eyes, dust protection strips, monitor mounts with VESA connection, comfort handles, cable entry ferrules in various diameters, multi-locking systems for padlocks, and a multitool for maintenance.
Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 on the profile, enabling protection-rated fastening of fittings. The entire construction features a square hole pattern all around, allowing the use of cage nuts and metric screws up to M8. The mounting plate is depth-adjustable in 25 mm increments, ensuring precise positioning of components. The base sheets are attached to the base frame, which allows fastening to the floor. Door hinges are toollessly repositionable, and the door opening can be extended to 180°, facilitating installation and maintenance.
Operational Advantages
The enclosure system offers high mechanical stability, reliable IP 55 protection, and flexible mounting via the 25 mm grid. The removable rear panel and roof plate simplify maintenance, while the depth-adjustable mounting plate allows individual adaptation to different components. Integrated electrical conductivity ensures safe equipotential bonding. The use of galvanized and powder-coated components ensures high corrosion resistance. QR codes on the roof, door, mounting plate, rear panel, and nameplate enable unique identification and labeling of the enclosure system.
Scope of Delivery
The enclosure system is delivered with enclosure frame, door (single-door, right-hinged, interchangeable), roof plate, rear panel, base sheets (divided), mounting plate, two mounting rails (18 x 39 mm), and a 3 mm double-bar lock. Surface treatment includes dip-primed enclosure frame and powder-coated door, roof, and rear panel in RAL 7035. The mounting plate and base sheets are galvanized. Dimensions are 800 mm width, 1,600 mm height, and 500 mm depth. The mounting plate measures 699 mm x 1,496 mm. Protection rating IP 55, NEMA 1 and NEMA 12, as well as IK code classification IK10, are integrated features of the product.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 800 mm |
| Height | 1.600 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.496 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 292.25 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
