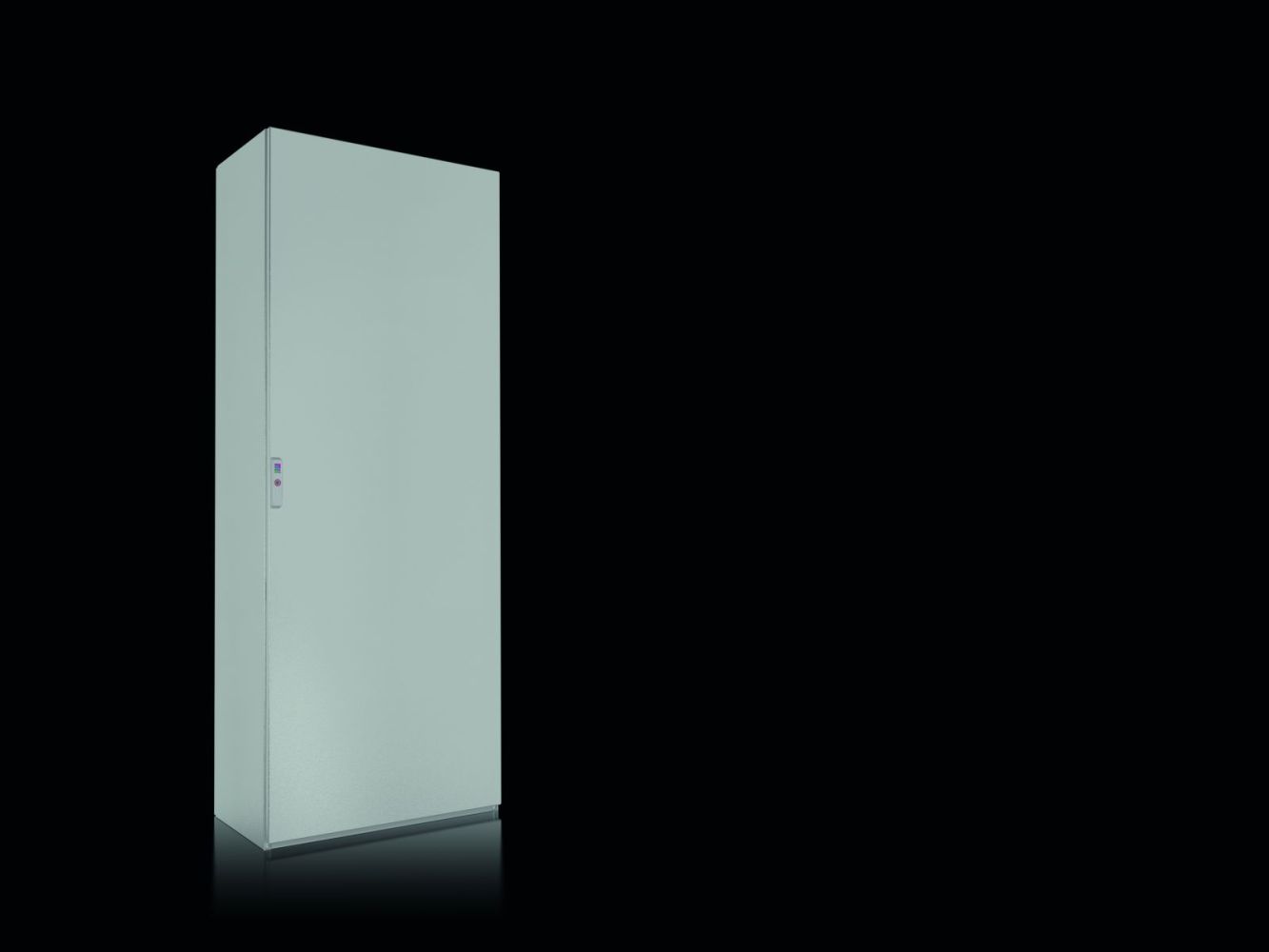

Rittal 5832600 VX SE system single enclosure 800x2000x400 mm steel
|
669,88 EUR |
|
|
( 797,16 EUR incl. VAT ) ≈ £560.69 | ≈ $736.20 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1910633 |
| Mfg Part No: | 5832600 |
| UPC/EAN: | 4028177959200 |
| Weight: | 128.2 kg |
| Type: | SE 5832600 |
Product information for Rittal 5832600:
Applications include industrial control systems, automation technology, and enclosures in production environments where high mechanical stability and protection against dust and splashing water are required. The enclosure is suitable for indoor use as well as in slightly damp environments, as it meets the protection rating IP 55 according to EN 60 529. This means it is dust-tight and protected against splashing water from any direction. Additionally, it meets the protection ratings NEMA 3R and NEMA 12, as well as the Type Ratings Type 1, 2, 3, 3R, 12 according to UL 50E, qualifying it for various industrial requirements. The IK code IK10 ensures high mechanical protection against impact and vibrations.
Functions and equipment in detail include a single-door design with right-hinged door, which can be changed to left-hinged. The door is fitted with a horizontally double-foamed sealing gasket and features a four-point locking rod lock with double-bar insert according to DIN 43668. The door opening angle is 130° according to VDI, with an option to upgrade to 180°. The door is equipped with non-removable hinge pins and provides automatic equipotential bonding to the enclosure body. The rear panel is screwed and also fitted with a foamed sealing gasket to ensure a tight seal. The base plates are three-part, removable, and replaceable, also featuring automatic equipotential bonding.
Technology explained simply shows that the enclosure is made as a single piece, with roof and side panels profiled to form a stable body. The mounting levels are vertically integrated, enabling a space-saving system expansion. The material thickness of the enclosure is 1.5 mm steel sheet, the door 2.0 mm, and the mounting plate 3.0 mm, ensuring high mechanical strength. The surface treatment ensures long-term durability in industrial environments.
Compatibility and accessories include system compatibility with VX25 accessories, enabling flexible expansion of the enclosure. Suitable accessories include, among others, plinth corner pieces, system chassis, levelling feet, mounting brackets, C-profile rails, support rollers, and transport eyes. These components allow individual adaptation to specific mounting and transport requirements.
Mounting and installation is carried out via the integrated mounting levels and depth-adjustable mounting rails. The mounting plate is equipped with a mounting grid to simplify component positioning. The base plates are fixed, providing a stable foundation for the enclosure.
Operational advantages lie in efficient assembly, as no additional side panels need to be mounted. Large enclosure widths allow replacement of smaller baying combinations, reducing space requirements. High mechanical stability and comprehensive protection ratings ensure reliable operation in demanding environments. System compatibility with VX25 accessories allows flexible expansion and adaptation to future requirements.
| General | |
| Material | Housing: steel sheet 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Housing, door and rear panel: dip primed, externally powder coated, textured lacquer; mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | enclosure top and sides closed, door(s), for single-door cabinets door hinge on right, reversible to left, mounting plate, base plates, rear panel, removable, locking: 3 mm double latch, 2 mounting rails 18 x 39 mm, rear panel, single-piece |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 368.55 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
