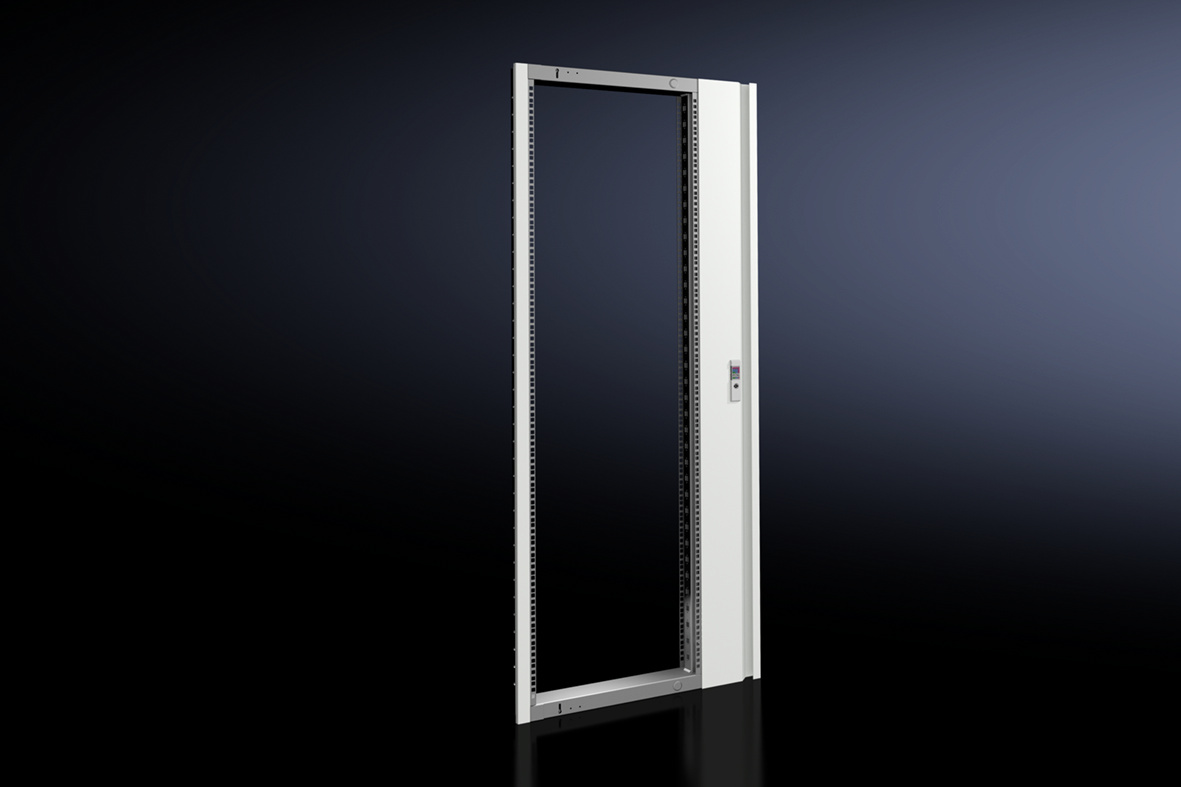

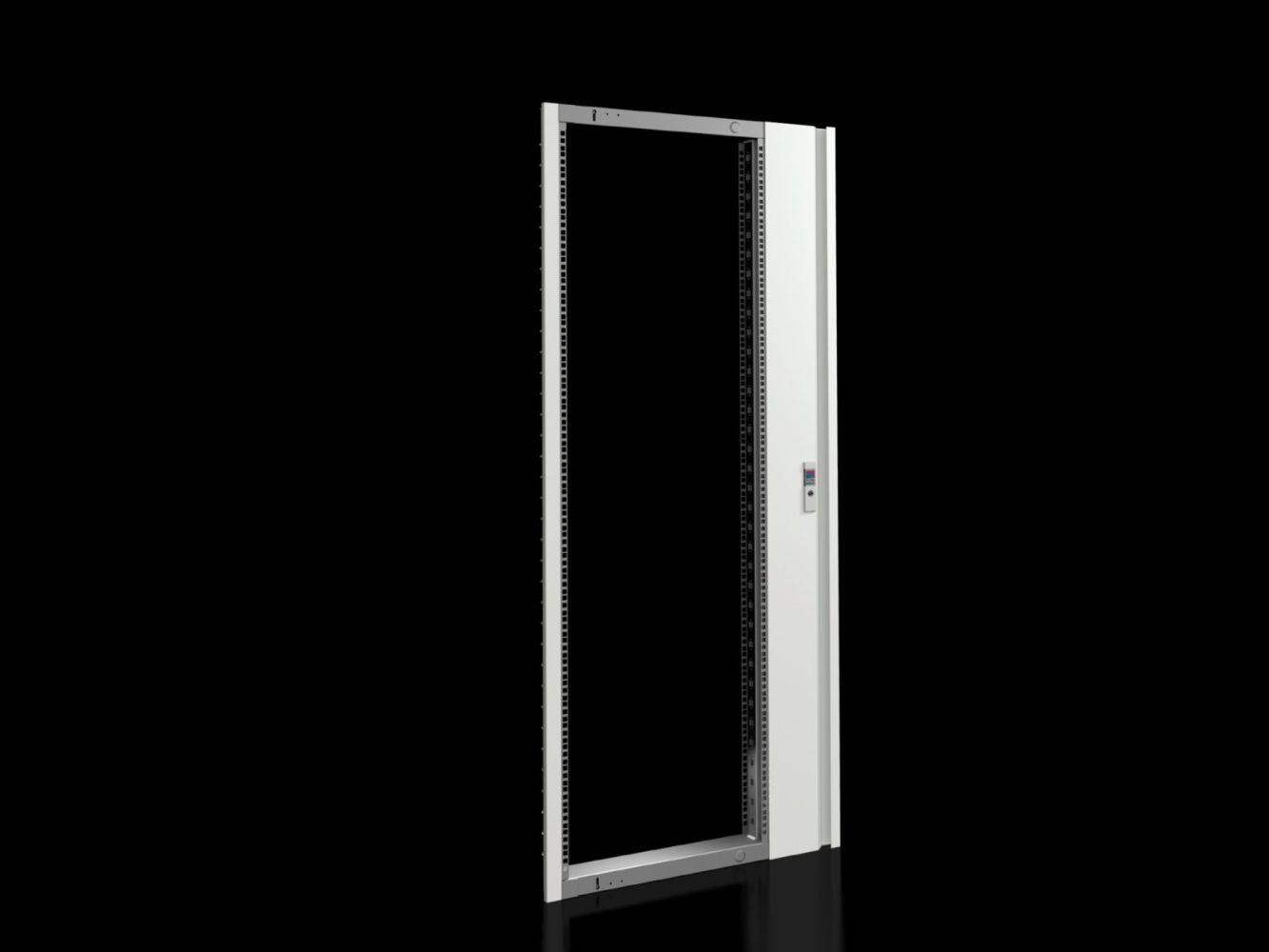

Rittal 8619022 VX swing frame large, single-sided trim panel, W: 800 mm
|
346,84 EUR |
|
|
( 412,74 EUR incl. VAT ) ≈ £290.31 | ≈ $381.18 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441926 |
| Mfg Part No: | 8619022 |
| UPC/EAN: | 4028177920392 |
| Weight: | 19.402 kg |
| Type: | VX 8619.022 |
Product information for Rittal 8619022:
Applications
The swing frame is used in industrial and technical installations where flexible and accessible mounting of network or control components is required. It is particularly suitable for enclosures in the VX system with a width of 800 mm. The minimum height of 1800 mm ensures sufficient space for the 35 HE required for installing standard 48,3 cm ( 19 inch ) devices. The construction allows for secure mounting of devices installed vertically, with the swinging motion facilitating access to the components.
Functions and Equipment in Detail
The delivery includes the lock system, a 130° hinge, and the materials for mounting to the mounting kit. The hinge allows the frame to open up to 130°, ensuring good access to the mounted devices. The integrated lock system ensures secure fixation of the frame in the closed position. For mounting to the enclosure walls, system chassis with dimensions 23 x 64 mm are required, with the exact number and arrangement varying depending on the expansion situation. The trim panel is painted in RAL 7035, representing a standardized gray color in industrial environments.
Technology Explained Simply
The swing frame is made of sheet steel, with the frame galvanized to prevent corrosion and the trim panel painted to ensure a uniform surface and color. The use of sheet steel provides high mechanical stability and resistance to mechanical stress. The 130° hinge allows sufficient opening to easily access the devices inside without having to remove the frame completely. Mounting is done via the designated fastening elements on the mounting kit, with the system chassis 23 x 64 mm serving as fastening elements.
Compatibility and Accessories
The swing frame is specifically designed for enclosures with a width of 800 mm. It is part of the VX system and can be combined with other components such as VX system chassis in various widths (e.g. 400 mm, 500 mm, 600 mm, 800 mm) as well as mounting kits for swing frames (e.g. for 800 mm and 1200 mm).
Mounting and Installation
Mounting is done on an already installed mounting kit in the enclosure. The fastening is done using the materials included in the delivery, which are attached to the system chassis 23 x 64 mm. The exact number of required chassis depends on the specific expansion situation. Installation requires no additional tools beyond standard mounting tools such as screwdrivers or wrenches.
Operational Advantages
The swing frame enables flexible and accessible mounting of 48,3 cm ( 19 inch ) devices, simplifying maintenance and service work. The single-sided trim panel provides clear access to the devices, while the other side remains open, which is advantageous in certain arrangements. The use of galvanized sheet steel for the frame ensures high corrosion resistance, and the painted trim panel in RAL 7035 fits into standardized color schemes. The integrated fastening solution with the 130° hinge and lock system ensures secure and stable mounting of the devices in the enclosure.
| General | |
| Model | Blind on one side |
| Material | steel sheet |
| Surface protection | Frame: galvanised, faceplate: painted |
| Colour | Shutter: RAL 7035 |
| Scope of delivery | Including closure system, 130° hinge, material for mounting on installation kit |
| Mounting note | Depending on the expansion situation, system chassis 23 x 64 mm are required |
| Note | To lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail" |
| Suitable for | Width: = 800 mm, Height: ≥ 1,800 mm |
| Height units | 35 HE |
