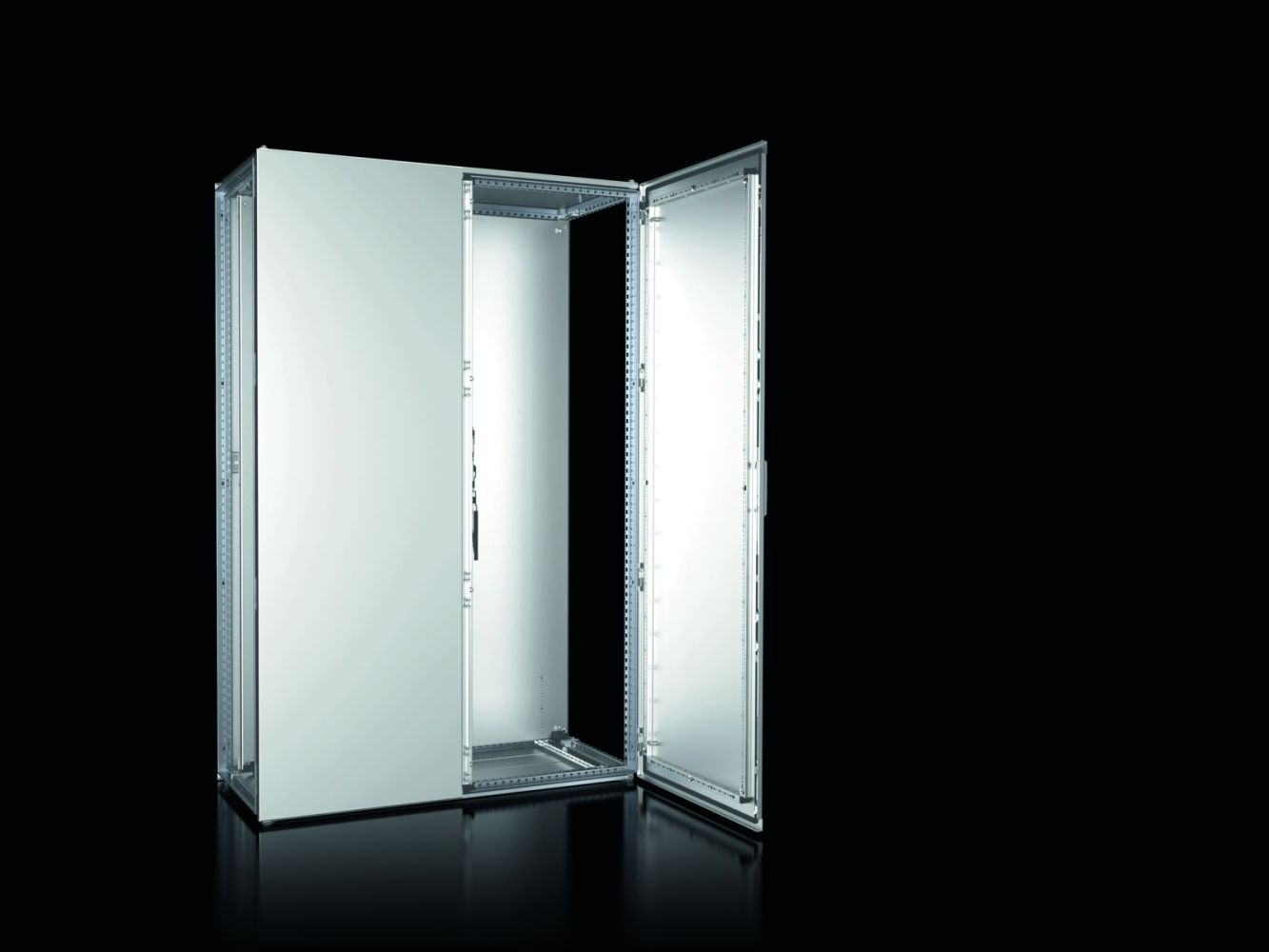

Rittal 8453000 VX bayed enclosure system, 2-door, 1200x1800x500 mm
|
3.518,54 EUR 3.519,16 EUR |
|
|
( 4.187,06 EUR incl. VAT ) ≈ £2,945.02 | ≈ $3,866.88 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440688 |
| Mfg Part No: | 8453000 |
| UPC/EAN: | 4028177920163 |
| Weight: | 171.6 kg |
| Type: | VX 8453.000 |
Product information for Rittal 8453000:
Applications
This enclosure system is suitable for use in indoor environments as well as in areas with increased contamination risk. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water, making it suitable for areas with humid or dusty atmospheres. Additionally, the unit complies with protection ratings NEMA 1 and NEMA 12, as well as Type ratings Type 1 and Type 12 according to UL 50E, enabling its use in industrial facilities in the USA and other countries with corresponding standards. The IK code IK10 provides high mechanical protection against impact and vibrations, which is particularly important for enclosures installed in mobile or moving environments.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of stainless steel 1.4301 with a wall thickness of 1.5 mm, offering high stability and corrosion resistance. The doors are also made of stainless steel 1.4301 (2.0 mm) and feature an externally brushed surface (grit 400), creating a uniform, robust appearance. The doors are equipped with a 3 mm double-barrel lock, ensuring secure latching. The door hinge is standard on the right, but can be converted to the left. The rear panel and roof plate are also made of stainless steel 1.4301 (1.5 mm) and feature a brushed surface. The floor plates are divided into three parts, removable and replaceable, enabling flexible installation and maintenance.
Technology Explained Simply
The mounting plate made of steel sheet (3.0 mm) is C-bent on the sides and adjustable in depth in 25 mm increments via integrated plastic glides and reusable mounting rails. This allows precise positioning of components and flexible adaptation to different installation conditions. The mounting plate features an integrated mounting grid, simplifying the positioning of components. The enclosure frame profiles are symmetrically constructed and feature a hole pattern in a 25 mm grid, enabling flexible attachment of components. The profiles are equipped with integrated blind rivet nuts M6 to securely fasten fittings in accordance with the protection rating. The floor clearance is 17 mm, ensuring sufficient air circulation and accessibility for cables and installations.
Compatibility and Accessories
The enclosure system is designed for baying operation and can be coupled to other enclosures on all sides. It is equipped with two mounting rails (18 x 39 mm) for securing components and devices. Various accessories are available, including transport eyes made of stainless steel 1.4301, TS mounting brackets, VX partition panels, VX mounting chassis, VX levelling feet, and VX cable strain relief rails. These components allow individual adaptation of the enclosure to specific requirements, such as mounting control panels, controls, or cable management systems.
Installation and Mounting
Installation is performed using the integrated mounting levels and the 25 mm grid hole pattern. The mounting plate is depth-adjustable, allowing adaptation to different installation depths. The doors are tool-free and can be retrofitted to open 180°, improving accessibility for maintenance work. The floor plates are removable, facilitating easy cleaning and maintenance of the enclosure interior. The enclosure construction is designed to withstand a load of up to 15,000 N, ensuring high mechanical stability.
Operational Advantages
The enclosure system offers high mechanical and chemical resistance due to the use of stainless steel 1.4301. The brushed surface of the doors, roof, and rear panel provides a uniform, easy-to-maintain finish. The integrated mounting levels and mounting grid simplify installation and maintenance. The IP 55 protection rating and mechanical strength (IK10) make the system suitable for demanding industrial environments. The baying capability allows flexible expansion of enclosure systems. The use of stainless steel ensures long service life and low maintenance requirements, especially in humid or corrosive environments.
| General | |
| Material | Cabinet frame: stainless steel 1.4301 (AISI 304), 1.5 mm, roof: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed finish, rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed finish, floor plates: stainless steel 1.4301 (AISI 304), 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame and base plates: plain, door, roof and rear panel: exterior brushed finish, grit 400, mounting plate: galvanized |
| Scope of delivery | Cabinet frame, door(s), door hinge right, reversible to left, roof sheet, floor sheets, rear panel, mounting plate, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 1.200 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 499,2 |
Questions & answers
What is the delivery time of Rittal 8453000 VX bayed enclosure system, 2-door, 1200x1800x500 mm?
The article Rittal 8453000 VX bayed enclosure system, 2-door, 1200x1800x500 mm is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8453000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8453000 VX bayed enclosure system, 2-door, 1200x1800x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8453000 VX bayed enclosure system, 2-door, 1200x1800x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
