Rittal 8609210 VX partition panel for module plates, height: 1800 mm, width: 500 mm

Your rating:
Average rating
product review for Rittal 8609210 VX partition panel for module plates, height: 1800 mm, width: 500 mm
( 4.5 / 5 ) 11 ratings
Rittal 8609210
This image may differ from the desired article.
Rittal 8609210Rittal 8609210Rittal 8609210
88,32 EUR
( 105,10 EUR incl. VAT )
≈ £73.92  |  ≈ $97.06
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 8609210 VX partition panel for module plates, height: 1800 mm, width: 500 mm
Datasheet:file_download Download
Lieske Part No.:1440937
Mfg Part No: 8609210
UPC/EAN: 4028177817821
Weight:6.5 kg
Type:VX 8609.210

Product information for Rittal 8609210:

The Rittal VX 8609.210 is a partition panel for module plates, specifically designed for enclosures of type VX with a height of 1,800 mm and a depth of 500 mm. It serves to structurally divide the interior space within the enclosure and enables the organized mounting of module plates for connectors, cable entries, as well as the installation of busbar systems and other components. The partition panel is made of sheet steel with a thickness of 2.0 mm and features a galvanized surface, ensuring high corrosion resistance. The surrounding double hemming provides additional stability and allows for the installation of a seal to ensure an airtight and sound-insulated separation.

Partition panel

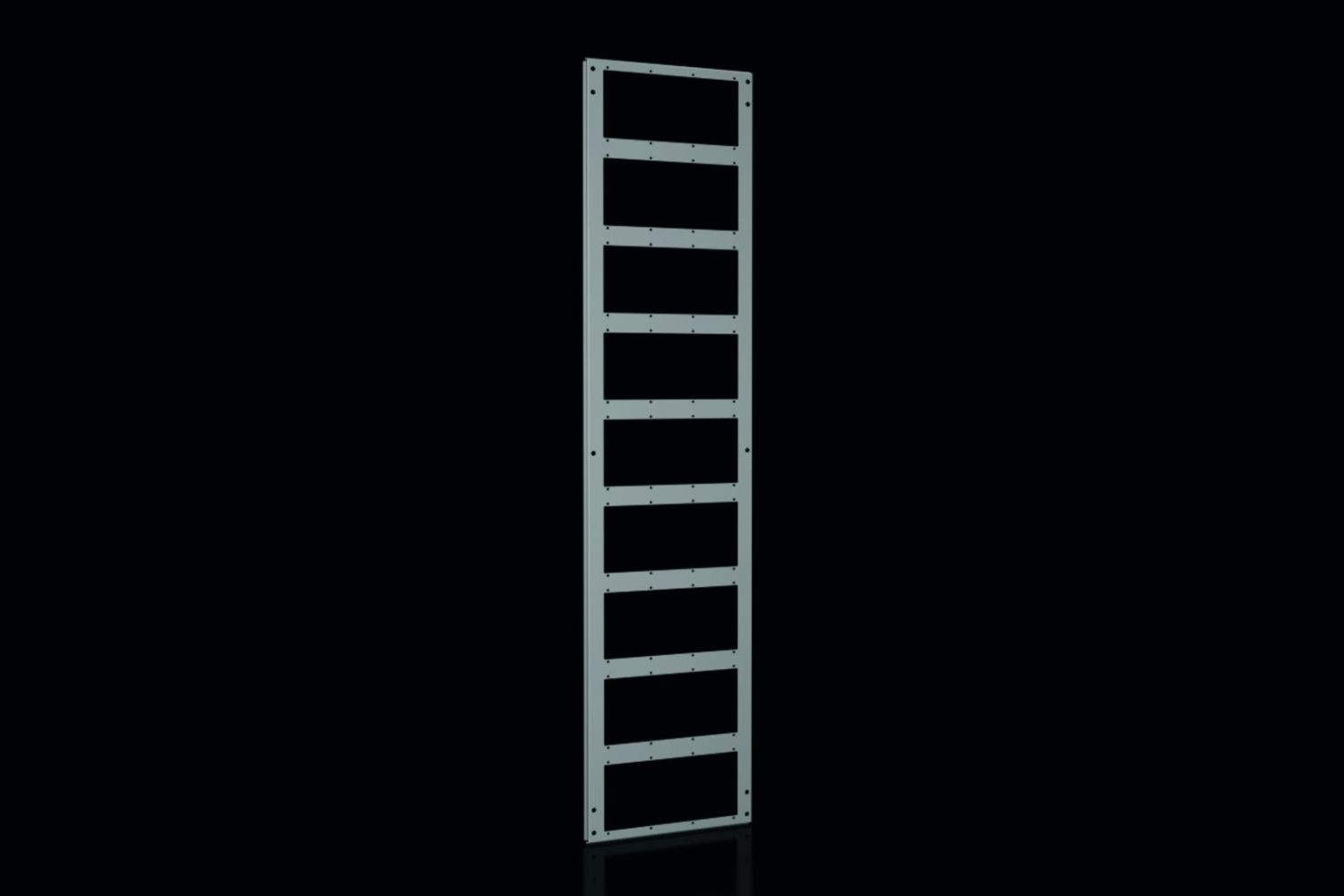

The partition panel features a total of 9 cutouts, which can be flexibly used to securely and orderly install various modules or cable bundles. The cutouts are dimensioned to accommodate both standard module plates and special components. The symmetrical design of the enclosure frame allows the partition panel to be mounted not only on the front but also on the rear side of the enclosure, provided the dimensions permit. This offers flexibility in planning and installing enclosures, particularly in complex systems with multiple modules.

Functions and equipment in detail

The mounting is done directly to the enclosure frame, where the double hemming increases mechanical stability and simultaneously ensures secure anchoring of the seal. The galvanized surface provides high protection against moisture and corrosion, which is particularly advantageous in industrial environments. The partition panel is designed for use in enclosures of the VX system, known for its modular design and high flexibility.

Technology explained simply

The use of sheet steel with a thickness of 2.0 mm ensures sufficient strength to withstand mechanical loads during operation. The galvanization protects the material from oxidation and extends the service life of the partition panel. The double hemming along the edge increases stability and allows for the installation of a seal, ensuring an airtight separation between enclosure sections. The 9 cutouts are strategically positioned to enable flexible use for various mounting tasks, whether for connectors, cables, or busbars.

Compatibility and accessories

The partition panel is specifically designed for enclosures of type VX with a height of 1,800 mm and a depth of 500 mm. For baying multiple enclosures in combination with a partition panel, additional components are required: either the internal baying bracket (part number 8617500) or the external baying connector (part number 8617502). These components enable a secure and stable connection between enclosures. Additionally, a VX external baying connector, sheet steel, 1200 mm, is offered as suitable accessory for connecting multiple enclosures.

Mounting and installation

The installation of the partition panel is carried out using the mounting materials included in the delivery, directly onto the enclosure frame. The double hemming facilitates installation and ensures secure anchoring. Depending on requirements, the partition panel can be installed on the front or rear side of the enclosure, enabling flexible use in various system configurations. The symmetrical design of the frame supports this flexibility.

Advantages in operation

The partition panel provides clear structuring of the enclosure interior, simplifying maintenance and inspection of systems. The integrated cutouts enable organized cable routing and module mounting, increasing the reliability and clarity of the installation. The galvanized surface ensures long service life, even in humid or corrosive environments. Compatibility with the VX system guarantees seamless integration into existing enclosure configurations.

General
MaterialSheet steel, 2.0 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 1800 mm, depth: = 500 mm
Number of breaks9
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required


Product data sheet
Datasheet for Rittal 8609210, EAN: 4028177817821

Questions & answers

What is the delivery time of Rittal 8609210 VX partition panel for module plates, height: 1800 mm, width: 500 mm?

The article Rittal 8609210 VX partition panel for module plates, height: 1800 mm, width: 500 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609210 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609210 VX partition panel for module plates, height: 1800 mm, width: 500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8609210 VX partition panel for module plates, height: 1800 mm, width: 500 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
