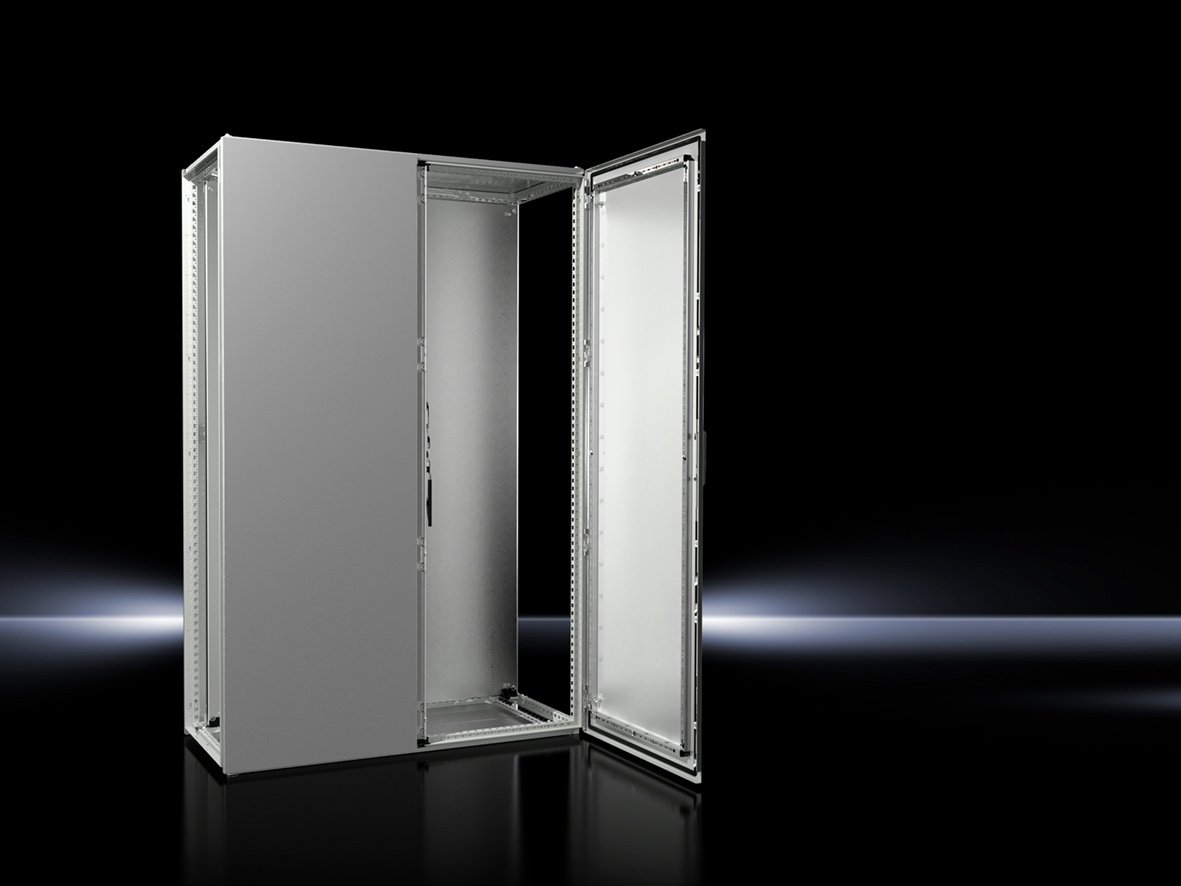

Rittal 8285000 VX bayed enclosure system, 2-door, W x H x D: 1200x1800x500 mm,
|
845,03 EUR 846,46 EUR |
|
|
( 1.005,59 EUR incl. VAT ) ≈ £707.29 | ≈ $928.69 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440720 |
| Mfg Part No: | 8285000 |
| UPC/EAN: | 4028177813632 |
| Weight: | 170.2 kg |
| Type: | VX 8285.000 |
Product information for Rittal 8285000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is suitable for use in production halls, machine building, process engineering and other areas where enclosures are mounted in baying. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use as well. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1 and Type 12), confirm suitability for dry and damp indoor environments and for environments with slight contamination risk. The IK code IK10 indicates high mechanical strength against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system includes an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, dip primed. The doors are made of sheet steel with a wall thickness of 2.0 mm and are externally powder-coated with a textured lacquer in RAL 7035. The roof, rear panel and base plates are also made of 1.5 mm sheet steel and dip primed, with the roof and rear panel externally powder-coated. The mounting plate is made of 3.0 mm sheet steel and galvanized, ensuring high corrosion resistance. The mounting plate is side C-bent and depth-adjustable in 25 mm increments via integrated plastic glides and reusable mounting rails. The mounting plate features a mounting grid to simplify component positioning. The base plates are triple-divided, removable and replaceable, enabling flexible adaptation to different mounting conditions. The rear panel and roof plate are removable and fitted with a PU foam seal to ensure a tight seal. The rear panel features a positioning aid to enable precise mounting. The roof plate is mounted using M12 fastening screws.
Technology Explained Simply
The construction of the enclosure system is based on a stable profile frame consisting of closed and profiled hollow profiles. The horizontal profiles feature an additional groove above the seal, ensuring better sealing. The entire construction is perforated in a 25 mm grid, facilitating the mounting of components and cable trees. Integrated blind rivet nuts M6 allow protection-rated fastening of fittings to the profile. The profile edges are rounded to minimize injury risks. The mounting plate is depth-adjustable, enabling flexible adaptation to different mounting heights. Electrical conductivity between frame, rear panel, roof and base plates ensures automatic equipotential bonding according to DIN 62 208, which is important for operational safety. The base plates are load-bearing up to 15,000 N, ensuring high mechanical stability.
Compatibility and Accessories
The enclosure system is bayable on all sides, enabling flexible expansion of the installation. Suitable accessories include levelling feet M12 with an adjustment height of 18–43 mm, TS mounting brackets for the outer mounting plane, mounting plate spacers, C-profile rails 30/15 according to EN 60715, VX partial mounting plates, cable routing spaces, transport eyes, VX base plates, comfort handles, dust protection strips, cable entry ferrules in various diameters, multi-point locking mechanisms, circuit diagram pockets in various depths, an AS Multitool AX/VX, and VX side panels that are screwable. These accessories enable individual adaptation of the enclosure to specific requirements.
Mounting and Installation
The enclosure is mounted via the integrated base frame, which features a base reinforcement to ensure secure fastening to the floor. The mounting plate is depth-adjustable and can be adapted using integrated plastic glides and reusable mounting rails. Mounting is done through the pre-drilled holes in the 25 mm grid. The doors are toollessly switchable, enabling flexible adaptation to mounting conditions. The rear panel and roof plate are removable and can be replaced if necessary.
Advantages in Operation
The enclosure system offers high mechanical stability and protection rating, suitable for use in industrial environments. The flexible mounting and adaptation options enable efficient installation and maintenance. The integrated mounting plate and depth-adjustable mounting rails simplify component mounting. Electrical conductivity between components ensures safe operation. The high load capacity of the base plates up to 15,000 N allows mounting of heavy components. The bayability on all sides enables flexible expansion of the installation. The use of sheet steel and galvanized parts ensures high corrosion resistance and long service life.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 1.800 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.696 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 446.61 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
