Rittal 8619012 VX swing frame, large, without trim panel, for W: 600 mm

Your rating:
Average rating
product review for Rittal 8619012 VX swing frame, large, without trim panel, for W: 600 mm
( 4.6 / 5 ) 10 ratings
Rittal 8619012
This image may differ from the desired article.
Rittal 8619012Rittal 8619012Rittal 8619012
293,60 EUR
( 349,38 EUR incl. VAT )
≈ £245.74  |  ≈ $322.67
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619012 VX swing frame, large, without trim panel, for W: 600 mm
Datasheet:file_download Download
Lieske Part No.:1441944
Mfg Part No: 8619012
UPC/EAN: 4028177920446
Weight:12.567 kg
Type:VX 8619.012

Product information for Rittal 8619012:

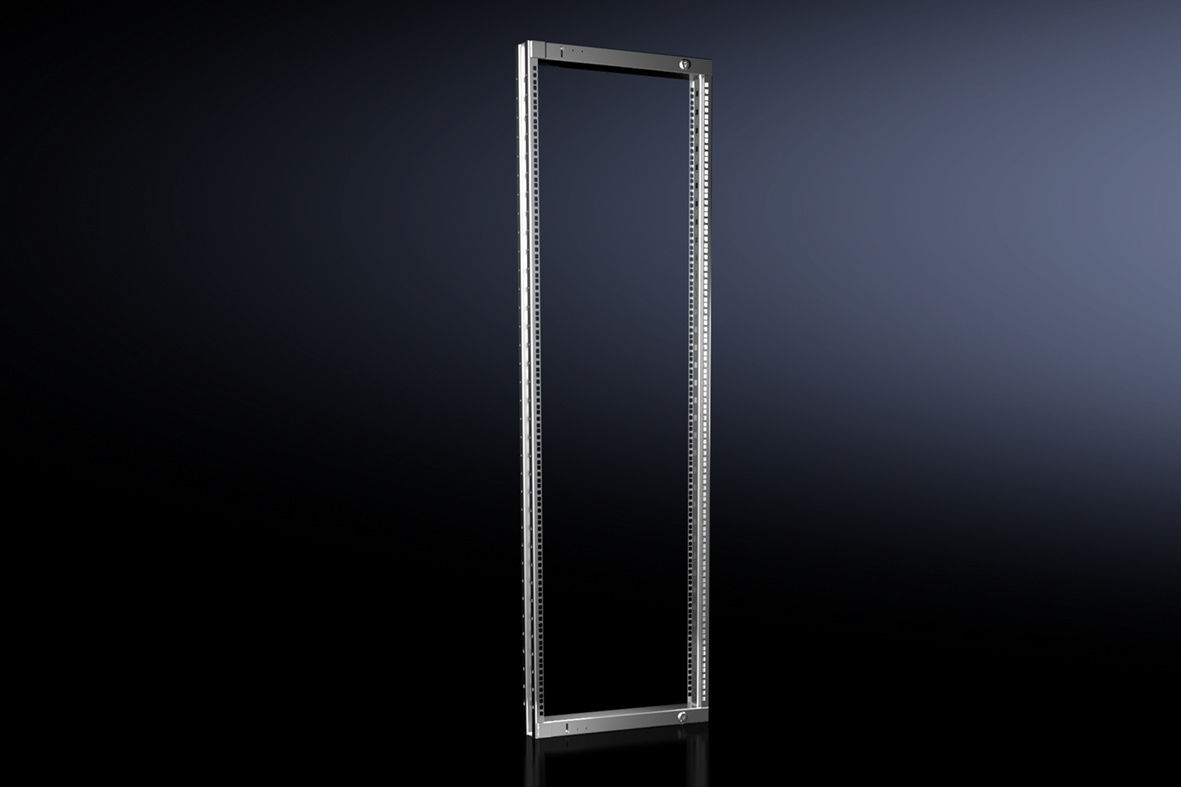

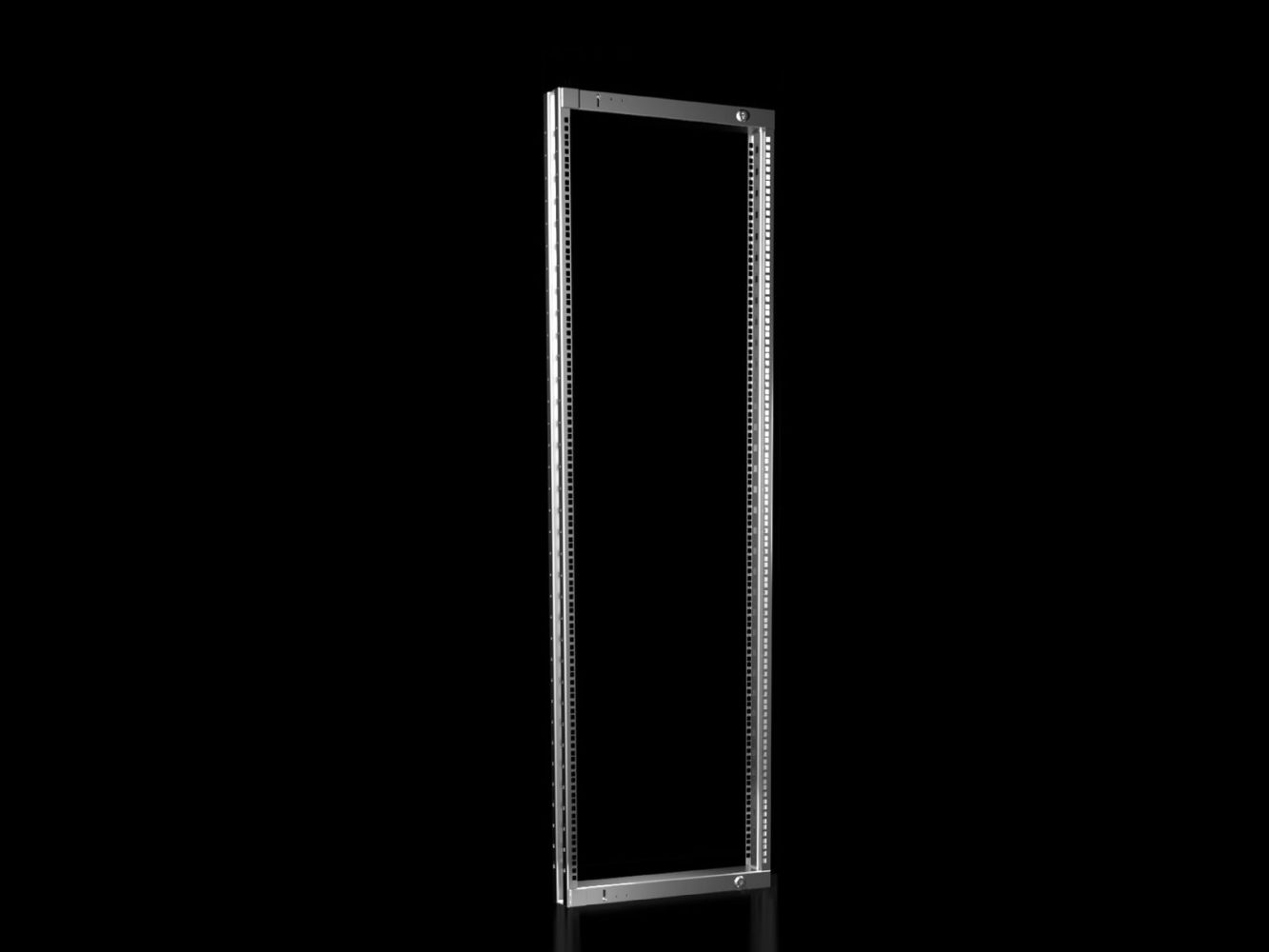

The Rittal VX 8619.012 is a swing frame, large, without trim panel, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures of the VX series. It is designed for enclosures with a width of exactly 600 mm and a minimum height of 1,800 mm, providing space for 35 height units (HE). The product serves as a movable mounting frame, enabling devices within the enclosure to be opened and maintained without having to open the entire enclosure. The version without a trim panel allows for flexible integration into existing systems, with the front side remaining open to ensure direct access to the mounted components.

Applications

The swing frame is intended for use in industrial enclosures, particularly in installations requiring high accessibility for maintenance and service work. It is suitable for applications in automation technology, process control, as well as in IT infrastructures, where 48,3 cm ( 19 inch ) devices such as network switches, servers, or control units are mounted. The minimum enclosure height of 1,800 mm ensures that the frame can be securely mounted and sufficient space remains for component installation.

Functions and Equipment in Detail

The swing frame is made of sheet steel and is zinc-coated on the frame to prevent corrosion. The trim panel, which is not part of this version, is described as painted in RAL 7035, indicating the standard color for Rittal products. The delivery includes the locking system, a 130° hinge, and the material for securing to the mounting kit. The hinge allows the frame to open up to 130°, ensuring good access to the mounted devices. Installation is carried out using the provided mounting material on the mounting kit, with system chassis of dimensions 23 x 64 mm required depending on the expansion situation.

Technology Explained Simply

The swing frame is designed to securely and accessibly mount 48,3 cm ( 19 inch ) devices within the enclosure. The use of sheet steel and zinc-coated surface ensures high mechanical stability and durability, especially in industrial environments. The 130° hinge allows the frame to be opened sufficiently wide to access the front sides of the devices without having to open the entire enclosure. Installation is performed using the integrated mounting material on the mounting kit, with the exact configuration depending on the specific enclosure setup.

Compatibility and Accessories

The swing frame is specifically designed for enclosures with a width of 600 mm. For installation, system chassis with dimensions 23 x 64 mm are required, available in various widths (400 mm, 500 mm, 600 mm, 800 mm). Additionally, mounting kits for swing frames are available in widths of 600 mm, 800 mm, and 1200 mm, which can be selected according to enclosure size and requirements.

Installation and Mounting

Installation is performed using the mounting material included in the delivery, attached to the mounting kit. Depending on the expansion situation, system chassis with dimensions 23 x 64 mm are required to securely fix the frame within the enclosure. The minimum enclosure height of 1,800 mm must be maintained to ensure stable mounting.

Operational Advantages

The swing frame enables efficient maintenance and inspection of 48,3 cm ( 19 inch ) devices, as these can be opened within the enclosure without having to open the entire enclosure. This reduces downtime and increases safety during maintenance work. The use of sheet steel and zinc-coated surface ensures high mechanical stability and longevity. The integrated mounting system allows for simple and secure installation within the enclosure.

General
ModelWithout bezel
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 600 mm, Height: ≥ 1,800 mm
Height units35 HE


Product data sheet
Datasheet for Rittal 8619012, EAN: 4028177920446
