Rittal 8100740 VX mounting chassis 23 x 64 mm, W x D: 400 mm

Your rating:
Average rating
product review for Rittal 8100740 VX mounting chassis 23 x 64 mm, W x D: 400 mm
( 4.7 / 5 ) 10 ratings
Rittal 8100740
This image may differ from the desired article.
Rittal 8100740Rittal 8100740Rittal 8100740Rittal 8100740Rittal 8100740Rittal 8100740Rittal 8100740
50,37 EUR
( 59,94 EUR incl. VAT )
≈ £42.16  |  ≈ $55.36
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8100740 VX mounting chassis 23 x 64 mm, W x D: 400 mm
Datasheet:file_download Download
Lieske Part No.:1440962
Mfg Part No: 8100740
UPC/EAN: 4028177924505
Weight:1.006 kg
Type:VX 8100.740

Product information for Rittal 8100740:

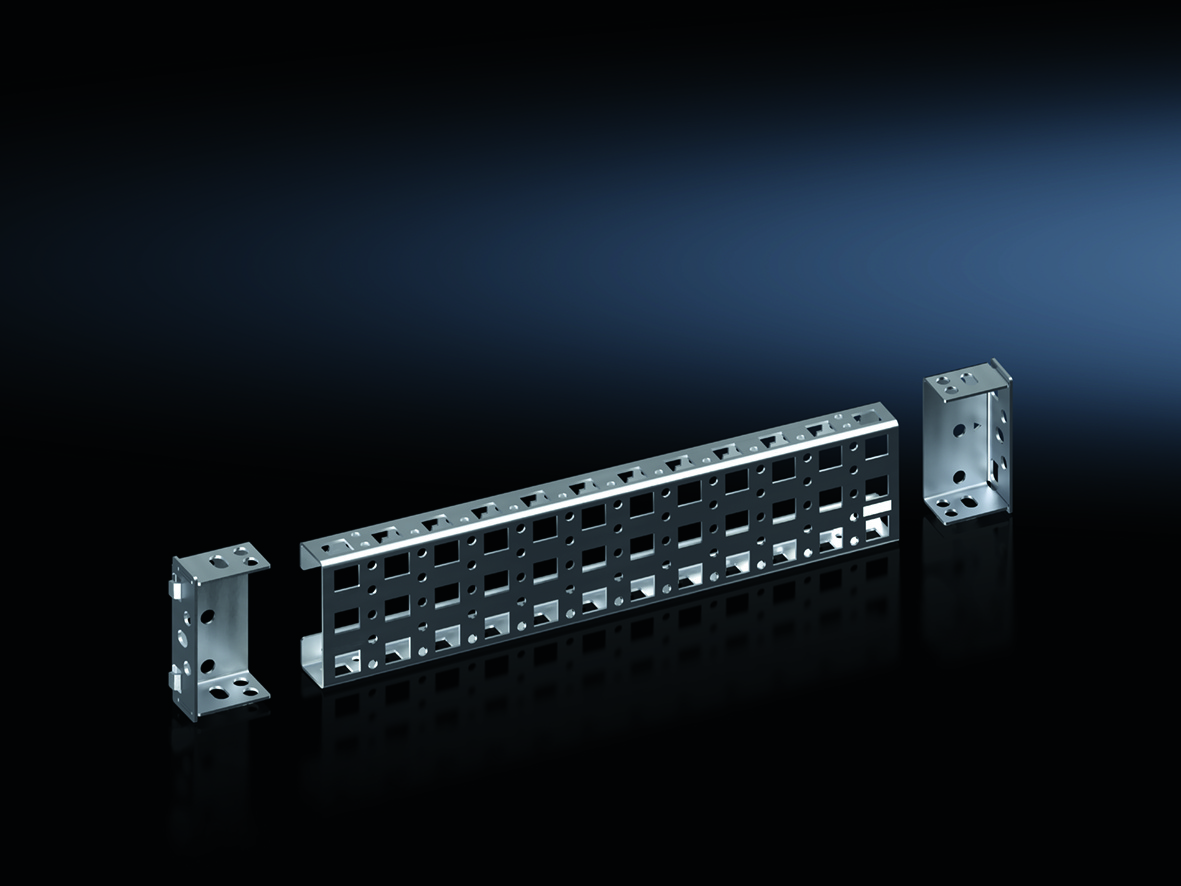

The Rittal VX 8100.740 is a mounting chassis made of sheet steel with a galvanized surface, specifically designed for variable and individual interior fitting of enclosures of type VX and VX SE. It serves as a modular component for securing electrical or electronic components within the enclosure frame on the inner mounting plane. The chassis is mounted flush with the enclosure frame and allows for flexible arrangement of devices, with system perforation on all four sides enabling mounting via standard holes. Dimensions are 23 mm in height and 64 mm in width, with a depth of 400 mm, indicating compatibility with enclosures having a width/depth of 400 mm.

Applications
The mounting chassis is intended for use in enclosures of the VX and VX SE series. It can be mounted directly on the VX enclosure profile, and for VX SE enclosures, in conjunction with a VX adapter rail on the vertical enclosure profile. Additionally, multiple chassis can be installed stacked vertically, with mounting brackets allowing installation even when a mounting plate is already installed. As a mounting kit for the component shelf, it can also be used to create additional mounting surfaces.

Functions and Equipment in Detail
The chassis features system perforation on all four sides, enabling universal mounting of modules. Top and bottom include special holes for cage nuts, supporting mounting of custom components using metric screws. The delivery includes two mounting chassis, four mounting brackets, and the required fastening material. The mounting brackets allow flexible installation, even when a mounting plate is already present in the enclosure. The chassis is also prepared for individual shortening, allowing adaptation to different requirements.

Technology Explained Simply
The use of sheet steel with a galvanized surface ensures high mechanical stability and corrosion protection, which is important for industrial environments. The system perforation enables compatible mounting with standard components. The mounting brackets expand the range of applications, as they allow installation even in existing enclosure configurations. Fastening is done using the included material, designed for mounting on enclosure profiles.

Compatibility and Accessories
The mounting chassis is specifically designed for enclosures of types VX and VX SE with a width/depth of 400 mm. It is compatible with VX and VX SE enclosure profiles, with VX SE requiring the use of a VX adapter rail. As an accessory, cable ties with a length of 150 mm are offered, which can be used for securing cables within the enclosure.

Mounting and Installation
Mounting is done flush with the enclosure frame on the inner mounting plane. The chassis can be directly fastened to the VX enclosure profile, and for VX SE enclosures, in conjunction with the VX adapter rail on the vertical profile. Mounting brackets enable installation even when mounting plates are already present. The included fastening materials are designed for use with enclosure profiles. The chassis can also be mounted stacked vertically to create multiple mounting levels.

Advantages in Operation
The mounting chassis provides a flexible and modular solution for interior fitting of enclosures. The system perforation and cage nut holes simplify the mounting of various modules. The preparation for shortening allows adaptation to individual requirements. The mounting brackets increase flexibility, as they can be used even when existing mounting plates are present. The use of galvanized sheet steel ensures high mechanical strength and durability in industrial applications.

General
Materialsteel sheet
Surface protectionZinc-plated
Scope of delivery2 mounting chassis, 4 mounting brackets, including fastening material
Mounting optionsIn VX on the inner mounting plane on VX cabinet profile, In VX SE on vertical cabinet profile in combination with VX adapter rail, Between two chassis vertically on inner mounting plane, As built-in kit for equipment floor
Suitable forEnclosure type: VX, VX SE, width/depth: 400 mm
PCF/VE (Cradle-to-Gate)4,63


Product data sheet
Datasheet for Rittal 8100740, EAN: 4028177924505
