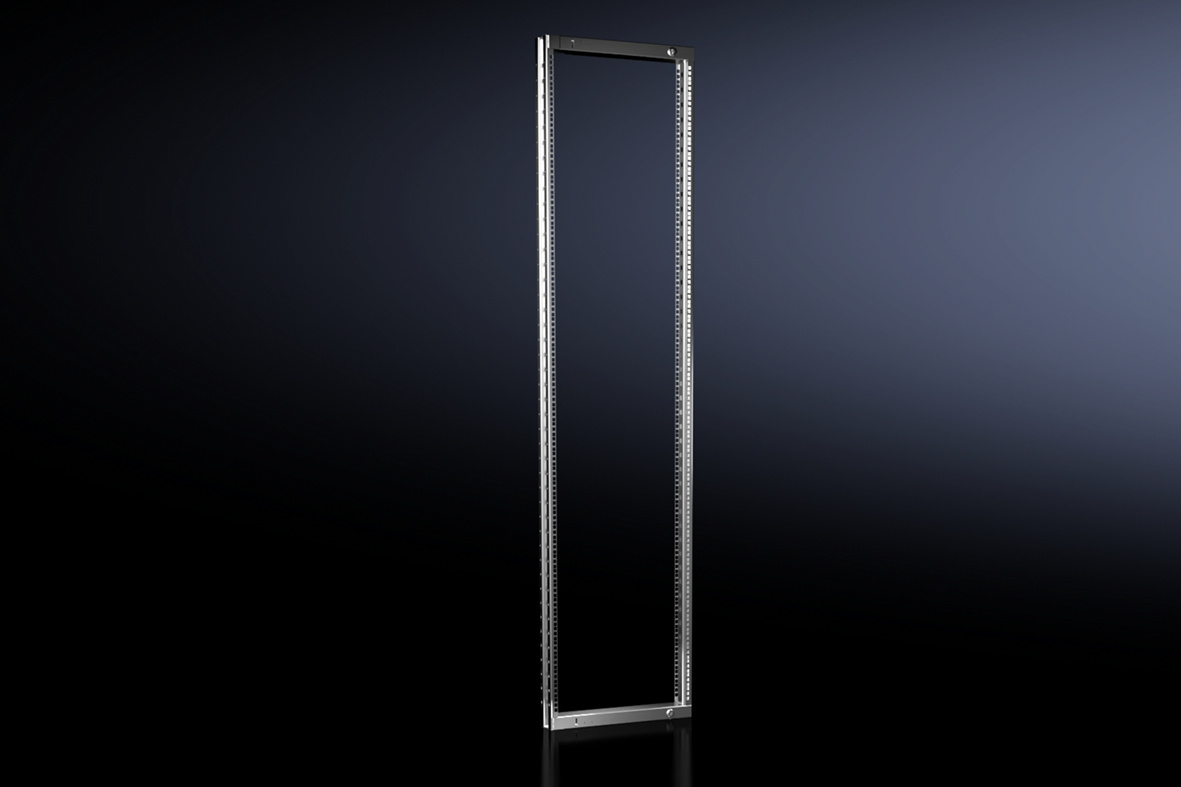

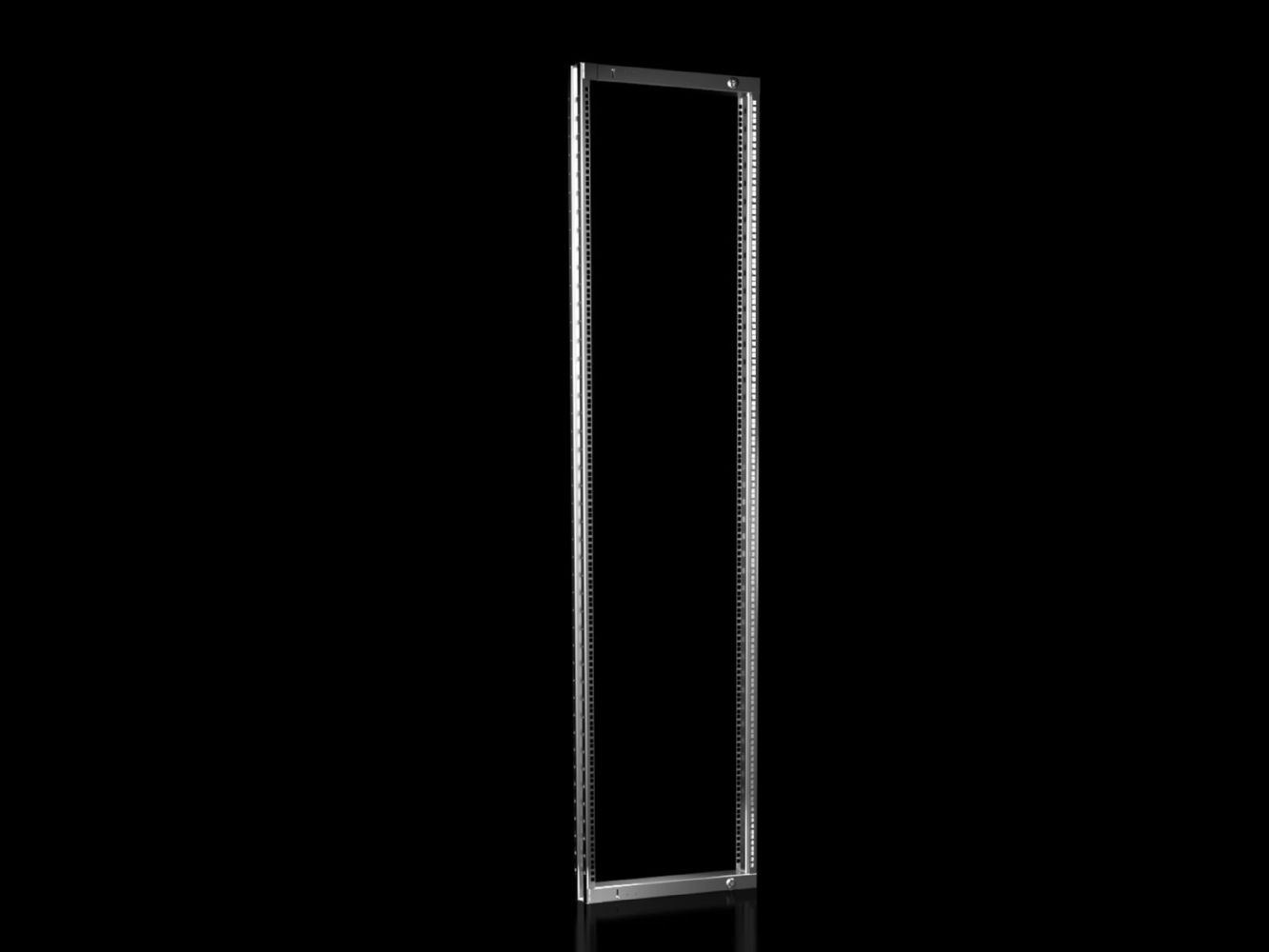

Rittal 8619014 VX swing frame, large, without trim panel, for W: 600 mm
|
316,60 EUR |
|
|
( 376,75 EUR incl. VAT ) ≈ £264.99 | ≈ $347.94 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1441942 |
| Mfg Part No: | 8619014 |
| UPC/EAN: | 4028177920422 |
| Weight: | 14.003 kg |
| Type: | VX 8619.014 |
Product information for Rittal 8619014:
Applications
The swing frame is used for the secure and accessible mounting of network or control components in industrial environments. It is particularly suitable for installations where frequent maintenance or configuration of installed devices is required. The swinging motion enables easy operation and inspection of the devices without having to open the entire enclosure. Use in enclosures with a width of 600 mm and a height of at least 2200 mm is intended, with compatibility with the VX system guaranteed.
Functions and Equipment in Detail
The delivery includes the lock system, a 130° hinge, and the material for mounting to the mounting kit. The hinge allows the frame to open up to 130°, ensuring good access to the mounted components. The lock system ensures secure fixation of the frame in the closed position. For mounting, a mounting kit is required, and depending on the expansion situation, system chassis 23 x 64 mm are needed. These chassis serve as mounting elements and are available in various widths, including 400 mm, 500 mm, 600 mm, and 800 mm.
Technology Explained Simply
The swing frame is made of sheet steel, which is galvanized in the frame to prevent corrosion. The painted trim panel in RAL 7035 provides a uniform surface and is designed for industrial use. Mounting is done on a mounting kit, with fastening achieved via the designated mounting surfaces using the system chassis 23 x 64 mm. The 130° opening allows sufficient angle for operating and maintaining the devices. The use of 44 HE corresponds to a standard in industrial electrical engineering and ensures compatibility with common installation devices.
Compatibility and Accessories
The swing frame is specifically designed for VX enclosures with a width of 600 mm. For mounting, system chassis 23 x 64 mm are required, available in various widths (400 mm, 500 mm, 600 mm, 800 mm). Additionally, mounting kits for swing frames in widths of 800 mm and 1200 mm are available in the range, but not for the 600 mm frame.
Mounting and Installation
Mounting is carried out on a mounting kit, with fastening achieved via the designated mounting surfaces using the system chassis 23 x 64 mm. Installation requires correct alignment and fastening to ensure a secure and stable mounting. The swinging motion is enabled by the 130° hinge, which is included in the delivery.
Advantages in Operation
The swing frame enables efficient maintenance and inspection of mounted devices, as these are accessible without fully opening the enclosure. The use of 44 HE provides sufficient space for multiple installation devices. The galvanized surface of the frame ensures high corrosion resistance, while the painted trim panel in RAL 7035 offers a uniform and robust surface. Integration into the VX system ensures high compatibility with other system components.
| General | |
| Model | Without bezel |
| Material | steel sheet |
| Surface protection | Frame: galvanised, faceplate: painted |
| Colour | Shutter: RAL 7035 |
| Scope of delivery | Including closure system, 130° hinge, material for mounting on installation kit |
| Mounting note | Depending on the expansion situation, system chassis 23 x 64 mm are required |
| Note | To lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail" |
| Suitable for | Width: = 600 mm, Height: ≥ 2,200 mm |
| Height units | 44 HE |
