Rittal 8228000 VX bayed enclosure system 830x2330x1210 mm

Your rating:
Average rating
product review for Rittal 8228000 VX bayed enclosure system 830x2330x1210 mm
( 0 / 5 ) 0 ratings

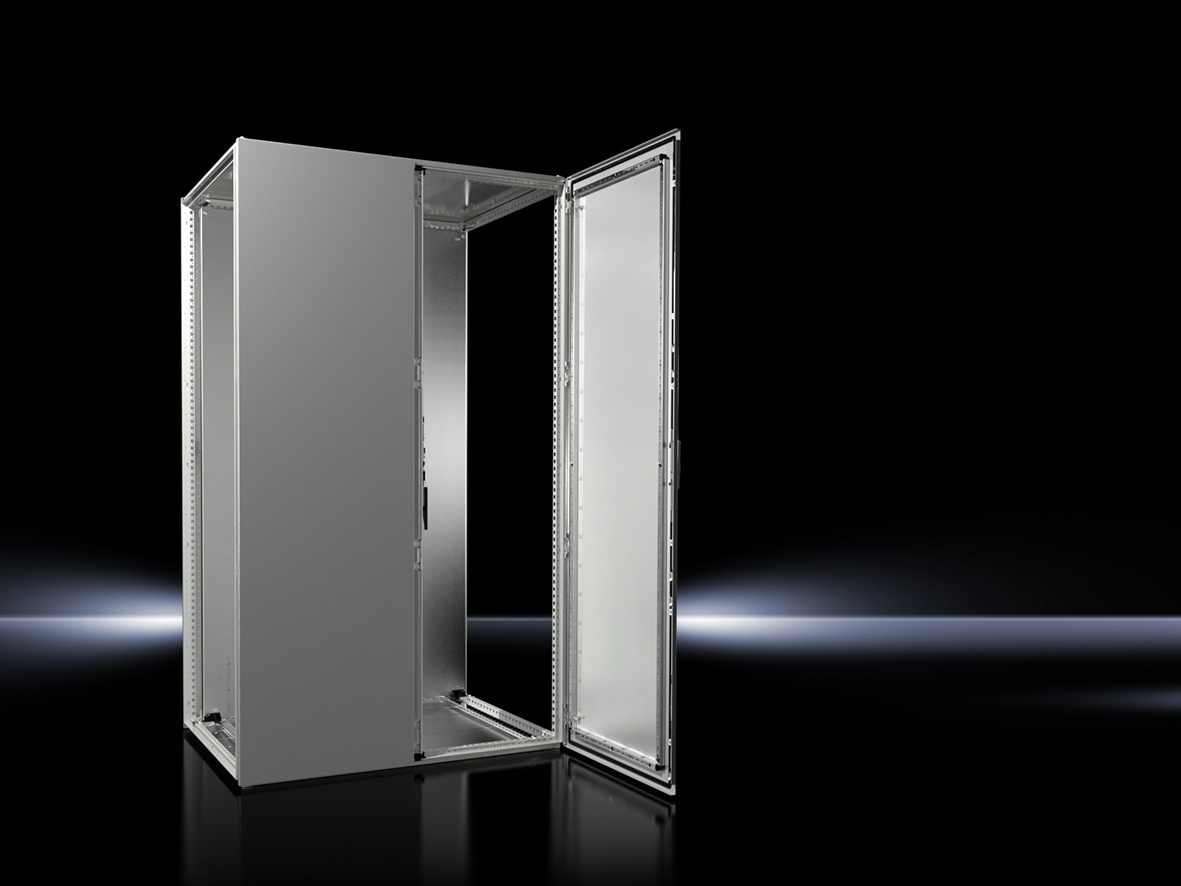

Rittal 8228000
This image may differ from the desired article.
Rittal 8228000Rittal 8228000Rittal 8228000Rittal 8228000Rittal 8228000Rittal 8228000
1.163,80 EUR
( 1.384,92 EUR incl. VAT )
≈ £974.10  |  ≈ $1,279.02
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8228000 VX bayed enclosure system 830x2330x1210 mm
Datasheet:file_download Download
Lieske Part No.:1866133
Mfg Part No: 8228000
UPC/EAN: 4028177936010
Weight:210 kg
Type:VX 8228000

Product information for Rittal 8228000:

The Rittal VX 8228000 is a bayed enclosure system made of sheet steel, designed for use in industrial and technical installations. It features a front side with two doors and is equipped with a mounting plate that enables flexible installation of components. The dimensions are 1,200 mm width, 2,200 mm height, and 800 mm depth, with the mounting plate measuring 1,099 mm × 2,096 mm. The enclosure system is designed for use in environments requiring high mechanical load capacity and protection against dust and splashing water.

Applications
This enclosure system is suitable for use in production plants, automation technology, power supply systems, and other industrial environments. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, making it suitable for indoor use as well as in slightly damp outdoor areas. The NEMA classification 12 and the type rating according to UL 50E (Type 1, Type 12) confirm suitability for industrial applications with increased environmental requirements. The IK code IK10 indicates high mechanical resistance against impact and shock, making the system suitable for environments with mechanical stress.

Functions and Equipment in Detail
The enclosure system consists of a frame made of sheet steel with a wall thickness of 1.5 mm, which is dip-primed. The doors, roof, and rear panel are also made of sheet steel, with the doors having a wall thickness of 2.0 mm. These components are externally powder-coated with a textured lacquer in the colour RAL 7035. The mounting plate and base sheets are galvanized and made of sheet steel with wall thicknesses of 3.0 mm and 1.5 mm respectively. The doors are fitted with a PU foam seal to ensure a tight seal. The hinges are standardly arranged on the right side but can be toollessly repositioned to the left. The doors are equipped with a 3 mm double-barrel lock, enabling secure latching. The door opening angle is 130° and can be toollessly extended to 180°. The clearance from the floor is 17 mm.

Technology Explained Simply
The construction of the enclosure system is based on a symmetrical profile frame structure with closed and profiled hollow profiles, which are perforated in a 25 mm grid. This allows for flexible and space-saving mounting of components. The horizontal profiles feature an additional groove above the seal, providing enhanced protection. The mounting plate is C-bent on the sides and is depth-adjustable in 25 mm increments via integrated plastic gliding pieces and reusable mounting rails. The base sheets are triple-divided, removable, and replaceable, enabling easy maintenance and cleaning. The rear panel and roof plate are removable and fitted with PU foam seals to ensure a tight seal. Electrical conductivity between the frame, rear panel, roof, and base sheets ensures automatic equipotential bonding in accordance with DIN 62 208.

Compatibility and Accessories
The enclosure system is bayable on all sides and can be extended with various accessories. Suitable accessories include levelling feet M12 with an adjustment height of 18–43 mm, VX comfort handles in various versions, 180° hinges, multi-locking mechanisms for padlocks, swing frames for panels, cable entry ferrules IP 55, transport eyes, door latches for escape routes, multitools, profiles for cable entry, support rollers, and transport stabilizers. These components allow for individual adaptation to specific installation and maintenance requirements.

Mounting and Installation
Mounting is done via integrated blind rivet nuts M6 on the frame, enabling protection-rated fastening of fittings. The mounting plate is depth-adjustable and features an integrated mounting grid for easy positioning of components. The base sheets are removable and can be detached for transport or maintenance. The rear panel and roof plate are removable and secured with screws, allowing flexible mounting and maintenance. The entire construction is designed for a load capacity up to 15,000 N, ensuring high mechanical stability.

Advantages in Operation
The enclosure system offers high mechanical stability, reliable IP 55 protection, and flexible mounting via the integrated mounting grid. The removable components facilitate maintenance and cleaning. The tool-free repositioning of hinges and the extension of the door opening to 180° improve accessibility. The integrated electrical conductivity ensures safe equipotential bonding. The use of sheet steel with different wall thicknesses and surface coatings ensures long service life and high corrosion resistance. The combination of robust design and flexible equipment makes the system a reliable solution for demanding industrial applications.

General
MaterialCabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm
Surface protectionCabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised
ColourRAL 7035
Scope of deliverycabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar
Width1.200 mm
Height2.200 mm
Depth800 mm
Mounting plate dimensions (W x H)1.099 mm x 2.096 mm
Degree of protection IP according to EN 60 529IP 55
NEMA degree of protectionNEMA 12
Type rating according to UL 50EType 1, Type 12
IK codeIK10
Number of doors2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)554.92 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8228000, EAN: 4028177936010
