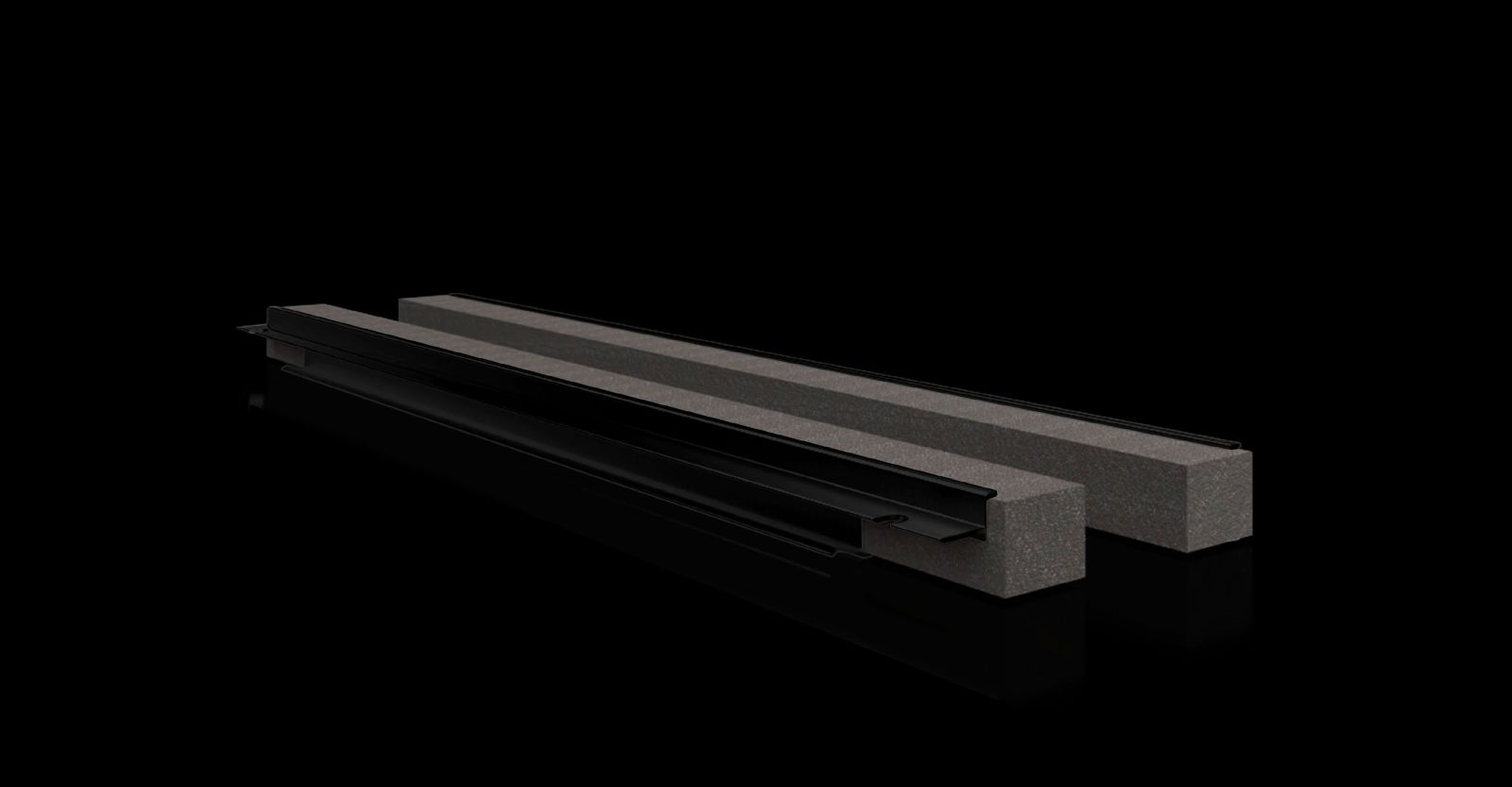

Rittal 8618813 VX profile for cable entry, rear, W: 1200 mm

Your rating:
Average rating
product review for Rittal 8618813 VX profile for cable entry, rear, W: 1200 mm
( 4.6 / 5 ) 57 ratings
Rittal 8618813
This image may differ from the desired article.
Rittal 8618813Rittal 8618813
38,57 EUR
( 45,90 EUR incl. VAT )
≈ £32.28  |  ≈ $42.39
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8618813 VX profile for cable entry, rear, W: 1200 mm
Datasheet:file_download Download
Lieske Part No.:1441947
Mfg Part No: 8618813
UPC/EAN: 4028177922822
Weight:0.38 kg
Type:VX 8618.813

Product information for Rittal 8618813:

The Rittal VX 8618.813 is a profile for cable entry, specifically designed for use on the rear side of enclosures. It provides secure and tight cable guidance through the base plate and enclosure frame, with installation achieved by simply snapping into place. The product is designed for enclosures with a width of 1200 mm and is compatible with enclosure types VX (from 1200 mm), VX SE, stand console CX, and console base CX. It is used in industrial installations where reliable cable routing and sealing are required.

Applications
This profile is mounted on the rear side of enclosures to allow cables to be introduced from outside into the enclosure. It is particularly suitable for installations requiring high cable sealing to exclude moisture, dust, or other environmental influences. Installation is done by snapping onto the base plate and enclosure frame, enabling quick and easy setup. From a cabinet width of 1000 mm, the base group is divided into two sections, allowing one cable entry point to be used on each side (left/right).

Functions and Equipment in Detail
The profile is made of rigid PVC, which is flame retardant and self-extinguishing. The material temperature resistance reaches up to +60 °C, making it suitable for industrial environments. Sealing is achieved using PU foam with a cross-section of 30 x 25 mm, ensuring full surface contact and high sealing performance for the introduced cables. The delivery includes the snap-on profiles and elastic clamping profiles for secure cable fixation. Two profiles are required per cable entry point.

Technology Explained Simply
The profile’s design allows for easy installation without additional tools. Snapping onto the base plate and enclosure frame ensures stable fixation. The PU foam seal creates a tight connection that effectively prevents moisture and dust ingress. The elastic clamping profiles hold cables securely in place, preventing shifting or loosening. The materials are designed for industrial use, with rigid PVC offering high mechanical strength and resistance to chemical influences.

Compatibility and Accessories
The profile is compatible with enclosure types VX (from 1200 mm), VX SE, stand console CX, and console base CX. It is specifically developed for enclosures with a width of 1200 mm. As suitable accessories, the VX cable strain relief rail, angle profile, W: 1200 mm is offered, which can be used for guiding and organizing cables inside the enclosure. Combining both products enables structured and secure cable routing.

Installation and Mounting
Installation is done by snapping the profile onto the base plate and enclosure frame. The elastic clamping profiles are inserted into the profile to secure the cables. The installation is tool-free and requires no additional fastening elements. The arrangement of profiles depends on cabinet width: from 1000 mm, two cable entry points (left/right) can be used.

Operational Advantages
The Rittal VX 8618.813 provides reliable and tight cable routing, protecting the integrity of electrical connections within the enclosure. Easy installation reduces setup time and minimizes errors. The materials are designed for industrial use and ensure long service life under load. The combination of rigid PVC and PU foam ensures high sealing performance, even in moist or dusty environments. The elastic clamping profiles prevent cable movement and ensure neat cable routing.

General
ApplicationsFor mounting on base plate and cabinet frame
MaterialRigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm
Scope of deliveryClip-on profiles, including elastic clamp profiles
NoteTwo pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used.
Suitable forCabinet type: VX: = 1.200 mm, cabinet type: VX SE, cabinet type: console CX, cabinet type: console base CX


Product data sheet
Datasheet for Rittal 8618813, EAN: 4028177922822
