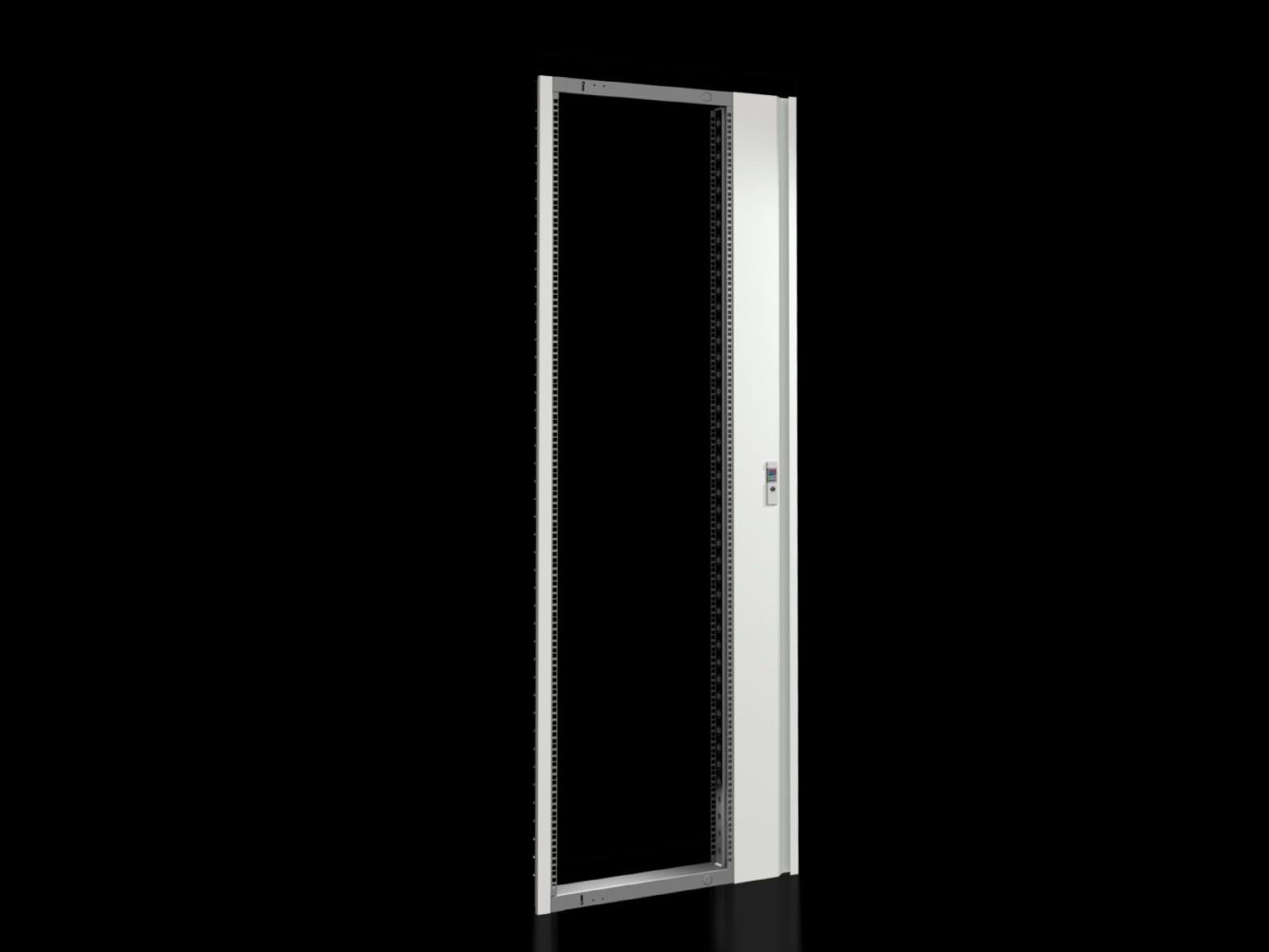

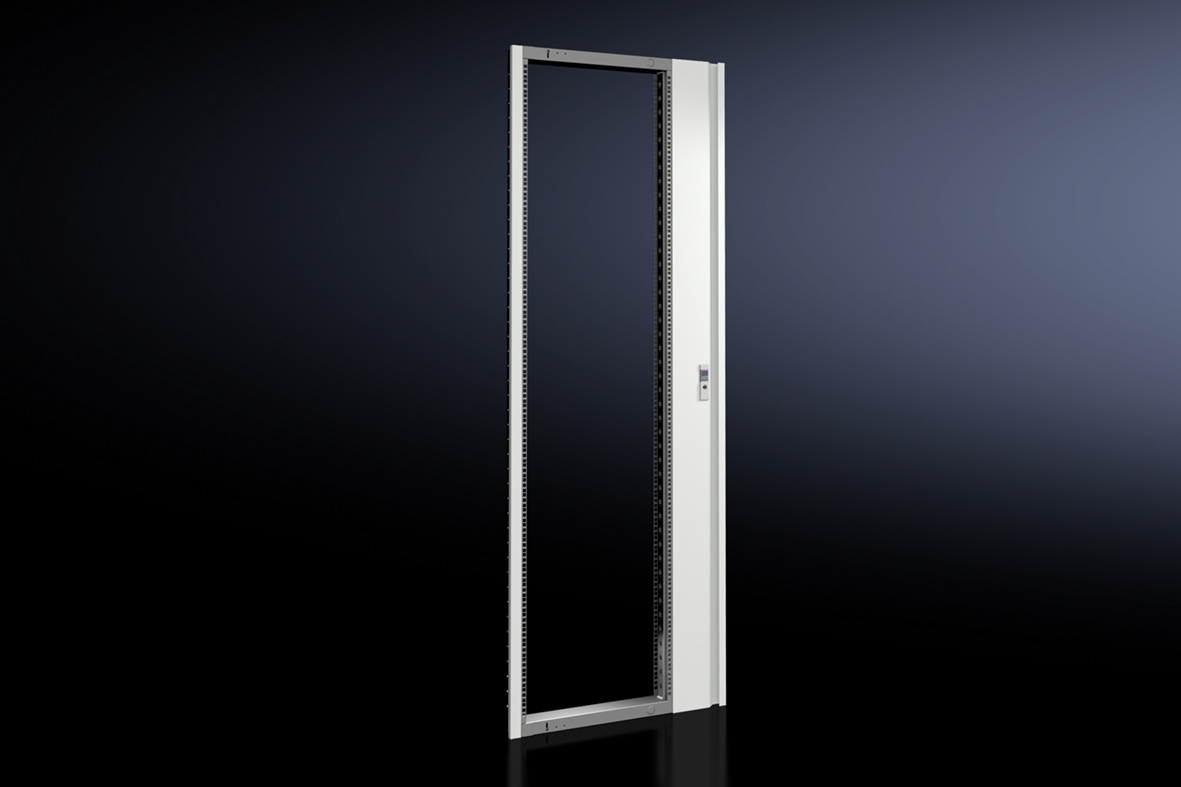

Rittal 8619024 VX swing frame large, single-sided trim panel, W: 800 mm

Your rating:
Average rating
product review for Rittal 8619024 VX swing frame large, single-sided trim panel, W: 800 mm
( 4.5 / 5 ) 17 ratings
Rittal 8619024
This image may differ from the desired article.
Rittal 8619024Rittal 8619024Rittal 8619024
-8% 371,45 EUR 402,29 EUR
( 442,03 EUR incl. VAT )
≈ £310.90  |  ≈ $408.22
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 8619024 VX swing frame large, single-sided trim panel, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1441937
Mfg Part No: 8619024
UPC/EAN: 4028177920378
Weight:22.514 kg
Type:VX 8619.024

Product information for Rittal 8619024:

The Rittal VX 8619.024 is a swing frame, large, with single-sided trim panel, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures. It is designed for enclosures with a width of exactly 800 mm and a minimum height of 2200 mm, offering a total height of 44 height units (HE). The product is made of sheet steel, with the frame galvanized and the trim panel painted in RAL 7035. The single-sided trim panel allows for organized access to mounted devices, while the other side remains open, which is advantageous in certain installation scenarios.

Applications

The swing frame is used in industrial and technical installations where flexible and accessible mounting of network or control components is required. It is particularly suitable for enclosures in the VX system with a width of 800 mm. The minimum height of 2200 mm ensures sufficient space for mounting 44 HE, which is sufficient for many standard applications in automation technology and IT infrastructure.

Functions and Equipment in Detail

The product is supplied with a locking system and a 130° hinge, enabling secure and stabilized swinging motion. The trim panel can be opened up to 130°, ensuring good access to mounted devices. The mounting hardware for attaching to the mounting kit is also included, simplifying installation. The use of sheet steel ensures high mechanical stability and durability.

Technology Explained Simply

The swing frame is designed for mounting 48,3 cm ( 19 inch ) devices, commonly used in IT and automation technology. The 44 HE correspond to a total height of approximately 2032 mm, enabling efficient use of enclosure volume. The galvanized surface of the frame provides corrosion protection, while the painted trim panel in RAL 7035 ensures a clean and uniform visual appearance. The 130° hinges allow for a sufficiently large opening angle to easily service or replace devices.

Compatibility and Accessories

The swing frame is specifically designed for enclosures with a width of 800 mm. Depending on the expansion situation, system chassis with dimensions 23 x 64 mm are required for mounting. Compatible accessories include lock inserts made of zinc die-cast, as well as various VX system chassis in widths of 400 mm, 500 mm, 600 mm, and 800 mm. Additionally, mounting kits for swing frames in widths of 800 mm and 1200 mm are available, enabling integration into larger enclosure configurations.

Mounting and Installation

Mounting is performed on a suitable mounting kit, with the necessary fastening materials included in the delivery. Depending on the expansion configuration, system chassis with dimensions 23 x 64 mm must be used to ensure secure and stable mounting. Installation does not require special tools, but adherence to mounting instructions is important to ensure correct function and stability.

Advantages in Operation

The swing frame provides secure and accessible mounting of 48,3 cm ( 19 inch ) components, simplifying maintenance and replacement tasks. The single-sided trim panel enables organized and clear arrangement of devices, while the 130° opening ensures good access. The use of sheet steel and galvanized surface ensures high mechanical strength and durability, even in industrial environments. Compatibility with various system chassis and mounting kits expands application possibilities and allows flexible adaptation to different enclosure configurations.

General
ModelBlind on one side
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 800 mm, Height: ≥ 2.200 mm
Height units44 HE


Product data sheet
Datasheet for Rittal 8619024, EAN: 4028177920378
