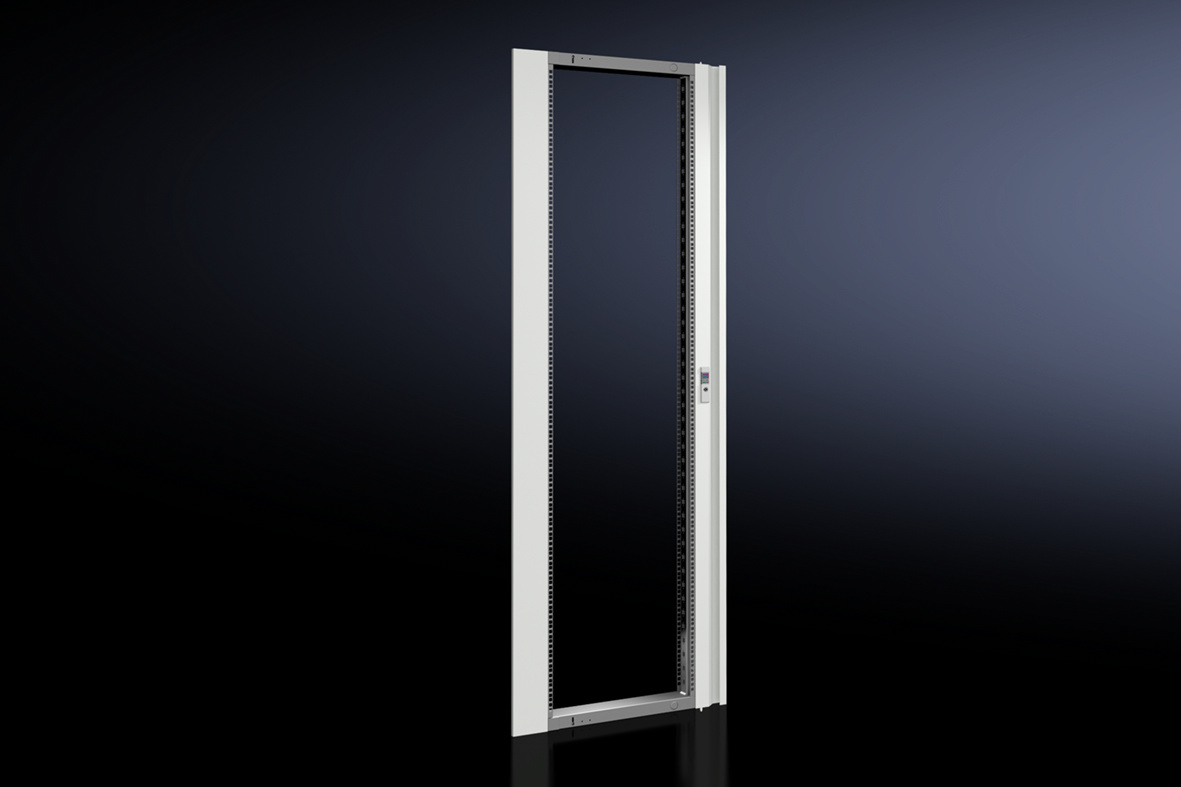

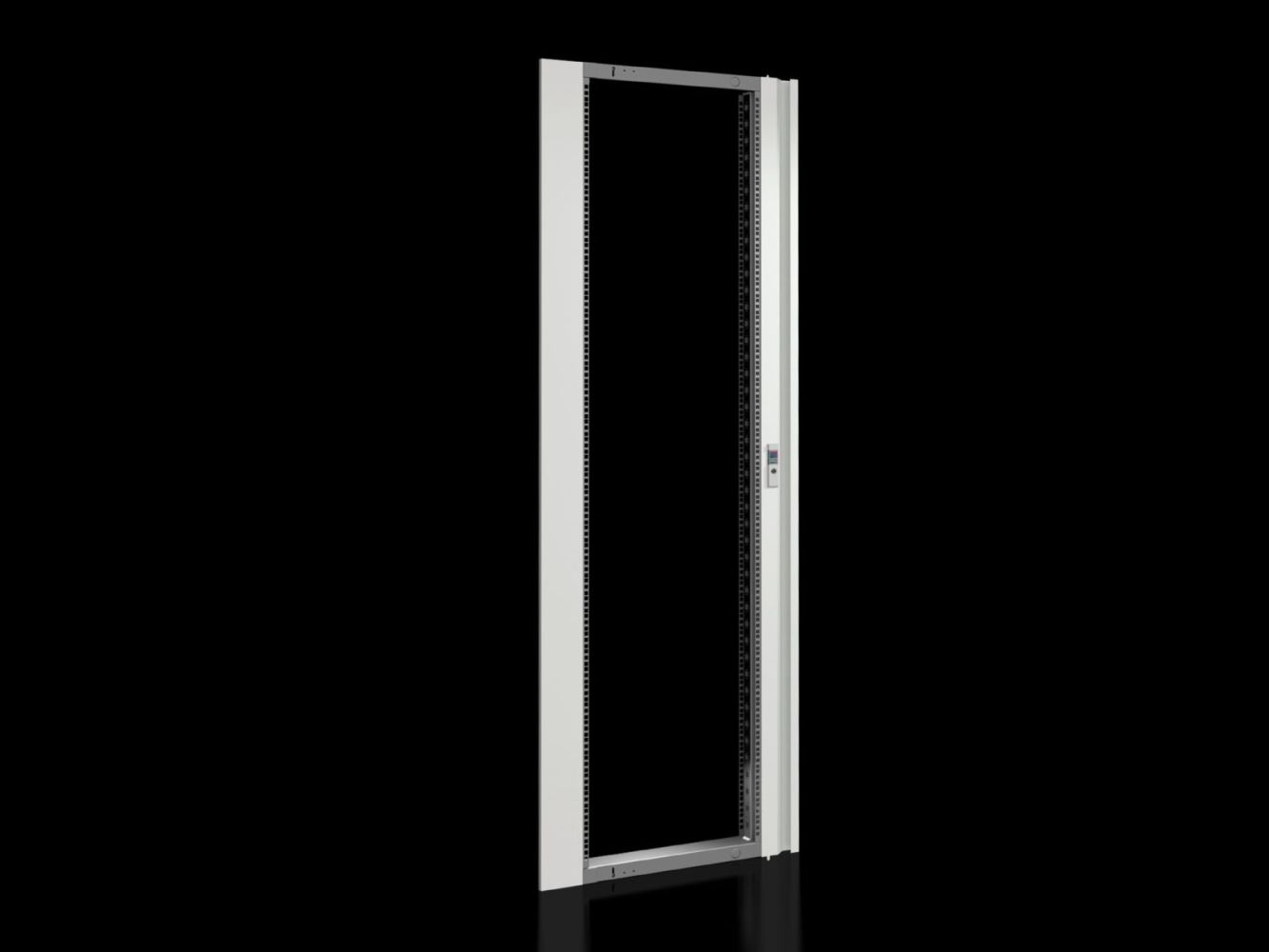

Rittal 8619034 VX swing frame large, trim panel on both sides, W: 800 mm

Your rating:
Average rating
product review for Rittal 8619034 VX swing frame large, trim panel on both sides, W: 800 mm
( 4.6 / 5 ) 9 ratings
Rittal 8619034
This image may differ from the desired article.
Rittal 8619034Rittal 8619034Rittal 8619034
-8% 376,05 EUR 407,27 EUR
( 447,50 EUR incl. VAT )
≈ £314.75  |  ≈ $413.28
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 8619034 VX swing frame large, trim panel on both sides, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1441933
Mfg Part No: 8619034
UPC/EAN: 4028177920330
Weight:22.5 kg
Type:VX 8619.034

Product information for Rittal 8619034:

The Rittal VX 8619.034 is a swing frame, large, with flanges on both sides, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures. It is designed for enclosures with a width of exactly 800 mm and a minimum height of 2200 mm, providing space for 44 height units (HE). The product is made of sheet steel, with the frame galvanized and the flange painted in RAL 7035. The version with flanges on both sides enables a visually uniform design of the enclosure front and simultaneously provides secure access to the mounted devices.

Applications

The swing frame is used in industrial and technical installations where flexible and secure mounting of network or control technology is required. It is particularly suitable for enclosures in the VX system with a width of 800 mm and a minimum height of 2200 mm. It is used in environments where bidirectional access to the mounted components is desired, for example in production plants, automation systems, or data processing units.

Functions and Equipment in Detail

The swing frame is equipped with a lock system and a 130° hinge, enabling secure and stable mounting. The flange can be opened up to 130°, ensuring good access to the mounted devices. The scope of delivery includes the lock system, the 130° hinge, and the material for securing to the mounting kit. Installation is carried out on a mounting kit, requiring system chassis with dimensions 23 x 64 mm depending on the expansion situation.

Technology Explained Simply

The construction of the swing frame allows for rotatable mounting of installation devices, enabling easy maintenance and inspection of components. The galvanized surface of the frame provides corrosion protection, while the painted flange in RAL 7035 offers a uniform and robust surface. The 44 HE correspond to a total height of approximately 2032 mm, enabling efficient use of the enclosure volume. Installation is carried out via the integrated lock system, ensuring secure locking.

Compatibility and Accessories

The swing frame is specifically designed for enclosures with a width of 800 mm. For installation, system chassis with dimensions 23 x 64 mm are required, available in various widths (400 mm, 500 mm, 600 mm, 800 mm). Additionally, mounting kits for swing frames are available in widths of 800 mm and 1200 mm.

Installation and Mounting

Installation is carried out on a mounting kit, with the required system chassis (23 x 64 mm) mounted according to the expansion situation. Fixing is done using the material included in the scope of delivery. The installation is designed for professionals in the electrical and IT sectors who are familiar with mounting enclosure accessories. The detailed installation instructions are included in the manufacturer’s data sheet.

Advantages in Operation

The swing frame provides secure and accessible mounting of 48,3 cm ( 19 inch ) installation devices. The double-sided flange enables uniform visual design and secure access. The use of system chassis ensures stable fixation, while the lock system provides secure locking. The installation is modular and can be adapted to various expansion situations, enabling flexible use in different applications.

General
ModelBlind plate on both sides
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 800 mm, Height: ≥ 2.200 mm
Height units44 HE


Product data sheet
Datasheet for Rittal 8619034, EAN: 4028177920330
