Rittal 8619021 VX swing frame large, single-sided trim panel, W: 800 mm

Your rating:
Average rating
product review for Rittal 8619021 VX swing frame large, single-sided trim panel, W: 800 mm
( 4.3 / 5 ) 11 ratings
Rittal 8619021
This image may differ from the desired article.
Rittal 8619021Rittal 8619021
320,85 EUR
( 381,81 EUR incl. VAT )
≈ £268.55  |  ≈ $352.61
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8619021 VX swing frame large, single-sided trim panel, W: 800 mm
Datasheet:file_download Download
Lieske Part No.:1441940
Mfg Part No: 8619021
UPC/EAN: 4028177920408
Weight:17.442 kg
Type:VX 8619.021

Product information for Rittal 8619021:

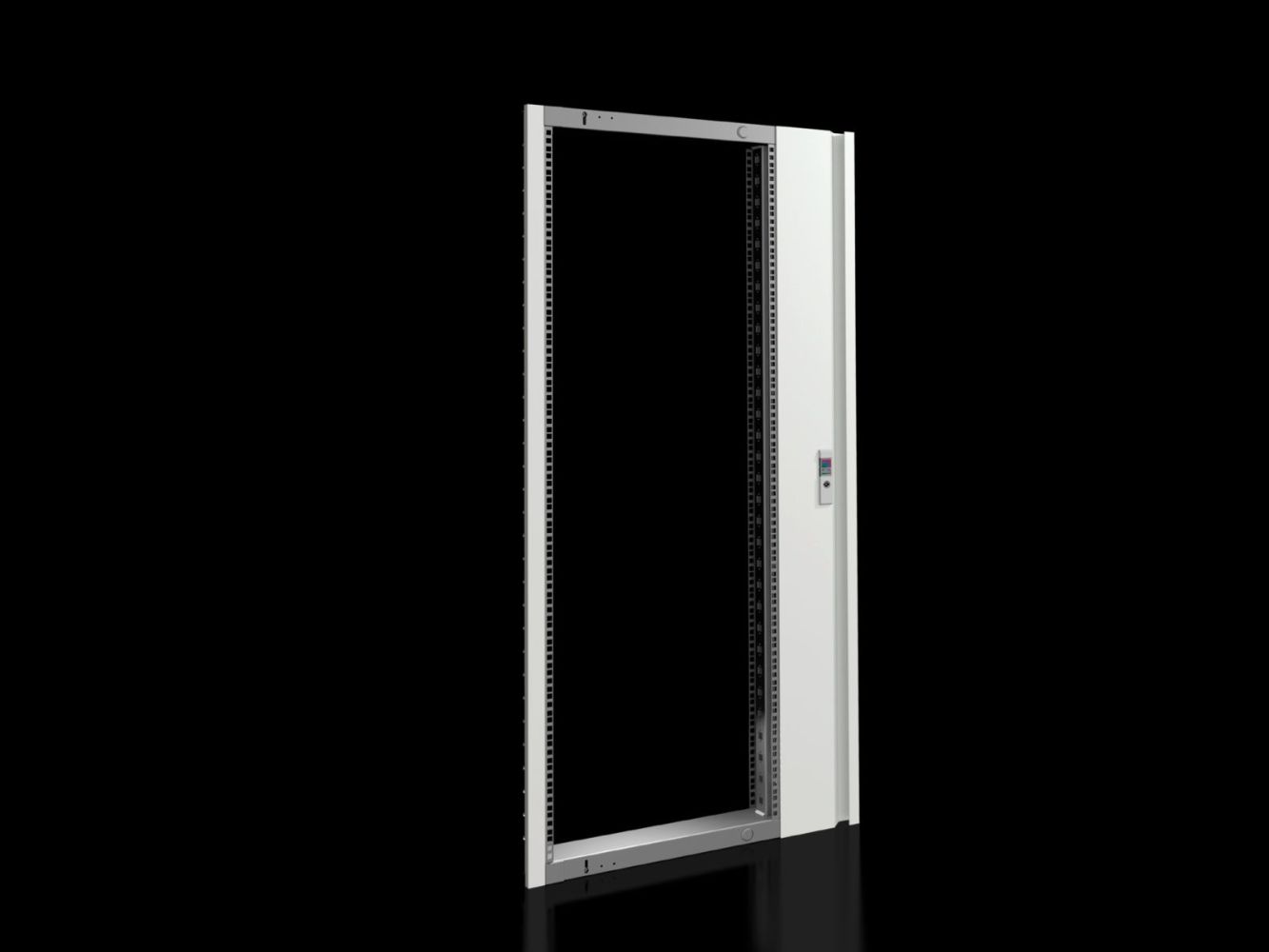

The Rittal VX 8619.021 is a swing frame, large, with single-sided trim panel, specifically designed for mounting 482.6 mm (48,3 cm ( 19 inch ))-installation components in enclosures. It is designed for enclosures with a width of exactly 800 mm and a minimum height of 1600 mm, offering space for 31 height units (HE). The product is made of sheet steel, with the frame galvanized and the trim panel painted in RAL 7035. The surface treatment ensures good corrosion protection and an attractive visual appearance. The swing frame is supplied with a locking system, a 130° hinge, and the necessary material for mounting to the mounting kit.

Applications

The swing frame is used for the secure and accessible mounting of standard 48,3 cm ( 19 inch ) devices in industrial enclosures. It is particularly suitable for applications where occasional maintenance or inspection of installed components is required, as it provides a swivelling front. The minimum enclosure height of 1600 mm and width of 800 mm define the compatible enclosure sizes in which this frame can be installed. The 31 HE provide sufficient space for multiple devices arranged vertically.

Functions and Equipment in Detail

The frame is equipped with an integrated locking system that ensures secure latching of the trim panel. The 130° hinge allows for a sufficiently large opening angle to facilitate device mounting and maintenance. The trim panel is single-sided, enabling installation in enclosures where only one side is accessible. Mounting to the mounting kit is achieved using the included material, designed for connection to the enclosure or mounting kit.

Technology Explained Simply

The use of sheet steel as material ensures high mechanical stability and durability. The galvanized surface of the frame protects against corrosion, especially in humid or industrial environments. The painted trim panel in RAL 7035 provides uniform coloration and is resistant to mechanical stress. The 31 HE correspond to a total height of approximately 1350 mm (with standard HE of 44.45 mm), which is sufficient for most industrial applications. Mounting is performed using the included fastening material, which is attached to the mounting kit.

Compatibility and Accessories

The swing frame is specifically designed for enclosures with a width of 800 mm. For mounting, system chassis with dimensions 23 x 64 mm are required, with the exact length varying depending on the installation situation. As accessories, various system chassis are available in lengths of 400 mm, 500 mm, 600 mm, and 800 mm, which can be selected according to enclosure size and mounting requirements. Additionally, locking inserts made of zinc die-cast are available in various versions to complement the locking system. Further expansion options are described in the manufacturer’s document “Technology in Detail”.

Mounting and Installation

Installation is performed by securing the swing frame to the mounting kit using the included material. Depending on the enclosure configuration, system chassis with dimensions 23 x 64 mm are required to ensure secure and stable mounting. The installation requires no additional tools beyond standard mounting aids such as screwdrivers or wrenches.

Operational Advantages

The swing frame enables easy and secure maintenance of installed devices, as the front is swivelling and thus provides access to the components. The integrated locking ensures safe operation, while the robust construction from sheet steel guarantees long service life and high load capacity. The single-sided trim panel is particularly advantageous in enclosures accessible only from one side. Compatibility with standard 48,3 cm ( 19 inch ) devices and precise alignment with enclosure dimensions simplify planning and installation in industrial environments.

General
ModelBlind on one side
Materialsteel sheet
Surface protectionFrame: galvanised, faceplate: painted
ColourShutter: RAL 7035
Scope of deliveryIncluding closure system, 130° hinge, material for mounting on installation kit
Mounting noteDepending on the expansion situation, system chassis 23 x 64 mm are required
NoteTo lock the open swivel frame, the swivel frame locking mechanism is required. For further expansion options, see "Technology in detail"
Suitable forWidth: = 800 mm, Height: ≥ 1.600 mm
Height units31 HE


Product data sheet
Datasheet for Rittal 8619021, EAN: 4028177920408
