Rittal 8619051 VX hinge 180° for swing frame, large

Your rating:
Average rating
product review for Rittal 8619051 VX hinge 180° for swing frame, large
( 5 / 5 ) 2 ratings
Rittal 8619051
This image may differ from the desired article.
Rittal 8619051Rittal 8619051Rittal 8619051
-10% 37,72 EUR 42,08 EUR
( 44,89 EUR incl. VAT )
≈ £31.57  |  ≈ $41.45
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8619051 VX hinge 180° for swing frame, large
Datasheet:file_download Download
Lieske Part No.:1920722
Mfg Part No: 8619051
UPC/EAN: 4028177969230
Weight:0.84 kg
Type:VX 8619051

Product information for Rittal 8619051:

The Rittal VX 8619051 is a 180° hinge for swing frames, specifically developed for use in VX switchgear. It extends the opening angle from 130° to 180°, improving accessibility to components and 48,3 cm ( 19 inch )-units located behind the swing frame. The product is made of die-cast material, enabling stable and secure mounting in frontmost installation positions. The static load capacity is 1,500 N, ensuring high load-bearing capability for industrial applications.

Applications
This hinge is exclusively intended for installation in VX switchgear. It is used in frontmost installation positions to optimize access to devices located behind the swing frame, such as network components, server modules, or other 48,3 cm ( 19 inch )-units. Extending the opening angle to 180° allows for full opening of the frame, enabling more efficient maintenance, inspections, and replacement operations.

Functions and Equipment in Detail

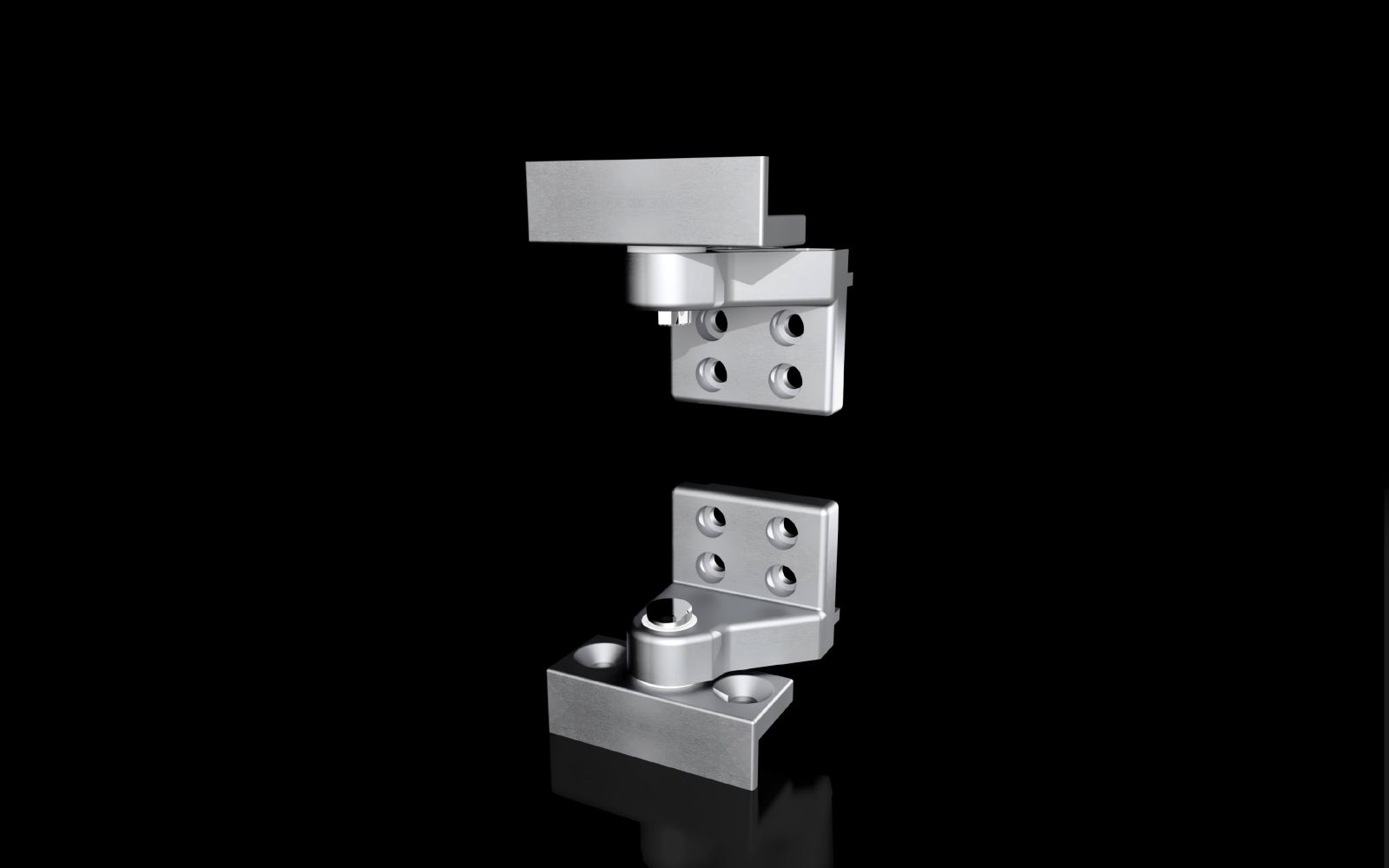

The product includes a hinge at top and bottom, ensuring stable and even load distribution. The delivery scope also includes the fastening material required for installation. The die-cast construction provides high mechanical strength and durability under industrial conditions. The static load capacity of 1,500 N allows use even with heavy or bulky components in the swing frame.

Technology Explained Simply
The hinge extends the opening angle from 130° to 180°, meaning the swing frame can be fully pivoted forward. This is particularly advantageous when components are mounted in the rear area of the frame, which would otherwise be only partially accessible. The use of die-cast material ensures high strength and resistance to mechanical stress. The static load capacity of 1,500 N corresponds to a load of approximately 150 kg, which is sufficient for use in industrial switchgear.

Compatibility and Accessories
The hinge is only suitable for installation in VX switchgear. It is specifically designed for swing frames mounted in frontmost installation positions. Compatibility is limited to the VX product family from Rittal.

Installation and Mounting

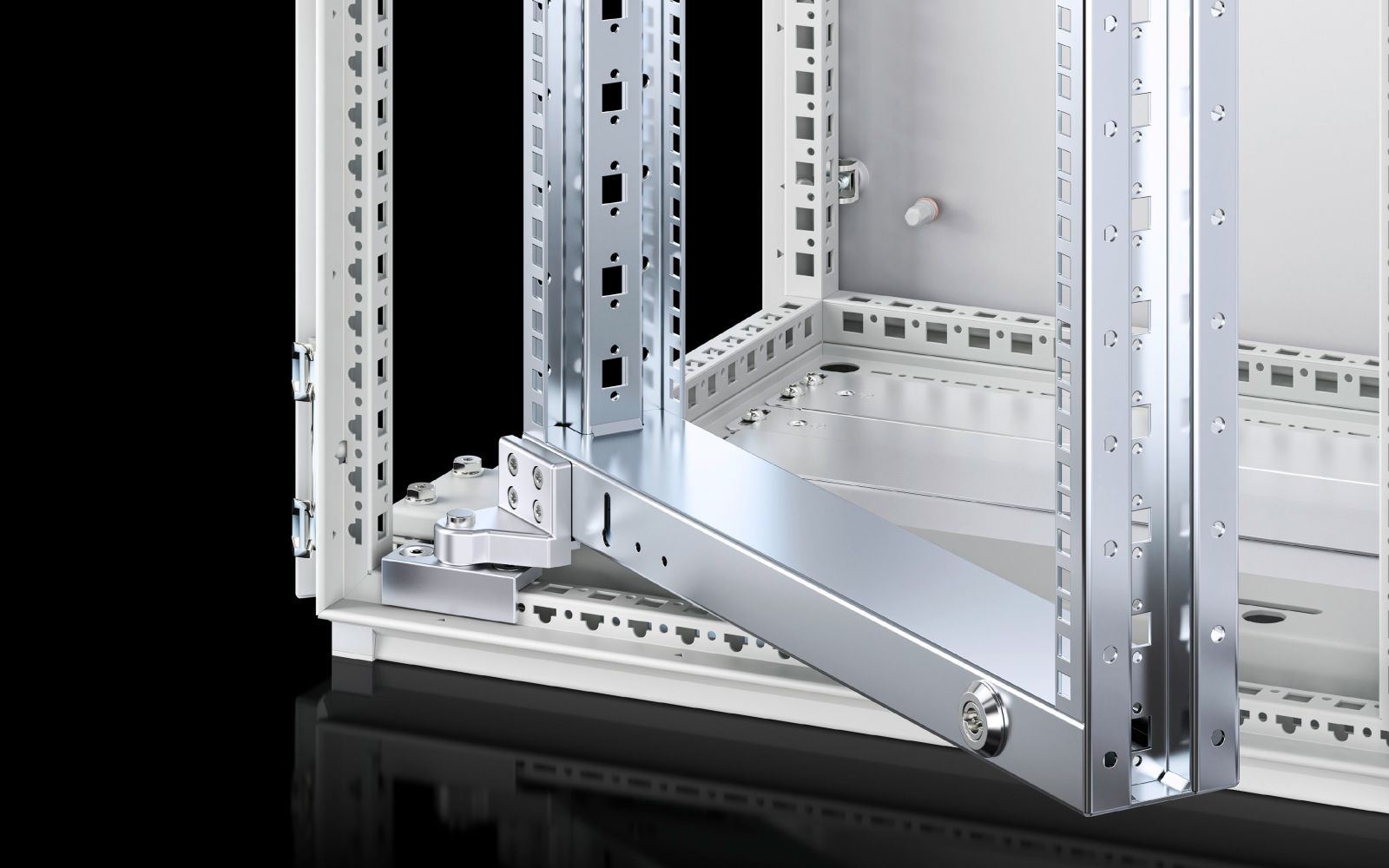

Installation is carried out using the fastening material included in the delivery scope. The hinge is mounted at the top and bottom of the swing frame, utilizing the designated mounting points in the VX system. The installation is designed to be performed without additional modifications or adjustments to the switchgear enclosure.

Operational Advantages
Extending the opening angle to 180° significantly improves accessibility to components located behind the swing frame. This reduces the time required for maintenance and inspection tasks and increases efficiency during component installation and removal. The high static load capacity of 1,500 N ensures safe and reliable operation even under demanding conditions. The use of die-cast material guarantees long service life and resistance to mechanical stress.

General
Materialdie-cast
Scope of deliveryHinges at top and bottom, including mounting hardware
Opening angle180°
NoteInstallation only possible in VX
Load capacity (static)1.500 N


Product data sheet
Datasheet for Rittal 8619051, EAN: 4028177969230

Questions & answers

What is the delivery time of Rittal 8619051 VX hinge 180° for swing frame, large?

The article Rittal 8619051 VX hinge 180° for swing frame, large is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8619051 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8619051 VX hinge 180° for swing frame, large always at the best possible price. We can give you a discount of 2% on Rittal 8619051 VX hinge 180° for swing frame, large if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
