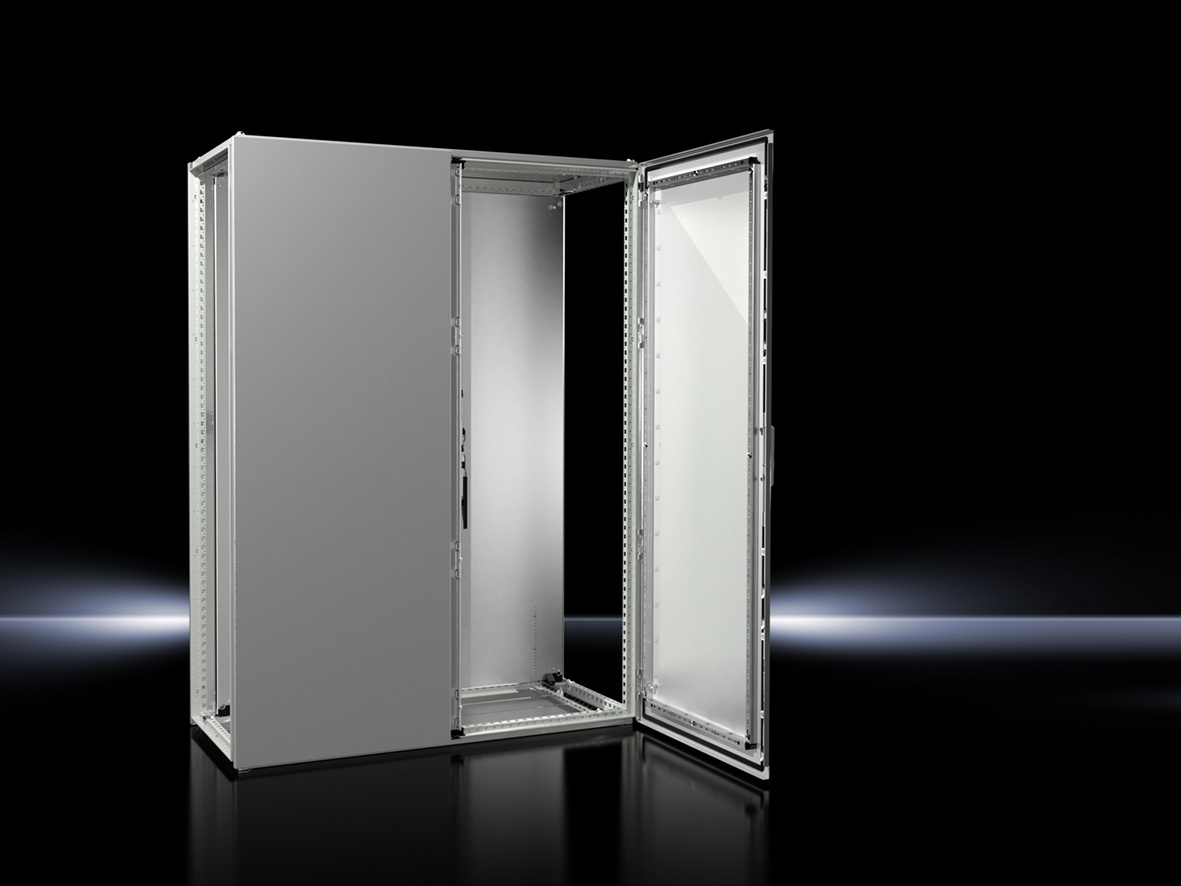

Rittal 8265000 VX bayed enclosure system, 2-door, W x H x D: 1200x1600x500 mm
|
825,70 EUR |
|
|
( 982,58 EUR incl. VAT ) ≈ £691.11 | ≈ $907.44 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440722 |
| Mfg Part No: | 8265000 |
| UPC/EAN: | 4028177817739 |
| Weight: | 156.4 kg |
| Type: | VX 8265.000 |
Product information for Rittal 8265000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical stability and protection against dust and splashing water are required. It is suitable for use in production halls, manufacturing plants, power supply systems, and other areas where enclosures are mounted in bays. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from any direction, enabling use indoors under normal industrial conditions. The protection ratings NEMA 1 and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 12), comply with international standards for use in dry and damp indoor environments. The IK code IK10 indicates high mechanical strength against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure system features two front doors equipped with foamed PU foam sealing to ensure a tight seal. The doors are fitted with removable square tube frames, also perforated in a 25 mm grid, enabling flexible component mounting. The lock door is positioned on the right and can be converted to the left, allowing flexible installation at various locations. The door is equipped with a 3 mm double-bar lock according to DIN 43668, providing quadruple locking security. The secondary door is additionally secured with a swing lever, providing double locking. The hinges are fitted with non-removable hinge pins, and the door opening angle is 130°, with a tool-free extension to 180° possible. The clearance from the floor is 17 mm.
Technology Explained Simply
The enclosure system consists of a frame made of sheet steel with a thickness of 1.5 mm, dip-primed. The doors, roof, and rear panel are also made of sheet steel (doors: 2.0 mm, roof and rear panel: 1.5 mm) and dip-primed, externally powder-coated with textured paint. The mounting plate and floor sheets are made of sheet steel (3.0 mm and 1.5 mm respectively) and galvanized. The surface treatment ensures high corrosion resistance and mechanical strength. The floor sheets are three-part, removable, and replaceable, enabling easy maintenance and cleaning. The rear panel and roof plate are removable and fitted with PU foam sealing to ensure a tight seal. The rear panel features a positioning aid to enable precise installation. The roof is fitted with roof mounting screws M12.
Compatibility and Accessories
The enclosure system is bayable on all sides and can be extended with various accessories. Compatible accessories include levelling feet M12 with an adjustment height of 18–43 mm, TS mounting rails for external mounting plane, C-profile rails, cable routing space, transport eyes, VX floor sheet, VX comfort handles for various locking systems, dust protection strips, cable entry ferrules in various diameters, multi-locking systems, circuit diagram pockets in various depths, and an AS Multitool.
Mounting and Installation
Mounting is done via the integrated floor frame with integrated floor reinforcement, enabling fastening to the base. The mounting plate is depth-adjustable in 25 mm increments, allowing flexible adaptation to various components. The mounting rails (2 pieces, 18 x 39 mm) are included in the delivery and enable easy installation of components. The entire construction is designed for a load capacity up to 15,000 N, ensuring high mechanical stability. The rear panel, roof, and floor sheets are electrically connected to the frame, enabling automatic equipotential bonding according to DIN 62 208 and simplifying grounding.
Operational Advantages
The enclosure system offers high mechanical stability, tight sealing against dust and splashing water, and flexible mounting and maintenance. The integrated mounting planes and 25 mm perforation grid enable quick and space-saving installation of components. The removable doors, rear panel, and floor sheets facilitate maintenance and cleaning. The bayable construction allows flexible expansion of the installation. The surface treatment ensures high corrosion resistance, extending the service life of the enclosure system. The integrated grounding and automatic equipotential bonding increase operational safety.
The enclosure system is available in the colour RAL 7035, enabling good visibility and integration into industrial environments. The PCF values (Cradle-to-Gate) are 407.86 kg CO2 eq (Category B), indicating the environmental impact of the product. The packaging unit is 1 piece, the net weight is 144.06 kg, and the gross weight is 156.4 kg. The customs tariff number is 94032080. A printed QR code is affixed to the enclosure, providing further information.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 1.200 mm |
| Height | 1.600 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 1.099 mm x 1.496 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 2 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 407.86 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 8265000 VX bayed enclosure system, 2-door, W x H x D: 1200x1600x500 mm?
The article Rittal 8265000 VX bayed enclosure system, 2-door, W x H x D: 1200x1600x500 mm is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8265000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 8265000 VX bayed enclosure system, 2-door, W x H x D: 1200x1600x500 mm always at the best possible price. We can give you a discount of 2% on Rittal 8265000 VX bayed enclosure system, 2-door, W x H x D: 1200x1600x500 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
