Rittal 8609206 VX partition panel, height: 2000x800 mm,

Your rating:
Average rating
product review for Rittal 8609206 VX partition panel, height: 2000x800 mm,
( 4.4 / 5 ) 9 ratings

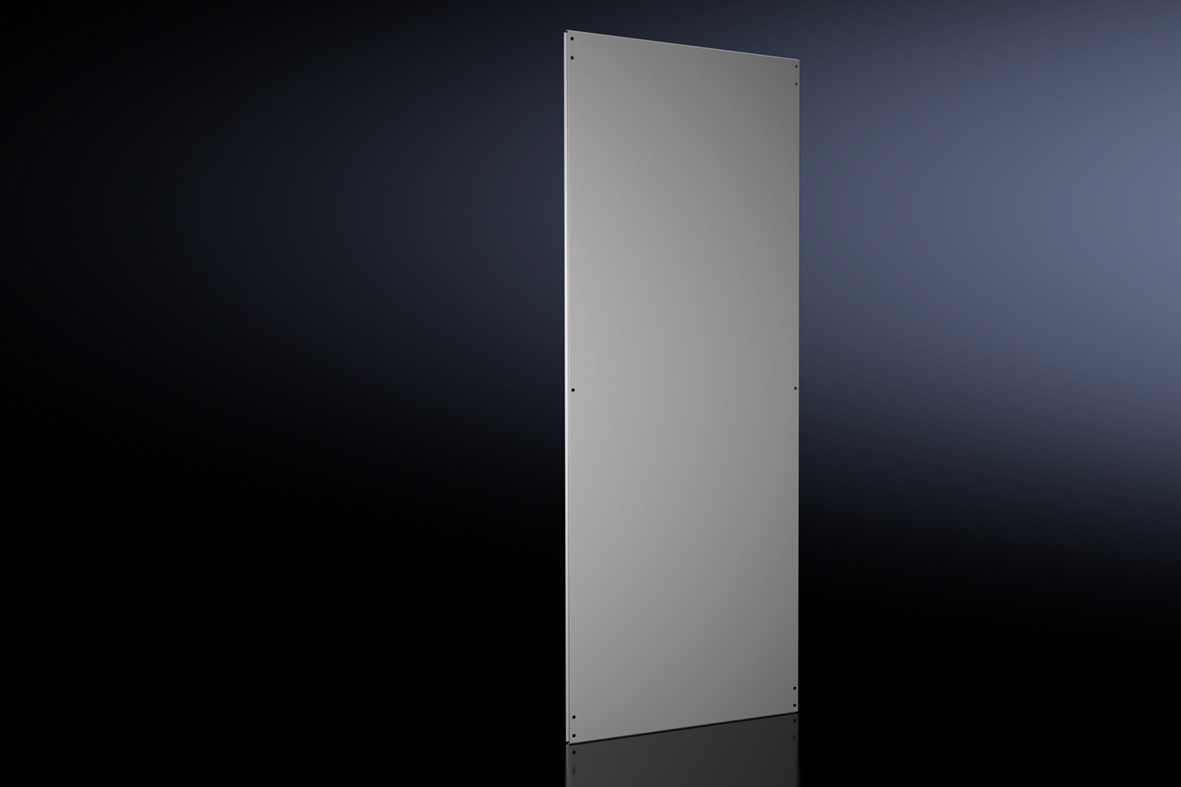

Rittal 8609206
This image may differ from the desired article.
Rittal 8609206Rittal 8609206Rittal 8609206
110,98 EUR 114,94 EUR
( 132,07 EUR incl. VAT )
≈ £92.89  |  ≈ $121.97
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 8609206 VX partition panel, height: 2000x800 mm,
Datasheet:file_download Download
Lieske Part No.:1440939
Mfg Part No: 8609206
UPC/EAN: 4028177817807
Weight:19 kg
Type:VX 8609.206

Product information for Rittal 8609206:

The Rittal VX 8609.206 partition panel is a system accessory for enclosures of the VX housing type, specifically designed for enclosures with a height of 2,000 mm and a depth of 800 mm. It serves to compartmentalize individual enclosure cells and enables a structured division of the interior space, allowing different functions or device groups to be spatially separated. The partition panel is mounted on the outer mounting plane, leaving the inner plane free for additional installations. The construction from sheet steel with a thickness of 1.5 mm offers high stability and is supplied galvanized to prevent corrosion. The continuous, double hemming provides additional strength and also serves as a mounting surface for a seal, ensuring the protection rating IP 54 according to IEC 60 529. This protection rating means that the partition panel is dust-tight and protected against splashing water from all directions, making it suitable for use in industrial environments.

Applications

The partition panel is particularly suitable for spatial separation of electrical or electronic assemblies within an enclosure. It can, for example, be used to isolate sensitive control electronics from powerful drive components such as frequency converters. Due to the symmetrical design of the frame system, the partition panel can also be mounted on the rear side of the enclosure. This allows, for example, the installation of frequency converters with heat sinks facing outward, optimizing heat dissipation and enabling the assembly to be protected or concealed with a cover hood.

Functions and Equipment in Detail

The partition panel is supplied with mounting hardware intended for installation on the outer mounting plane of the VX enclosure. The double hemming ensures a robust construction and allows for the installation of a seal, which supports the IP protection rating 54. The partition panel is designed for enclosures with dimensions height 2,000 mm and depth 800 mm, thus fitting standard VX enclosure sizes. Installation takes place on the outer mounting plane, leaving the inner plane free for further installations.

Technology Explained Simply

The use of sheet steel with a thickness of 1.5 mm ensures sufficient mechanical strength to maintain stability of the partition panel even under load. The galvanized surface protects the material from corrosion, which is particularly important in damp or aggressive environments. The protection rating IP 54 means that the partition panel is dust-tight and protected against splashing water from all directions, making it suitable for use in industrial plants. The double hemming along the edge of the partition panel increases stability and simultaneously provides a surface to mount a seal, which supports the IP protection rating.

Compatibility and Accessories

The partition panel is specifically designed for VX enclosure housings with dimensions height 2,000 mm and depth 800 mm. For baying multiple enclosures in combination with a partition panel, additional components are required: either the baying bracket inside (part number 8617500) or the baying connector outside (part number 8617502). These elements enable a secure and stable connection between the enclosures. Additionally, accessories such as VX baying connector, outside, sheet steel: 1200 mm" and "baying bracket VX inside, 6 pieces are available for baying enclosures.

Installation and Mounting

The partition panel is mounted on the outer mounting plane of the VX enclosure. Mounting is done using the included hardware. The inner mounting plane remains free to allow installation of additional components such as control panels or devices. When baying multiple enclosures, the use of the inner baying bracket or the outer baying connector is required to ensure a stable connection. The partition panel can also be mounted on the rear side of the enclosure, enabling flexible use.

Operational Advantages

The partition panel provides clear spatial separation within the enclosure, increasing clarity and maintainability. The option to mount the partition panel on the rear side expands application possibilities, especially for devices requiring direct heat dissipation. The IP protection rating 54 ensures reliable protection against dust and splashing water, enhancing operational safety in industrial environments. The galvanized surface ensures long service life and resistance to corrosion. The included mounting hardware simplifies installation and ensures secure anchoring.

General
MaterialSheet steel, 1.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX, height: = 2,000 mm, depth: = 800 mm
Mounting optionsInstallation is on the outer mounting plane; the inner plane remains free for further expansion
Mounting noteFor mounting in combination with a partition, the mounting bracket inside 8617500 or the mounting connector outside 8617502 is required
Degree of protection IP according to IEC 60 529IP 54


Product data sheet
Datasheet for Rittal 8609206, EAN: 4028177817807

Questions & answers

What is the delivery time of Rittal 8609206 VX partition panel, height: 2000x800 mm, ?

The article Rittal 8609206 VX partition panel, height: 2000x800 mm, is currently in stock

According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8609206 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8609206 VX partition panel, height: 2000x800 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8609206 VX partition panel, height: 2000x800 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
