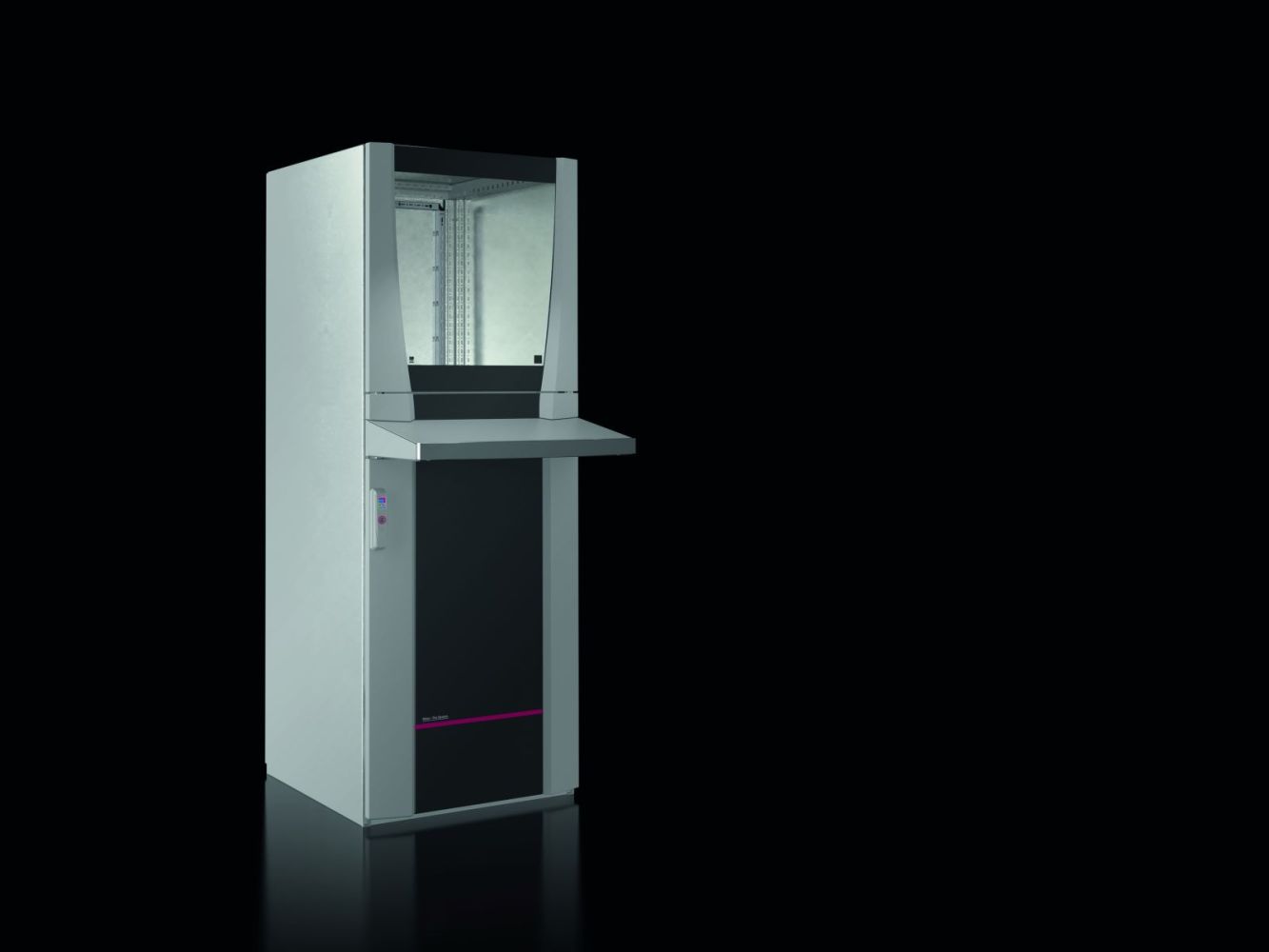

Rittal 5366250 PC enclosure system, W 600 mm, viewing door, component shelf, P

Your rating:
Average rating
product review for Rittal 5366250 PC enclosure system, W 600 mm, viewing door, component shelf, P
( 4 / 5 ) 2 ratings
Rittal 5366250
This image may differ from the desired article.
Rittal 5366250Rittal 5366250Rittal 5366250Rittal 5366250Rittal 5366250Rittal 5366250Rittal 5366250
1.629,55 EUR 1.641,40 EUR
( 1.939,16 EUR incl. VAT )
≈ £1,363.93  |  ≈ $1,790.88
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5366250 PC enclosure system, W 600 mm, viewing door, component shelf, P
Datasheet:file_download Download
Lieske Part No.:1910627
Mfg Part No: 5366250
UPC/EAN: 4028177959484
Weight:94.2 kg
Type:PC 5366250

Product information for Rittal 5366250:

The Rittal PC enclosure system, type 5366250, is a closed housing for the secure installation of PC components, including monitor, computer, and keyboard. It is designed for use in industrial or technical environments where protection against moisture, dirt, temperature fluctuations, and unauthorized access is required. The housing is made of sheet steel and features a viewing door at the top, a console front, and a fixed built-in component shelf serving as a mounting surface for the monitor. Dimensions are 600 mm width, 1,600 mm height, and 636 mm depth, with the construction enabling stable individual installation.

Applications
This enclosure system is suitable for use in production environments, technical control rooms, machine control systems, or other areas where a PC system must be protected from external influences. The protection class IP 55 according to IEC 60 529 ensures protection against dust and splashing water, making it suitable for outdoor use or in damp indoor areas. The NEMA classification 12 and the type rating according to UL 50E (Type 1, Type 12) confirm suitability for industrial applications with increased environmental requirements.

Functions and Equipment in Detail
The housing is equipped with a viewing door at the top, which is secured internally with a frame and hinged on the right side. The door features vertical plastic decor panels and a single-pane safety glass viewing window with a screen-printed mask. The maximum keyboard dimensions are 540 mm (W) × 40 mm (H) × 175 mm (D), enabling comfortable operation. The console front is fitted with a removable cover, a grip strip, and a top closure strip. The component shelf is perforated and fixed in place to ensure secure mounting of the monitor.

Technology Explained Simply
The surface of the housing and door is dip-primed and externally powder-coated, using a textured finish. The base color is RAL 7035, while the handles, monitor area, and central door section are in RAL 7015. This color scheme ensures a uniform visual appearance. The housing features a continuous system perforation on a 25 mm grid, enabling individual interior fitting. Additionally, profiled mounting profiles are attached to the side panels and roof, supporting space-saving installation of internal units.

Compatibility and Accessories
Various accessories are available for this enclosure system to extend its functionality. These include, for example, a pull-out component shelf for 600 mm, a stationary PC plinth, a drawer tray, a paper extraction flap, comfort handles in various versions, as well as plinth trim panels and corner pieces for supplementary mounting. The use of adapter rails enables compatibility with VX systems. These accessories can be added according to requirements to further optimize operation and protection of the PC system.

Mounting and Installation
Mounting is performed using the pre-defined mounting profiles and the system perforation on a 25 mm grid. The base plates are three-piece and made of galvanized sheet steel, providing a stable foundation. The bottom door and rear door are hinged on the right and feature rod locks with double-barrel lock inserts, ensuring secure closure.

Advantages in Operation
The enclosure system offers a high protection level for the installed PC components. The combination of IP 55 and NEMA 12 ensures reliability in demanding environments. The integrated viewing door allows uninterrupted operation of the monitor, while the keyboard can be placed on the console front. The robust construction from sheet steel and the powder-coated surface ensure long service life and resistance to mechanical stress. The modular design enables flexible adaptation to different requirements.

The product is delivered as a single unit and includes the housing, door, rear door, base plates, top viewing door, console front, and component shelf. The delivery is in a packaging unit with a net weight of 87.5 kg and a gross weight of 94.2 kg. The PCF value (Cradle-to-Gate) is 363.9 kg CO2 eq (Category B), indicating the environmental impact of the product.

General
ModelWith sight door on top, console extension and equipment floor
MaterialCasing, door, rear door, mounting panel, shelves: sheet steel, handles, decorative panels: plastic, door panels: aluminium, viewing window: single-pane safety glass
Surface protectionHousing and door: dip primed, externally powder-coated, textured lacquer
Basic colourRAL 7035
ColourHousing, door, decorative panels, shelves: RAL 7035, handle: RAL 7015, monitor panel, door centre section: RAL 7015
Scope of deliveryHousing, door, rear door, base plates, vision door, top, console front, device base
Width600 mm
Height1.600 mm
Depth636 mm
Degree of protection IP according to IEC 60 529IP 55
NEMA degree of protectionNEMA 12
Type rating according to UL 50EType 1, Type 12
Max. keyboard dimensions (WxHxD)540 x 40 x 175 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)363.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5366250, EAN: 4028177959484
