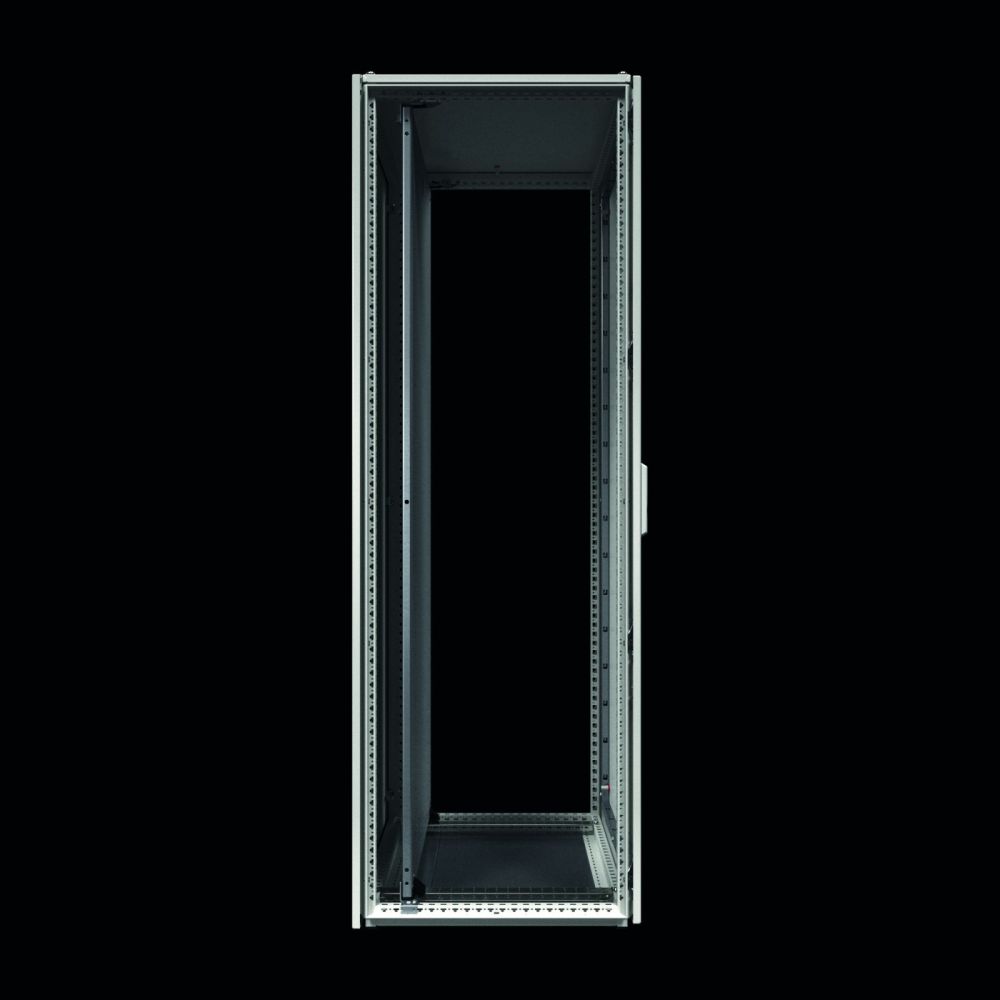

Rittal 8645000 VX bayed enclosure system, 1-door, W x H x D: 600x1400x500 mm
|
517,50 EUR |
|
|
( 615,82 EUR incl. VAT ) ≈ £433.15 | ≈ $568.73 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1440998 |
| Mfg Part No: | 8645000 |
| UPC/EAN: | 4028177813779 |
| Weight: | 73.8 kg |
| Type: | VX 8645.000 |
Product information for Rittal 8645000:
Applications
This enclosure system is designed for use in industrial environments where high mechanical load capacity and protection against dust and splashing water are required. It is suitable for control enclosures, distribution enclosures, drive systems, and other electrical installations installed in production halls, factories, or outdoor areas. The protection rating IP 55 according to EN 60 529 ensures protection against dust and splashing water from all directions, making it suitable for outdoor use as well. The NEMA classification includes NEMA 1 and NEMA 12, confirming suitability for dry indoor environments as well as environments with slight contamination risk. The type rating according to UL 50E includes Type 1 and Type 12, demonstrating compliance with North American safety standards. The IK code IK10 guarantees high mechanical protection against impact and shock.
Functions and Equipment in Detail
The enclosure system consists of an enclosure frame made of sheet steel with a wall thickness of 1.5 mm, a door made of 2.0 mm sheet steel, a roof plate, a rear panel, and base plates, all made of 1.5 mm sheet steel. The mounting plate is made of 3.0 mm sheet steel and provides a stable base for mounting components. The surface of the enclosure frame is dip-primed, while the door, roof, and rear panel are additionally powder-coated externally using a textured lacquer in the colour RAL 7035. The mounting plate and base plates are galvanized to prevent corrosion. The delivery includes the enclosure frame, a front door with right-hand hinge (changeable to left), roof plate, rear panel, base plates, mounting plate, two mounting rails (18 x 39 mm), and a lock with 3 mm double bar according to DIN 43668. The door is fitted with a PU foam seal and can be opened toollessly to an angle of 180°. The clearance from the floor is 17 mm.
Technology Explained Simply
The construction of the enclosure system allows for flexible mounting of components. The mounting plate is depth-adjustable in 25 mm increments and features integrated plastic gliding pieces as well as reusable mounting rails. The rear panel, roof, and base plates are electrically connected to the frame, ensuring automatic equipotential bonding according to DIN 62 208. This is important for electrical safety and to avoid voltage differences. The entire construction is loadable up to 15,000 N, guaranteeing high mechanical stability. The square-hole pattern all around allows the use of cage nuts and metric screws up to M8.
Compatibility and Accessories
The enclosure system is compatible with various accessories that meet individual requirements for installation and operation. These include levelling feet M12 with an adjustment height of 18–43 mm, transport eyes for freight shipping, dust protection strips, cable entry ferrules in various diameters (e.g. 13 mm, 21 mm), and circuit diagram pockets in various depths (e.g. D600 mm, D90 mm). Further options include mounting brackets for the external mounting level, C-profile rails, multi-locking systems for padlocks, monitor mounts with VESA connection, and various comfort handles for different locking systems. The accessories allow application-specific adaptation of the enclosure system to the respective environment and use case.
Mounting and Installation
Mounting is done via the integrated mounting levels and the square-hole pattern. The mounting plate is depth-adjustable and allows precise positioning of components. The base plates are split and removable, enabling easy mounting and maintenance. The door can be opened toollessly to 180°, facilitating access to internal components. The enclosure construction is bayable, allowing multiple enclosures to be mounted side by side or in series. Fixing to the floor is done via the welded base frame with integrated base reinforcement.
Advantages in Operation
The enclosure system offers high mechanical stability, reliable protection rating, and flexible mounting. The integrated mounting levels and depth-adjustable mounting plate enable efficient and fast installation. The conductive connection between frame and flat parts ensures safe equipotential bonding. The use of sheet steel with various surface treatments ensures long service life and resistance to corrosion. Compatibility with a wide range of accessories allows customized adaptation to specific requirements. The protection rating IP 55 and IK10 rating make the system suitable for demanding industrial environments.
| General | |
| Material | Cabinet frame: steel sheet, 1.5 mm, roof: steel sheet, 1.5 mm, door: steel sheet, 2.0 mm, rear panel: steel sheet, 1.5 mm, base plates: steel sheet, 1.5 mm, mounting plate: steel sheet, 3.0 mm |
| Surface protection | Cabinet frame: dip-primed, door, roof and rear panel: dip-primed, externally powder-coated, textured lacquer, mounting plate and base sheets: galvanised |
| Colour | RAL 7035 |
| Scope of delivery | cabinet frame, door(s), door hinge right, reversible to left, roof sheet, rear panel, floor sheets, mounting plate, 2 mounting rails 18 x 39 mm, lock: 3 mm double bar |
| Width | 600 mm |
| Height | 1.400 mm |
| Depth | 500 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.296 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 216.2 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
