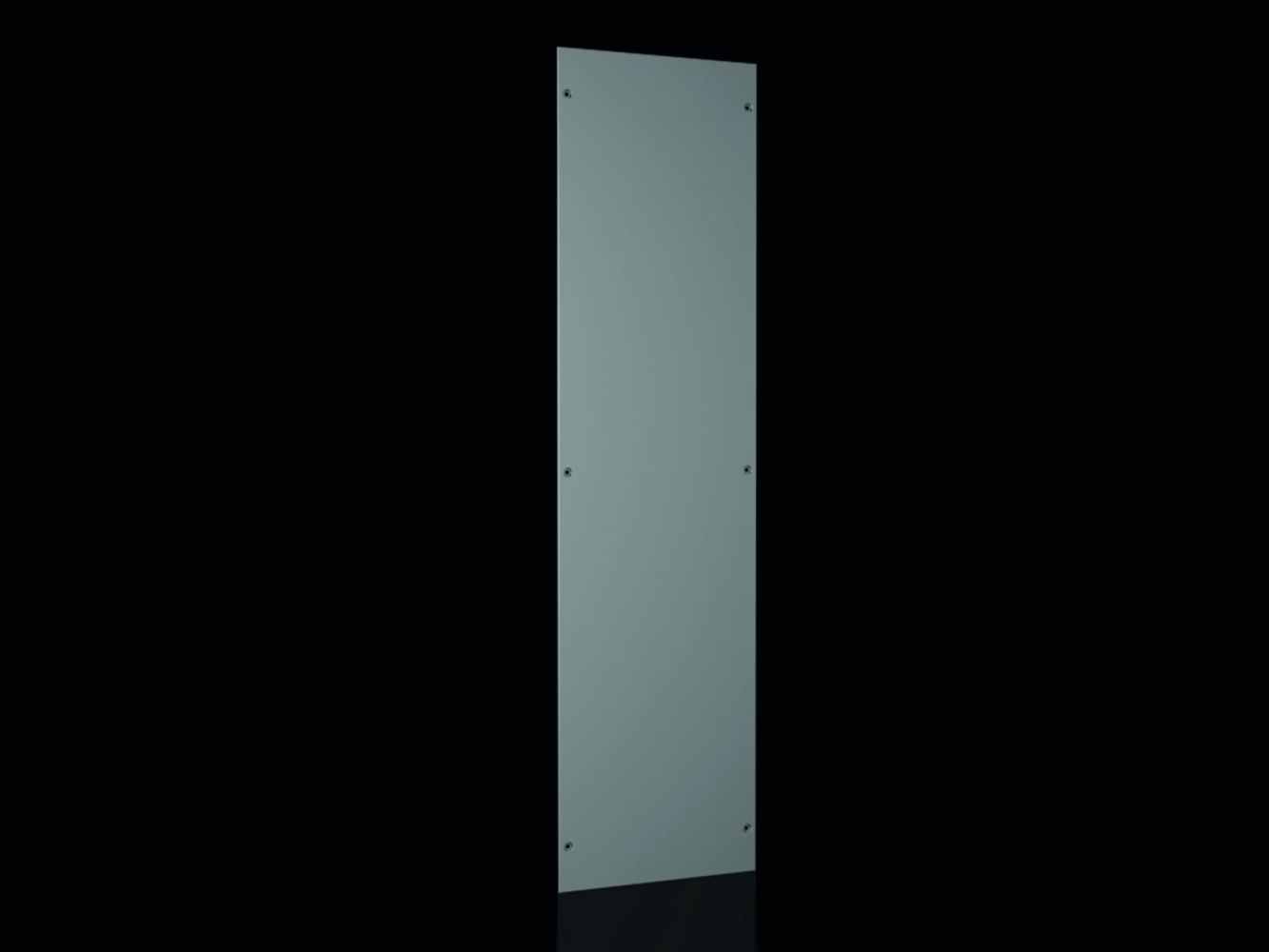

Rittal 8700050 VX side panel, screwable, for HT: 2000x600 mm

Your rating:
Average rating
product review for Rittal 8700050 VX side panel, screwable, for HT: 2000x600 mm
( 4.4 / 5 ) 14 ratings
Rittal 8700050
This image may differ from the desired article.
Rittal 8700050Rittal 8700050Rittal 8700050
465,75 EUR 484,38 EUR
( 554,24 EUR incl. VAT )
≈ £389.83  |  ≈ $511.86
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8700050 VX side panel, screwable, for HT: 2000x600 mm
Datasheet:file_download Download
Lieske Part No.:1441674
Mfg Part No: 8700050
UPC/EAN: 4028177921474
Weight:28.8 kg
Type:VX 8700.050

Product information for Rittal 8700050:

The Rittal VX 8700.050 is a screwable side panel for enclosures of the VX system, specifically designed for enclosures with a height of 2,000 mm and a depth of 600 mm. The product is made of stainless steel 1.4301 (AISI 304) with a material thickness of 1.5 mm and features a brushed surface finish with grain 400. The side panel is designed for use in industrial environments where high mechanical strength and corrosion resistance are required. The packaging unit includes two pieces, with the fastening material included in the delivery scope.

Applications

The side panel is suitable for use in enclosures of the VX system, particularly in installations requiring high protection standards. The protection rating IP 55 and IP 55 according to IEC 60 529 ensures high protection against dust and water, making the side panel suitable for outdoor use or in humid environments. The type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 4X, Type 12) confirm suitability for various industrial and commercial applications, including humid or dusty environments.

Functions and Equipment in Detail

The side panel enables time-saving installation through clip-on side panel holders, ensuring quick and secure fastening. The flat part holders are equipped with internal contact elements, providing automatic equipotential bonding and enhanced EMC protection. The hanging aid facilitates precise positioning in height and depth, enabling accurate installation without additional tools. Single-person installation is possible due to structural features such as integrated holders and easily accessible fastening points. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and reliable earthing contact.

Technology Explained Simply

The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and mechanical strength, extending the service life of the side panel in demanding environments. The brushed surface finish with grain 400 provides a uniform, easy-to-clean surface that is also visually appealing. The IP 55 protection rating protects against dust and splashing water, while IP 55 offers even higher protection against dust and strong splashing water – both meeting requirements for industrial enclosures in humid or dusty areas. The UL type ratings confirm suitability for various environments, including those with increased humidity or mechanical stress.

Compatibility and Accessories

The side panel is specifically designed for enclosures of the VX system with a height of 2,000 mm and a depth of 600 mm. Compatibility with the VX system ensures uniform design and installation of enclosure components. The side panel is part of a modular system that can be combined with other VX components such as front doors, base plates, or lids to create a complete enclosure system.

Installation and Mounting

Mounting is done by screwing the side panel onto the designated holders inside the enclosure. The clip-on holders allow for quick and secure fastening, with the hanging aid supporting precise positioning in height and depth. The earthing bolts are designed to provide a direct, paint-free connection to the enclosure body, ensuring a reliable earthing contact. Single-person installation is possible due to the structural features, allowing installation without additional assistance.

Operational Advantages

The side panel offers high mechanical stability and corrosion resistance, increasing the reliability of the enclosure over its entire service life. The integrated EMC protection measures provided by the flat part holders with internal contact elements reduce electromagnetic interference and improve operational safety. Easy mounting and positioning reduce installation time and labor effort. The high protection rating IP 55 enables use in demanding environments, allowing the side panel to be used outdoors or in humid production facilities.

General
MaterialStainless steel 1.4301 (AISI 304), 1.5 mm
Surface protectionLinear grind, grit 400
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, height: = 2.000 mm, depth: = 600 mm
Degree of protection IP according to IEC 60 529IP 55, IP 66
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Base materialStainless steel


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8700050, EAN: 4028177921474

Questions & answers

What is the delivery time of Rittal 8700050 VX side panel, screwable, for HT: 2000x600 mm?

The article Rittal 8700050 VX side panel, screwable, for HT: 2000x600 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8700050 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8700050 VX side panel, screwable, for HT: 2000x600 mm always at the best possible price. We can give you a discount of 2% on Rittal 8700050 VX side panel, screwable, for HT: 2000x600 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
