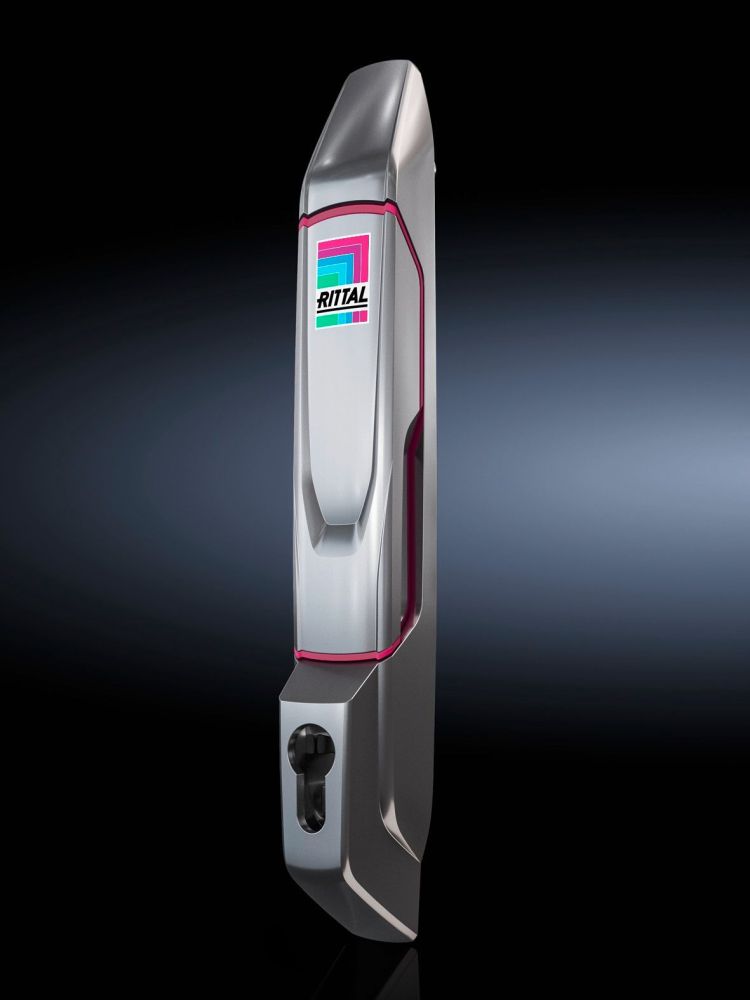

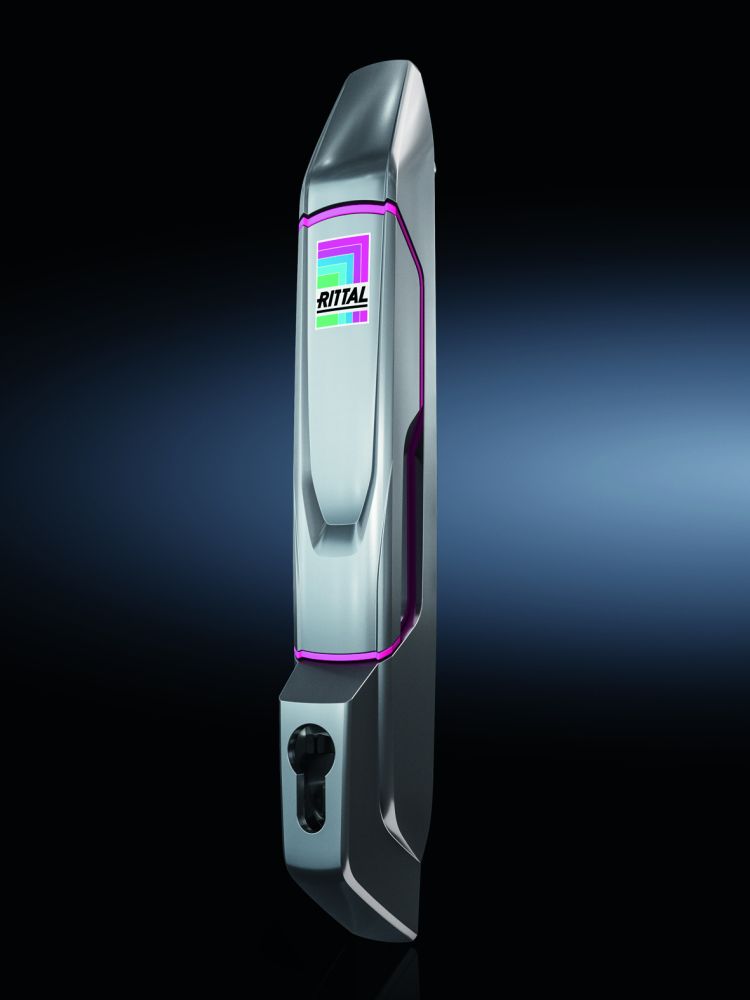

Rittal 8618280 VX comfort handle for half cylinder stainless steel

Your rating:
Average rating
product review for Rittal 8618280 VX comfort handle for half cylinder stainless steel
( 4.6 / 5 ) 25 ratings
Rittal 8618280
This image may differ from the desired article.
Rittal 8618280Rittal 8618280Rittal 8618280Rittal 8618280
-10% 135,36 EUR 151,00 EUR
( 161,08 EUR incl. VAT )
≈ £113.30  |  ≈ $148.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 8618280 VX comfort handle for half cylinder stainless steel
Datasheet:file_download Download
Lieske Part No.:1440903
Mfg Part No: 8618280
UPC/EAN: 4028177921801
Weight:0.966 kg
Type:VX 8618.280

Product information for Rittal 8618280:

The Rittal VX 8618.280 is a comfort handle made of stainless steel investment casting, specifically designed for mounting on enclosures of type VX and VX IT. It serves as a handle system for door opening and is designed for half cylinders, enabling the integration of security and push-button lock inserts. The folding mechanism of the handle ensures that no swing clearance is required, allowing the door surface to be optimally used for installations. Installation is simple via a snap-in system, ensuring quick and secure fastening.

Applications
This handle is designed for use in industrial environments, particularly in enclosures of the VX series. It is suitable for applications requiring both secure and comfortable door opening, such as in production plants, automation systems, or electrical engineering. The use of stainless steel investment casting ensures high mechanical stability and corrosion resistance, making it suitable for demanding environments.

Functions and Equipment in Detail
The comfort handle is prepared for the installation of half cylinders with total lengths of 40 mm or 45 mm according to DIN 18 252. Alternatively, security and push-button lock inserts with a length of 40 mm can also be integrated. This flexibility allows adaptation to different security requirements and access control systems. The snap-in mounting simplifies installation and maintenance, as no additional tools are required.

Technology Explained Simply

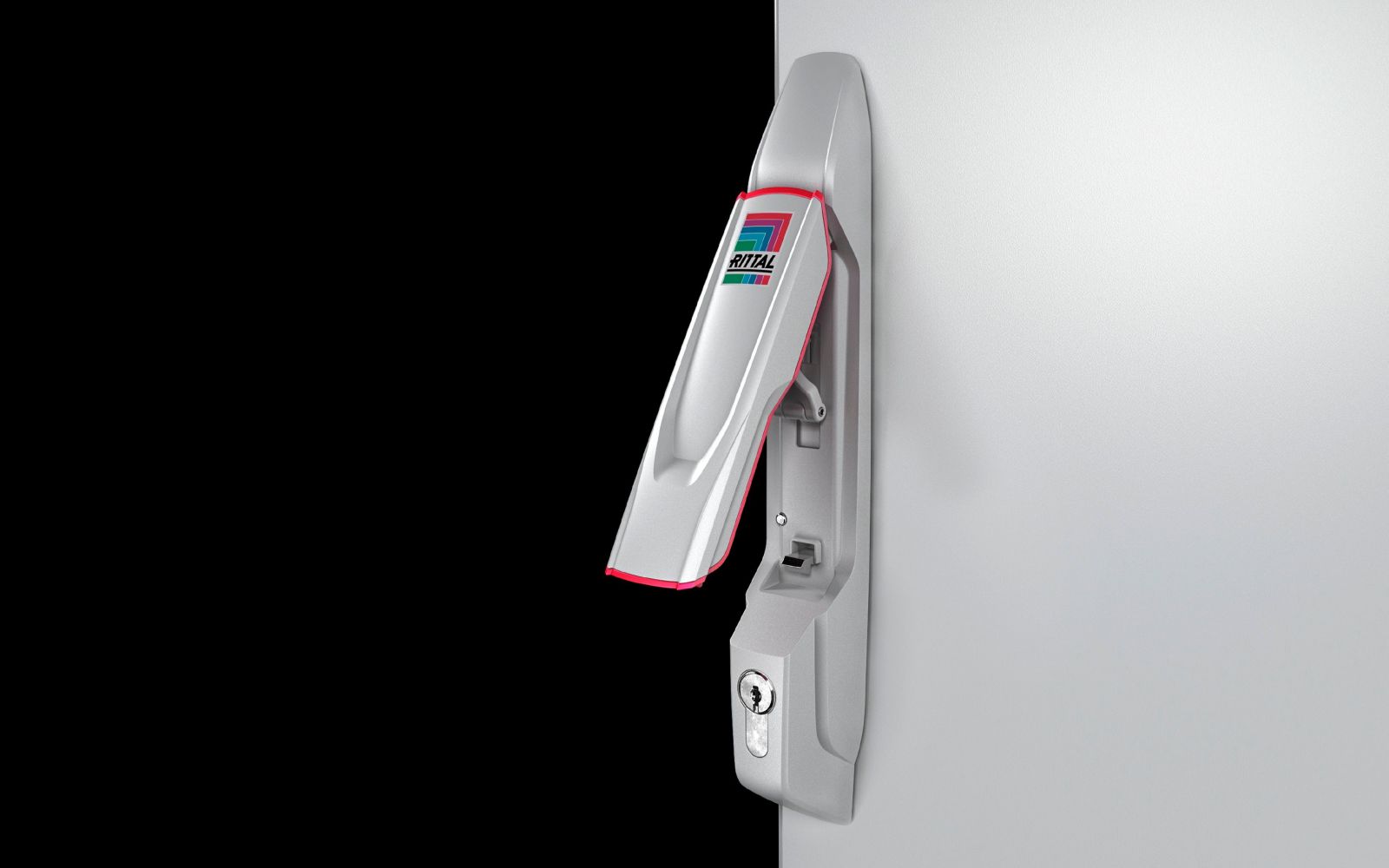

The folding mechanism of the handle ensures that it lies flat against the door surface when not in use. This minimizes space requirements within the enclosure and leaves the door surface free for additional installations such as displays, control elements, or connectors. The material stainless steel investment casting offers high strength and resistance to mechanical stress and corrosion, which is particularly advantageous in damp or aggressive environments. The snap-in mounting is achieved through a mechanical locking system that allows secure fastening without screws or drilling.

Compatibility and Accessories
The handle is specifically designed for enclosures of types VX and VX IT. It is compatible with half cylinders of lengths 40 mm and 45 mm, as well as with security and push-button lock inserts of length 40 mm. Suitable half cylinder handle systems and security and push-button lock inserts are available as accessories, enabling individual adaptation to specific security requirements. The combination with these components allows flexible use in various application scenarios.

Mounting and Installation
Installation is performed using a snap-in system, enabling quick and tool-free fastening to the enclosure door. The folding mechanism ensures that the handle lies flat against the door surface after opening, thus not occupying additional space within the enclosure. Installation requires no drilling or additional mounting materials, reducing installation time and simplifying maintenance.

Operational Advantages
The comfort handle enables optimal use of the door surface, as the folding mechanism does not require any swing clearance. The snap-in mounting reduces installation time and simplifies maintenance. The material stainless steel investment casting ensures high mechanical strength and corrosion resistance, extending the service life of the handle in industrial environments. Compatibility with various locking systems allows flexible adaptation to different security requirements.

Type rating according to UL 50E
The handle meets the requirements of the UL 50E standard in the versions Type 1, Type 3R, Type 4, Type 4X, and Type 12, making it suitable for use in indoor and outdoor environments, particularly in settings with increased requirements for protection against dust, water, and mechanical impacts. These certifications ensure suitability for various industrial and technical applications.

The product description is based exclusively on the manufacturer’s documentation and available technical data. The information regarding material, function, compatibility, and mounting is directly taken from the manufacturer’s data sheets and product pages (Rittal) and has been checked for consistency.

General
ModelFor profile half-cylinder
MaterialStainless steel die-cast
LockLocking mechanism: Prepared for installation of profile half-cylinders 40 or 45 mm total length (according to DIN 18 252) or security and push-button inserts with a length of 40 mm
Suitable for housing typeVX, VX IT
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12


Product data sheet
Datasheet for Rittal 8618280, EAN: 4028177921801
