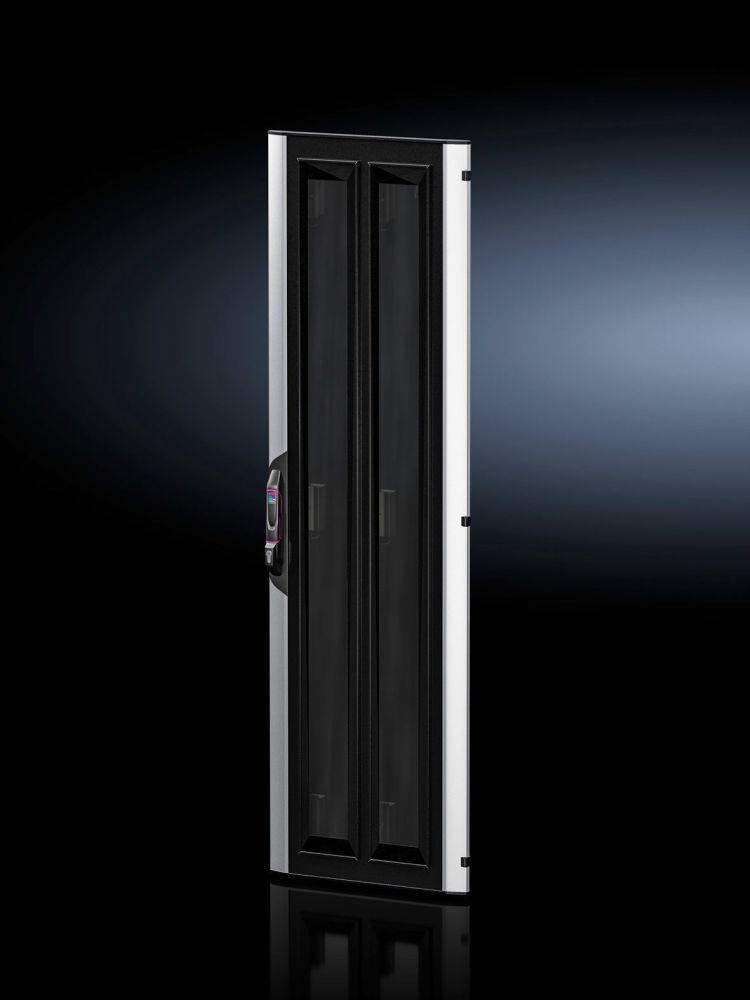

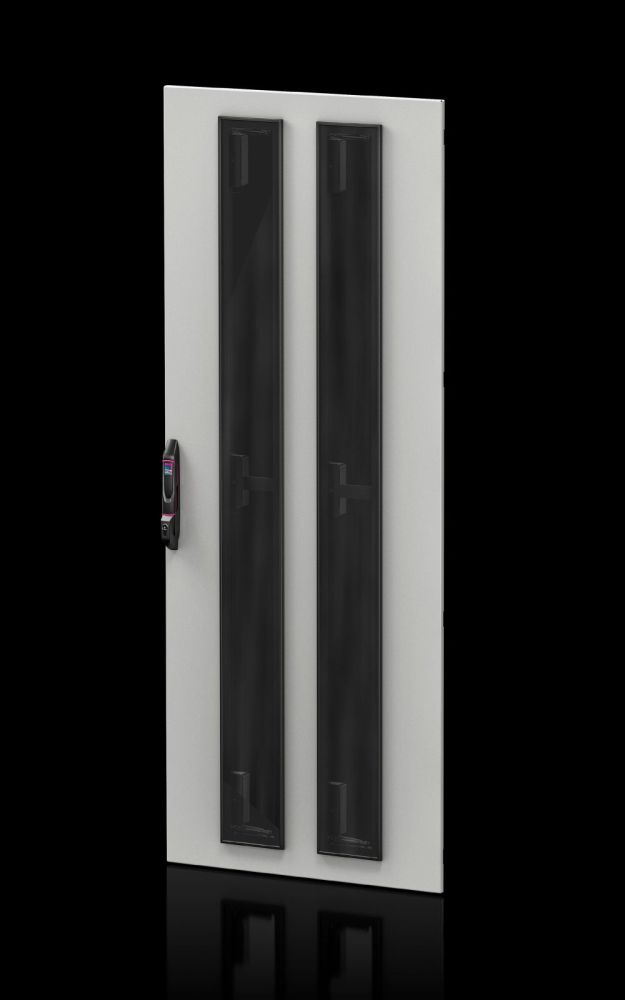

Rittal 7030273 Steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm

Your rating:
Average rating
product review for Rittal 7030273 Steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm
( 4 / 5 ) 1 ratings
Rittal 7030273
This image may differ from the desired article.
Rittal 7030273Rittal 7030273Rittal 7030273Rittal 7030273
-7% 1.450,38 EUR 1.554,36 EUR
( 1.725,95 EUR incl. VAT )
≈ £1,213.97  |  ≈ $1,593.97
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 7030273 Steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm
Datasheet:file_download Download
Lieske Part No.:593707
Mfg Part No: 7030273
UPC/EAN: 4028177925915
Weight:46 kg
Type:VX 7030273

Product information for Rittal 7030273:

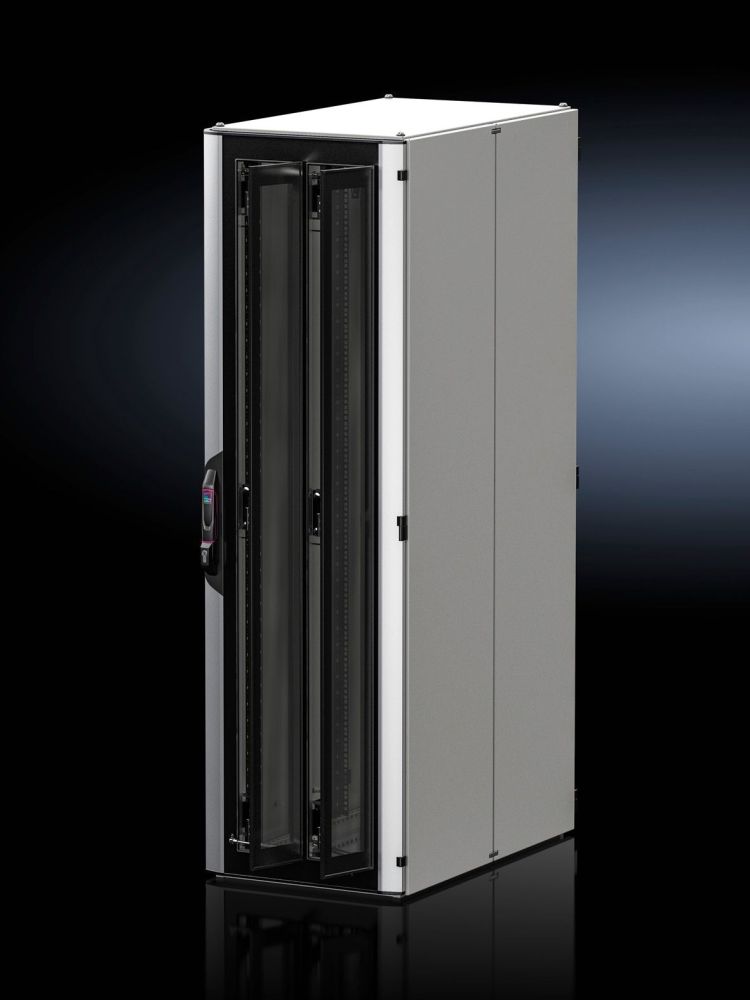

The Rittal VX 7030273 is a sheet metal door for VX IT systems, specifically designed for the Automatic Door Opening (ADO) system. It replaces the standard door and enables automatic opening of the integrated ventilation flaps in an emergency, for example, in the event of a power failure or activation of a fire suppression system. The door has a width of 800 mm and a height of 2,000 mm and features two single-pane safety glass viewing windows, tinted to ensure a high safety standard. The frame is made of sheet metal and is painted in RAL 7035. The door is one-piece and equipped with a comfort handle for half cylinder with safety lock 3524 E.

Applications

The door is designed for use in IT enclosures, particularly in environments where emergency cooling or direct supply of fire extinguishing gas into the enclosure is required. In the event of cooling system failure, room air can be used for emergency cooling via the automatically opening ventilation flaps. Similarly, the door enables direct supply of fire extinguishing gas from the room into the enclosure when a fire suppression system is activated. The function requires the use of front and rear doors of the ADO system.

Functions and Equipment in Detail

The ventilation flaps open automatically in the de-energized state, i.e., during a power failure, and are held closed by six electric magnets. The opening is achieved via six spring dampers, which open the flaps gently and controlled. Additionally, six mechanical springs ensure sufficient opening force to overcome underpressure at the door. The flaps project 200 mm into the escape route when open, while the mechanism extends 52.5 mm inward into the enclosure. The door is equipped with a connection cable 2.5 m in length, running from the door hinge.

Technology Explained Simply

The door is controlled via the CMC III Door Control Module (DCM), which triggers the opening of the ventilation flaps in case of overheating or alarm. Power supply is provided by the DCM, with a rated voltage of 24 V DC and a rated current of 780 mA (0.78 A). The protection rating IP 20 according to IEC 60 529 applies when the ventilation flaps are closed, meaning the door protects against contact with live parts and against solid foreign objects larger than 12.5 mm. The door is designed for use in a temperature range of -5 °C to +45 °C and relative humidity of 5 % to 95 % (non-condensing).

Compatibility and Accessories

The door is intended for use in the VX IT system and must be connected to the CMC III Door Control Module (part number 7030.501). Suitable comfort handles for half cylinder in various versions, including RAL 9005 and stainless steel, as well as an online comfort handle with master key function and a comfort handle with numeric code, are available as accessories. These allow individual adaptation of the door to the security requirements of the application environment.

Installation and Mounting

The door is designed for mounting on VX IT racks. The door hinge is standard on the right, but can be changed from right to left for one-piece doors. Manual opening of the door does not affect the state of the ventilation flaps, which are independently controlled by the DCM. Installation requires no modification to the existing locking system.

Operational Advantages

The integrated ventilation flaps provide a reliable emergency function that can be installed without additional mechanical or electrical modifications to the enclosure. The automatic opening during power failure ensures a rapid response in an emergency. The use of single-pane safety glass ensures high safety, while the minimal projection of the flaps into the escape route (200 mm) does not impair room design or evacuation. The door is designed for use in IT infrastructures where high availability and security are required.

General
ModelVision panels: single-pane safety glass, tinted, spring dampers for flap opening, magnets for securing flaps, flaps open in de-energized state, with sheet steel door, single-piece, with ventilation flaps, frame: sheet steel
Technical dataVentilation flap construction outward: 200 mm (in open position), Mechanism construction inward: 52.5 mm, Door hinge: right (for single doors, hinge position changeable from right to left), Cable connection from door hinge: 2.5 m
Function principleControlled via CMC III Door Control Module (DCM), Integrated vertical ventilation flaps open automatically in emergency – in case of cooling system failure or activation of fire suppression system – air in the room is used for emergency cooling depending on room volume and temperature, or fire suppressant gas can directly enter IT cabinets, Front and rear doors of the ADO system must always be used
Materialframe: sheet steel, viewing windows: single-pane safety glass, tinted
ColourRAL 7035
Scope of deliveryDoor with comfort handle for profile half-cylinder with security locking 3524 E
At DC0,78 A
Width800 mm
Height2.000 mm
Degree of protection IP according to IEC 60 529IP 20 with closed ventilation flaps


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 7030273, EAN: 4028177925915
