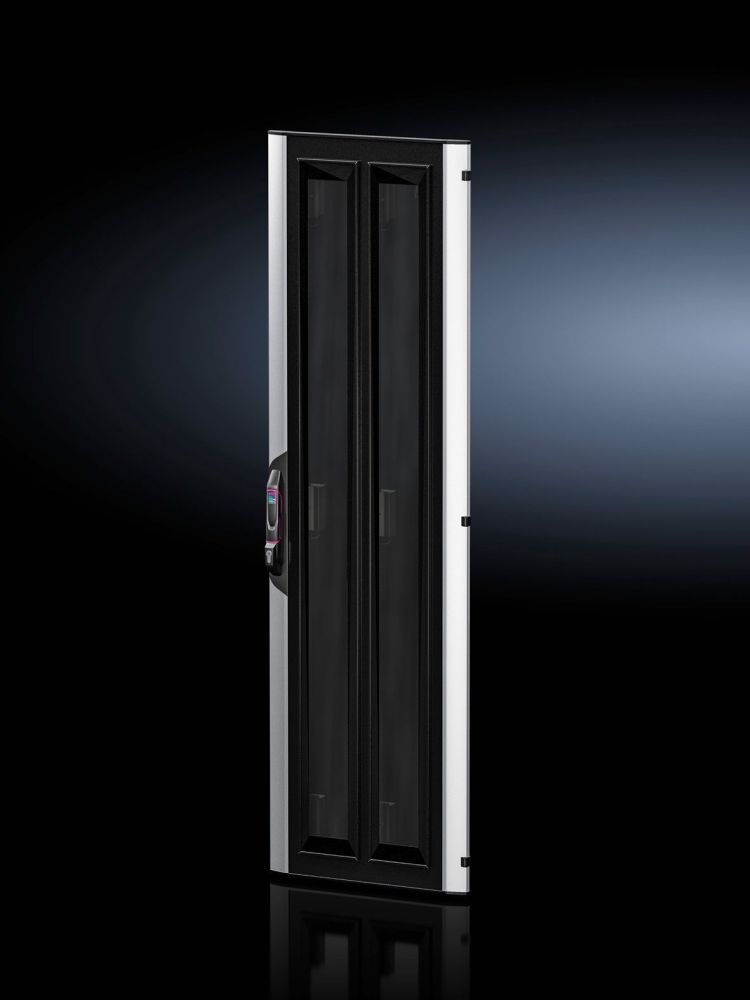

Rittal 7030283 Split steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm

Your rating:
Average rating
product review for Rittal 7030283 Split steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm
( 4.3 / 5 ) 4 ratings
Rittal 7030283
This image may differ from the desired article.
Rittal 7030283Rittal 7030283Rittal 7030283Rittal 7030283
1.585,97 EUR
( 1.887,30 EUR incl. VAT )
≈ £1,327.46  |  ≈ $1,742.98
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 7030283 Split steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm
Datasheet:file_download Download
Lieske Part No.:593709
Mfg Part No: 7030283
UPC/EAN: 4028177925953
Weight:44.5 kg
Type:VX 7030283

Product information for Rittal 7030283:

The Rittal VX 7030283 is a split steel sheet door for VX IT enclosures, specifically designed for the Automatic Door Opening (ADO) system. It replaces the standard door and integrates vertical ventilation flaps that open automatically in an emergency – for example, in the event of cooling failure or activation of a fire suppression system. The door is manufactured in dimensions of 800 mm width and 2,000 mm height and features two single-pane safety glass units, each 3 mm thick, with a tinted finish. The frame construction is made of steel sheet, providing high stability. The ventilation flaps are equipped with spring dampers and magnets that hold the flaps open in the de-energized state. The opening mechanism is mechanical and controlled via the CMC III Door Control Module (DCM). The door is designed for use in IT infrastructures where secure and automated ventilation is required during an alarm situation.

Applications

The door is intended for use in IT enclosures, particularly in environments where emergency cooling or direct delivery of fire suppressant gas into the enclosure is necessary. The automatic opening of the ventilation flaps during power failure or alarm ensures that ambient air can be used for cooling or that the suppressant gas enters the enclosure immediately. The door is designed for use in racks equipped with the ADO system. It is essential to use both the front and rear doors of the ADO system to ensure proper functionality.

Functions and Equipment in Detail

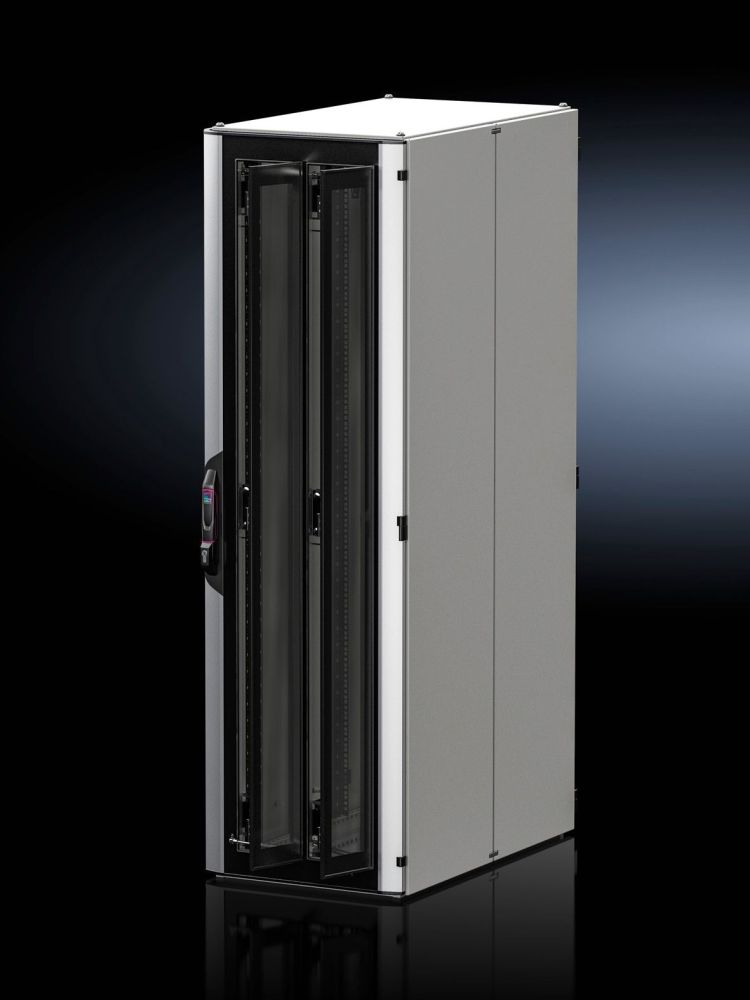

The ventilation flaps open automatically when power supply is interrupted, which occurs during a power failure or activation of a fire suppression system. In the open position, the flaps extend 200 mm into the escape route, while the mechanism extends 52.5 mm inward into the enclosure. The door is fitted with a comfort handle for half cylinder lock with security locking mechanism 3524 E. Manual opening of the door does not affect the operation of the ventilation flaps. The connection cable is 2.5 m long and starts at the door hinge. The door is designed for operation with the CMC III Door Control Module (DCM), which manages the control function.

Technology Explained Simply

The integrated ventilation flaps are equipped with six electric magnets that keep the flaps closed during normal operation. In the event of power failure or alarm, the flaps open via spring dampers. The door is designed for an operating voltage of 24 V DC and consumes a rated current of 780 mA. The protection rating is IP 20 with closed ventilation flaps, meaning the door protects against finger contact and solid foreign objects, but not against water or dust. The operating temperature range is -5 °C to +45 °C, with relative humidity from 5 % to 95 %, non-condensing.

Compatibility and Accessories

The door is specifically designed for the ADO system and must be connected to the CMC III Door Control Module (DCM) to ensure proper function. Compatible accessories include the CMC III power supply, various comfort handles for half cylinder locks in different finishes, including RAL 9005, stainless steel, and with numeric code, as well as the CMC III Online comfort handle VX with master key function. These components allow flexible adaptation to different security requirements and access concepts.

Installation and Mounting

The door is two-piece and vertically split, with the hinge standardly positioned on the right. For single-piece doors, repositioning from right to left is possible. Installation is carried out on VX IT racks, replacing the standard door. Connection to the CMC III Door Control Module is made via the 2.5 m long connection cable. Installation does not require modification of the locking system, as the comfort handle is already integrated.

Operational Advantages

The automatic opening of the ventilation flaps ensures a rapid response in emergencies, maintaining cooling for IT systems or enabling direct delivery of suppressant gas into the enclosure. The stability of the door, achieved through the combination of steel sheet frame and integrated ventilation flaps, ensures safe and reliable operation. The tinted single-pane safety glass units provide high security and prevent entry of foreign objects. The door is designed for use in IT infrastructures where reliable and automated response during an alarm is required. The integrated control via the CMC III system enables remote control and monitoring of door functions.

General
ModelVision panel: single-pane safety glass, 3 mm, spring damper for flap opening, magnets for securing flaps, flaps open in de-energized state, with steel sheet door, two-part, vertically divided, with ventilation flaps, frame: steel sheet
Technical dataVentilation flap construction outward: 200 mm (in open position), Mechanism construction inward: 52.5 mm, Door hinge: right (for single doors, hinge position changeable from right to left), Cable connection from door hinge: 2.5 m
Function principleControlled via CMC III Door Control Module (DCM), Integrated vertical ventilation flaps open automatically in emergency – in case of cooling system failure or activation of fire suppression system – air in the room is used for emergency cooling depending on room volume and temperature, or fire suppressant gas can directly enter IT cabinets, Front and rear doors of the ADO system must always be used
Materialframe: sheet steel, viewing windows: single-pane safety glass, tinted
ColourRAL 7035
Scope of deliveryDoor with comfort handle for profile half-cylinder with security locking 3524 E
At DC0,78 A
Width800 mm
Height2.000 mm
Degree of protection IP according to IEC 60 529IP 20 with closed ventilation flaps


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 7030283, EAN: 4028177925953

Questions & answers

What is the delivery time of Rittal 7030283 Split steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm?

The article Rittal 7030283 Split steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7030283 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7030283 Split steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm always at the best possible price. We can give you a discount of 2% on Rittal 7030283 Split steel sheet door VX IT with emergency ventilation, W x H: 800x2000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
