Rittal 8100732 VX system chassis 23 x 89 mm, for W x D: 600 mm, stainless steel

Your rating:
Average rating
product review for Rittal 8100732 VX system chassis 23 x 89 mm, for W x D: 600 mm, stainless steel
( 4.4 / 5 ) 18 ratings
Rittal 8100732
This image may differ from the desired article.
Rittal 8100732Rittal 8100732Rittal 8100732Rittal 8100732Rittal 8100732Rittal 8100732Rittal 8100732
74,18 EUR
( 88,27 EUR incl. VAT )
≈ £62.09  |  ≈ $81.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8100732 VX system chassis 23 x 89 mm, for W x D: 600 mm, stainless steel
Datasheet:file_download Download
Lieske Part No.:1440668
Mfg Part No: 8100732
UPC/EAN: 4028177924611
Weight:1.56 kg
Type:VX 8100.732

Product information for Rittal 8100732:

The Rittal VX 8100.732 is a system chassis made of stainless steel 1.4301 (AISI 304), designed for variable and individual interior fitting of enclosure frames in the VX and VX SE system. It serves as a mounting base for electrical or electronic components within enclosures and enables flexible arrangement of modules on the internal mounting plane. The chassis is specifically designed for enclosures with a width and depth of 600 mm and provides a stable, corrosion-resistant platform for use in industrial environments.

System chassis

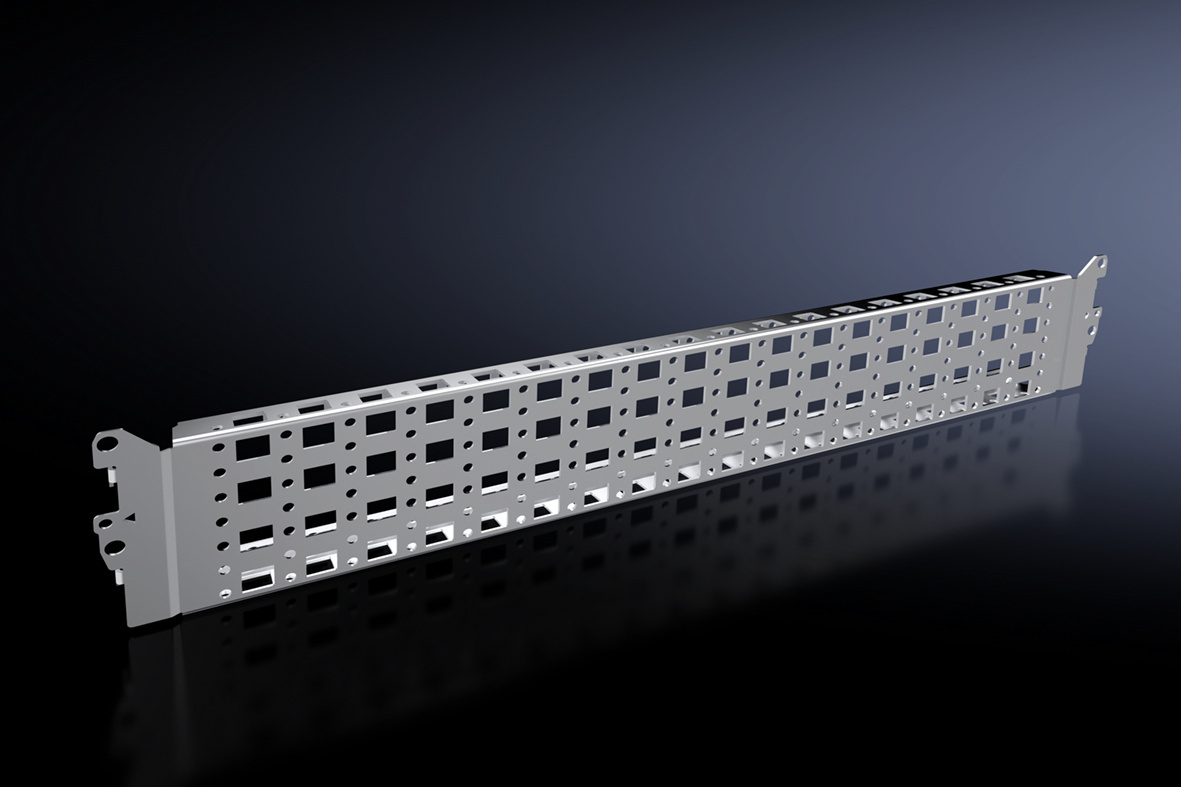

The chassis has dimensions of 23 mm (height) × 89 mm (width) and is designed as a perforated profile with a mounting flange. It is inserted into the system perforation of the enclosure frame, with mounting achieved by simple hanging and screwing. The perforation is present on all four sides, enabling versatile mounting options. Additional holes for cage nuts are integrated at the top and bottom, allowing custom components to be secured using metric screws. This construction ensures secure and precise mounting of components within the enclosure.

Applications
The system chassis is intended for use in VX and VX SE enclosure frames, where it can be mounted directly onto the VX enclosure profile. For VX SE enclosure frames, it is mounted in conjunction with a VX adapter rail attached to the enclosure profile. It can also be mounted to identical system chassis units, enabling modular expansion of the interior fitting. This makes it ideal for applications requiring a flexible, expandable mounting structure within the enclosure.

Functions and equipment in detail
The chassis is made of stainless steel 1.4301 (AISI 304), a material known for its high corrosion resistance and mechanical strength. It is therefore suitable for industrial environments with high demands on material durability and longevity. The delivery includes the chassis and the required mounting hardware, enabling immediate installation upon receipt. The packaging unit is 2 pieces.

Technology explained simply
The system perforation on all four sides of the chassis allows flexible mounting of components in various positions. The integrated holes for cage nuts at the top and bottom edges enable secure mounting of additional components such as connectors, relays, or small control devices. Mounting is done by hanging into the system perforation of the enclosure frame and then screwing, creating a stable and vibration-resistant connection. The use of stainless steel ensures long service life even under harsh operating conditions.

Compatibility and accessories
The chassis is specifically designed for VX and VX SE enclosure frames with a width and depth of 600 mm. It is compatible with the VX enclosure profile and can be mounted on VX SE enclosure frames in combination with the VX adapter rail. As a suitable accessory, a cable tie with a length of 150 mm is offered, which can be used to secure cables or wiring within the enclosure. This combination enables structured and orderly cabling within the enclosure.

Mounting and installation
Mounting of the system chassis is done by hanging it into the system perforation of the enclosure frame and then screwing it in place. The fastening is done using the included mounting hardware. Positioning is flexible, as the chassis is perforated on all four sides and can therefore be mounted in various orientations. Mounting to identical chassis units enables modular expansion of the mounting surface.

Advantages in operation
The system chassis provides a robust and long-lasting mounting base for electrical and electronic components. The use of stainless steel 1.4301 ensures high corrosion resistance, which is particularly beneficial in humid or aggressive environments. The flexible mounting via system perforation and cage nuts allows individual adaptation to specific requirements. The modular expansion capability by attaching to identical chassis units increases the flexibility of interior fitting. The included fastening materials reduce preparation time and simplify installation.

General
MaterialStainless steel 1.4301 (AISI 304)
Scope of deliveryIncluding mounting hardware
Mounting optionsIn VX on the inner mounting plane on cabinet profile VX, In VX SE on cabinet profile in combination with adapter rail VX, on identical system chassis mounted one below the other
Suitable forCabinet type: VX, VX SE, width/depth: 600 mm
PCF/VE (Cradle-to-Gate)41,16


Product data sheet
Datasheet for Rittal 8100732, EAN: 4028177924611

Questions & answers

What is the delivery time of Rittal 8100732 VX system chassis 23 x 89 mm, for W x D: 600 mm, stainless steel?

The article Rittal 8100732 VX system chassis 23 x 89 mm, for W x D: 600 mm, stainless steel is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8100732 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8100732 VX system chassis 23 x 89 mm, for W x D: 600 mm, stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 8100732 VX system chassis 23 x 89 mm, for W x D: 600 mm, stainless steel if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
