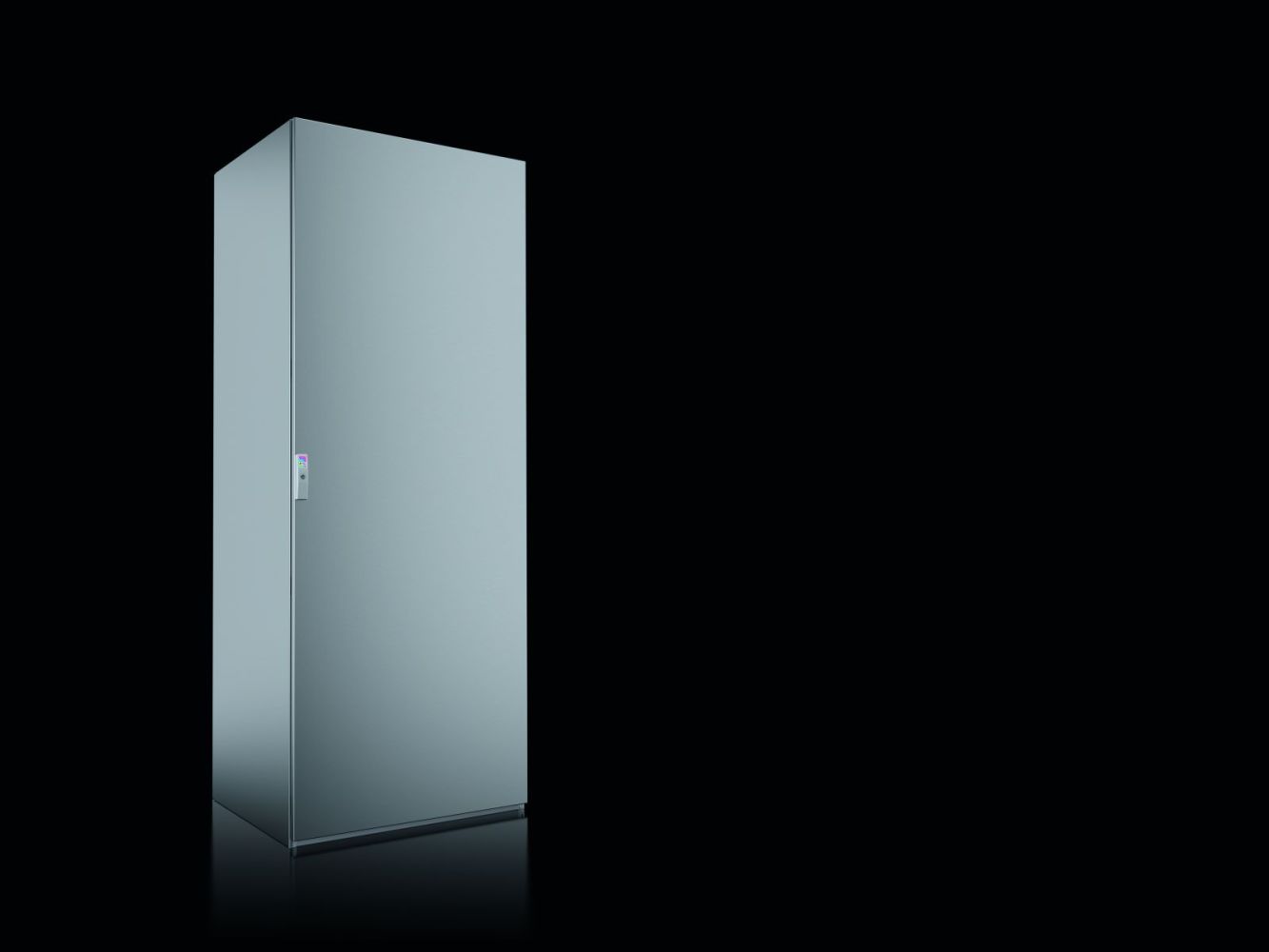

Rittal 5853600 SE system single enclosure 800x2000x600 mm stainless steel
|
3.022,20 EUR |
|
|
( 3.596,42 EUR incl. VAT ) ≈ £2,529.58 | ≈ $3,321.40 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055490 |
| Mfg Part No: | 5853600 |
| UPC/EAN: | 4028177959385 |
| Weight: | 143.6 kg |
| Type: | SE 5853600 |
Product information for Rittal 5853600:
Applications
This enclosure is suitable for use in production plants, process automation, power supply, and other industrial applications where high mechanical and chemical resistance is required. The choice of stainless steel 1.4301 ensures good corrosion resistance against moisture, salt spray, and other aggressive environments. The protection rating IP 55 according to EN 60 529 protects against dust and splashing water, making it suitable for outdoor use or in humid indoor environments. The NEMA protection ratings NEMA 3R and NEMA 12, as well as the type ratings according to UL 50E (Type 1, 2, 3, 3R, 12), confirm suitability for various industrial environments, particularly in the USA and Canada. The IK code IK10 guarantees high protection against mechanical impacts, such as blows or shock loads.
Functions and Equipment in Detail
The enclosure features a door with a 3 mm double-barrel lock, designed according to DIN 43668, providing four-point locking. The door is standard right-hinged, but can be converted to left-hinged. The door opening is 130° according to VDI, with an optional upgrade to 180°. The door is equipped with a horizontally double-foamed sealing gasket, ensuring a secure closure and effective protection against dust and moisture. The rear panel is screwed and removable, facilitating access to the interior. The base plates are three-part, removable, and replaceable, allowing flexible adaptation to different mounting conditions. The mounting plate is C-flanged on the sides and depth-adjustable in 25 mm increments via integrated plastic glides and mounting rails. Two mounting rails (18 x 39 mm) are included in the delivery scope.
Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high strength and corrosion resistance. The material thickness is 1.5 mm for the enclosure, rear panel, and base plates, 2.0 mm for the door, and 3.0 mm for the mounting plate. The brush-finished surface (grit 400) provides a uniform, easy-to-clean surface while enhancing the visual appearance. The IP 55 protection rating means the enclosure is protected against dust and splashing water, making it suitable for use in humid or dusty environments. The IK10 rating guarantees high protection against mechanical impacts, such as blows. The integrated mounting levels in the enclosure profile enable space-saving system expansion.
Compatibility and Accessories
The enclosure is fully compatible with the VX25 baying system, enabling flexible expansion and adaptation to existing systems. Suitable accessories include stainless steel 1.4301 lifting eyes, circuit diagram pockets, comfort handles, lock inserts made of zinc die-cast, C-profile rails, support rollers, 180° hinges, door latches for escape routes, and mounting brackets. These components can be used to adapt to specific requirements or to extend functionality.
Mounting and Installation
Mounting is performed via the integrated mounting levels in the enclosure profile, arranged in a 25 mm DIN grid. The mounting plate is depth-adjustable, allowing flexible positioning of components. The base plates are removable and can be replaced as needed. The rear panel is screwed and can be removed to facilitate access to the interior. The door is standard right-hinged but can be converted to left-hinged. The use of internal hexagon sheet metal screws 2486.400 is recommended to account for the hardness of the stainless steel material.
Operational Advantages
The enclosure offers high mechanical and chemical resistance, increasing service life and reliability. The integral design with closed sides and roof reduces installation time and improves stability. The integrated mounting levels and depth-adjustable mounting plate enable flexible and space-saving installation of components. The screwed rear panel and removable base plates facilitate access and maintenance. The IP 55 and IK10 protection ratings ensure high protection against environmental influences and mechanical loads, enhancing operational safety.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, Rear panel: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, Base plates: stainless steel 1.4301 (AISI 304), 1.5 mm, Mounting plate: sheet steel, 3.0 mm |
| Surface protection | Housing, door and rear panel: brushed finish, grain 400, base plates: plain, mounting plate: galvanised |
| Scope of delivery | Housing top and sides closed, door(s), for single-door cabinets door hinge on right, changeable to left, rear panel, removable, mounting plate, base plates, lock: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 800 mm |
| Height | 2.000 mm |
| Depth | 600 mm |
| Mounting plate dimensions (W x H) | 699 mm x 1.896 mm |
| Degree of protection IP according to EN 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 442,46 |
