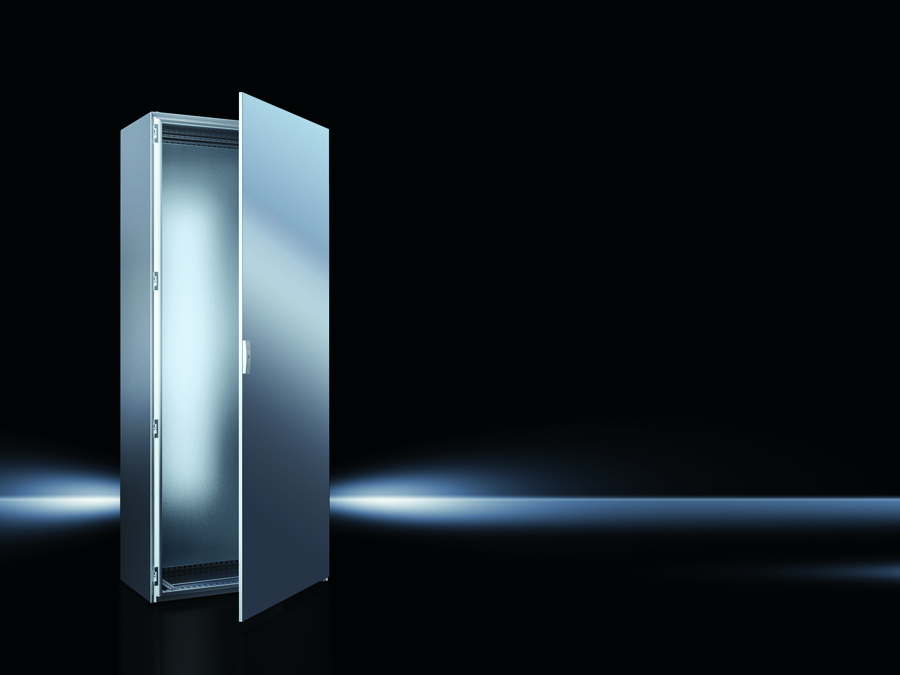

Rittal 5850680 SE system single enclosure 600x1600x400 mm stainless steel
|
-8% 2.895,70 EUR 3.136,12 EUR |
|
|
( 3.445,88 EUR incl. VAT ) ≈ £2,423.70 | ≈ $3,182.37 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1055487 |
| Mfg Part No: | 5850680 |
| UPC/EAN: | 4028177959415 |
| Weight: | 94.4 kg |
| Type: | SE 5850680 |
Product information for Rittal 5850680:
Applications
This enclosure is suitable for use in environments with high requirements for protection against dust, water, and mechanical impacts. The protection rating IP 66 according to EN 60 529 and NEMA 4X ensures a high level of protection, safeguarding internal components even under direct water spray and short-term submersion. The certification to UL 50E includes Type Ratings 1, 2, 3, 3X, 3R, 3RX, 4, 4X, and 12, enabling use in various industrial and commercial applications. The IK code IK10 guarantees high protection against mechanical impacts, such as shocks or vibrations.
Functions and Equipment in Detail
The enclosure is designed as a freestanding system, with the roof and side panels manufactured as a single piece, which accelerates installation and increases stability. The integrated mounting plate, measuring 499 mm × 1,496 mm, offers two mounting levels and features a C-shaped edge that allows depth-adjustable mounting in 25 mm increments. Mounting is achieved via integrated plastic glides and reusable mounting rails (18 × 39 mm). The door is equipped with a 3 mm double-barrel lock, ensuring secure closure. The door can be opened up to 130° and is designed according to VDI guidelines, with an option to extend to 180°. The door includes a horizontal, double foam rubber sealing ring, ensuring a tight seal.
Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and longevity, especially in moist or aggressive environments. Material thicknesses of 1.5 mm for the enclosure, rear panel, and base, and 2.0 mm for the door, ensure high mechanical stability. The surface treatment with linear grind (grit 400) provides not only an attractive appearance but also good abrasion resistance. The mounting plate made of galvanized steel sheet is designed for securing components and switching units. The integrated mounting rails allow flexible and precise positioning of components inside the enclosure.
Compatibility and Accessories
The enclosure is fully compatible with the baying system VX25, enabling flexible expansion with additional modules. Suitable accessories include stainless steel 1.4301 lifting eyes, system chassis for internal and external mounting levels, comfort handles in matte nickel-plated finish, lock inserts made of zinc die-cast, and door latches. These components support individual adaptation of the enclosure to specific requirements.
Installation and Mounting
Mounting is performed using the integrated mounting rails and depth-adjustable glides on the mounting plate. The door is standard right-hinged but can be changed to left-hinged. The rear panel is removable, enabling easy maintenance and repair. The base plate is also made of stainless steel, providing a stable foundation. For internal installation, the use of the internal hexagonal sheet metal screw 2486.400 is recommended, as the material’s hardness requires special fastening.
Operational Advantages
The enclosure offers high operational safety due to its high protection rating IP 66/NEMA 4X and IK10. The integrated mounting levels and flexible depth adjustment simplify installation and maintenance. The use of stainless steel ensures long service life and low maintenance costs. Compatibility with the VX25 system enables scalable and modular system design. The removable rear panel and easily accessible door support quick maintenance and repair.
| General | |
| Material | Housing: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, door: stainless steel 1.4301 (AISI 304), 2.0 mm, outside brushed finish, rear wall: stainless steel 1.4301 (AISI 304), 1.5 mm, outside brushed finish, mounting plate: sheet steel, 3.0 mm, base: stainless steel 1.4301 (AISI 304), 1.5 mm |
| Surface protection | Housing, rear panel and door: satin finish, grit 400, mounting plate: zinc-plated, base: bare |
| Scope of delivery | Enclosure top and side closed, door(s), door hinge right, reversible to left, rear panel, removable, mounting plate, base, flange plate(s), closure: 3 mm double bar, 2 mounting rails 18 x 39 mm |
| Width | 600 mm |
| Height | 1.600 mm |
| Depth | 400 mm |
| Mounting plate dimensions (W x H) | 499 mm x 1.496 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4X |
| Type rating according to UL 50E | Type 1, Type 2, Type 3, Type 3X, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| IK code | IK10 |
| Number of doors | 1 |
| Note | Due to the material hardness, we recommend using the internal hexagon sheet metal screw 2486.400 for internal installation |
| Base material | Stainless steel 1.4301 (AISI 304) |
| PCF/VE (Cradle-to-Gate) | 283,21 |
