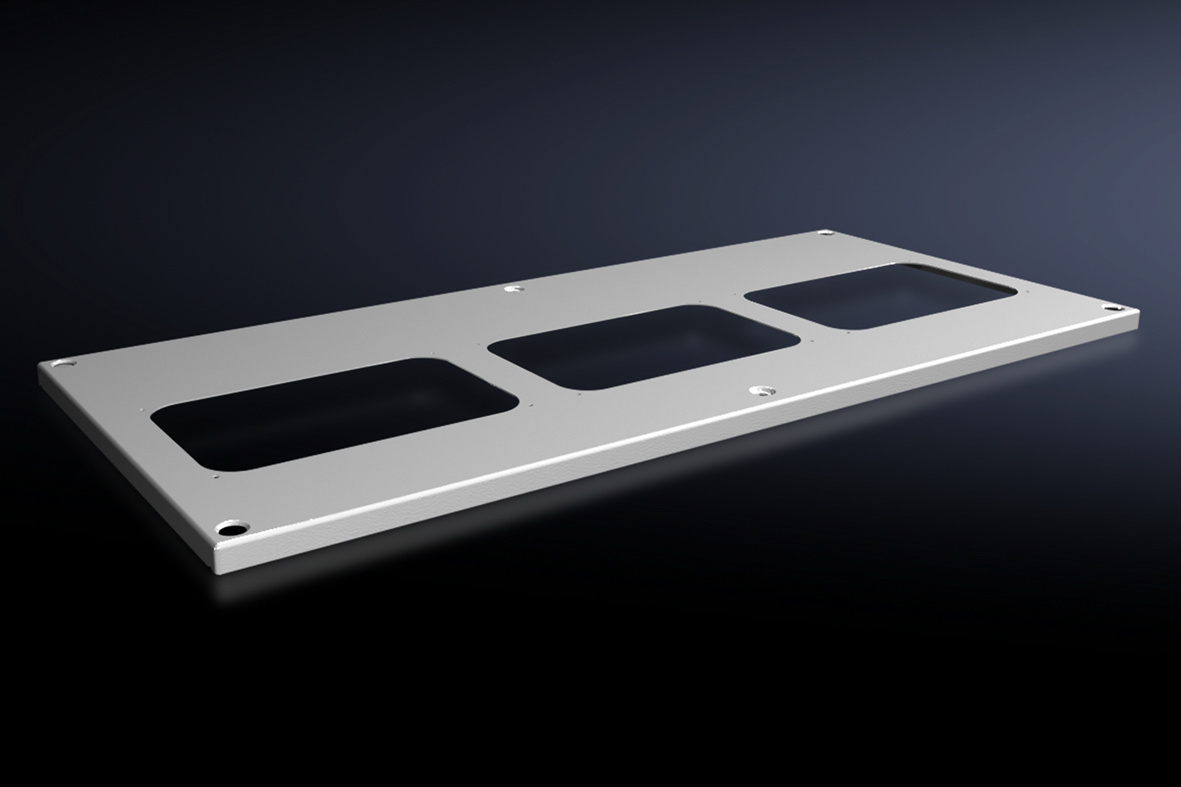

Rittal 9681594 SV roof plate for VX, width: 850 mm, depth: 400 mm, for cable entry

Your rating:
Average rating
product review for Rittal 9681594 SV roof plate for VX, width: 850 mm, depth: 400 mm, for cable entry
( 4.6 / 5 ) 7 ratings
Rittal 9681594
This image may differ from the desired article.
Rittal 9681594Rittal 9681594Rittal 9681594
53,25 EUR
( 63,37 EUR incl. VAT )
≈ £44.57  |  ≈ $58.52
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9681594 SV roof plate for VX, width: 850 mm, depth: 400 mm, for cable entry
Datasheet:file_download Download
Lieske Part No.:1597403
Mfg Part No: 9681594
UPC/EAN: 4028177926639
Weight:4.04 kg
Type:SV 9681594

Product information for Rittal 9681594:

The Rittal SV 9681594 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 850 mm and a depth of 400 mm. It serves as a replacement for the standard roof or is used for enclosures that do not come with a roof plate by default. The product is designed for mounting cable entry flanges, thus enabling a structured and secure cabling in the upper section of the enclosure. The construction made of steel sheet with a thickness of 1.5 mm ensures high mechanical stability and durability under industrial conditions.

Applications

The roof plate is primarily intended for use in industrial electrical and IT infrastructures, particularly in enclosures of the VX series. It is used to cover the top of the enclosure while simultaneously enabling the integration of cable entries. Its use is especially beneficial when an enclosure is delivered without a roof or when the existing standard roof needs to be replaced, for example, to improve cable routing or to adapt to specific installation requirements.

Functions and Equipment in Detail

The roof plate features a structured coating in the colour RAL 7035, providing a uniform surface finish and good resistance against mechanical stress and environmental influences. The surface is designed for use in industrial environments and protects the steel sheet from corrosion. The product is delivered including fastening material, enabling installation without additional purchases. The fastening is carried out at the designated mounting points of the enclosure.

Technology Explained Simply

The roof plate is made of 1.5 mm thick steel sheet, providing sufficient strength for use in enclosures. The structured coating ensures a uniform, non-slip surface and improves resistance against dirt and mechanical stress. The colour RAL 7035 is a grey, neutral tone that integrates well in industrial environments. Installation is done using the included fastening elements, which are mounted directly to the enclosure. The design allows for three cable entry flanges, enabling flexible and orderly cable connections.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions width 850 mm and depth 400 mm. It is compatible with cable entry flanges that are installed into the designated openings. Suitable accessories available in the range include transport eyes for VX, TS and SE enclosures, which can be helpful during shipping and installation phases.

Mounting and Installation

Mounting of the roof plate is carried out after removing the existing roof or for enclosures without a roof. The fastening material included in the delivery scope is attached to the designated mounting points on the enclosure. The positioning of the roof plate is done so that the openings for the cable entry flanges are correctly aligned. Mounting is possible without special tools, although the use of a screwdriver or electric screwdriver is recommended for efficient fastening.

Advantages in Operation

The roof plate provides a stable and durable cover for the top of the enclosure, protecting against dust, moisture and mechanical impacts. The integrated openings for three cable entry flanges enable orderly and secure cabling, which simplifies maintenance and inspection of the installation. Using the roof plate contributes to improving the structure and reliability of the enclosure installation, particularly in environments with increased requirements for mechanical strength and cable routing.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Number of required cable entry flanges3
Suitable forWidth: = 850 mm, Depth: = 400 mm
PCF/VE (Cradle-to-Gate)15.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 9681594, EAN: 4028177926639

Questions & answers

What is the delivery time of Rittal 9681594 SV roof plate for VX, width: 850 mm, depth: 400 mm, for cable entry?

The article Rittal 9681594 SV roof plate for VX, width: 850 mm, depth: 400 mm, for cable entry is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681594 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681594 SV roof plate for VX, width: 850 mm, depth: 400 mm, for cable entry always at the best possible price. We can give you a discount of 2% on Rittal 9681594 SV roof plate for VX, width: 850 mm, depth: 400 mm, for cable entry if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
