Rittal 9666912 ISV mounting kit for VX, 3 BE/12 U

Your rating:
Average rating
product review for Rittal 9666912 ISV mounting kit for VX, 3 BE/12 U
( 4.7 / 5 ) 7 ratings
Rittal 9666912
This image may differ from the desired article.
Rittal 9666912Rittal 9666912Rittal 9666912
-6% 221,61 EUR 234,90 EUR
( 263,72 EUR incl. VAT )
≈ £185.49  |  ≈ $243.55
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9666912 ISV mounting kit for VX, 3 BE/12 U
Datasheet:file_download Download
Lieske Part No.:1597409
Mfg Part No: 9666912
UPC/EAN: 4028177923294
Weight:8.5 kg
Type:SV 9666912

Product information for Rittal 9666912:

The article SV 9666912 from Rittal is an ISV mounting kit for the installation of ISV expansion modules in VX enclosures. It serves as a fixed mounting unit for installing distribution modules in the enclosure, with the size designed for 3 width units (BE) at 250 mm each (total 750 mm) and 12 height units (HE) at 150 mm each (total 1800 mm). The mounting kit is specifically designed for enclosures with dimensions width 850 mm, height 2000 mm, and depth 400 mm or 600 mm. The components are designed for use in industrial environments and enable structured and secure mounting of distribution elements.

Applications

The mounting kit is used in industrial electrical engineering, particularly in enclosures of type VX, to securely and properly mount ISV modules such as distribution units, fuses, or switching devices. It is suitable for installations in production environments where stable and accessible mounting of distribution components is required. Use in enclosures with the specified dimensions ensures optimal fit and secure integration into existing enclosure constructions.

Functions and Equipment in Detail

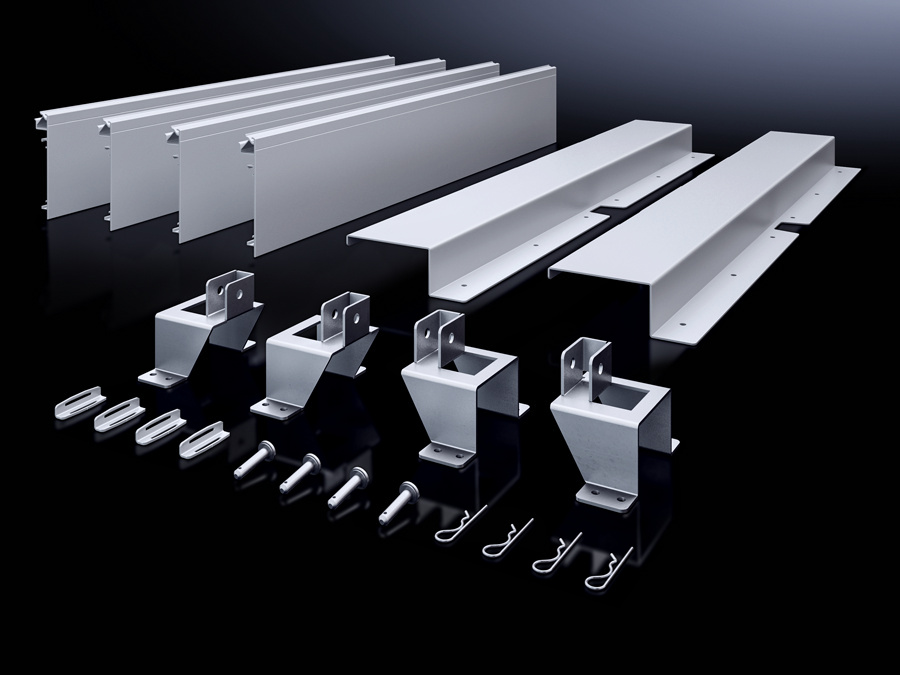

The mounting kit consists of a mounting frame holder made of galvanized sheet steel, providing high mechanical stability. Additionally, a shock protection made of painted sheet steel is included, protecting electrical components from unintended contact. On the sides, a shock protection made of PVC is integrated, providing additional safety. The delivery includes the mounting frame holder, the shock protection, and the necessary mounting hardware required for installation in the enclosure. The components are designed to ensure secure and durable mounting of ISV modules.

Technology Explained Simply

The size of 3 BE and 12 HE corresponds to standardization in enclosure technology, where BE (width units) and HE (height units) define the module size in relation to enclosure dimensions. The use of galvanized sheet steel for the mounting frame holder ensures corrosion resistance and mechanical strength. The painted sheet steel shock protection provides electrical insulation and protects against dangerous contact. The PVC material on the sides complements the protection and is flexible enough to allow installation without additional tools.

Compatibility and Accessories

The mounting kit is specifically designed for enclosure types VX with dimensions 850 mm width, 2000 mm height, and a depth of 400 mm or 600 mm. It is compatible with article numbers 9666.916 and 9666.956, which also serve for mounting ISV modules in VX enclosures. Suitable accessories include ISV mounting profiles for TS/SE, 12 HE as well as small screwable mounting plates, which can further optimize installation and provide additional mounting options.

Installation and Mounting

Installation is carried out by securing the mounting frame holder in the enclosure using the included mounting hardware. The shock protection is then mounted to protect the electrical components. The mounting kits are designed to easily integrate into existing enclosure constructions.

Advantages in Operation

The use of the ISV mounting kit ensures structured and secure mounting of distribution components in the enclosure. The integrated shock protection components increase operational safety and prevent unintended contact. The use of galvanized sheet steel ensures high mechanical stability and corrosion resistance, extending the service life of the components. Standardization of the size enables easy planning and integration into existing enclosure configurations.

General
MaterialMounting frame holder: steel sheet, galvanised, touch protection: steel sheet, painted, side touch protection: PVC
Scope of deliveryMounting frame holder, touch protection, including fastening material
Construction sizeWidth units (BE) at 250 mm: 3, height units (HE) at 150 mm: 12
Suitable for part no.9666.916, 9666.956
Suitable forHousing type: VX, width: 850 mm, height: 2000 mm, depth: 400 mm, 600 mm


Product data sheet
Datasheet for Rittal 9666912, EAN: 4028177923294

Questions & answers

What is the delivery time of Rittal 9666912 ISV mounting kit for VX, 3 BE/12 U?

The article Rittal 9666912 ISV mounting kit for VX, 3 BE/12 U is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9666912 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9666912 ISV mounting kit for VX, 3 BE/12 U always at the best possible price. We can give you a discount of 2% on Rittal 9666912 ISV mounting kit for VX, 3 BE/12 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
