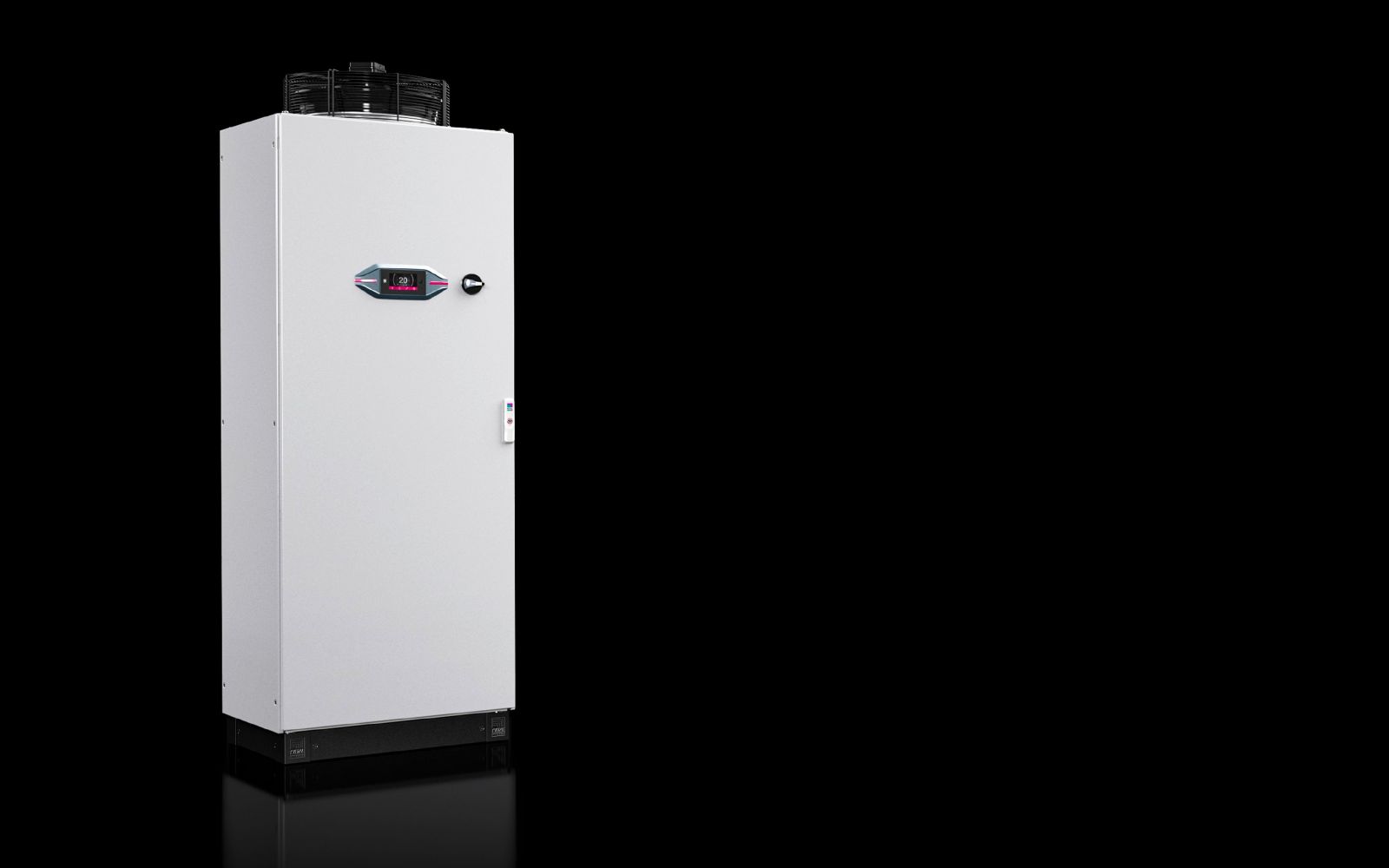

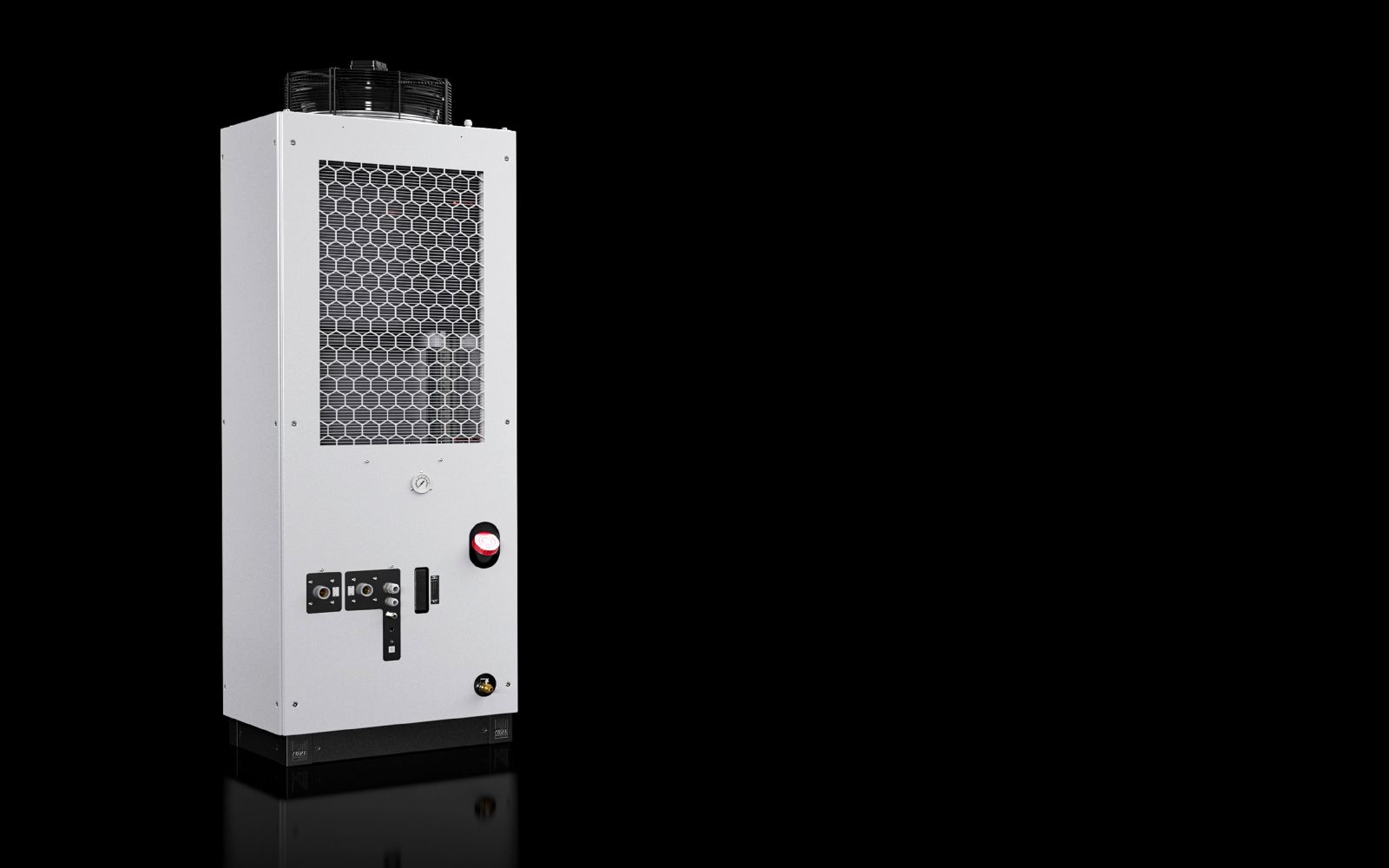

Rittal 3335930 TopTherm chiller in VX25 enclosure, 7.8 kW
|
-7% 7.900,62 EUR 8.469,26 EUR |
|
|
( 9.401,74 EUR incl. VAT ) ≈ £6,612.82 | ≈ $8,682.78 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 667337 |
| Mfg Part No: | 3335930 |
| UPC/EAN: | 4028177953451 |
| Weight: | 253 kg |
| Type: | SK 3335930 |
Product information for Rittal 3335930:
| General | |
| Material | steel sheet |
| Colour | RAL 7035 |
| Scope of delivery | Complete ready-to-install unit with side walls and door |
| Degree of protection IP according to EN 60 529 | IP 44 (electrical) |
| Total cooling capacity according to DIN EN 14511 Tw18 / Tu35 | Cooling capacity Tw18 Tu35/50 Hz: 7.8 kW, Cooling capacity Tw18 Tu35/60 Hz: 8.4 kW |
| Air performance (free blowing) | At 50 Hz: 6,000 m³/h, At 60 Hz: 7,200 m³/h |
| Rated operating voltage | 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz |
| Width | 808 mm |
| Height | 2.238 mm |
| Depth | 608 mm |
| Note | Regular tightness testing is not legally required. |
| Sound pressure level | 74,8 dB(A) |
| Temperature control | e- controller (factory setting +18 °C) |
| Operating temperature range | 10 °C...43 °C |
| Operating temperature range of cooling medium | 10 °C...25 °C |
| Temperature hysteresis | ± 1 K |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 1.6 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 1.01 t |
| Pump pressure | At 50 Hz: 2.7 bar, At 60 Hz: 4 bar |
| Power consumption coolant pump 50/60 Hz | 0,67 / 1,06 kW |
| Flow rate (coolant medium) | At 50 Hz: 23 l/min, At 60 Hz: 25 l/min |
| Rated power Pel | At 50 Hz: 4.72 kW, At 60 Hz: 6.2 kW |
| Rated current max. | At 50 Hz: 9.2 A, At 60 Hz: 9.5 A |
| Cooling performance factor (EER) 50 Hz Tw18 / Tu35 DIN EN 14511 | 2,3 |
| Water connections | R 1" IG |
| Number of refrigeration circuits | 1 |
| Tank | Material: plastic PP, volume: 75 l |
| Operating weight | 345 kg |
Questions & answers
What is the delivery time of Rittal 3335930 TopTherm chiller in VX25 enclosure, 7.8 kW?
The article Rittal 3335930 TopTherm chiller in VX25 enclosure, 7.8 kW is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3335930 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3335930 TopTherm chiller in VX25 enclosure, 7.8 kW always at the best possible price. We can give you a discount of 2% on Rittal 3335930 TopTherm chiller in VX25 enclosure, 7.8 kW if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
