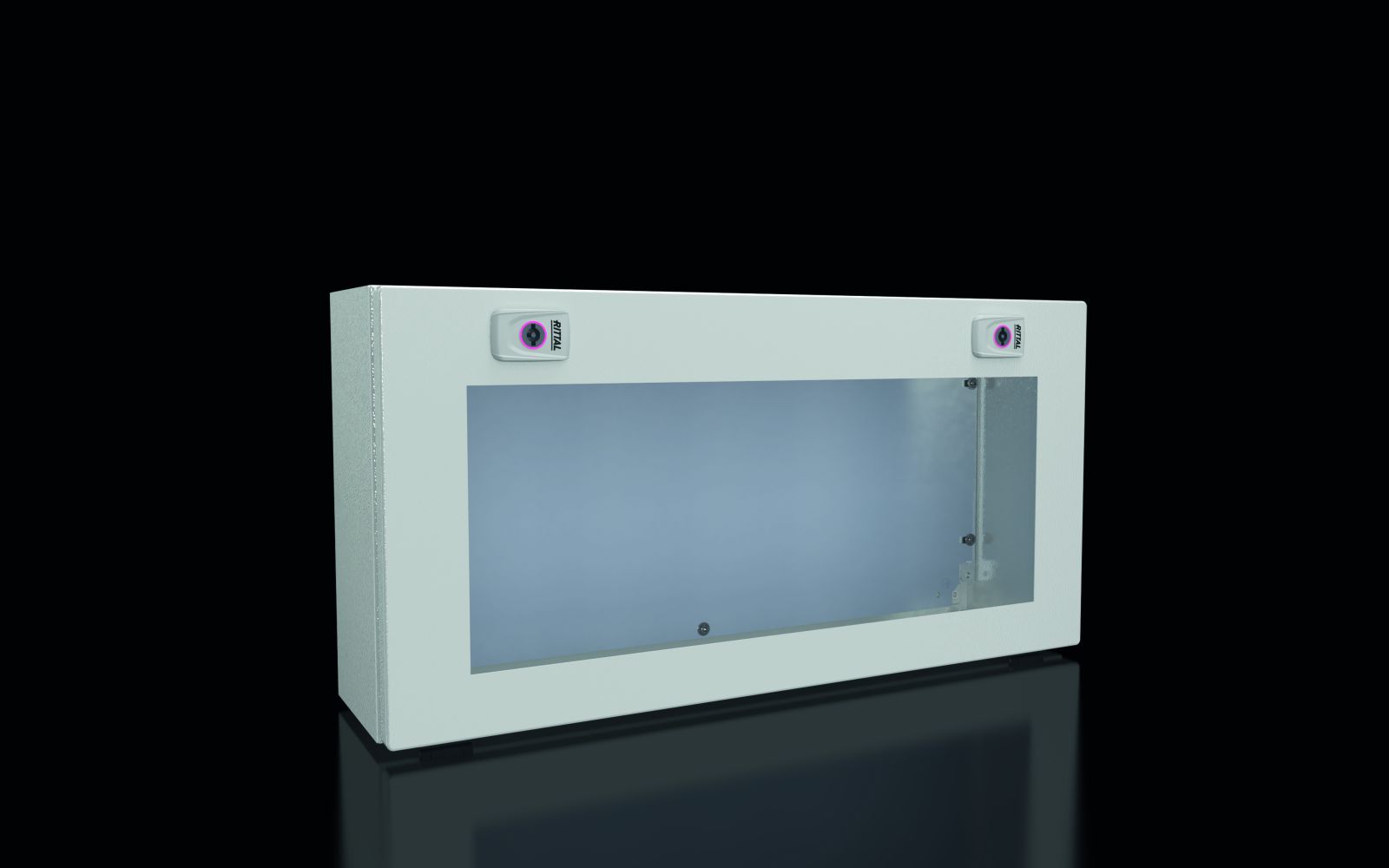

Rittal 1612100 KX bus enclosure, 600x300x155 mm, with mounting plate,
|
167,21 EUR 172,71 EUR |
|
|
( 198,98 EUR incl. VAT ) ≈ £139.95 | ≈ $183.76 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101812 |
| Mfg Part No: | 1612100 |
| UPC/EAN: | 4028177970045 |
| Weight: | 9.458 kg |
| Type: | KX 1612100 |
Product information for Rittal 1612100:
Applications include mounting control and sensor units in production plants, automation systems, and industrial control enclosures. The enclosure is suitable for indoor use as well as in environments with increased humidity or light contamination, as it meets the protection rating IP 65 according to EN 60 529. This means it is dust-tight and protected against water jets from any direction. Additionally, it complies with protection ratings NEMA 1 and NEMA 12, as well as Type Ratings Type 1 and Type 12 according to UL 50E, confirming suitability for dry indoor environments and lightly contaminated areas. Mechanical strength is ensured by the IK code IK08, which provides protection against mechanical impacts such as shocks and vibrations up to a specified energy level.
Functions and equipment in detail include a continuous PU sealing gasket, ensuring a tight seal between the enclosure and lid. The lid is hinged at the bottom and secured using a latch lock with a 3 mm double-barrel lock insert, enabling secure and quick assembly. The mounting plate made of galvanized sheet steel (2 mm thickness) is included in the delivery scope and is used for securing electrical components. Both the enclosure and lid feature a protective earth connection via an integrated U-bracket, enabling quick and easy grounding. A QR code is printed on the enclosure, lid, mounting plate, and type plate, allowing unique identification and traceability of individual parts, as well as easy access to relevant product information and documentation.
Technology explained simply shows that the enclosure is made of sheet steel with a material thickness of 1.25 mm for both the enclosure and lid, providing high mechanical stability. The mounting plate has a thickness of 2 mm and is galvanized to prevent corrosion. The surface treatment consists of a three-layer protective coating: nanoceramic coating, electrophoretic dip priming, and external powder-coated textured lacquer in RAL 7035. This treatment ensures high resistance to environmental influences. The IP 65 protection rating means the enclosure is dust-tight and protected against water jets from any direction, making it suitable for outdoor use or humid indoor environments. The NEMA 12 and Type 12 ratings according to UL 50E confirm suitability for dry indoor environments and lightly contaminated areas.
Compatibility and accessories include the option to enhance the enclosure with various accessories available in the product range. These include mounting clips for support rails, lock inserts made of zinc die-cast, plug-throughs (e.g. SZ 2400500), pressure equalization plugs (e.g. SZ pressure equalization plug M12x1.5), mounting brackets, condensate drains, baying sets for AX, KX, AE, KL, handles (e.g. SZ 2577000, AX 2533100, AX 2577010), drilling screws (type ST 4.8 L9.5 mm), and mounting brackets. These components allow individual adaptation to specific mounting and protection requirements.
Mounting and installation are carried out via the pre-drilled slots on the rear wall, designed for securing to a wall or support. The mounting plate facilitates the installation of electrical components inside the enclosure. The latch lock with double-barrel insert enables quick and secure locking of the lid. The integrated grounding via the U-bracket in the lid and enclosure ensures a reliable electrical connection to the protective earth conductor.
Operational advantages include high mechanical stability, easy mounting and maintenance, and high protection rating. The integrated viewing window allows for quick visual inspection of installed components without opening the lid. The surface treatment ensures long service life even in demanding environments. QR codes on individual parts facilitate traceability and product documentation. Compatibility with various accessories allows flexible adaptation to different requirements in industrial applications.
| General | |

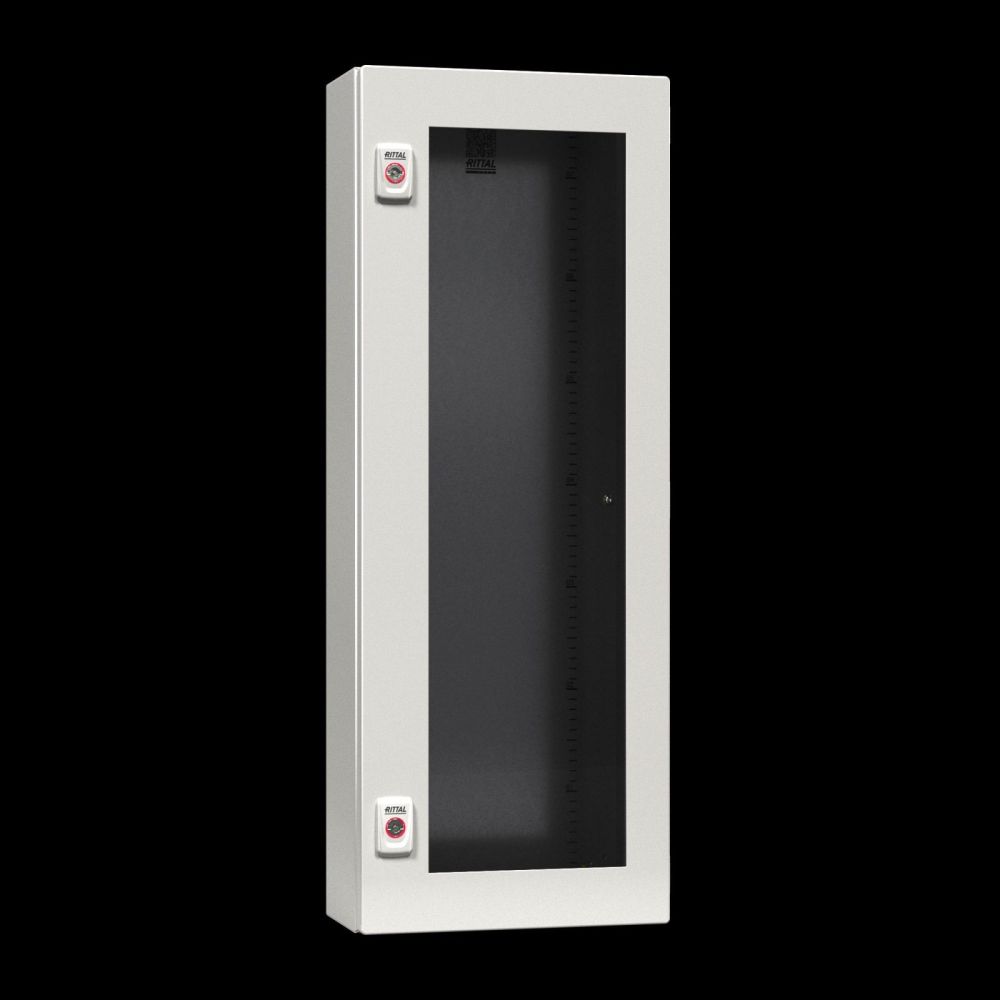

| Model | with viewing window |
| Material | Housing: sheet steel, cover: sheet steel, continuous foamed PU seal, viewing window: polycarbonate, 4 mm, mounting plate: sheet steel, galvanized |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |

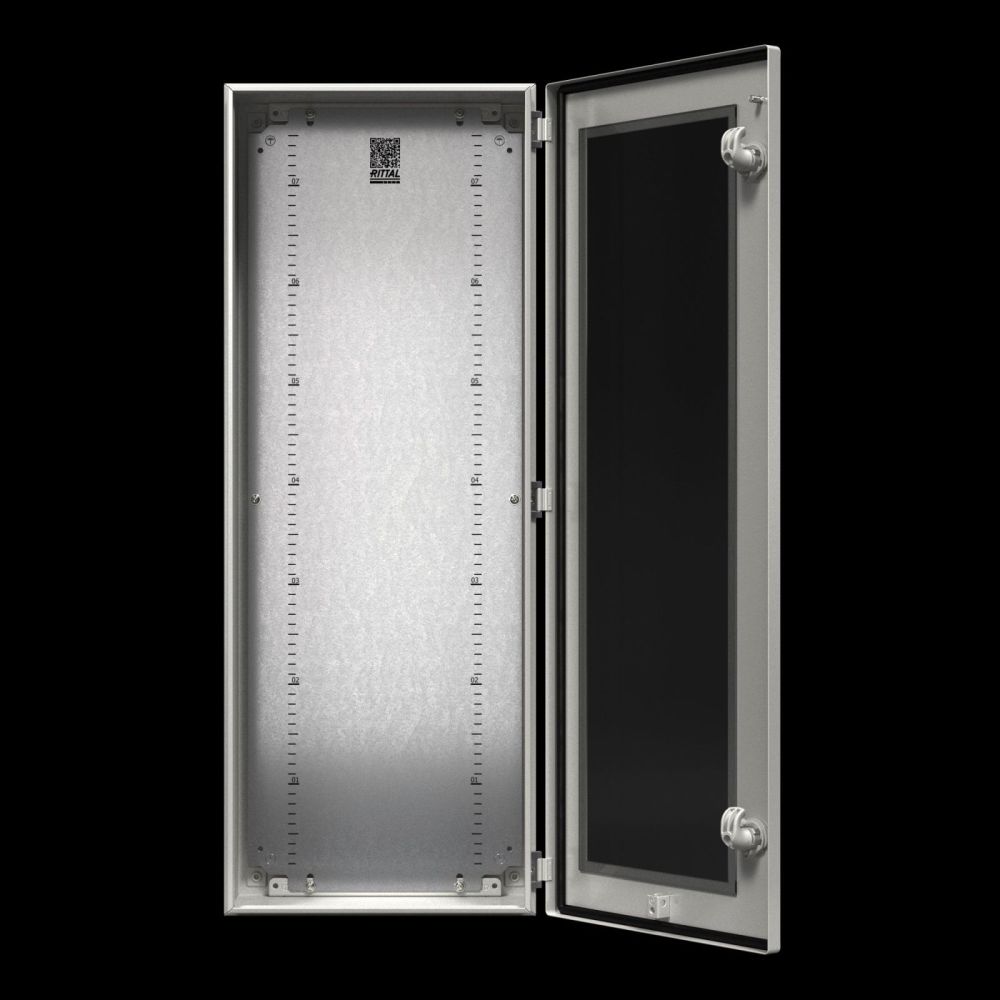

| Scope of delivery | Housing with hinged cover, viewing window in cover, mounting plate, latching lock with 3 mm double-barrel insert |
| Width | 600 mm |
| Height | 300 mm |
| Depth | 155 mm |
| Degree of protection IP according to EN 60 529 | IP 65 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Base material | steel sheet |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
