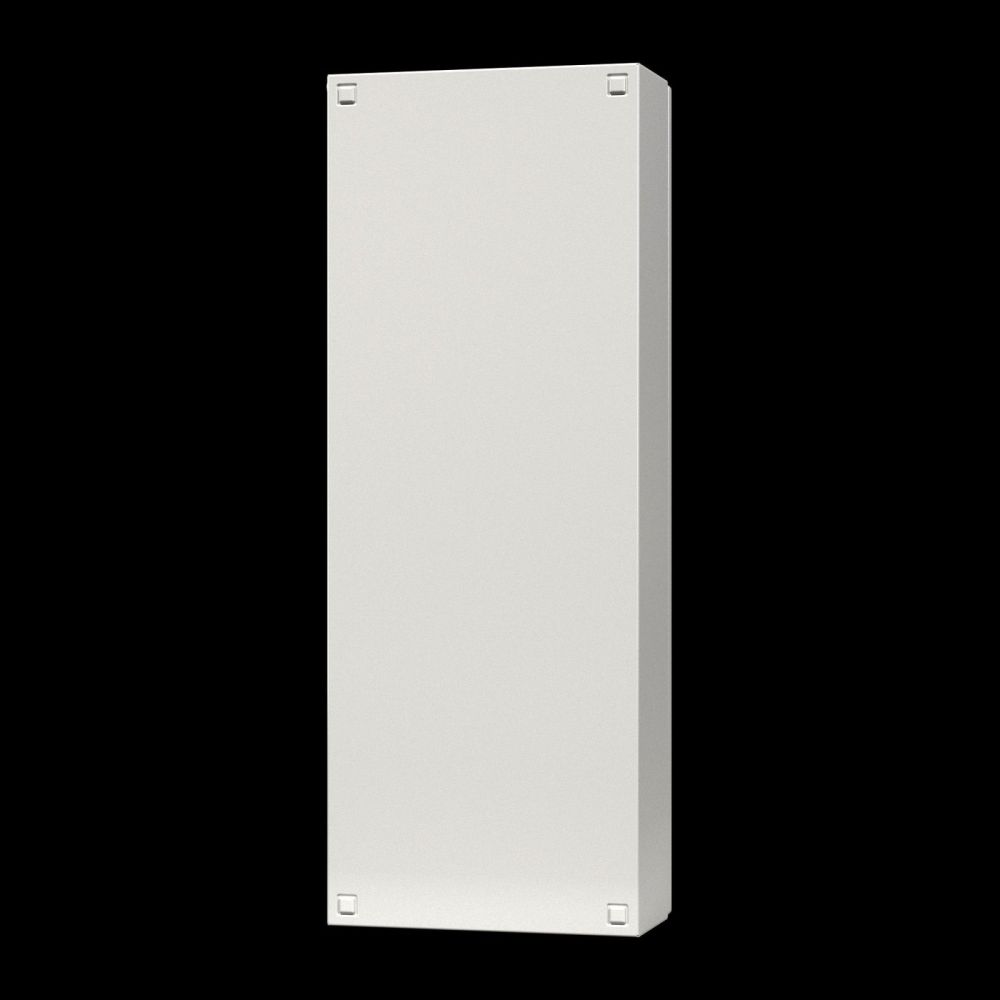

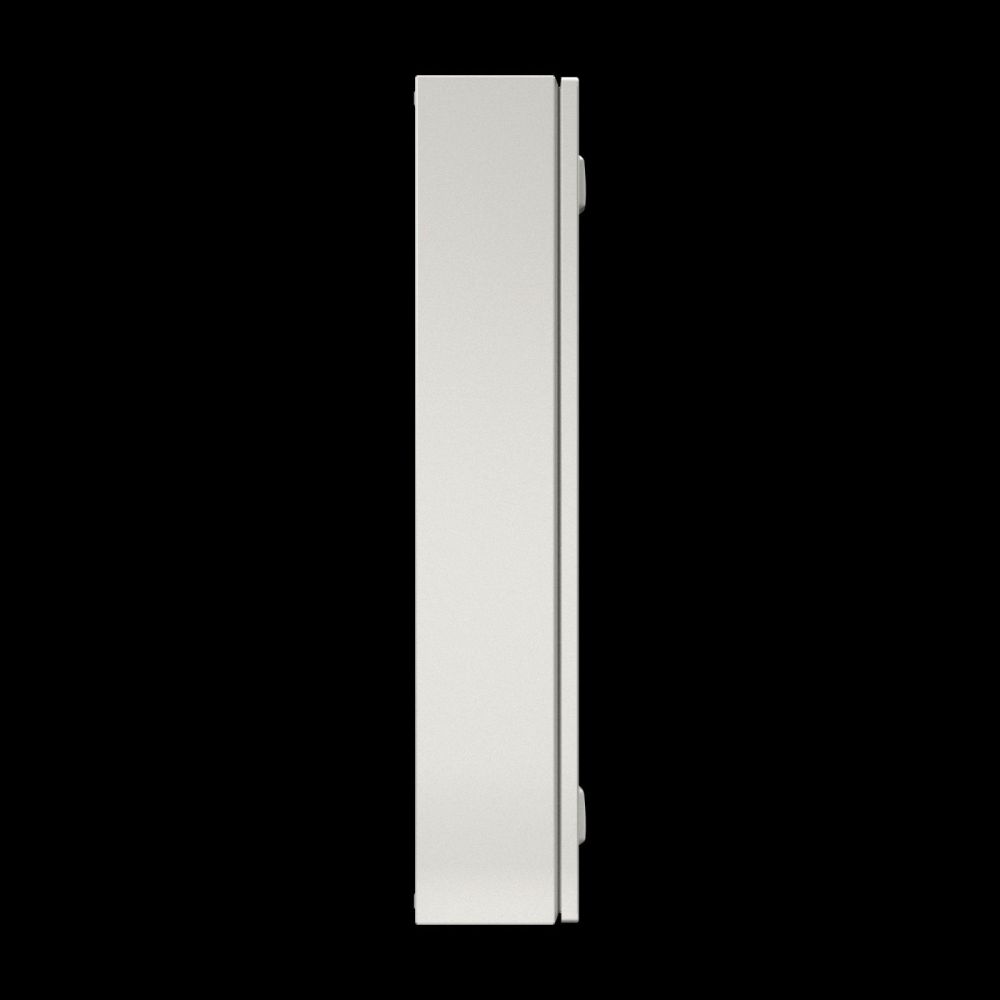

Rittal 1613100 KX bus enclosure, 800x300x155 mm, with mounting plate
|
189,98 EUR |
|
|
( 226,08 EUR incl. VAT ) ≈ £159.01 | ≈ $208.79 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101815 |
| Mfg Part No: | 1613100 |
| UPC/EAN: | 4028177970038 |
| Weight: | 12.111 kg |
| Type: | KX 1613100 |
Product information for Rittal 1613100:
Applications include mounting control elements, sensors and communication modules in production plants, automation systems and industrial controls. The enclosure is suitable for use in environments with increased requirements for mechanical and chemical resistance, particularly in areas with splashing water, dust or slight contamination risk. The integrated viewing window allows visual monitoring of internal components without opening the enclosure, simplifying maintenance and diagnostics.
Functions and equipment in detail include a latch closure with a 3 mm double-barrel lock insert, ensuring secure and quick closure. The mounting plate is included in the delivery scope and enables direct fixation of components. Earth conductor connections in the enclosure and via a U-bracket on the lid ensure quick and easy grounding. A QR code is printed on the enclosure, lid, mounting plate and type plate, enabling unique identification and easy access to relevant product information, as well as traceability of individual parts.
Technology explained simply shows that the enclosure has a protection rating of IP 65 according to EN 60 529, meaning it is dust-tight and protected against splashing water. The protection ratings NEMA 1 and NEMA 12, as well as type ratings Type 1 and Type 12 according to UL 50E, confirm suitability for indoor use and environments with slight contamination. The IK code IK08 guarantees protection against mechanical impacts, such as blows from tools or workpieces. The material thickness of the enclosure and lid is 1.25 mm each, while the mounting plate is 2 mm thick, ensuring high mechanical stability.
Compatibility and accessories include use with various lock inserts, such as zinc die-cast inserts with a length of 27 mm, as well as mounting clips for support rails. Compatible cable entry plates such as SZ 2400500 or pressure equalisation plugs M12x1.5 can be used additionally. Mounting brackets and baying sets for AX, KX, AE, KL enable integration into existing enclosure systems. Plastic handles such as AX 2577010 or AX 2533100 offer additional handling options. Drilling screws type ST 4.8 L9.5 mm and mounting brackets are also available as accessories.
Mounting and installation are carried out on a wall using the integrated mounting slots in the enclosure. The mounting plate is included in the delivery scope and can be used directly for fixing components. The viewing window in the lid allows visual inspection without opening, making mounting and maintenance more efficient. The sealing and closure ensure a tight and secure cover.
Operational advantages include high mechanical and chemical resistance, easy mounting and maintenance, and the integrated viewing window. The powder-coated surface in RAL 7035 offers long service life and resistance to environmental influences. The integrated grounding and QR code support safety and traceability in industrial operation. The enclosure is suitable for use in a wide range of industrial applications, particularly in environments where a high protection class and mechanical stability are required.
Dimensions are 800 mm width, 300 mm height and 155 mm depth. The product is available in a packaging unit of 1 piece. The PCF values (Cradle-to-Gate) are 40.9 kg CO2 eq (Cat B), where category B is approximately calculated and self-declared based on product weight.
| General | |

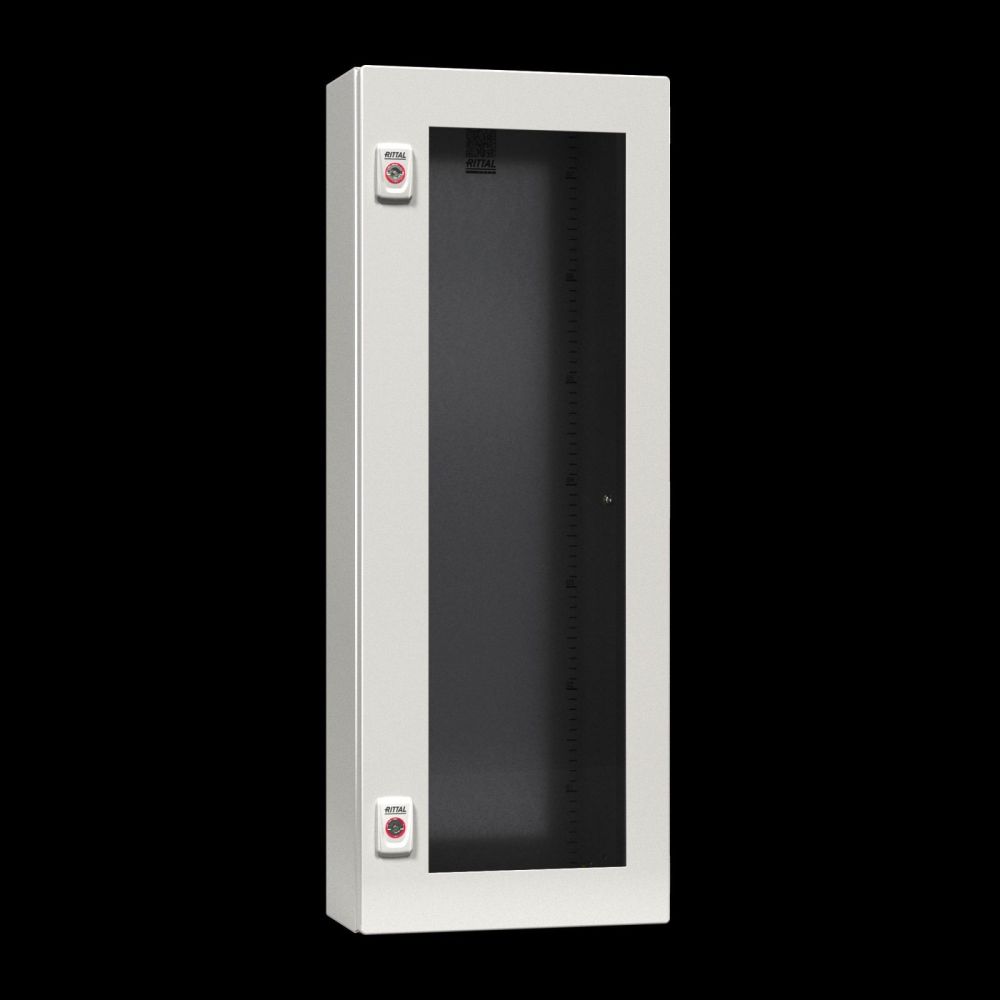

| Model | with viewing window |
| Material | Housing: sheet steel, cover: sheet steel, continuous foamed PU seal, viewing window: polycarbonate, 4 mm, mounting plate: sheet steel, galvanized |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |

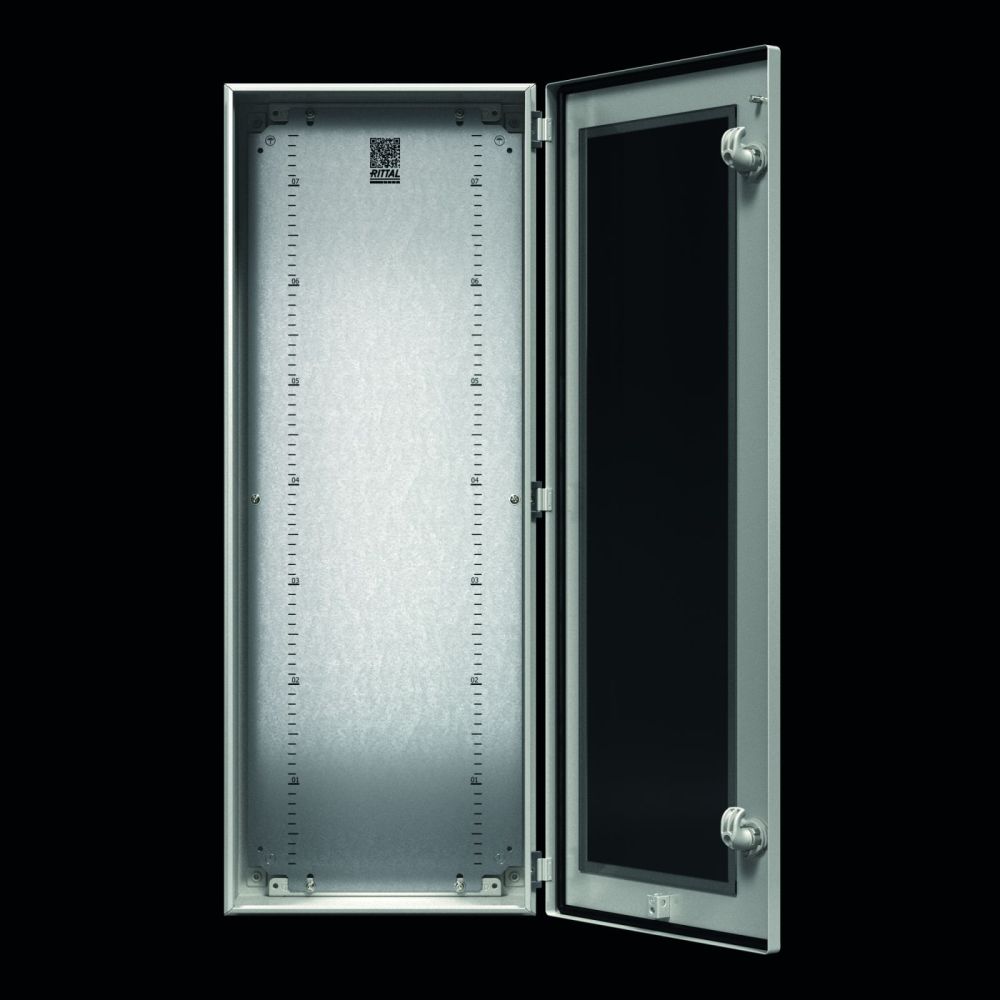

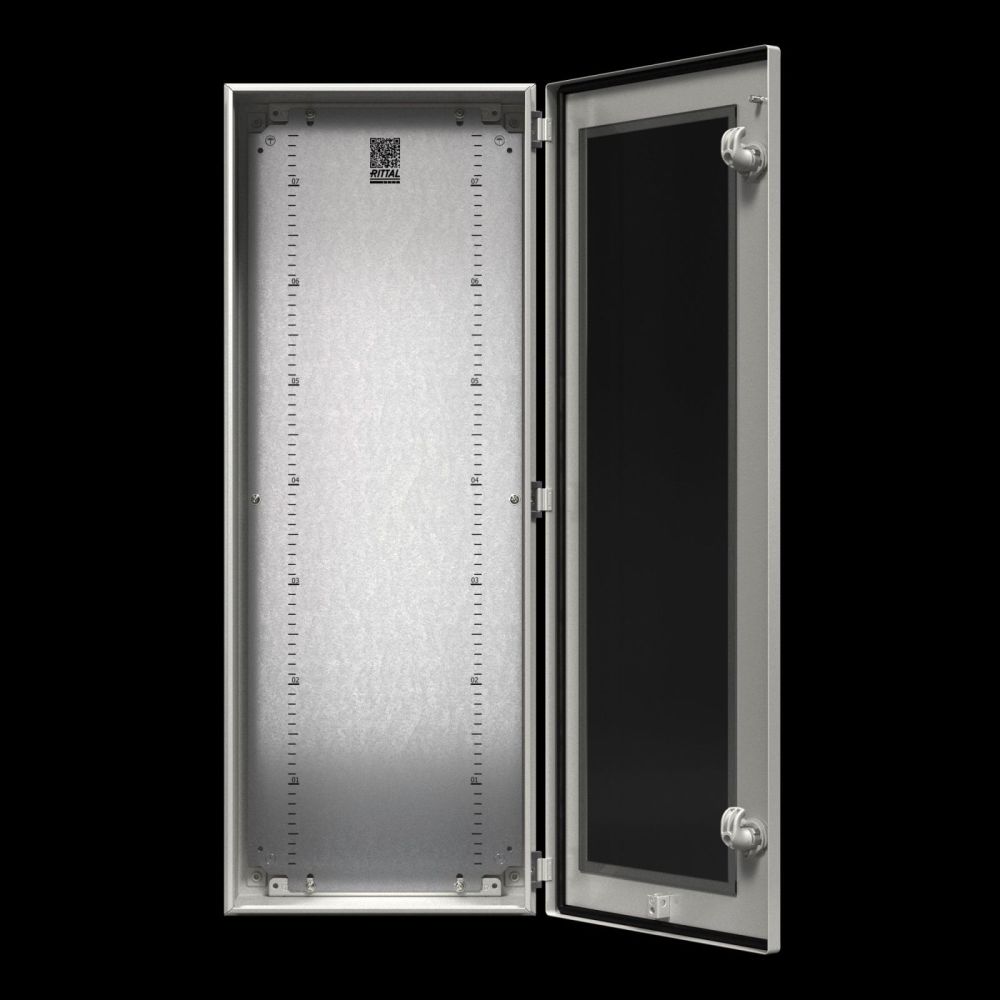

| Scope of delivery | Housing with hinged cover, viewing window in cover, mounting plate, latching lock with 3 mm double-barrel insert |
| Width | 800 mm |
| Height | 300 mm |
| Depth | 155 mm |
| Degree of protection IP according to EN 60 529 | IP 65 |
| NEMA degree of protection | NEMA 1, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Mounting plate material thickness | 2 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 40.9 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
