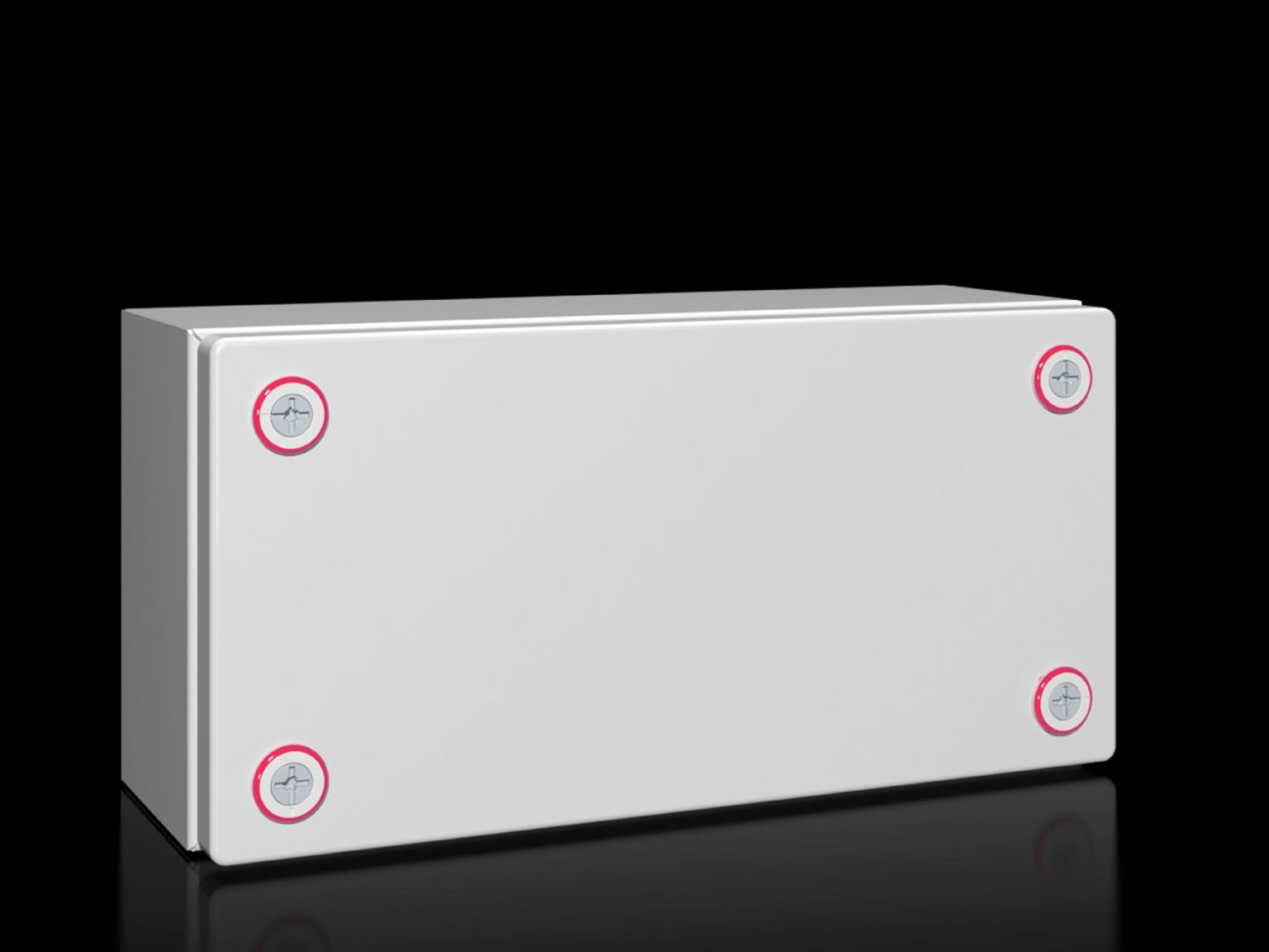

Rittal 1501000 terminal box KX, without gland plate 300x150x120 mm

Your rating:
Average rating
product review for Rittal 1501000 terminal box KX, without gland plate 300x150x120 mm
( 4.3 / 5 ) 7 ratings
Rittal 1501000
This image may differ from the desired article.
Rittal 1501000Rittal 1501000Rittal 1501000Rittal 1501000Rittal 1501000Rittal 1501000Rittal 1501000
33,69 EUR
( 40,09 EUR incl. VAT )
≈ £28.20  |  ≈ $37.03
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1501000 terminal box KX, without gland plate 300x150x120 mm
Datasheet:file_download Download
Lieske Part No.:1598127
Mfg Part No: 1501000
UPC/EAN: 4028177816152
Weight:2.317 kg
Type:KX 1501000

Product information for Rittal 1501000:

The KX terminal box from Rittal, type 1501000, is a robust small housing made of sheet steel, designed for use in industrial installations where high protection against environmental influences is required. The housing has dimensions of 300 mm width, 150 mm height, and 120 mm depth and is supplied without a gland plate and without a mounting plate. It is suitable for flexible internal installation of terminals, connectors or small electrical assemblies, with the construction being formed from a single piece, bent and welded, to ensure a stable and tight structure. The rear wall features knockouts that allow for wall mounting.

Applications

The KX terminal box is designed for use in industrial environments, particularly where high mechanical and environmental protection ratings are required. The protection rating IP 66 according to EN 60 529 guarantees dust-tight and water-tight sealing, making it suitable for outdoor use or in damp, dusty production environments. The NEMA classification includes types 1, 3R, 4, and 12, confirming suitability for dry indoor spaces, damp environments, protective enclosures, and environments with dirt and splashing water. The UL 50E Type Rating corresponds to the same categories and emphasizes the international applicability of the housing.

Functions and Equipment in Detail

The housing is made of sheet steel with a material thickness of 1.25 mm for both the body and the lid. The surface is triple-treated: dip-primed, coated with a nano-ceramic layer, and powder-coated externally in the colour RAL 7035. This coating provides high corrosion resistance and is resistant to mineral oils, lubricants, machining emulsions, and solvents. The lid is fitted with a continuous foamed PU gasket to ensure a tight seal. Fastening is achieved via a mini-latch lock, enabling secure and quick assembly. An earth conductor connection inside the housing and via a U-bracket on the lid ensures simple and reliable earthing.

Technology Explained Simply

The IP 66 protection rating means the housing is fully protected against dust and resistant to strong splashing water from any direction. The IK08 rating indicates that the housing can withstand mechanical impacts such as shocks or vibrations up to a certain energy level. The use of sheet steel with a thickness of 1.25 mm ensures sufficient strength to withstand mechanical loads during operation. The powder-coated surface in RAL 7035 provides an even, structured appearance and is durable for industrial applications.

Compatibility and Accessories

Various accessories are available for this terminal box, enabling use in different system configurations. These include mounting clips for support rails, connector knockouts, pressure equalization plugs, support rails in various lengths, mounting brackets, condensate drains, baying sets for other KX models, drilling screws, mounting brackets, spacing brackets for shock protection covers, zinc die-cast lid hinges, mounting plates, and mounting claws for a second mounting level. These components enhance the flexibility of the housing and allow individual adaptation to specific applications.

Mounting and Installation

Mounting is done via the pre-drilled knockouts in the rear wall, suitable for wall mounting. Alternatively, mounting brackets or mounting brackets can be used to fix the housing to various substrates. The use of support rails allows integration into existing enclosure systems. Mounting plates and mounting claws support installation in complex arrangements, especially when multiple levels or additional components are to be integrated.

Advantages in Operation

The KX terminal box provides reliable protection for electrical components in demanding environments. The high protection rating IP 66 and IK08 rating ensure long service life and low maintenance. The simple earthing via the integrated earth conductor connection reduces installation time. The powder-coated surface in RAL 7035 is resistant to industrial chemicals and provides a uniform visual appearance. The use of sheet steel with a thickness of 1.25 mm ensures high mechanical stability. The integrated PU gasket ensures a tight seal that remains intact even after frequent opening and closing.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width300 mm
Height150 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)28.17 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1501000, EAN: 4028177816152
