Rittal 2316000 support rail TH 35/7.5/TS 35/15, length 287 mm, for Br

Your rating:
Average rating
product review for Rittal 2316000 support rail TH 35/7.5/TS 35/15, length 287 mm, for Br
( 4.5 / 5 ) 26 ratings

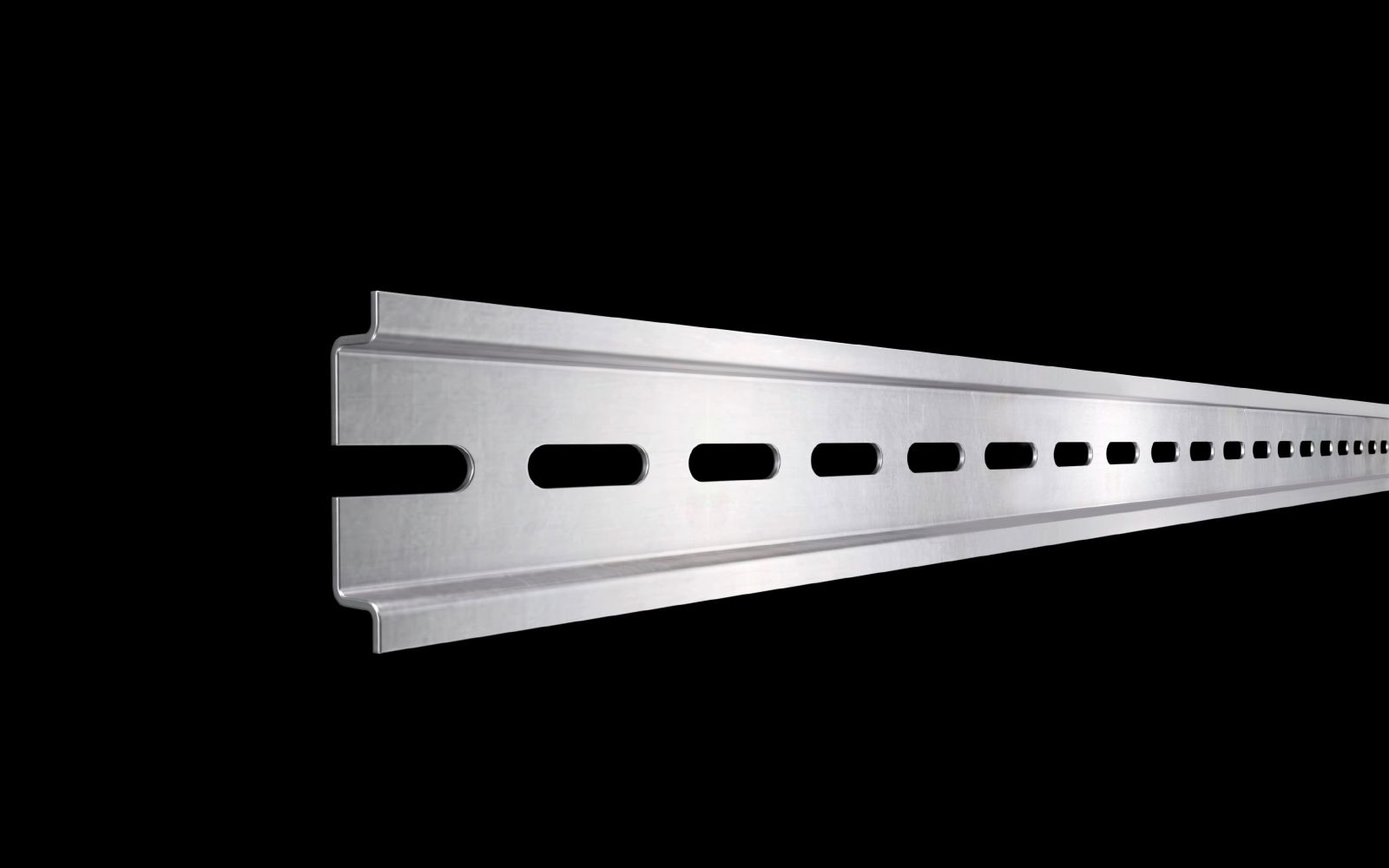

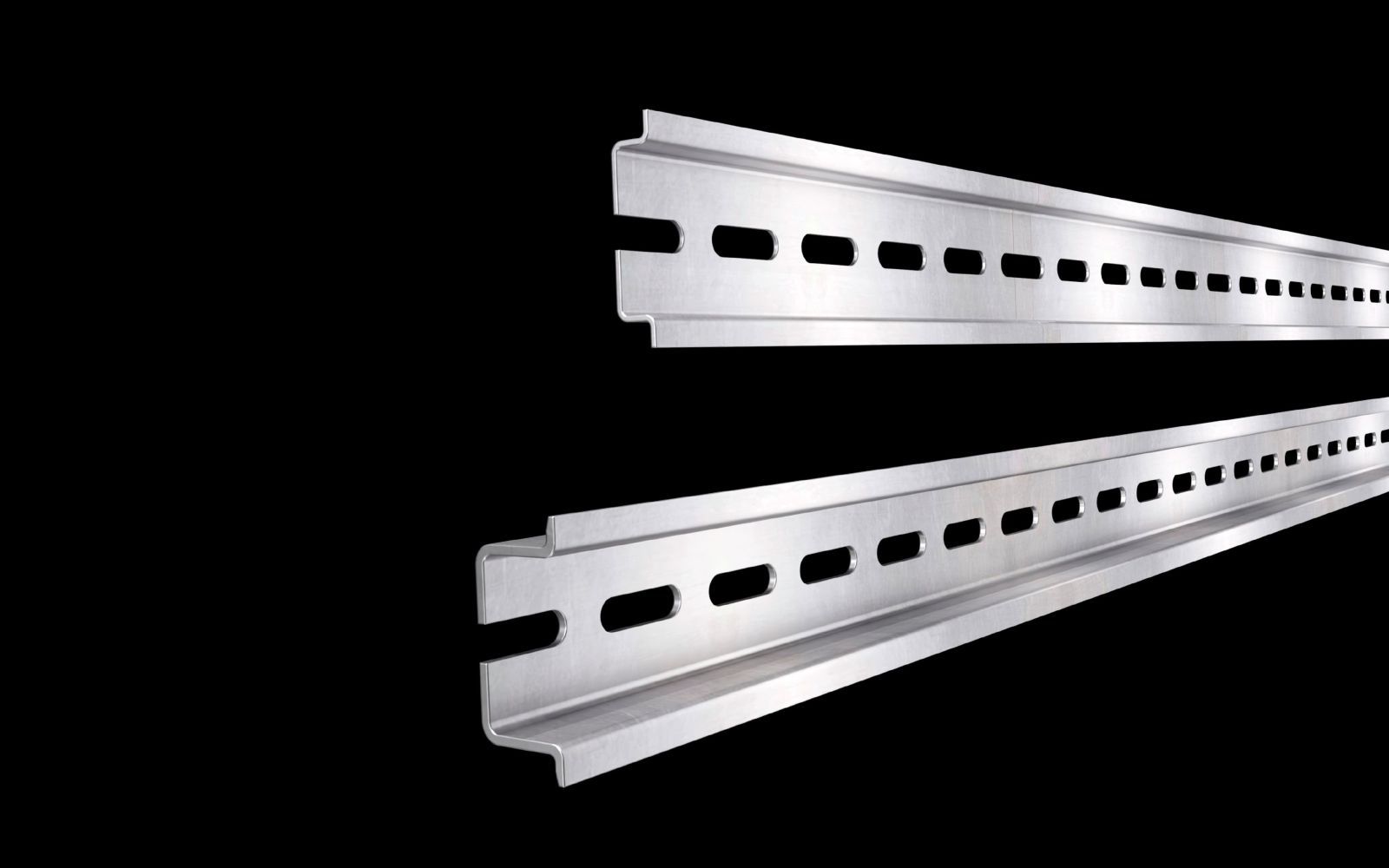

Rittal 2316000
This image may differ from the desired article.
Rittal 2316000Rittal 2316000Rittal 2316000Rittal 2316000
33,91 EUR 33,92 EUR
( 40,35 EUR incl. VAT )
≈ £28.38  |  ≈ $37.27
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2316000 support rail TH 35/7.5/TS 35/15, length 287 mm, for Br
Datasheet:file_download Download
Lieske Part No.:398722
Mfg Part No: 2316000
UPC/EAN: 4028177021044
Weight:0.922 kg
Type:SZ 2316000

Product information for Rittal 2316000:

The Rittal SZ 2316000 is a support rail in TH 35/7.5 format, specifically designed for use in enclosures and housings. It serves as a mounting element for electrical components, such as switches, relays, or control devices, and enables structured and standard-compliant installation within enclosures. The support rail is made of sheet steel and features a galvanized surface, providing corrosion-resistant protection. The length is 287 mm and is matched to the housing width of 300 mm, ensuring precise fit and secure installation.

Applications
The support rail is intended for various housing types, including models AX, KX, AE, KL, and KL-HD. These housings are typically used in industrial electrical engineering, automation technology, and building and plant control. The support rail is used in enclosures to securely and orderly mount components, achieving optimal maintainability and structured cable management. The EN 60 715 standard, according to which the support rail is manufactured, ensures that dimensions and mounting characteristics are compatible with international standards.

Functions and Equipment in Detail
The TH 35/7.5 support rail provides stable mounting for electrical components using screws or clamps. The galvanized surface protects the sheet steel from corrosion, which is particularly advantageous in environments with high humidity or aggressive atmospheres. The length of 287 mm exactly matches the width of 300 mm, allowing the rail to be fully installed in the housing without requiring additional adjustments. The TH 35/7.5 design is a common standard form in the electrical industry and is frequently used in enclosures with DIN rail systems.

Technology Explained Simply
The designation TH 35/7.5 refers to the dimensions of the support rail: a height of 35 mm and a depth of 7.5 mm. These dimensions comply with the EN 60 715 standard, which governs the sizing of support rails in enclosures. The rail is inserted into the designated mounting openings in the enclosure walls and provides a stable base for mounting components. The galvanized surface ensures longer service life and prevents rust formation, increasing the reliability of the entire enclosure system.

Compatibility and Accessories
The support rail is specifically designed for enclosures with a width of 300 mm and fits housing types AX, KX, AE, KL, and KL-HD. These housings are widely used in industrial electrical engineering and offer a standardized mounting base. The support rail can be combined with other Rittal products, such as enclosure housings, cable ducts, or mounting elements, to create a complete enclosure system. Using components also manufactured according to EN 60 715 ensures uniform mounting and optimal fit.

Mounting and Installation
The support rail is mounted by inserting it into the designated mounting openings in the enclosure walls. The length of 287 mm allows for exact adaptation to the housing width of 300 mm, enabling full installation within the housing. Mounting is typically done using screws or clamps inserted into the designated holes in the support rail. The galvanized surface facilitates installation, as no additional coatings or protective measures are required.

Operational Advantages
The support rail provides a stable and reliable mounting base for electrical components. Compliance with EN 60 715 ensures worldwide uniform use and compatibility. The galvanized surface increases service life and reduces maintenance costs by preventing corrosion. The exact fit for housings with a width of 300 mm ensures clean and orderly installation, improving the maintainability and safety of the enclosure system. The support rail is available in a pack of 10, making procurement for larger projects more efficient.

General
ModelTH 35/7,5
Materialsteel sheet
Surface protectionZinc-plated
Length of busbar287 mm
Suitable forHousing type: AX, KX, AE, KL, KL-HD, width: = 300 mm
PCF/VE (Cradle-to-Gate)3.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2316000, EAN: 4028177021044

Questions & answers

What is the delivery time of Rittal 2316000 support rail TH 35/7.5/TS 35/15, length 287 mm, for Br?

The article Rittal 2316000 support rail TH 35/7.5/TS 35/15, length 287 mm, for Br is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2316000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2316000 support rail TH 35/7.5/TS 35/15, length 287 mm, for Br always at the best possible price. We can give you a discount of 2% on Rittal 2316000 support rail TH 35/7.5/TS 35/15, length 287 mm, for Br if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
