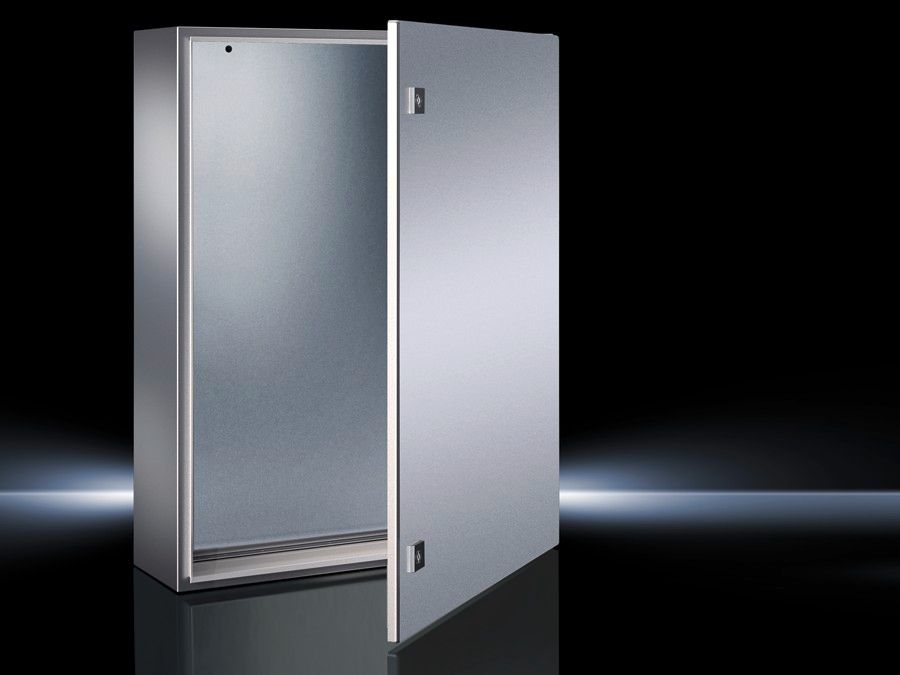

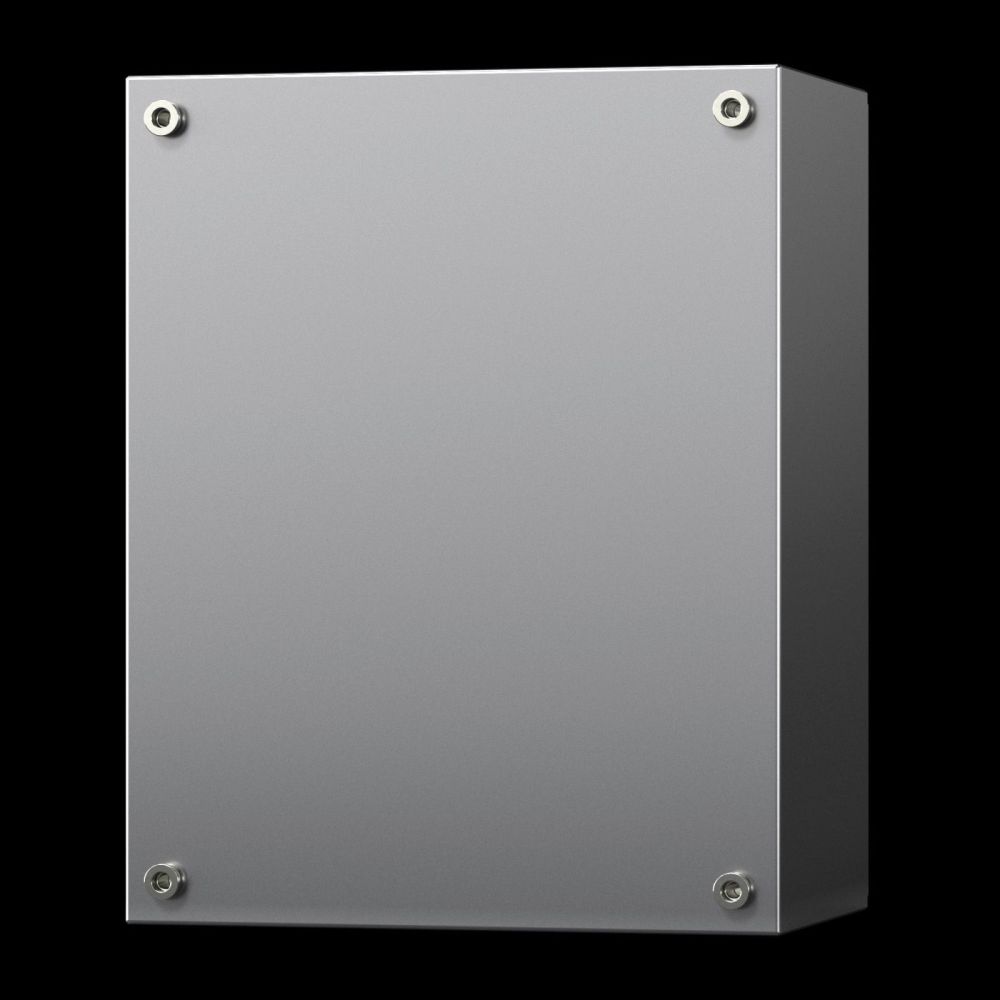

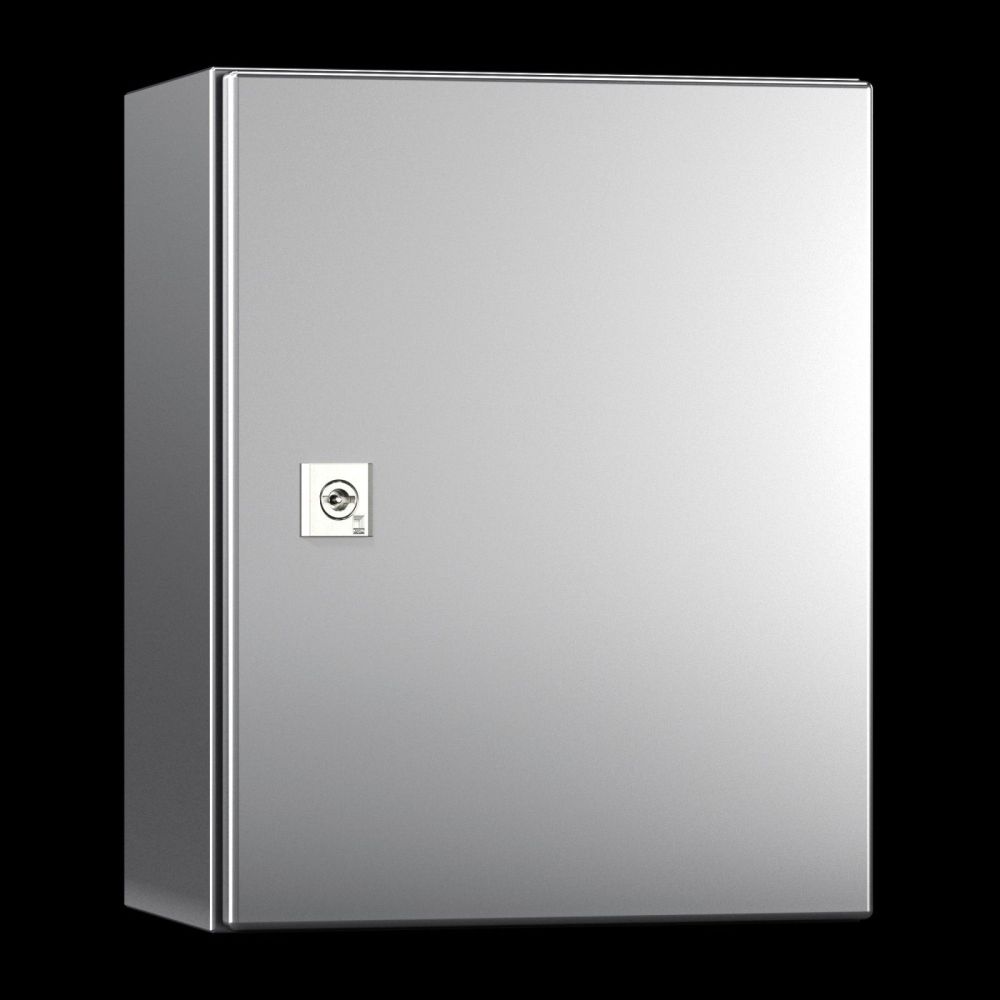

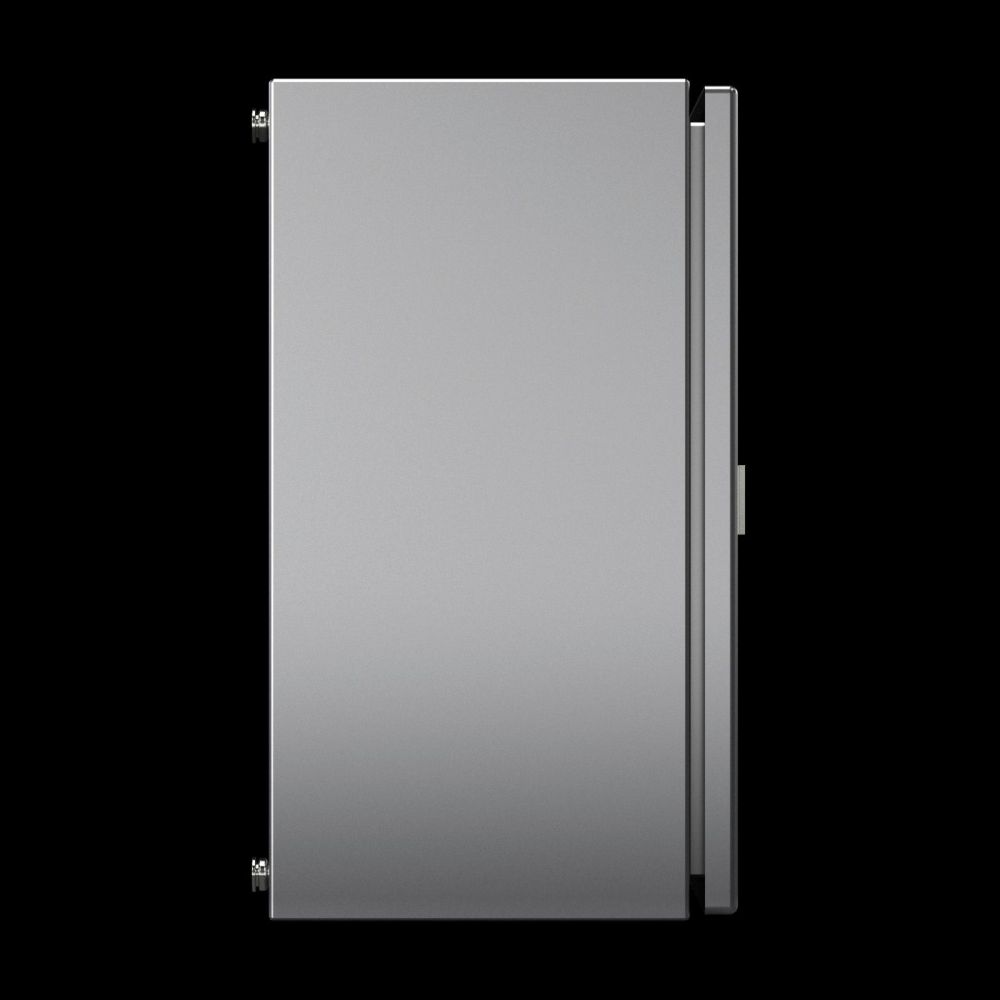

Rittal 9409600 Ex-enclosure stainless steel, empty enclosure with hinged door

Your rating:
Average rating
product review for Rittal 9409600 Ex-enclosure stainless steel, empty enclosure with hinged door
( 4.2 / 5 ) 10 ratings
Rittal 9409600
This image may differ from the desired article.
Rittal 9409600Rittal 9409600Rittal 9409600Rittal 9409600Rittal 9409600Rittal 9409600
-8% 331,20 EUR 358,70 EUR
( 394,13 EUR incl. VAT )
≈ £277.21  |  ≈ $363.99
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9409600 Ex-enclosure stainless steel, empty enclosure with hinged door
Datasheet:file_download Download
Lieske Part No.:1013484
Mfg Part No: 9409600
UPC/EAN: 4028177138926
Weight:8.12 kg
Type:KEL 9409600

Product information for Rittal 9409600:

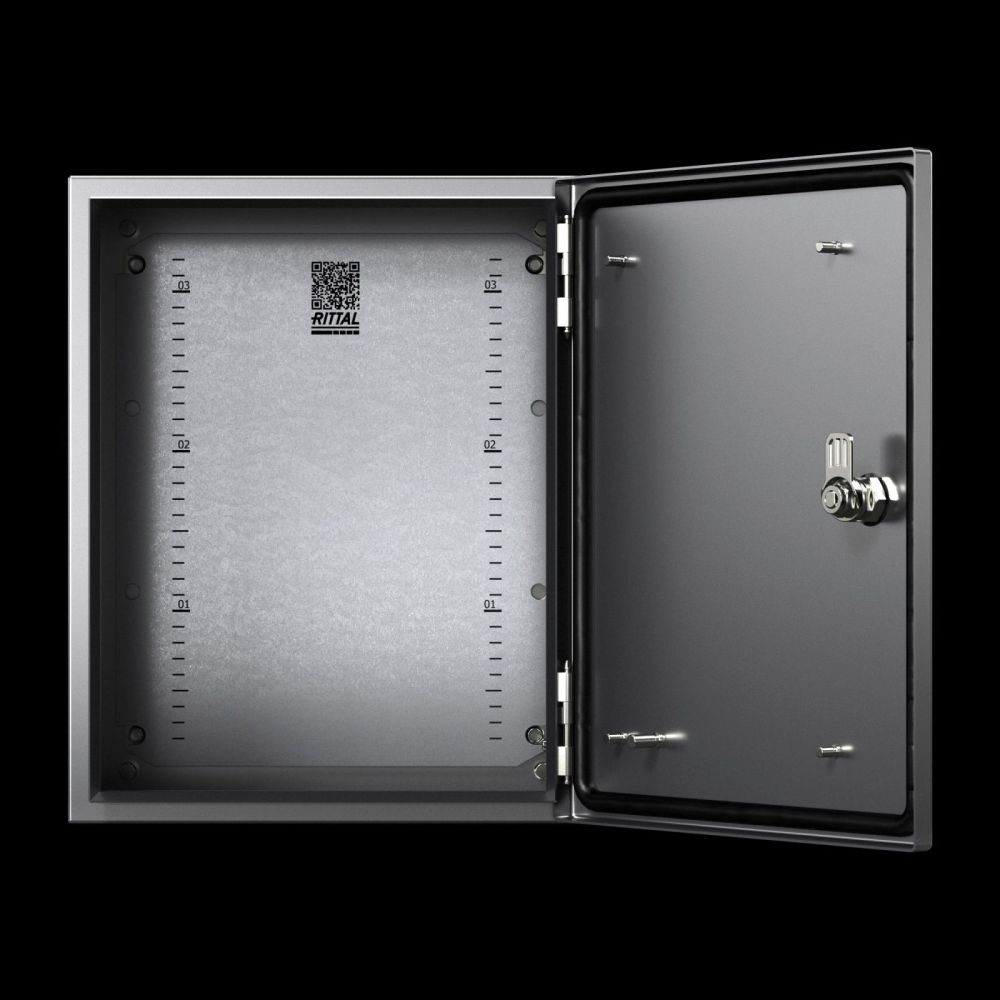

The Rittal KEL 9409600 is an Ex enclosure made of stainless steel 1.4301 (AISI 304), designed for use in explosive atmospheres in accordance with Directive 2014/34/EU. It is approved for Zone 1 and 2 as well as Zone 21 and 22 and provides protection through increased safety (Ex e) and through enclosure (Ex tb) in accordance with EN 60 079. The enclosure serves as an empty housing with a hinged door and is intended for the installation of electrical or electronic components in hazardous environments. The dimensions are 300 mm width, 380 mm height, and 210 mm depth, with the mounting plate measuring 275 mm × 334 mm. The enclosure surface is brush-finished (grit 400, roughness depth < 0.8 µm), and the mounting plate is galvanized. The enclosure is fitted with a continuous foamed silicone seal, ensuring a tight seal. The closure is achieved via a cam latch with a 3 mm double-barrel lock insert. The protection rating IP 66 according to IEC 60 529 safeguards against dust and water, even under heavy spray conditions. The protection rating NEMA 4X as well as type ratings Type 1, Type 4, Type 4X, and Type 12 according to UL 50E confirm suitability for outdoor use and in damp or corrosive environments. The ambient temperature range is between -30 °C and +80 °C, although the actual operating temperature may be limited by installed components. The enclosure is certified with IEC EX PTB 09.0035U and PTB 02 ATEX 1082U, confirming compliance with relevant explosion protection standards. The delivery includes the enclosure, door, and mounting plate. The materials consist of stainless steel 1.4301 for the enclosure and door, and sheet steel for the mounting plate. The surface treatment ensures high corrosion resistance and a uniform, clean appearance. The enclosure is suitable for use in industrial plants, such as in petrochemical, process engineering, or power generation applications, where high safety and reliability are required. Installation is carried out using the included mounting plate, designed for securing to walls or other substructures. Technical features such as IP 66 protection rating and ignition protection types Ex e and Ex tb ensure safe and reliable operation in hazardous areas. The material selection of stainless steel 1.4301 provides high mechanical strength and chemical resistance, particularly against moisture and aggressive media. The galvanized sheet steel mounting plate offers a stable base for component installation. The closure design with cam latch and double-barrel lock insert ensures a secure and tight seal, even after frequent opening and closing. Certifications according to ATEX, IECEx, and UL confirm international recognition and suitability for use in various markets. The dimensions and construction are designed to enable efficient installation and maintenance without compromising safety requirements. Applications include installations in the chemical industry, mining, oil and gas industry, and other areas where explosion hazards exist. The combination of robust material, high protection rating, and certification makes the KEL 9409600 a reliable component for safety-critical applications. Installation is carried out using the included mounting plate, designed for securing to walls or other substructures. Technical features such as IP 66 protection rating and ignition protection types Ex e and Ex tb ensure safe and reliable operation in hazardous areas. The material selection of stainless steel 1.4301 provides high mechanical strength and chemical resistance, particularly against moisture and aggressive media. The galvanized sheet steel mounting plate offers a stable base for component installation. The closure design with cam latch and double-barrel lock insert ensures a secure and tight seal, even after frequent opening and closing. Certifications according to ATEX, IECEx, and UL confirm international recognition and suitability for use in various markets. The dimensions and construction are designed to enable efficient installation and maintenance without compromising safety requirements. Applications include installations in the chemical industry, mining, oil and gas industry, and other areas where explosion hazards exist. The combination of robust material, high protection rating, and certification makes the KEL 9409600 a reliable component for safety-critical applications.

General
ModelEx enclosure
ApplicationsZone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -30 °C...+80 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb)
MaterialHousing: stainless steel 1.4301 (AISI 304), Door: stainless steel 1.4301 (AISI 304), continuous foamed silicone seal, mounting plate: sheet steel
Surface protectionHousing: Brushed finish, grain 400, roughness < 0.8 µm, mounting plate: galvanised
Scope of deliveryhousing, door, mounting plate
Width300 mm
Height380 mm
Depth210 mm
Mounting plate dimensions (W x H)275 mm x 334 mm
Base materialStainless steel 1.4301 (AISI 304)
LockLocking mechanism type: latch, number of locks: 1, lock insert: 3 mm double barb
Degree of protection IP according to IEC 60 529IP 66
NEMA degree of protectionNEMA 4X
Type rating according to UL 50EType 1, Type 4, Type 4X, Type 12
Certificate IEC EX PTB 09.0035UJa
Certificate PTB 02 ATEX 1082UJa


Product data sheet
Datasheet for Rittal 9409600, EAN: 4028177138926
