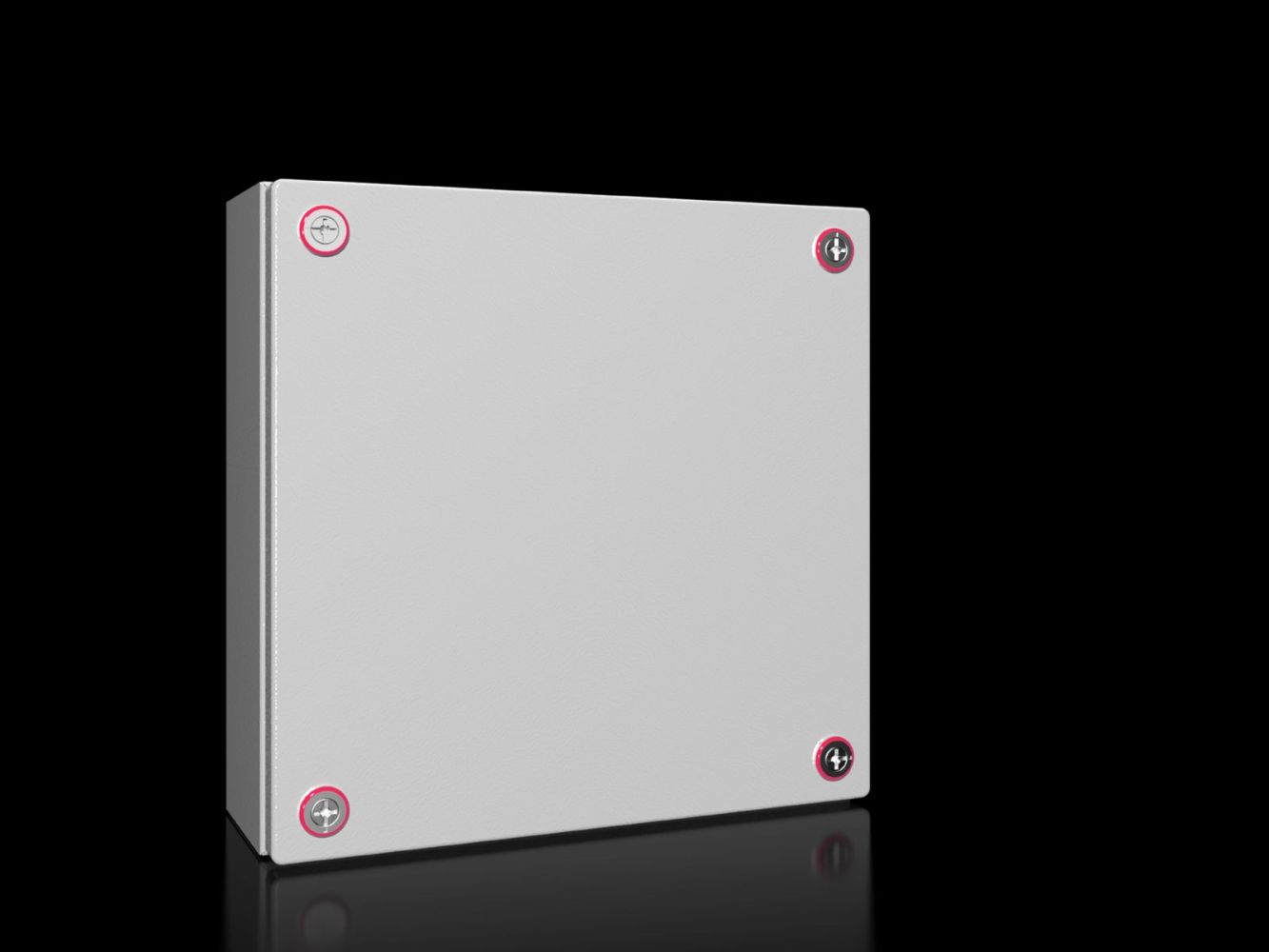

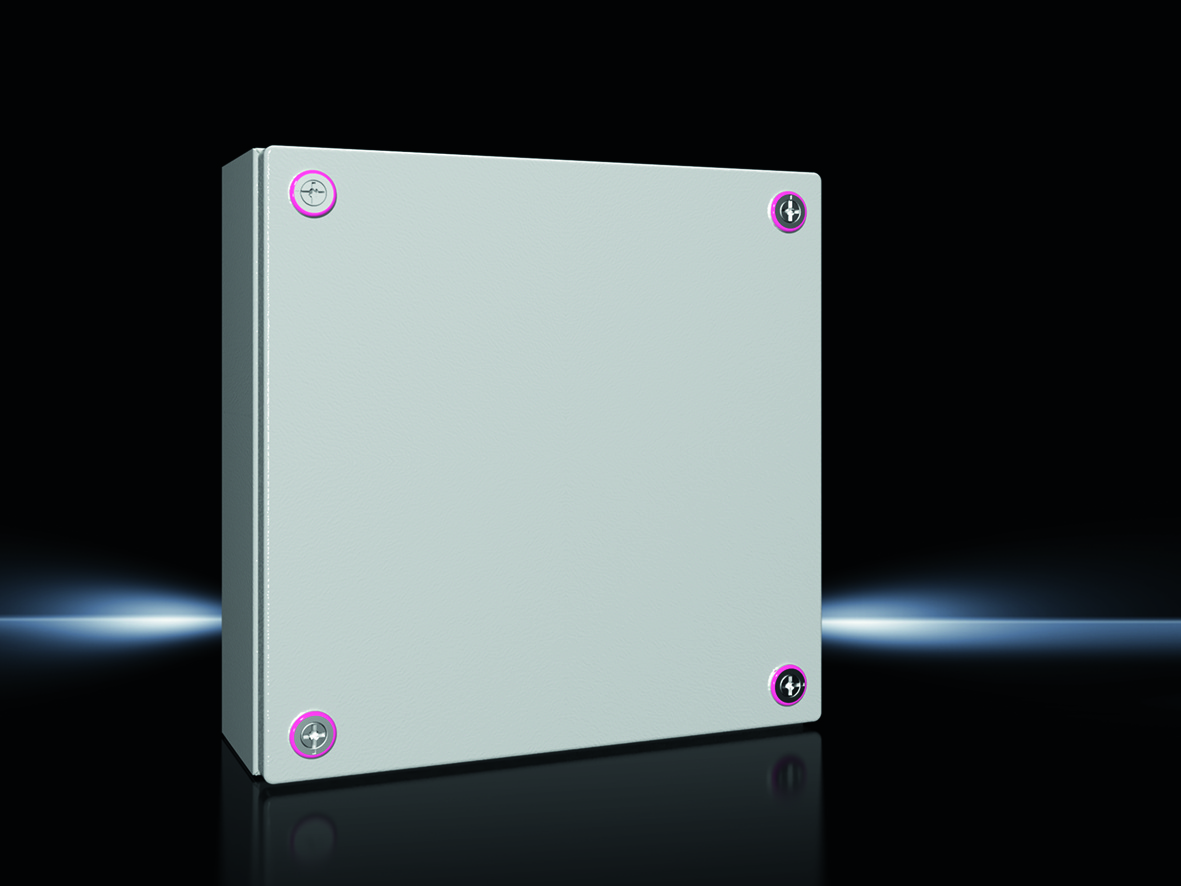

Rittal 1507000 terminal box KX, without gland plate 300x300x120 mm

Your rating:
Average rating
product review for Rittal 1507000 terminal box KX, without gland plate 300x300x120 mm
( 4.4 / 5 ) 9 ratings
Rittal 1507000
This image may differ from the desired article.
Rittal 1507000Rittal 1507000Rittal 1507000Rittal 1507000Rittal 1507000Rittal 1507000Rittal 1507000
44,23 EUR 44,25 EUR
( 52,63 EUR incl. VAT )
≈ £37.02  |  ≈ $48.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1507000 terminal box KX, without gland plate 300x300x120 mm
Datasheet:file_download Download
Lieske Part No.:1598178
Mfg Part No: 1507000
UPC/EAN: 4028177816213
Weight:3.7 kg
Type:KX 1507000

Product information for Rittal 1507000:

The KX terminal box from Rittal, type 1507000, is a robust small housing made of sheet steel, designed for use in industrial applications where high protection requirements and flexible internal installation are needed. The housing has dimensions of 300 mm width, 300 mm height, and 120 mm depth and is delivered without a mounting plate and without a gland plate. It features a lid with a continuously foamed PU seal, ensuring a tight seal. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The delivery includes the housing with lid as well as a mini cam lock for secure locking.

Applications

The KX terminal box is suitable for use in industrial environments, particularly where high mechanical and environmental protection classes are required. It is suitable for indoor and outdoor use, for example in manufacturing industry, automation technology, or machine building. The protection rating IP 66 according to EN 60 529 ensures dust-tight and water-tight sealing, even under heavy spray water conditions. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial conditions, including humid or dusty environments.

Functions and Equipment in Detail

The housing is made of a single piece of bent and welded sheet steel with a material thickness of 1.25 mm for both the housing and the lid. The rear wall features cutouts for wall mounting brackets, enabling flexible installation. The lid is equipped with a continuous protective channel, which together with the PU seal ensures a tight seal. A protective conductor connection in the housing and via a U-bracket in the lid enables quick and easy earthing. The mini cam lock ensures secure and quick locking of the lid.

Technology Explained Simply

The protection rating IP 66 means that the housing is dust-tight and protected against heavy spray water, making it suitable for outdoor use or in humid environments. The IK code IK08 indicates high mechanical strength against impact loads, protecting the housing against mechanical damage. The surface treatment with nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer in RAL 7035 ensures long service life and resistance against aggressive environmental conditions.

Compatibility and Accessories

The housing is compatible with various accessories that enable use in different application scenarios. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, support rails TH 35/7.5/TS 35/15, mounting brackets, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, spacing brackets, lid hinges, mounting plates, mounting claws for a second mounting level, and wall mounting brackets. These components allow individual adaptation of the terminal box to specific mounting and installation requirements.

Mounting and Installation

Mounting is done via the designated cutouts on the rear wall, designed for wall mounting brackets. The use of mounting brackets or wall mounting brackets enables secure fastening to walls or other structures. The support rails TH 35/7.5/TS 35/15 can be used to mount components inside the housing. Mounting plates and spacing brackets support the installation of terminal boxes or bus housings inside the KX box.

Advantages in Operation

The KX terminal box offers a high mechanical and environmental protection class, making it suitable for demanding industrial applications. The robust sheet steel construction and tight sealing ensure long service life and reliable protection of installed components. The flexible internal installation options, enabled by compatibility with various accessories, allow individual adaptation to specific requirements. The simple earthing via the integrated protective conductor connection and the U-bracket in the lid reduces installation time and increases safety. The QR code on the housing, lid, and type plate enables unique identification and easy access to relevant product information and documentation, facilitating traceability and maintenance.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width300 mm
Height300 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)32.15 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1507000, EAN: 4028177816213
