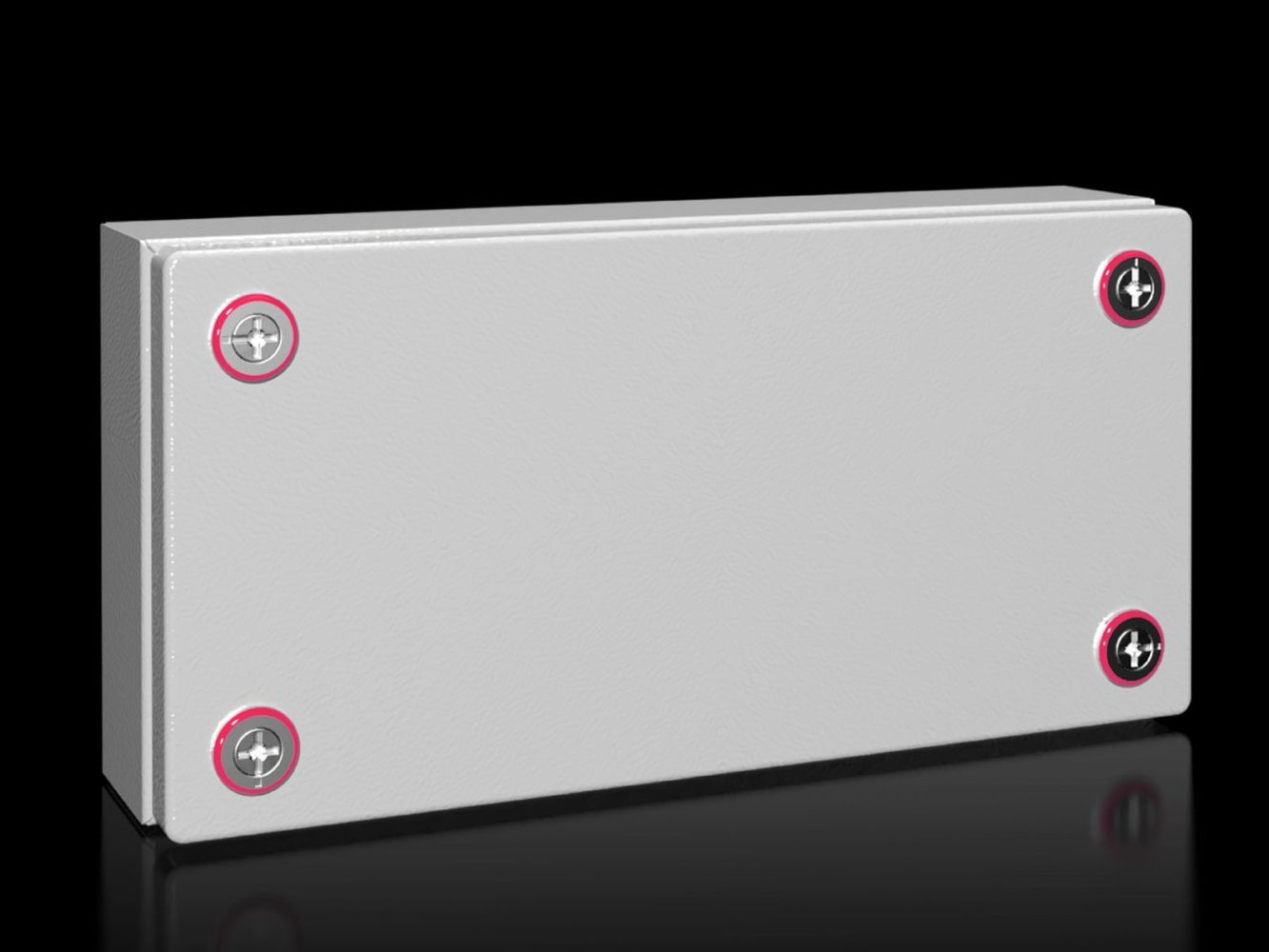

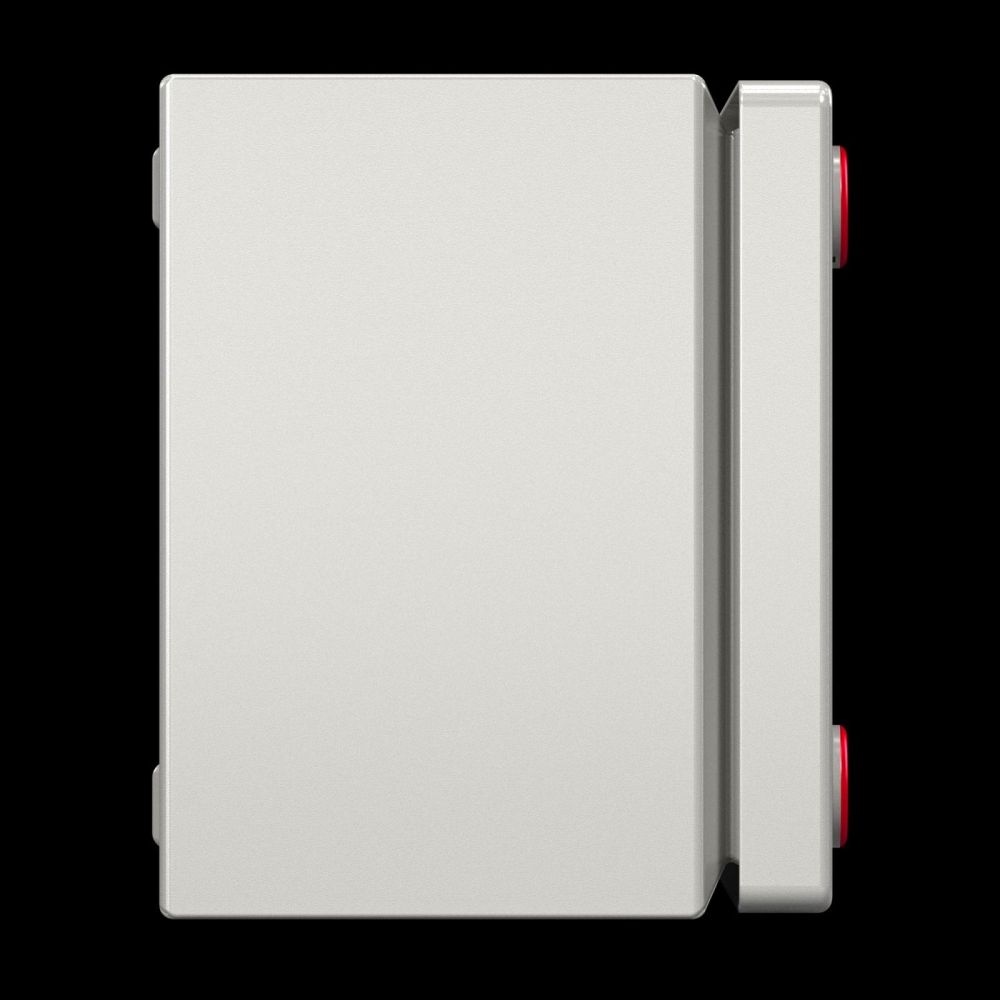

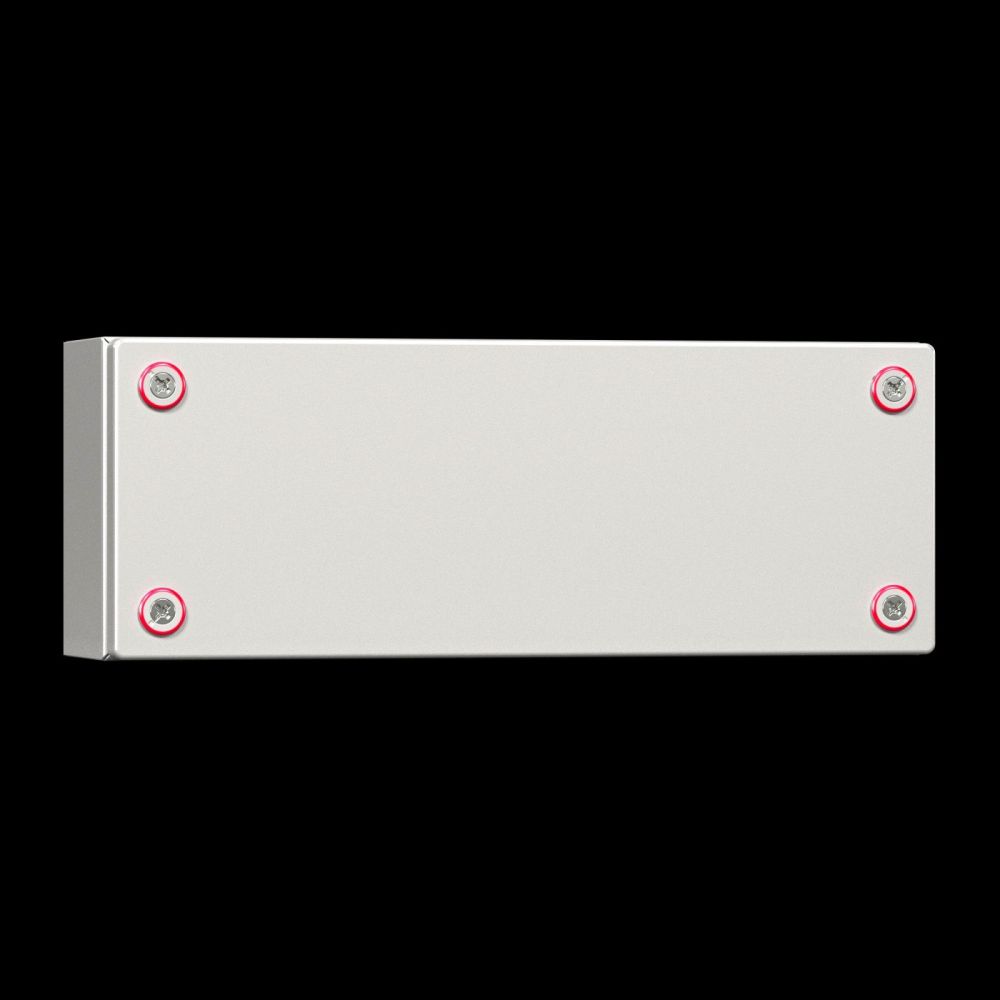

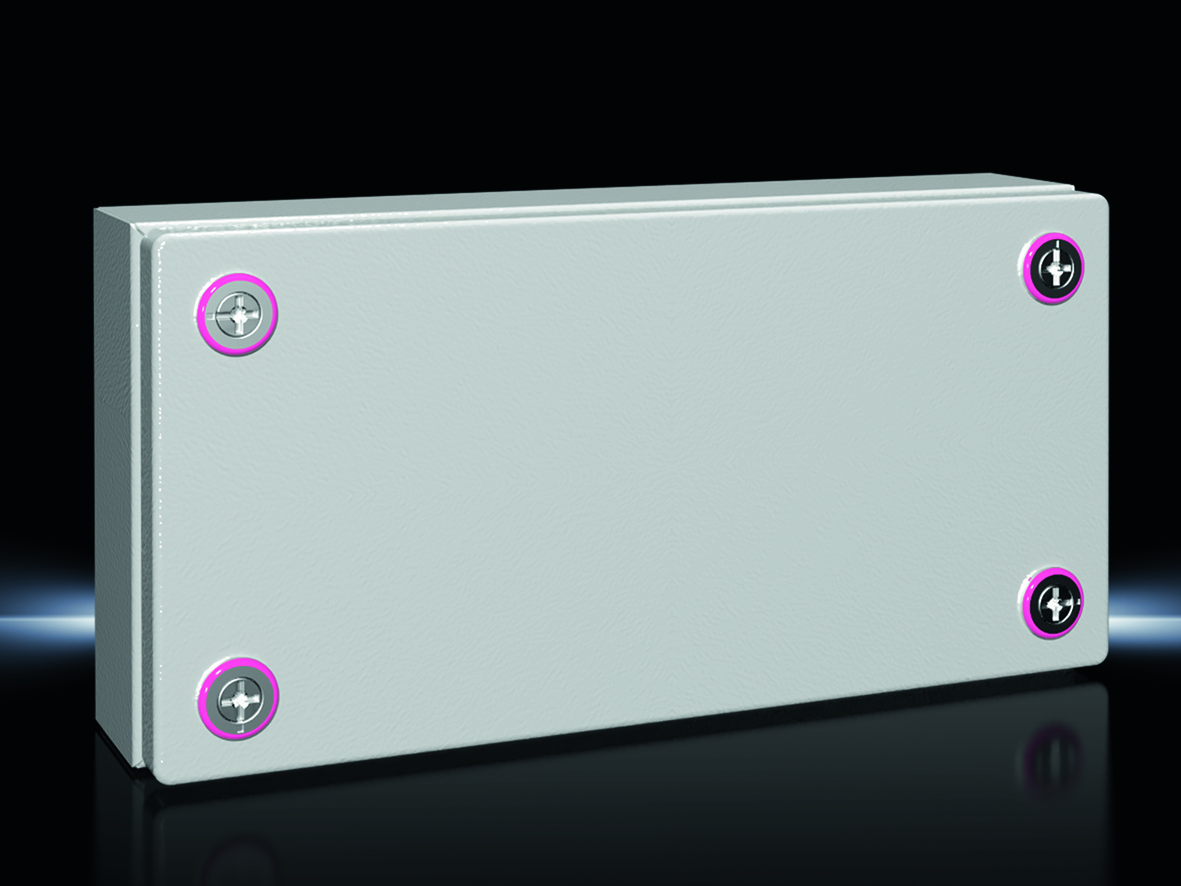

Rittal 1515000 terminal box KX, without gland plate, 300x150x80 mm,

Your rating:
Average rating
product review for Rittal 1515000 terminal box KX, without gland plate, 300x150x80 mm,
( 4.5 / 5 ) 2 ratings
Rittal 1515000
This image may differ from the desired article.
Rittal 1515000Rittal 1515000Rittal 1515000Rittal 1515000Rittal 1515000Rittal 1515000Rittal 1515000
31,05 EUR
( 36,95 EUR incl. VAT )
≈ £25.99  |  ≈ $34.12
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1515000 terminal box KX, without gland plate, 300x150x80 mm,
Datasheet:file_download Download
Lieske Part No.:1598170
Mfg Part No: 1515000
UPC/EAN: 4028177816299
Weight:1.98 kg
Type:KX 1515000

Product information for Rittal 1515000:

The KX 1515000 is an industrial terminal box from the brand Rittal, designed as a small housing made of sheet steel. It serves as a protected enclosure and mounting container for electrical components such as terminals, switches, or small control devices, particularly in environments with increased requirements for protection against dust, water, and mechanical impacts. The housing has dimensions of 300 mm width, 150 mm height, and 80 mm depth, and is designed without a mounting plate and without a gland plate, enabling flexible integration into existing systems. The surface is dip-primed and externally powder-coated with a textured lacquer in the color RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents.

Applications
This terminal box is suitable for use in industrial plants, machine building, manufacturing technology, and electrical installations where a high degree of protection is required. It can be used both indoors and outdoors, as it meets the protection rating IP 66 according to EN 60 529, meaning it is dust-tight and water-tight. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), also make it suitable for applications in the USA and other countries with corresponding standards. The IK code IK08 guarantees protection against mechanical impacts, such as shocks or vibrations.

Functions and Equipment in Detail

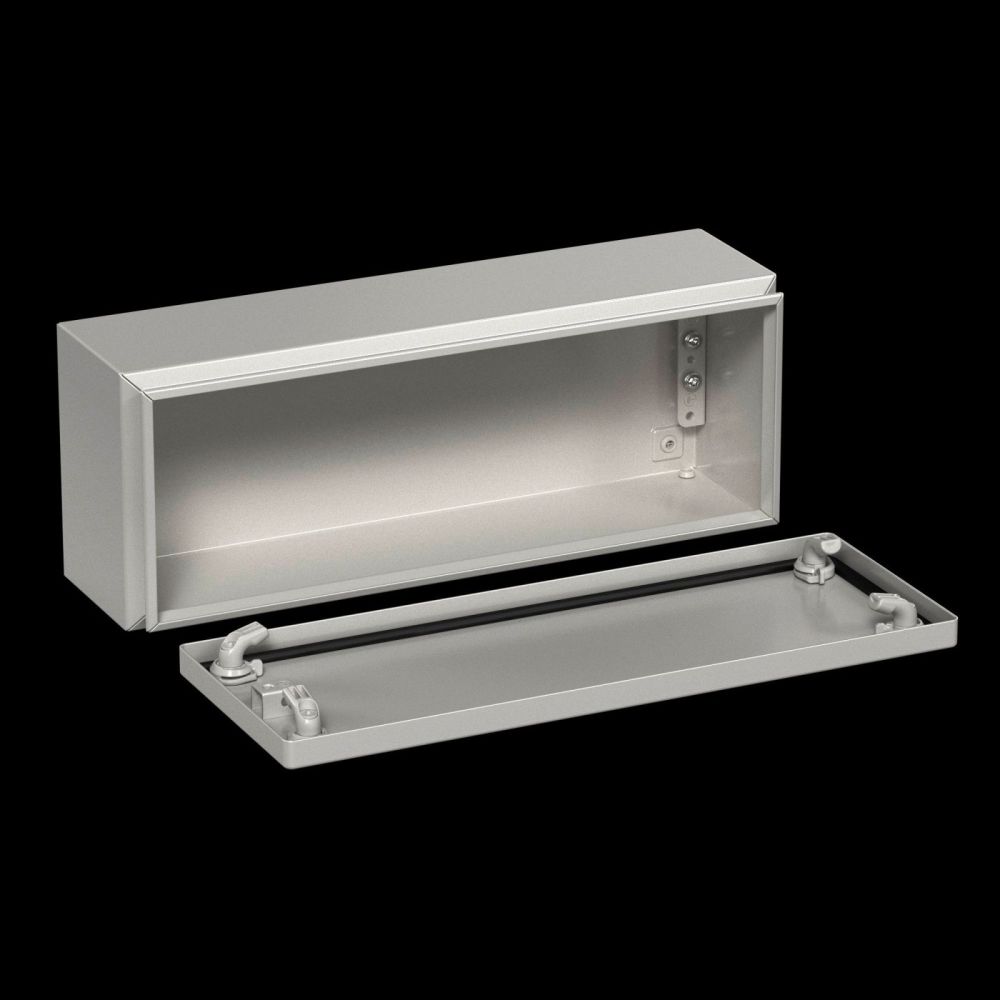

The housing is made of a single piece of bent and welded sheet steel with a material thickness of 1.25 mm for both the housing and the lid. The lid is fitted with a continuous foamed PU sealing gasket, ensuring a tight seal. The rear wall of the housing features openings for wall mounting brackets, enabling secure mounting on walls or other structures. Inside, a protective earth conductor connection is integrated, allowing quick and easy grounding via a U-bracket in the lid. The delivery includes the housing with lid and a mini-latch lock, ensuring secure and quick closure.

Technology Explained Simply
The triple surface treatment—consisting of nanoceramic coating, electrophoretic dip priming, and powder-coated textured lacquer—ensures high resistance to corrosion and chemical influences. The protection rating IP 66 means the housing is protected against dust and water jets from all directions, making it suitable for outdoor use or in humid environments. The material thickness of 1.25 mm provides sufficient stability and resistance to mechanical stress. The integrated grounding via U-brackets in the lid and housing enables a safe and reliable electrical connection to the protective earth conductor.

Compatibility and Accessories
Various accessories are available to extend and adapt the terminal box, offered in the product range. These include mounting clips for support rails, plug-throughs (e.g. SZ 2400500), pressure equalization plugs M12x1.5, support rails TH 35/7.5/TS 35/15, mounting brackets, condensate drain, earthing straps M6-M6, drilling screws type ST 4.8 L9.5 mm, flat mounting brackets, zinc die-cast lid hinges, mounting plates for terminal boxes and bus housings, mounting claws for a second mounting level, and wall mounting brackets. These components allow individual adaptation to specific mounting and installation requirements.

Mounting and Installation

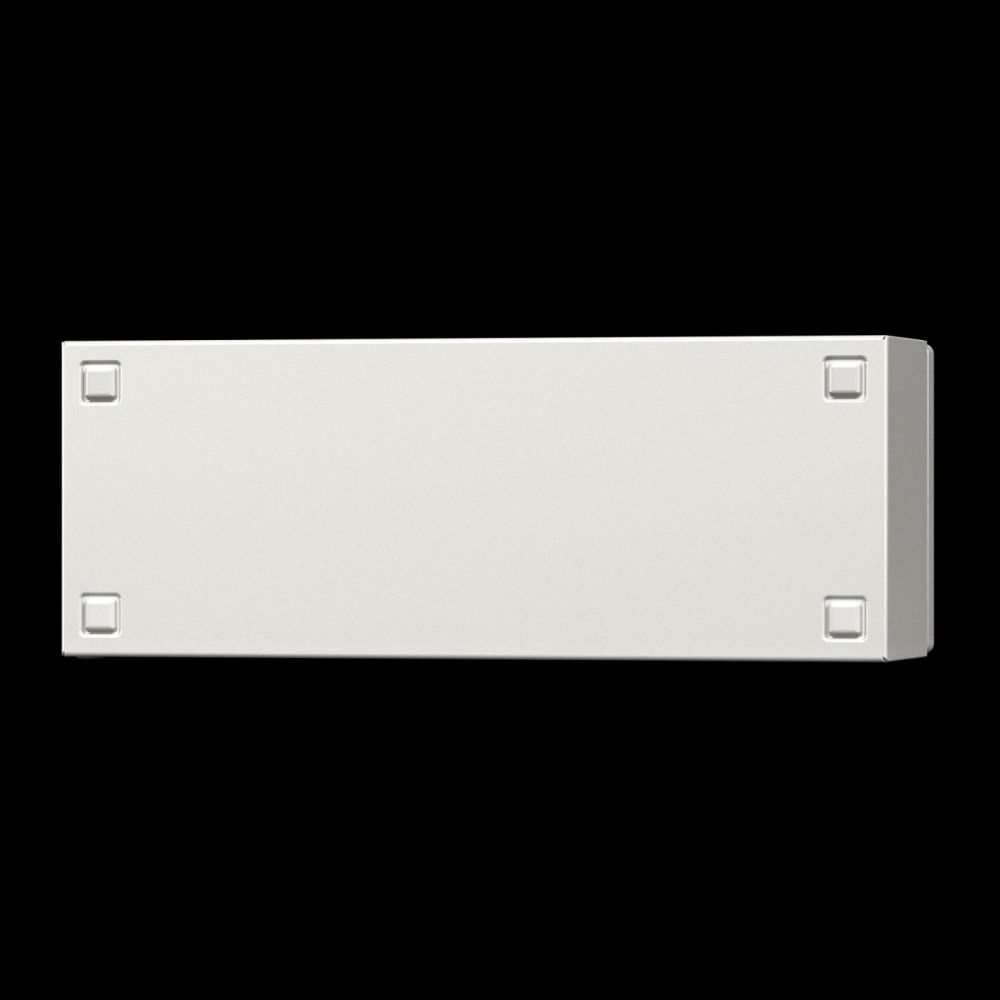

Mounting is done via the designated openings in the rear wall, designed for wall mounting brackets. The use of mounting brackets or wall mounting brackets enables secure attachment to walls or other support structures. The support rails TH 35/7.5/TS 35/15 can be used to mount components inside the housing. The drilling screws type ST 4.8 L9.5 mm are suitable for mounting accessories or components. The mounting plates and mounting claws for a second mounting level allow flexible arrangement of components inside.

Operational Advantages
The KX 1515000 offers a high protection rating, ensuring safe and reliable operation of installed components. The robust sheet steel construction and tight sealing protect against environmental influences. The integrated grounding and easy mounting via wall mounting brackets or support rails simplify installation. The use of standard accessories enables flexible adaptation to different requirements. The QR code, printed on the housing, lid, and type plate, allows unique identification and easy access to relevant product information, as well as traceability of individual parts.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width300 mm
Height150 mm
Depth80 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)26.62 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1515000, EAN: 4028177816299
