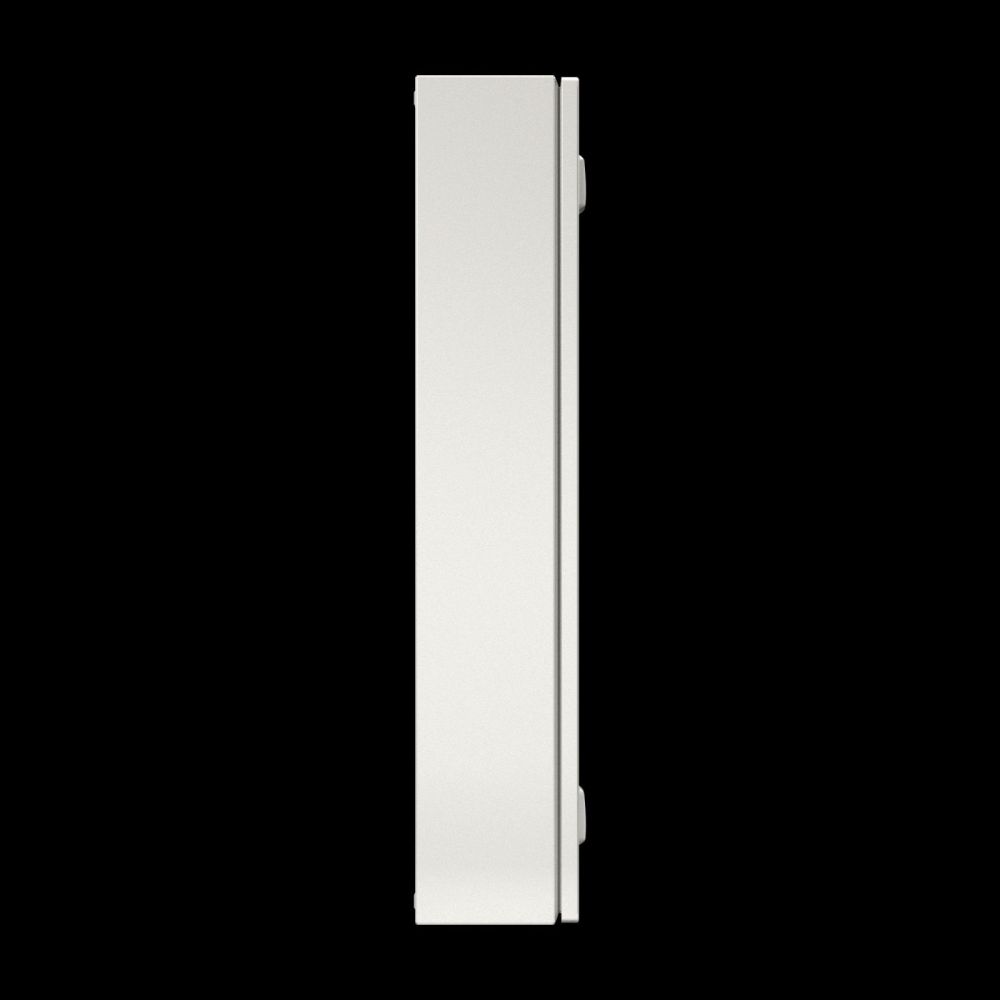

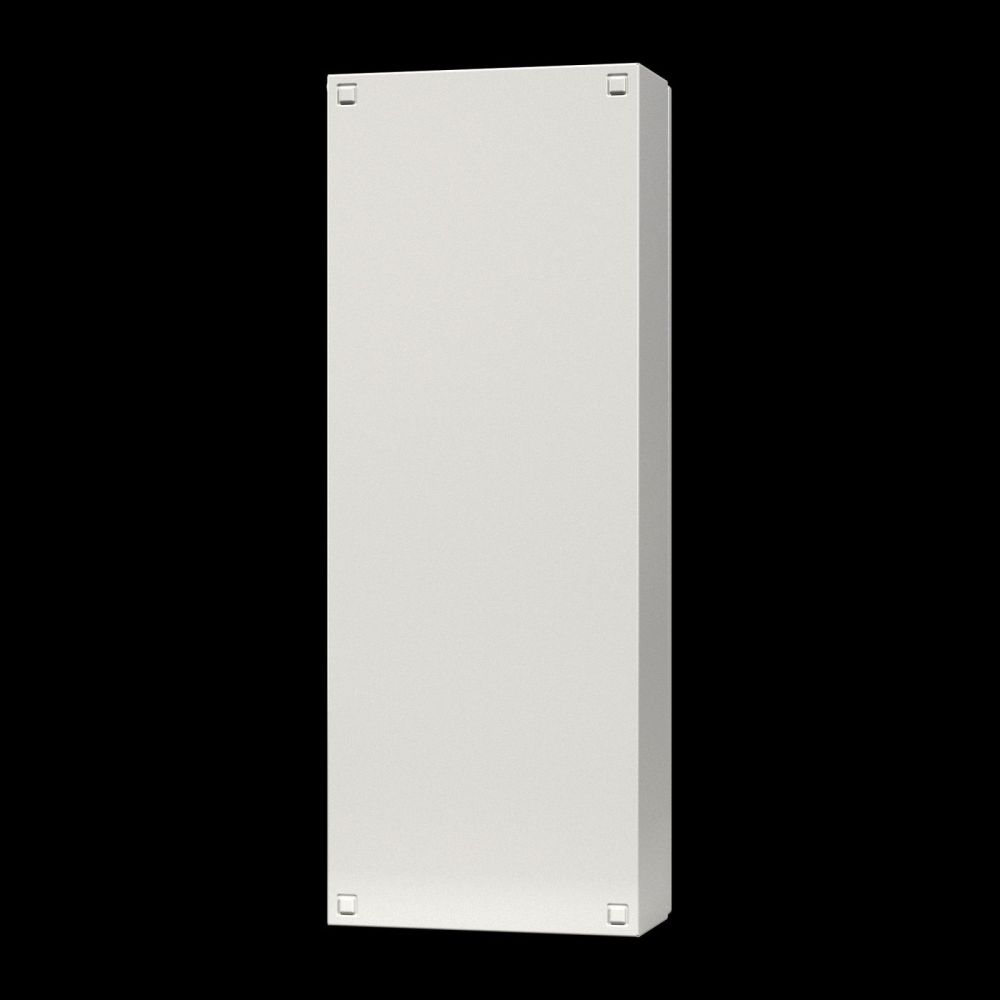

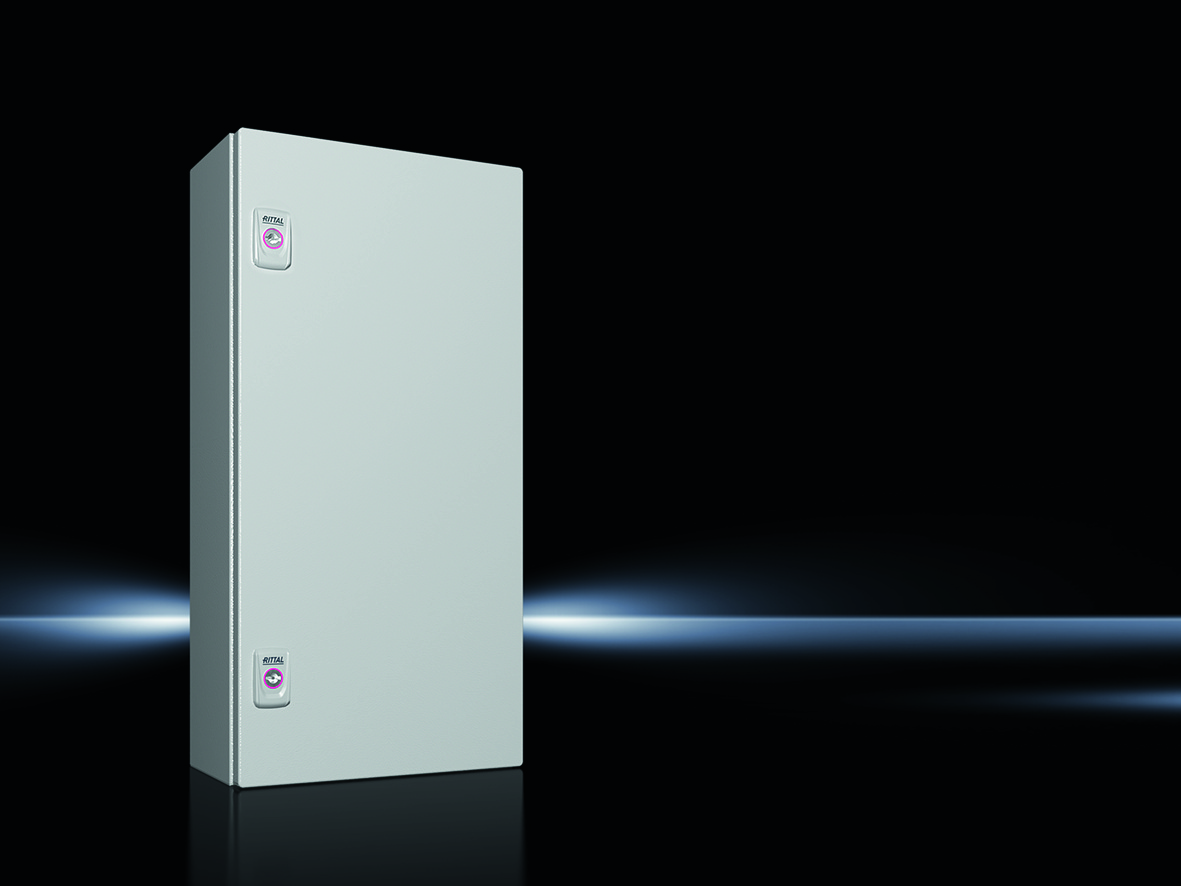

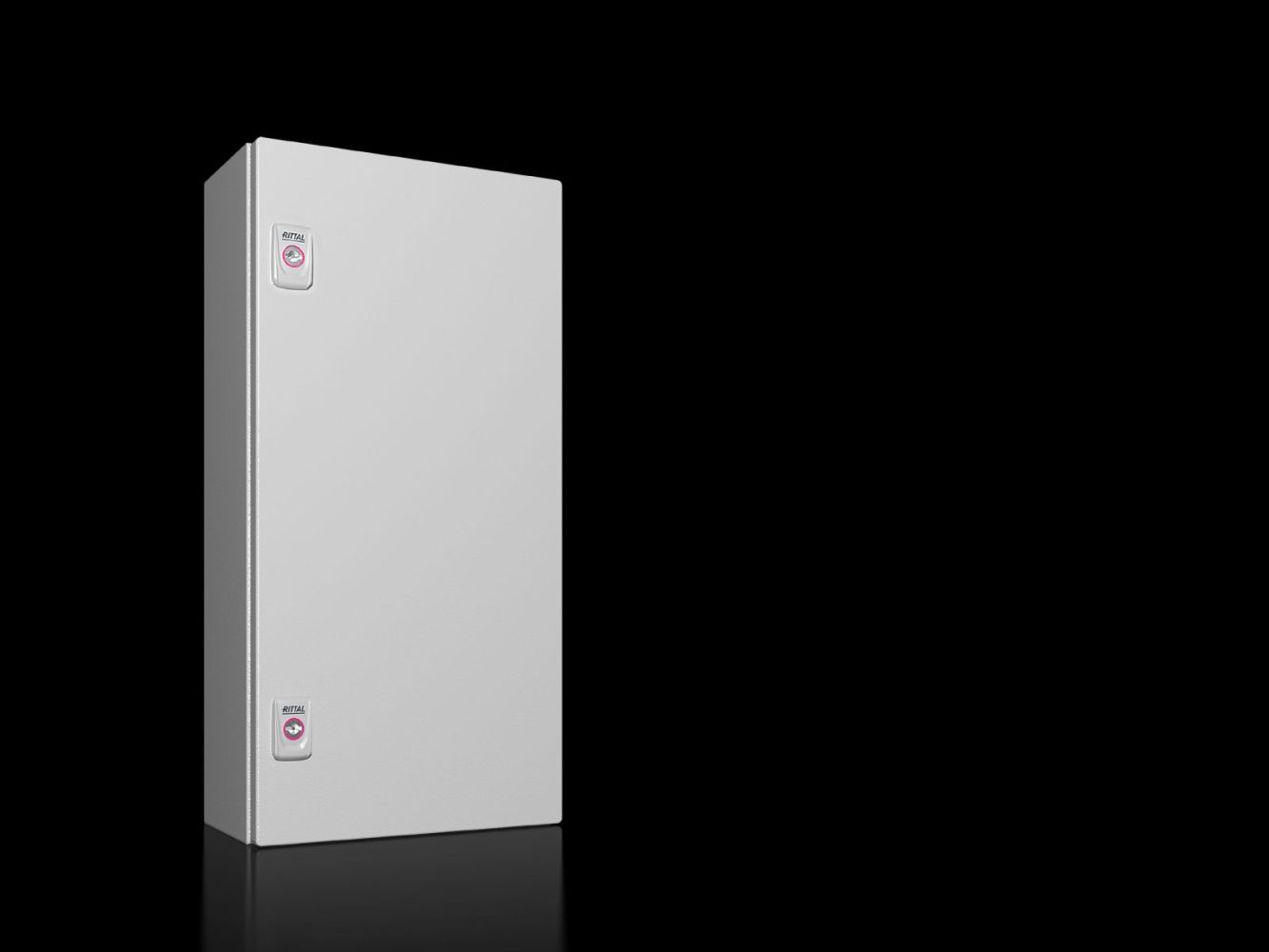

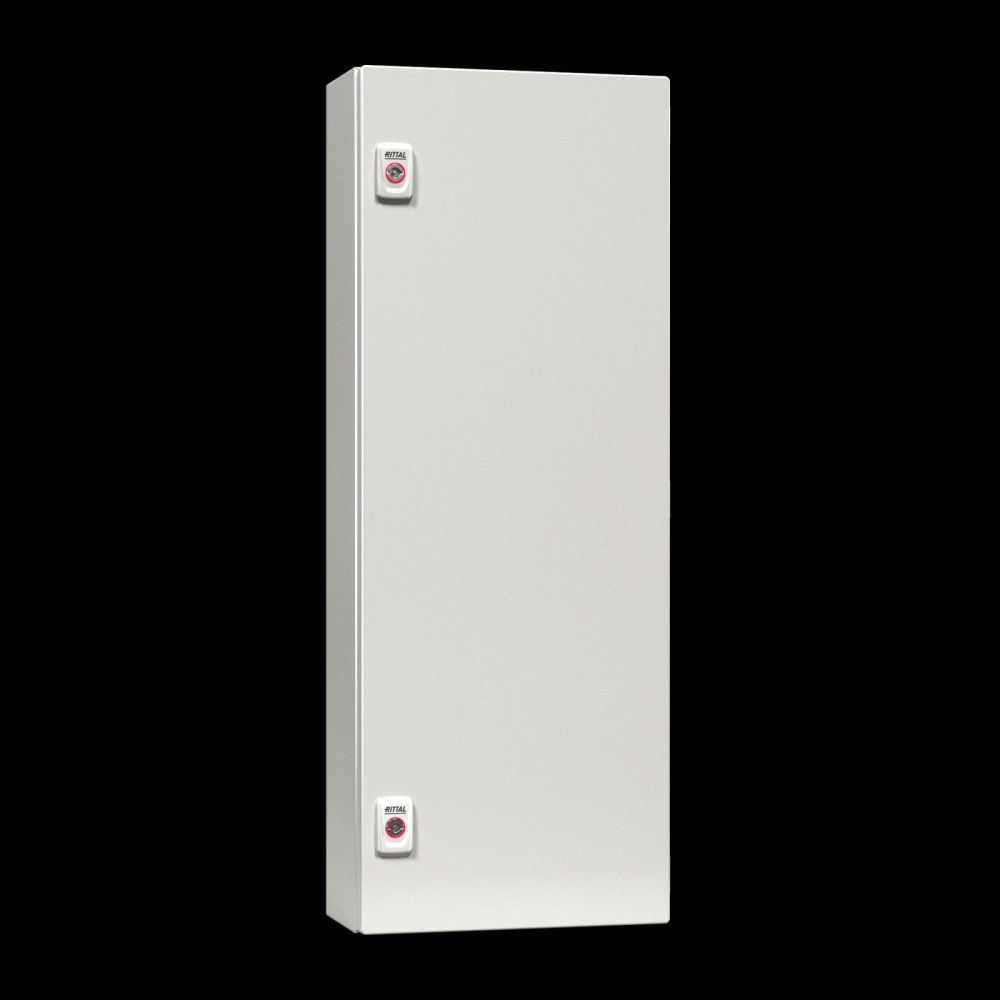

Rittal 1578000 KX E-Box, 300x600x155 mm, sheet metal, with mounting plate,

Your rating:
Average rating
product review for Rittal 1578000 KX E-Box, 300x600x155 mm, sheet metal, with mounting plate,
( 4.5 / 5 ) 4 ratings
Rittal 1578000
This image may differ from the desired article.
Rittal 1578000Rittal 1578000Rittal 1578000Rittal 1578000Rittal 1578000Rittal 1578000Rittal 1578000
86,23 EUR
( 102,61 EUR incl. VAT )
≈ £72.17  |  ≈ $94.77
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1578000 KX E-Box, 300x600x155 mm, sheet metal, with mounting plate,
Datasheet:file_download Download
Lieske Part No.:1598345
Mfg Part No: 1578000
UPC/EAN: 4028177816640
Weight:9.76 kg
Type:KX 1578000

Product information for Rittal 1578000:

The small housing KX 1578000 from Rittal is a robust steel sheet housing in format W x H x D 300x600x155 mm, specifically designed for use in industrial and technical installations. It serves as an E-Box for housing and protecting electrical components, controls or small distribution units. The housing features an integrated mounting plate and a door equipped with a latch lock and a 180° hinge. The construction enables quick and secure installation as well as flexible selection of locking systems, facilitating use in various application areas.

Applications

The housing is suitable for use in environments with high requirements for protection against dust, water and mechanical impacts. Due to the protection rating IP 66 according to EN 60 529, it is dust-tight and protected against strong splashing water, making it suitable for outdoor use or in damp industrial environments. The approvals according to NEMA 1, 3R, 4, 12 as well as Type 1, 3R, 4, 12 according to UL 50E confirm suitability for various environments, including dry indoor areas, damp or dusty areas, and environments with splashing water. The IK08 rating guarantees high protection against mechanical impacts, such as shocks or vibrations.

Functions and Equipment in Detail

The housing is made of steel sheet with a material thickness of 1.25 mm for the housing and door, while the mounting plate has a thickness of 2 mm. The surface is triple-treated: dip-primed, coated with a nanoceramic layer, and externally powder-coated in RAL 7035 with a textured finish. This coating provides high corrosion protection and is resistant to mineral oils, lubricants, machining emulsions and solvents. The door is fitted with a continuously foamed PU seal ensuring a tight seal. The mounting plate has dimensions of 275 mm x 585 mm and allows for the mounting of components and switching devices.

Technology Explained Simply

The IP 66 protection rating means the housing is completely dust-tight and protected against strong splashing water from all directions. The NEMA and UL approvals extend the range of applications, particularly in countries with corresponding standards. The IK08 code guarantees that the housing can withstand impacts with an energy of up to 5.3 J, which is relevant for industrial environments. The use of steel sheet and the double locking system (two locks) ensure high mechanical stability and safety. The integrated mounting plate simplifies the installation of components and enables quick assembly.

Compatibility and Accessories

The housing is compatible with various accessories that extend its use. These include support rails (e.g. TH 35/7.5/TS 35/15), mounting clips for support rails, lock inserts made of zinc die-cast, connector entries (e.g. SZ 2400500), lock box covers (e.g. SZ 2493000), pressure equalization plugs (e.g. SZ pressure equalization plug M12x1.5), condensate drains, mounting brackets and handles (e.g. SZ 2577000, AX 2533100). These components allow individual adaptation to specific requirements, such as mounting control panels, using safety cylinders or integrating into existing systems.

Mounting and Installation

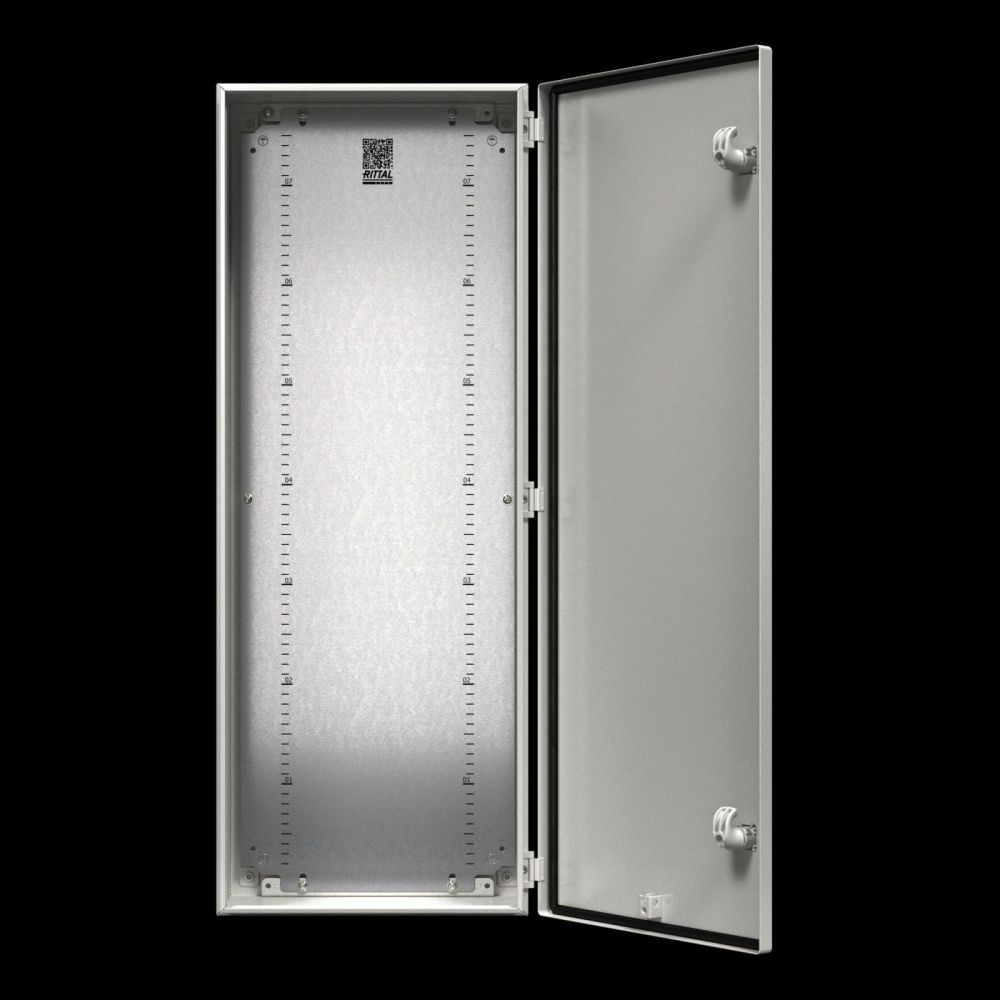

Mounting is done via the integrated mounting plate, which is equipped with through-holes for wall mounting brackets. The door is hinged on the right and can be secured with a latch lock with a 3 mm double-barrel insert according to DIN 43668. The use of self-tapping screws (e.g. type ST 4.8 L9.5 mm) enables secure fastening. The mounting plate provides sufficient space for installing components and switching devices. The surface is designed for easy earthing, with a protective conductor connection integrated in the housing and via a U-bracket in the door.

Advantages in Operation

The housing offers high mounting convenience due to the integrated mounting plate and the flexible selection of locking systems. The robust steel sheet construction and the double locking arrangement ensure high mechanical stability. The IP 66 protection rating and NEMA approvals enable use in demanding environments. The surface coating ensures long service life and resistance to aggressive media. The integrated mounting plate and the possibility to combine various accessories increase the flexibility and adaptability of the housing to specific requirements.

General
MaterialHousing: sheet steel, door: sheet steel, continuous foamed PU seal
Surface protectionCasing and door: dip primed, externally powder coated, textured lacquer, mounting plate: galvanized
ColourRAL 7035
Scope of deliveryEnclosure with door, mounting plate, latch with 3 mm double bar insert, 180° hinge
Width300 mm
Height600 mm
Depth155 mm
Mounting plate dimensions (W x H)275 mm x 585 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Plate thickness cabinet1,25 mm
Door material thickness1,25 mm
Mounting plate material thickness2 mm
LockNumber of locks: 2
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)47.31 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1578000, EAN: 4028177816640
