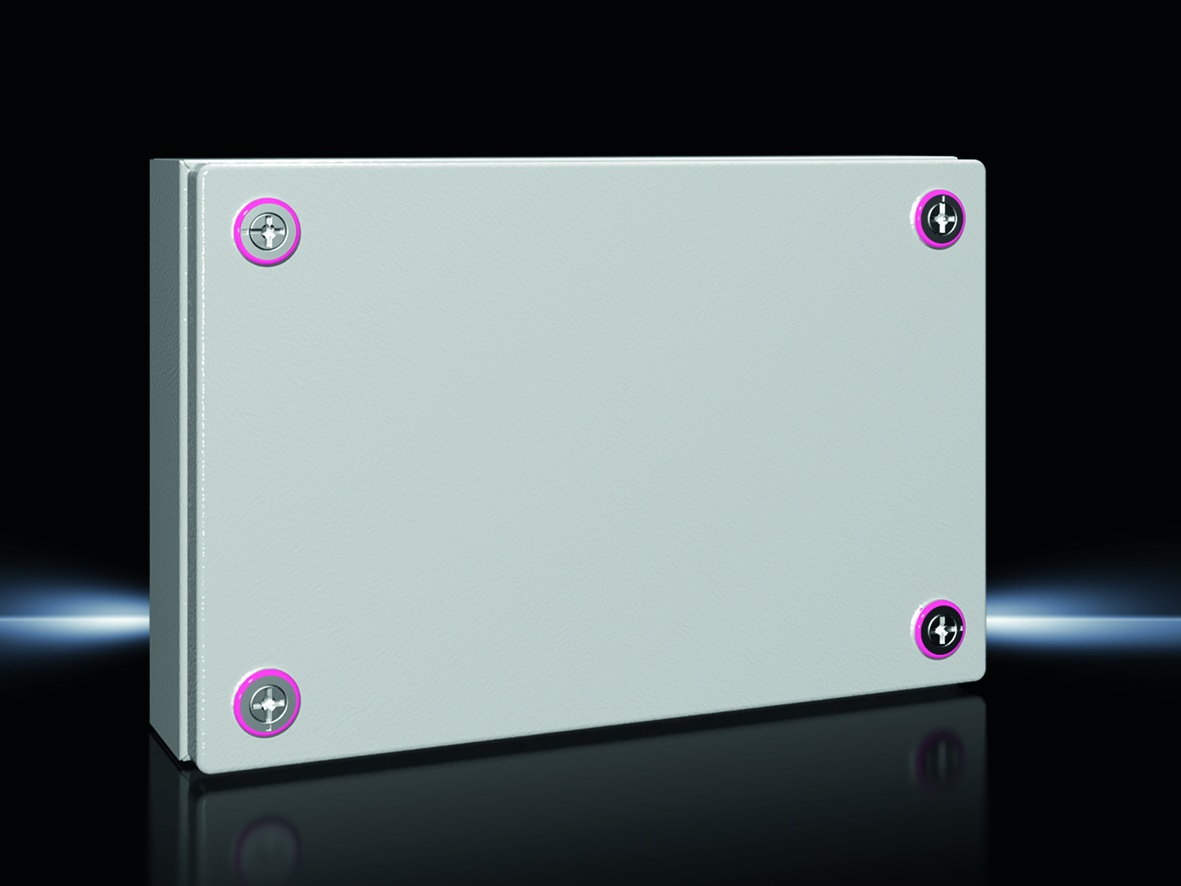

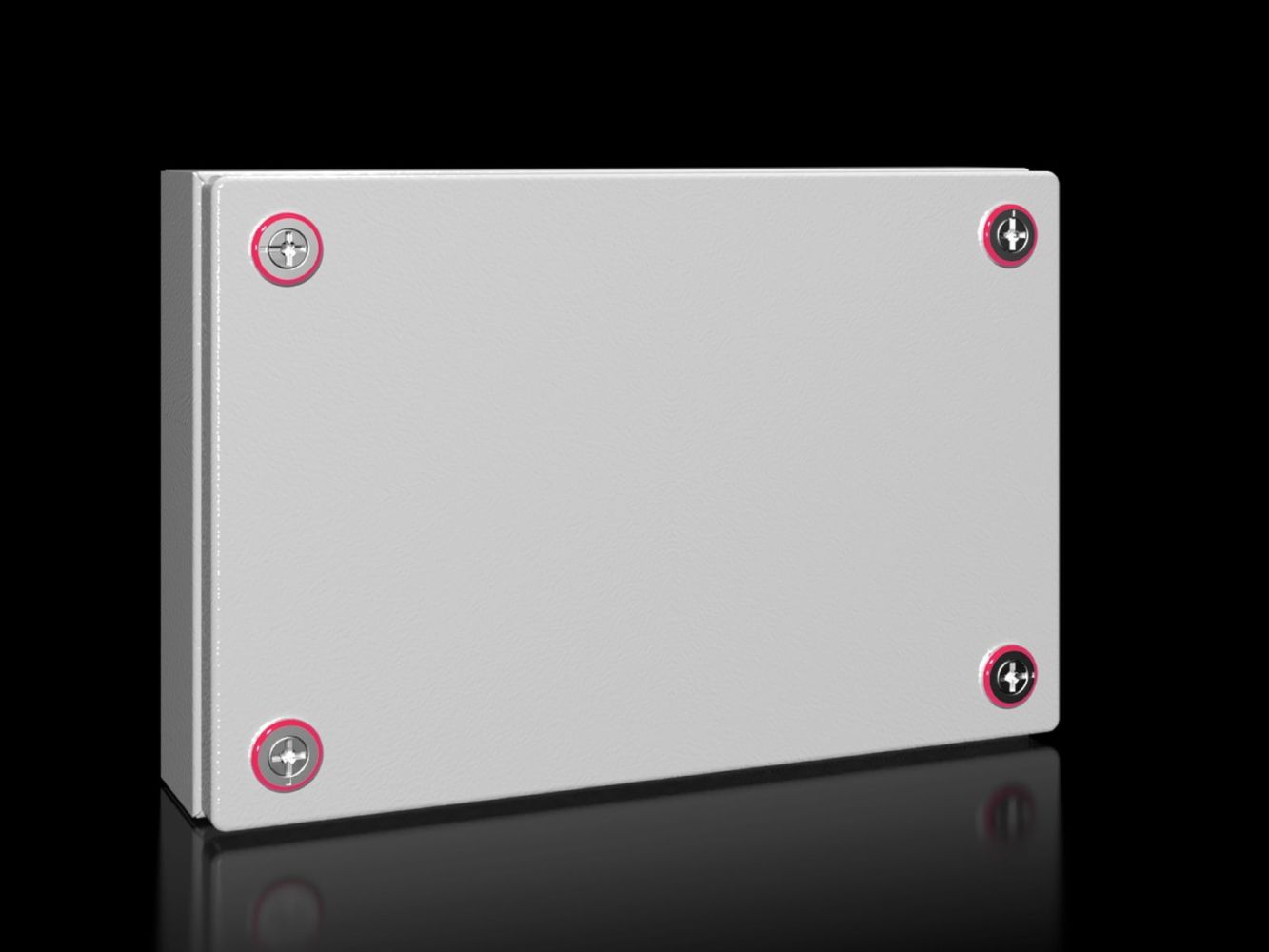

Rittal 1517000 terminal box KX, without gland plate, 300x200x80 mm,

Your rating:
Average rating
product review for Rittal 1517000 terminal box KX, without gland plate, 300x200x80 mm,
( 4.8 / 5 ) 5 ratings
Rittal 1517000
This image may differ from the desired article.
Rittal 1517000Rittal 1517000Rittal 1517000Rittal 1517000Rittal 1517000Rittal 1517000Rittal 1517000
32,42 EUR
( 38,58 EUR incl. VAT )
≈ £27.14  |  ≈ $35.63
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1517000 terminal box KX, without gland plate, 300x200x80 mm,
Datasheet:file_download Download
Lieske Part No.:1598152
Mfg Part No: 1517000
UPC/EAN: 4028177816312
Weight:2.391 kg
Type:KX 1517000

Product information for Rittal 1517000:

The KX 1517000 is a terminal box from the KX series by Rittal, designed as a small housing made of sheet steel. It is intended for use in industrial plants where high protection ratings and flexible internal configuration are required. The housing has dimensions of 300 mm width, 200 mm height, and 80 mm depth and is supplied without a mounting plate and without a gland plate. It features a lid with a continuously foamed PU seal, ensuring a tight seal. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, providing high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents.

Applications
This terminal box is suitable for use in industrial environments, particularly in areas requiring high mechanical strength and protection against dust, water, and other external influences. The protection rating IP 66 according to EN 60 529 ensures complete protection against dust and protection against strong splashing water from any direction, making it suitable for outdoor use as well. The NEMA protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the Type ratings according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm its suitability for various industrial applications, including humid or dusty environments. The IK code IK08 indicates high mechanical strength against vibrations and mechanical impacts.

Functions and Equipment in Detail
The housing is made of a single piece of bent and welded sheet steel with a material thickness of 1.25 mm for both the housing and the lid. The rear wall features knockouts for wall mounting brackets, enabling flexible installation. The lid is equipped with a mini-latch lock, ensuring secure and quick locking. The housing and lid include protective conductor terminals with a U-bracket for quick and easy earthing. A printed QR code on the body, lid, and nameplate enables unique identification and easy access to relevant product information, as well as traceability of individual parts.

Technology Explained Simply
The triple surface treatment—consisting of a nanoceramic coating, an electrophoretic dip primer, and a powder-coated textured lacquer—ensures high resistance to corrosion and chemical influences. The continuously foamed PU seal in the lid prevents dust and water ingress, enabling the IP 66 protection rating. The material thickness of 1.25 mm provides sufficient mechanical stability, corresponding to the IK code IK08. The use of sheet steel as the base material ensures high strength and long service life of the housing.

Compatibility and Accessories
Various accessories are available for this terminal box to support use in different application scenarios. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, support rails (TH 35/7,5/TS 35/15), mounting angles, condensate drains, earthing straps, drilling screws, mounting brackets, lid hinges, mounting plates, and mounting claws for a second mounting level, as well as wall mounting brackets. These components allow individual adaptation of the box to specific mounting and installation requirements.

Mounting and Installation
Mounting is done via the pre-drilled knockouts in the rear wall, designed for wall mounting brackets. The use of mounting angles or mounting brackets allows flexible attachment to various substrates. The integrated earthing elements in the housing and lid facilitate secure earthing of the box. Mounting plates and support rails can be used to install components or plug connectors inside the box.

Operational Advantages
The KX 1517000 offers high protection rating and mechanical strength, making it suitable for demanding industrial environments. The simple and secure earthing, along with flexible mounting options, increases installation efficiency. The integrated identification via QR code simplifies maintenance and documentation. The robust sheet steel construction and high-quality surface treatment ensure long service life and low maintenance requirements.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width300 mm
Height200 mm
Depth80 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)27.48 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1517000, EAN: 4028177816312
