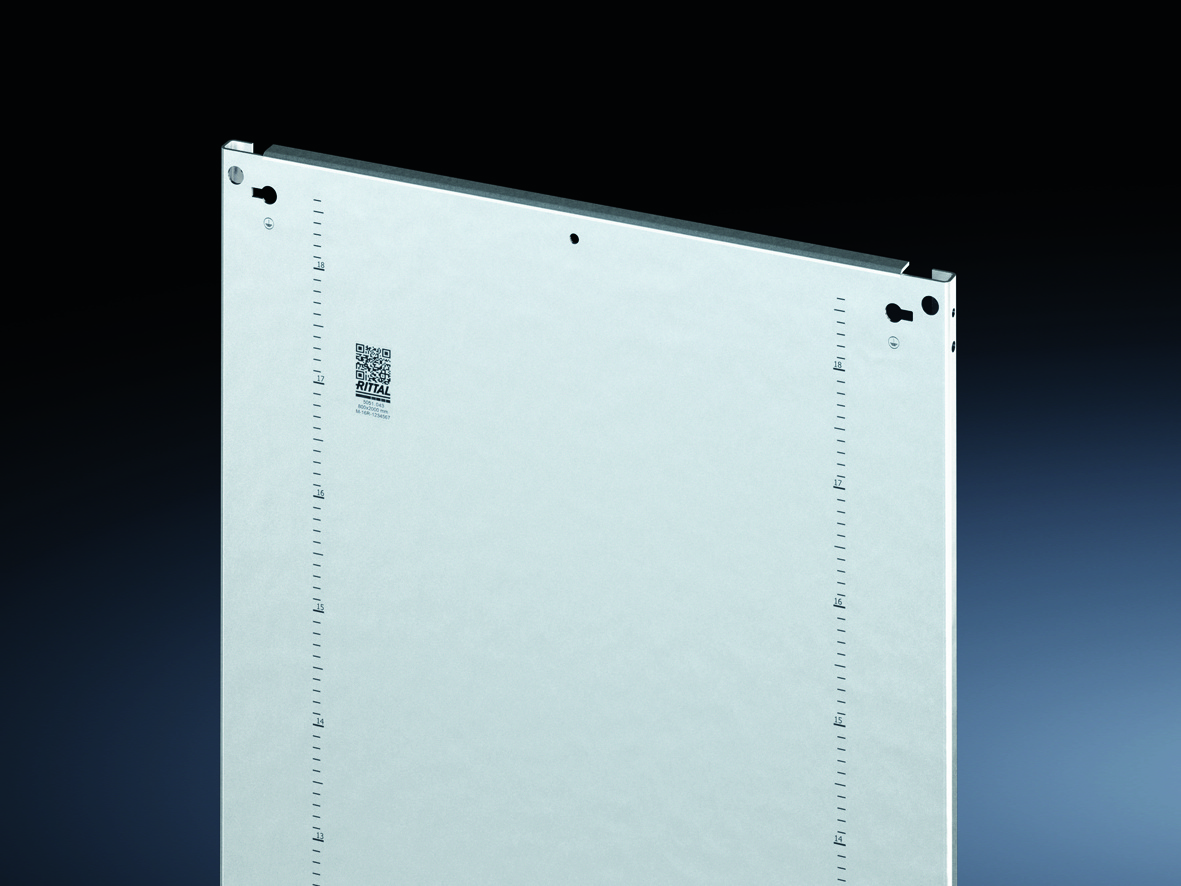

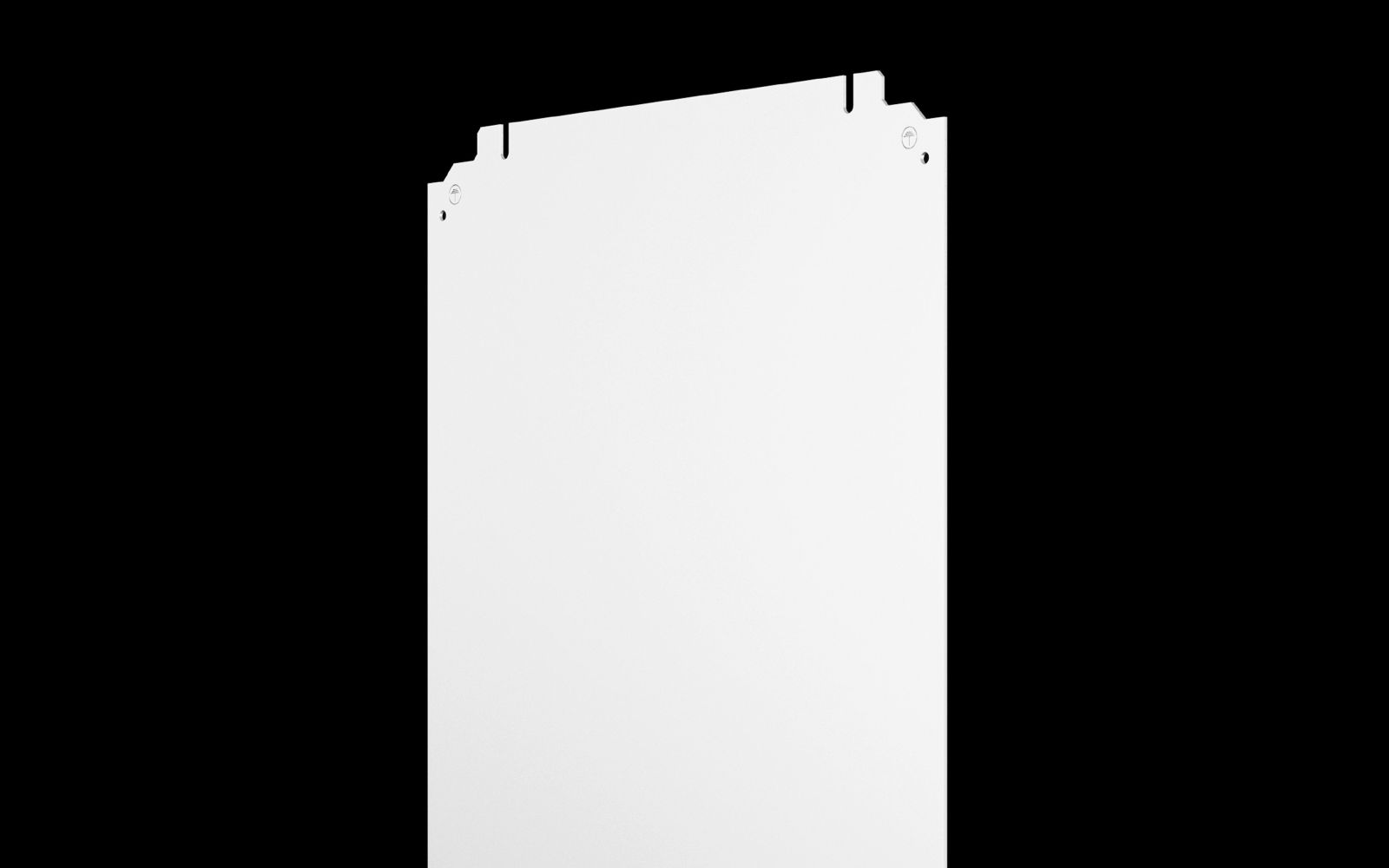

Rittal 1563800 mounting plate, for terminal box KX, bus enclosure KX,

Your rating:
Average rating
product review for Rittal 1563800 mounting plate, for terminal box KX, bus enclosure KX,
( 4.3 / 5 ) 6 ratings
Rittal 1563800
This image may differ from the desired article.
Rittal 1563800Rittal 1563800Rittal 1563800
5,88 EUR
( 7,00 EUR incl. VAT )
≈ £4.92  |  ≈ $6.46
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1563800 mounting plate, for terminal box KX, bus enclosure KX,
Datasheet:file_download Download
Lieske Part No.:1598307
Mfg Part No: 1563800
UPC/EAN: 4028177925366
Weight:0.755 kg
Type:KX 1563800

Product information for Rittal 1563800:

The Rittal KX 1563800 is a mounting plate made of sheet steel, specifically designed for securing components outside of enclosures. It is used to mount parts such as terminal boxes KX, bus enclosures KX, or terminal boxes HD securely and stably on an external wall or other support structure. The plate is designed for enclosures with a width of 300 mm and a height of 200 mm, ensuring a precise fit. The material thickness is 2 mm, providing sufficient stability for use in industrial environments. The surface is galvanized, offering corrosion protection and durability under normal operating conditions.

Applications

The mounting plate is used for external mounting of enclosures, particularly when internal space within the enclosure is limited or improved accessibility for maintenance and installation is desired. It is suitable for applications in electrical and automation technology, where terminal boxes or bus enclosures must be mounted outside the enclosure. Typical uses include manufacturing automation, machine control systems, or building automation.

Functions and Equipment in Detail

The plate enables secure mounting of terminal boxes KX, bus enclosures KX, and terminal boxes HD. The exact fit for dimensions 300 mm width and 200 mm height ensures precise alignment and mechanical stability. The galvanized surface protects the sheet steel from corrosion, which is particularly beneficial in damp or mildly aggressive environments. The material thickness of 2 mm ensures sufficient strength to support the weight of mounted components.

Technology Explained Simply

The mounting plate is made of sheet steel, which receives a protective layer against oxidation through galvanization. This coating is suitable for use in indoor and outdoor environments, provided there are no strong chemical influences or permanent moisture.

Compatibility and Accessories

The mounting plate is compatible with terminal boxes KX, bus enclosures KX, and terminal boxes HD. It is specifically designed for enclosures with a width of 300 mm and a height of 200 mm. The manufacturer's datasheet refers to mounting screws, which are included in the accessories of the respective enclosure. Additionally, the product range offers drill screws type ST 4.8 L9.5 mm (300 pcs), which may be suitable for mounting, but are not part of the mounting plate’s delivery scope.

Mounting and Installation

Installation is carried out by securing the plate to a suitable wall or support structure, using the screws included in the enclosure’s accessories. The plate is positioned so that the enclosure (terminal box KX, bus enclosure KX, or terminal box HD) can be placed exactly on top. Precise alignment is ensured by the exact fit for dimensions 300 mm × 200 mm. Installation requires no special tools other than a screwdriver or suitable screwdriver.

Advantages in Operation

The mounting plate enables flexible and space-saving installation of enclosure components outside the enclosure. This improves accessibility for maintenance and repair and reduces space requirements inside the enclosure. The galvanized surface ensures longer service life and reduced maintenance frequency. The mechanical stability provided by the 2 mm sheet steel thickness ensures secure mounting even under load.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Suitable for housing typeTerminal box KX, Bus enclosure KX, Terminal box HD
Suitable forHousing type: terminal box KX, busbar housing KX, terminal box HD, width: = 300 mm, height: = 200 mm


Product data sheet
Datasheet for Rittal 1563800, EAN: 4028177925366
