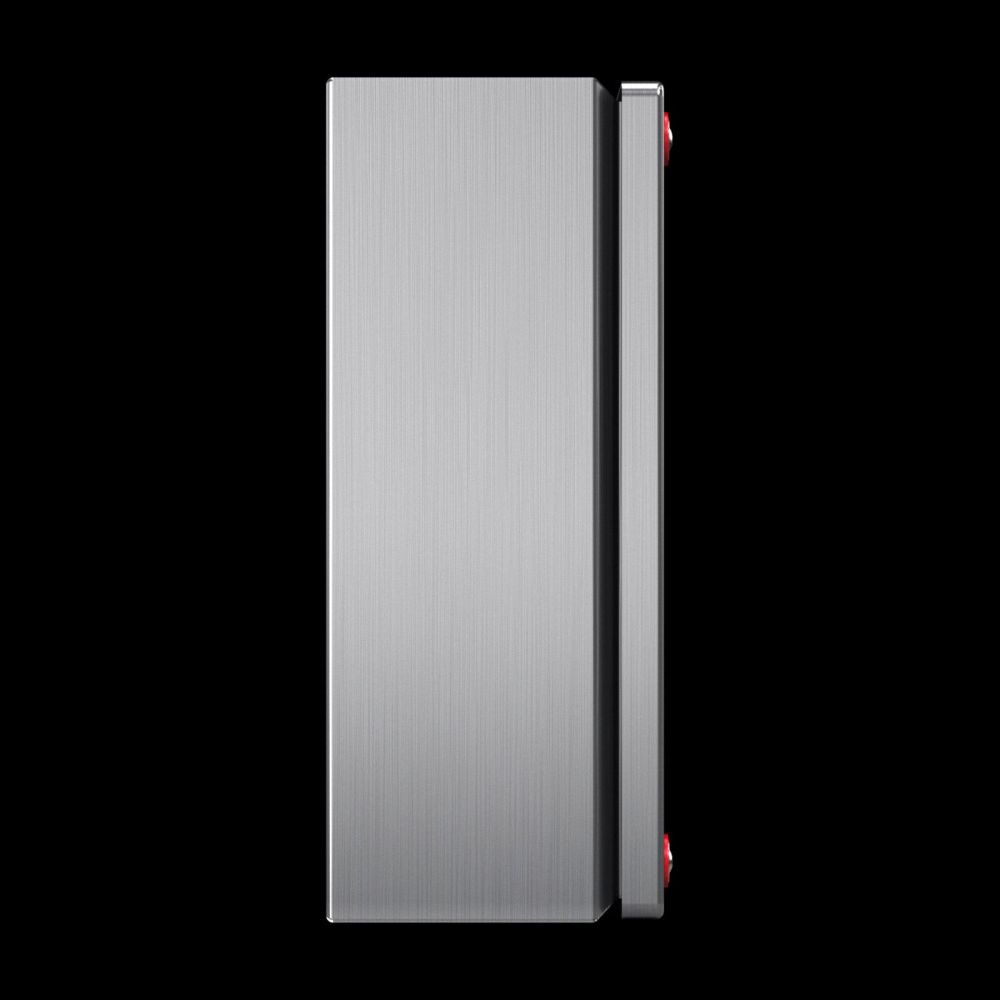

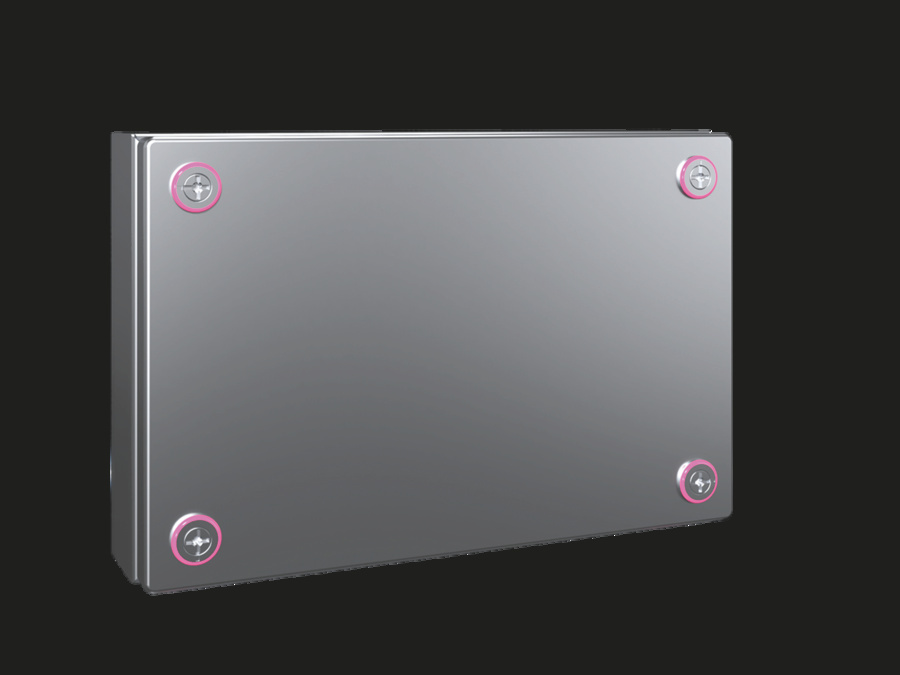

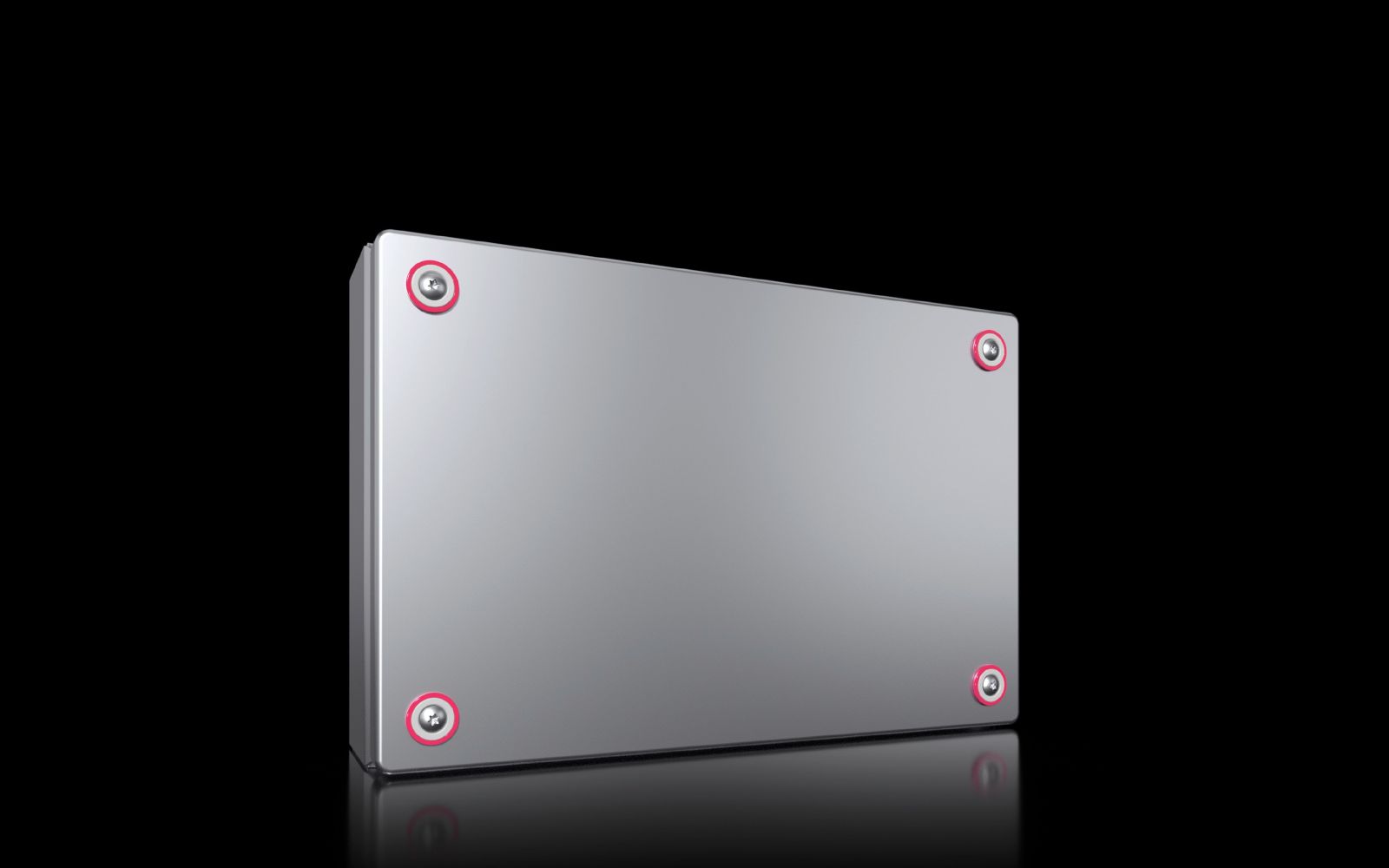

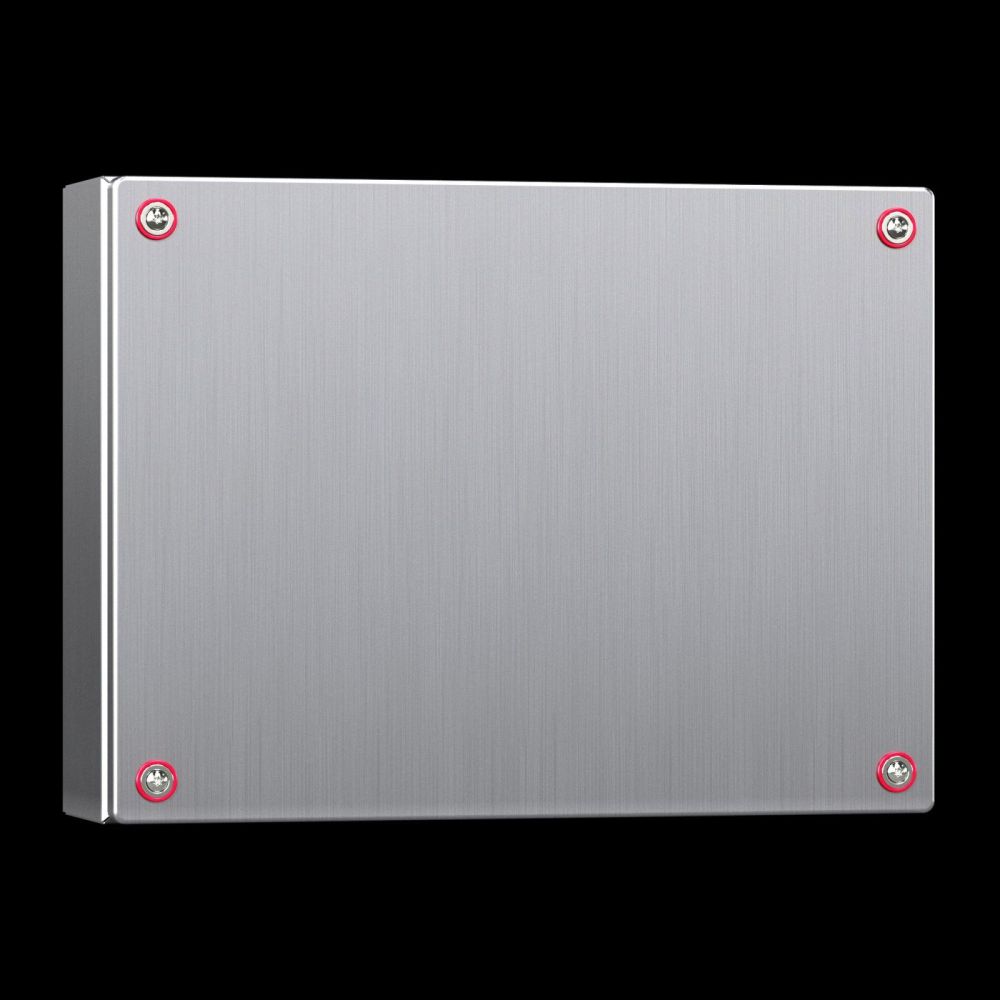

Rittal 1563000 terminal box KX, stainless steel 1.4301, without mounting plate

Your rating:
Average rating
product review for Rittal 1563000 terminal box KX, stainless steel 1.4301, without mounting plate
( 4 / 5 ) 1 ratings
Rittal 1563000
This image may differ from the desired article.
Rittal 1563000Rittal 1563000Rittal 1563000Rittal 1563000Rittal 1563000Rittal 1563000Rittal 1563000Rittal 1563000Rittal 1563000Rittal 1563000
-10% 173,31 EUR 193,33 EUR
( 206,24 EUR incl. VAT )
≈ £145.06  |  ≈ $190.47
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1563000 terminal box KX, stainless steel 1.4301, without mounting plate
Datasheet:file_download Download
Lieske Part No.:1778295
Mfg Part No: 1563000
UPC/EAN: 4028177919198
Weight:2.328 kg
Type:KX 1563000

Product information for Rittal 1563000:

The Rittal KX 1563000 is a terminal box made of stainless steel 1.4301 (AISI 304), designed for use in industrial applications where high mechanical strength and corrosion resistance are required. The enclosure has dimensions of 300 mm width, 200 mm height, and 80 mm depth, and is suitable as a compact enclosure for mounting terminals, connectors, or small electrical components. It features a fixed lid with a continuous foamed PU seal, ensuring a tight seal. The surface of the enclosure and lid is brush-finished with a grit of 180, providing a uniform, easy-to-clean, and corrosion-resistant finish.

Applications

The terminal box is intended for use in environments with high requirements for protection against dust, water, and mechanical stress. It is particularly suitable for outdoor use, in the food industry, chemical industry, or manufacturing technology, where high hygiene and safety standards are required. The protection rating IP 66 according to EN 60 529 guarantees dust-tightness and protection against strong splashing water from any direction, making it suitable for damp or wet environments. Additionally, the enclosure meets protection ratings NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, and NEMA 12, as well as type ratings according to UL 50E: Type 1, Type 3R, Type 3RX, Type 4, Type 4X, and Type 12, ensuring international usability in various markets.

Functions and Equipment in Detail

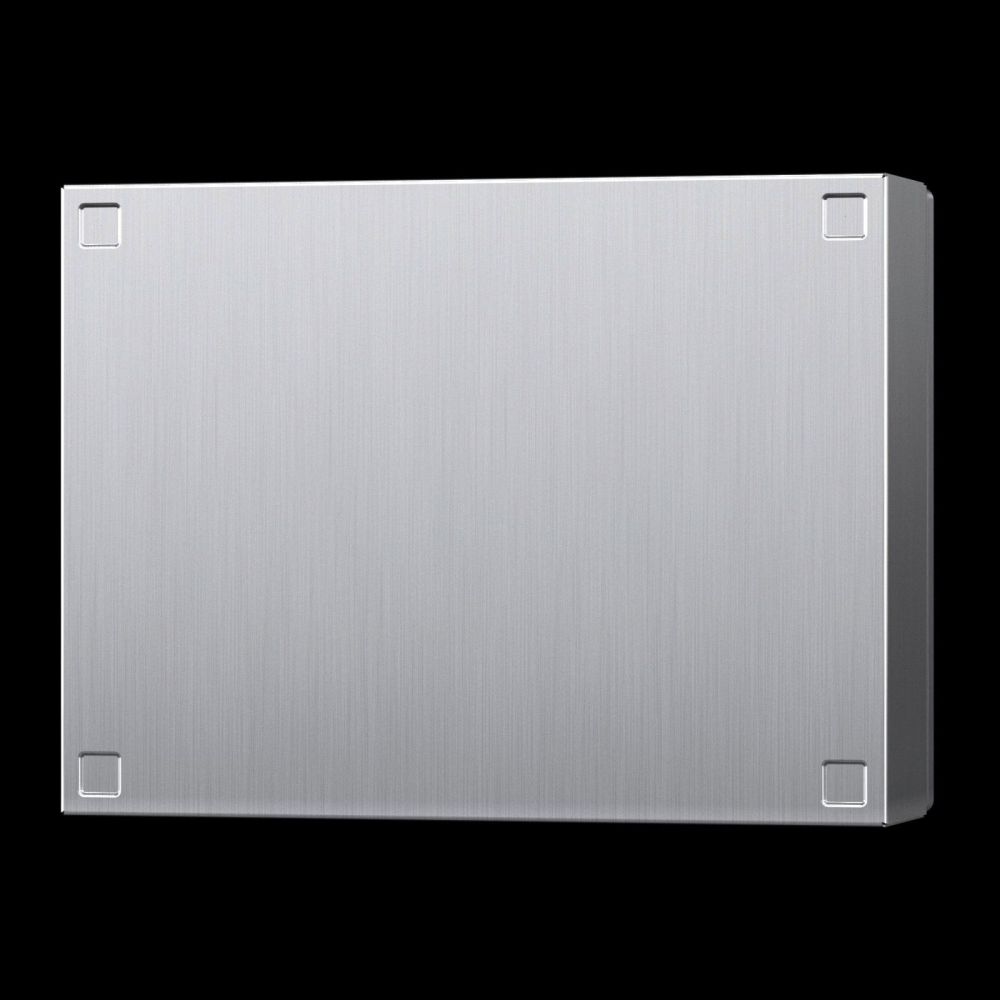

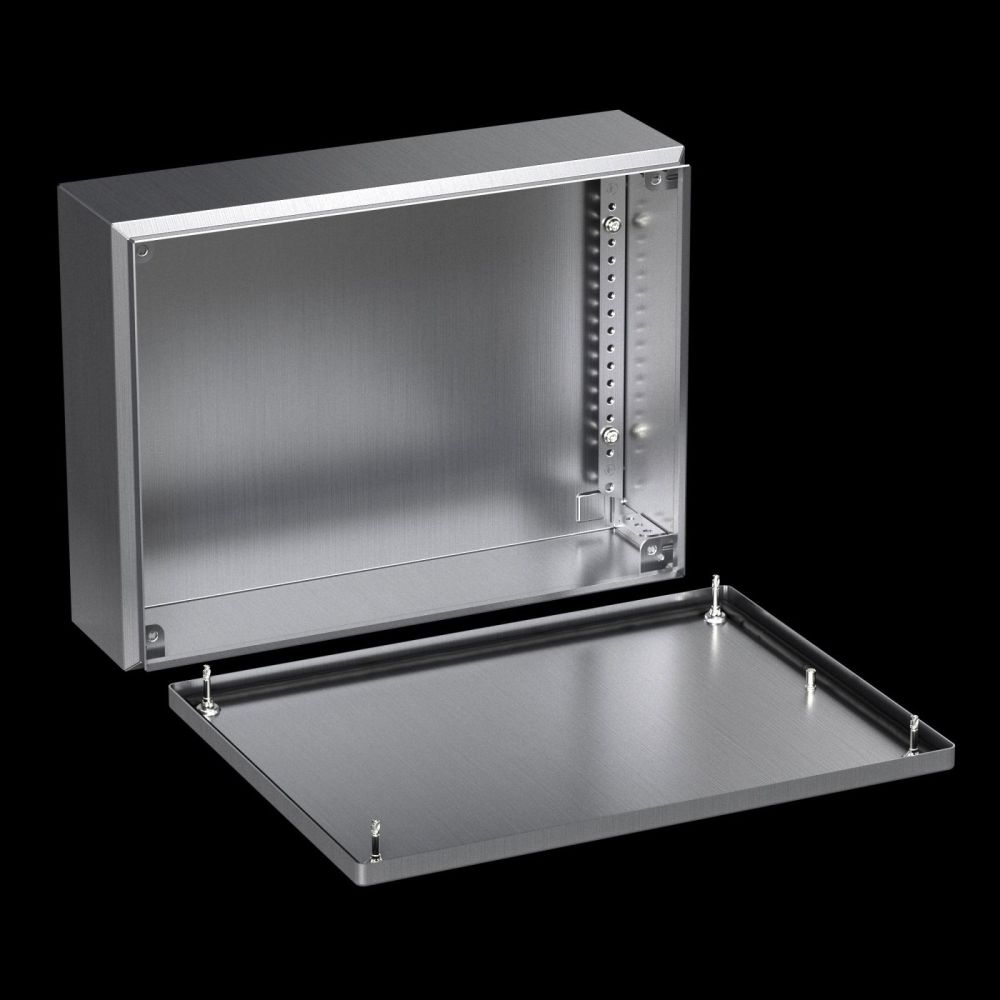

The enclosure consists of a single, formed and welded stainless steel body with a closed rear panel. A continuous protective channel is integrated at the lid opening, providing additional protection. The lid is equipped with a PU foam seal, ensuring a tight seal. Grounding is achieved via a protective conductor connection in the enclosure and a grounding bolt in the lid, enabling safe and quick grounding. The enclosure is fitted with four quick-release fasteners, allowing easy and secure mounting and removal of the lid. The fasteners are equipped with plastic bushings to prevent surface damage.

Technology Explained Simply

The material thickness of 1.25 mm for both the enclosure and lid ensures high mechanical stability and resistance to deformation. The use of stainless steel 1.4301 (AISI 304) provides excellent corrosion resistance, particularly against atmospheric moisture, salt spray, and weak acids. The brush-finished surface with grit 180 is not only aesthetically pleasing but also easy to clean and resistant to contamination. The IP protection rating 66 means the enclosure is dust-tight and protected against strong splashing water from any direction, making it suitable for use in damp or wet environments. The NEMA and UL approvals extend the application range, particularly in the USA and other countries with corresponding standards.

Compatibility and Accessories

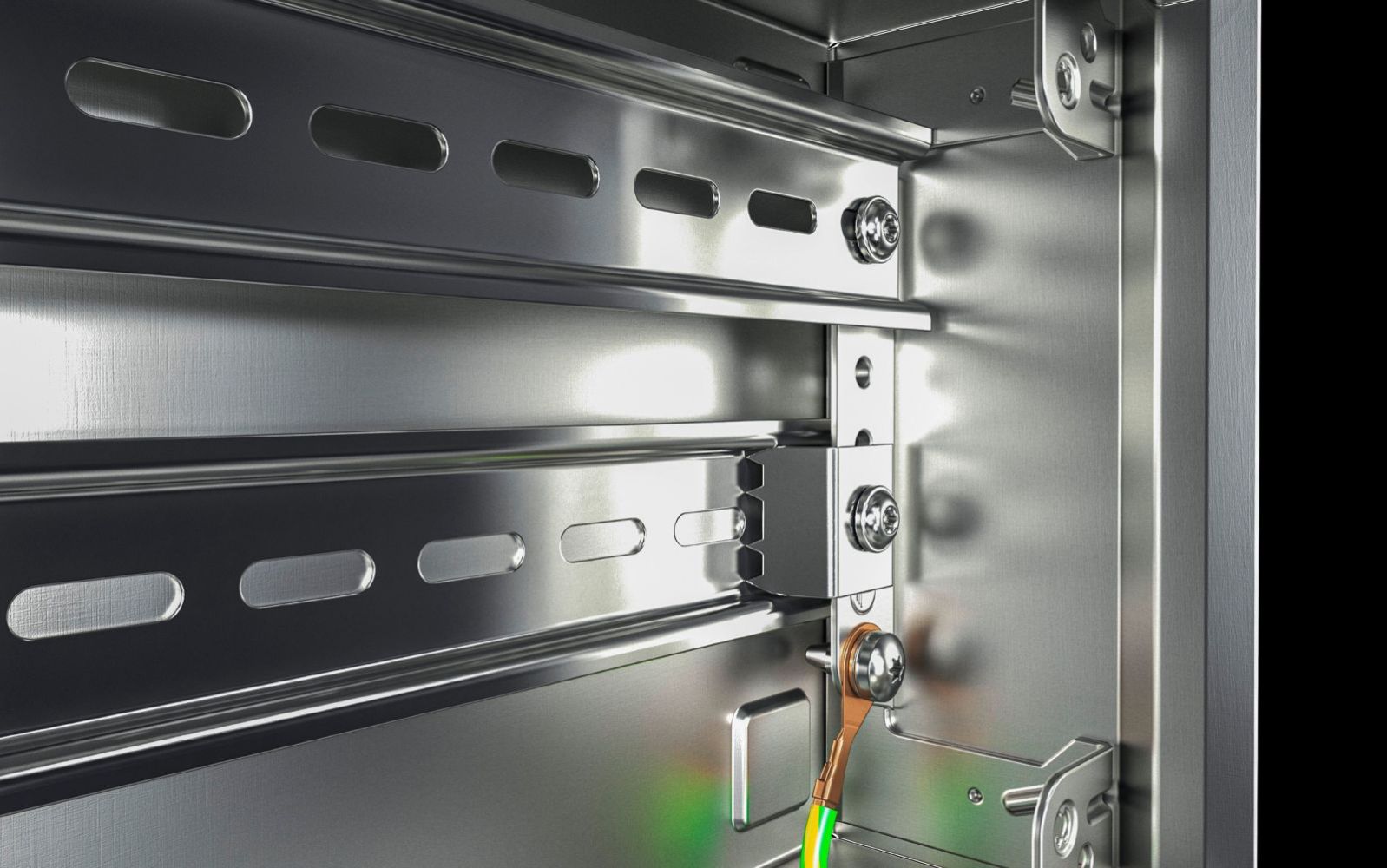

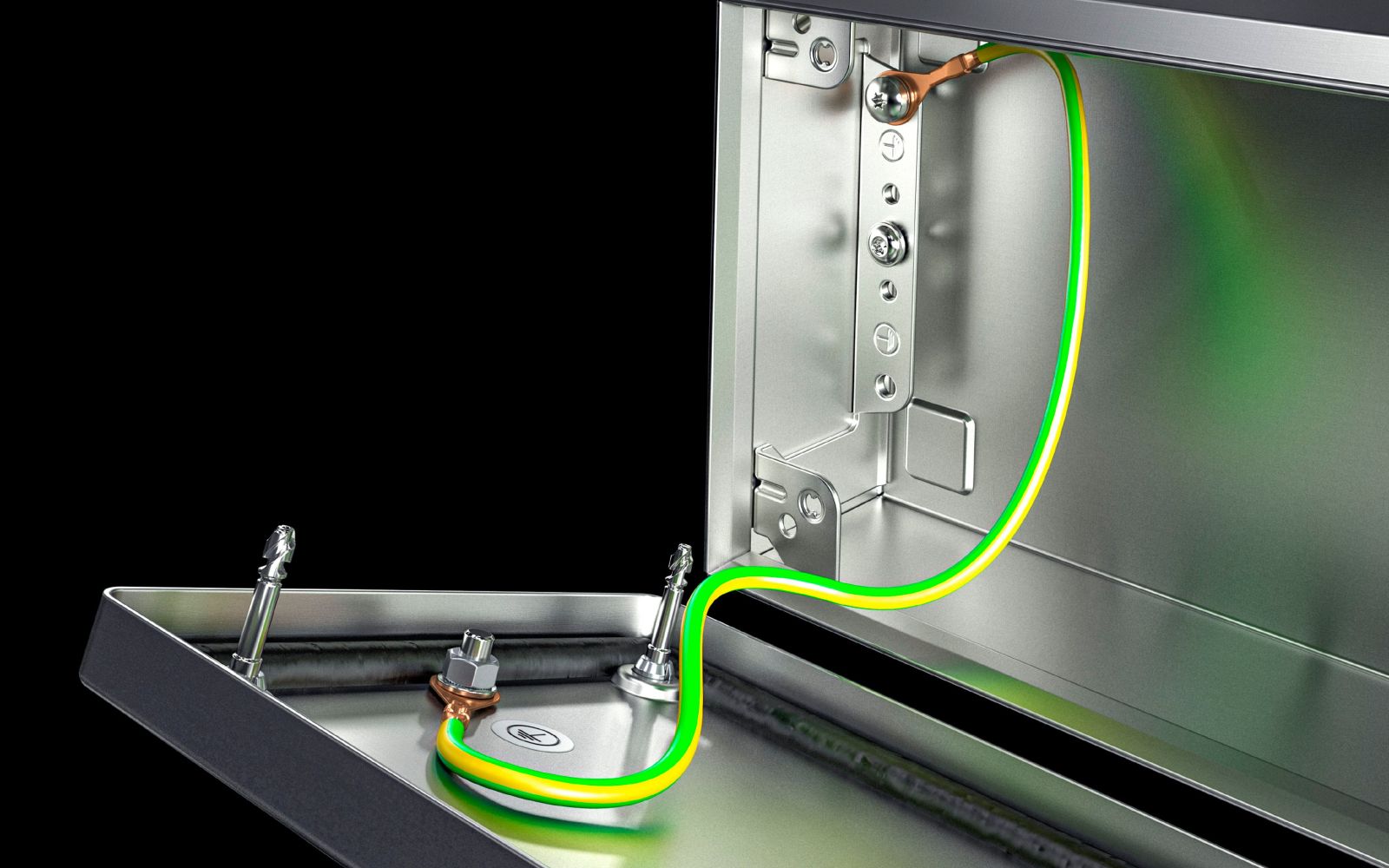

The terminal box is compatible with various accessories that extend mounting options and functionality. These include mounting clips for support rails, support rails TH 35/7,5/TS 35/15, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, grounding straps M6-M6 with a cross-section of 10 mm², ST 4,8 L9,5 mm screws, stainless steel 1.4301 wall mounting brackets, flat mounting brackets, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and SZ wall mounting brackets made of stainless steel 1.4301. These accessories enable flexible mounting on walls, masts, or support rails and integration into existing systems.

Mounting and Installation

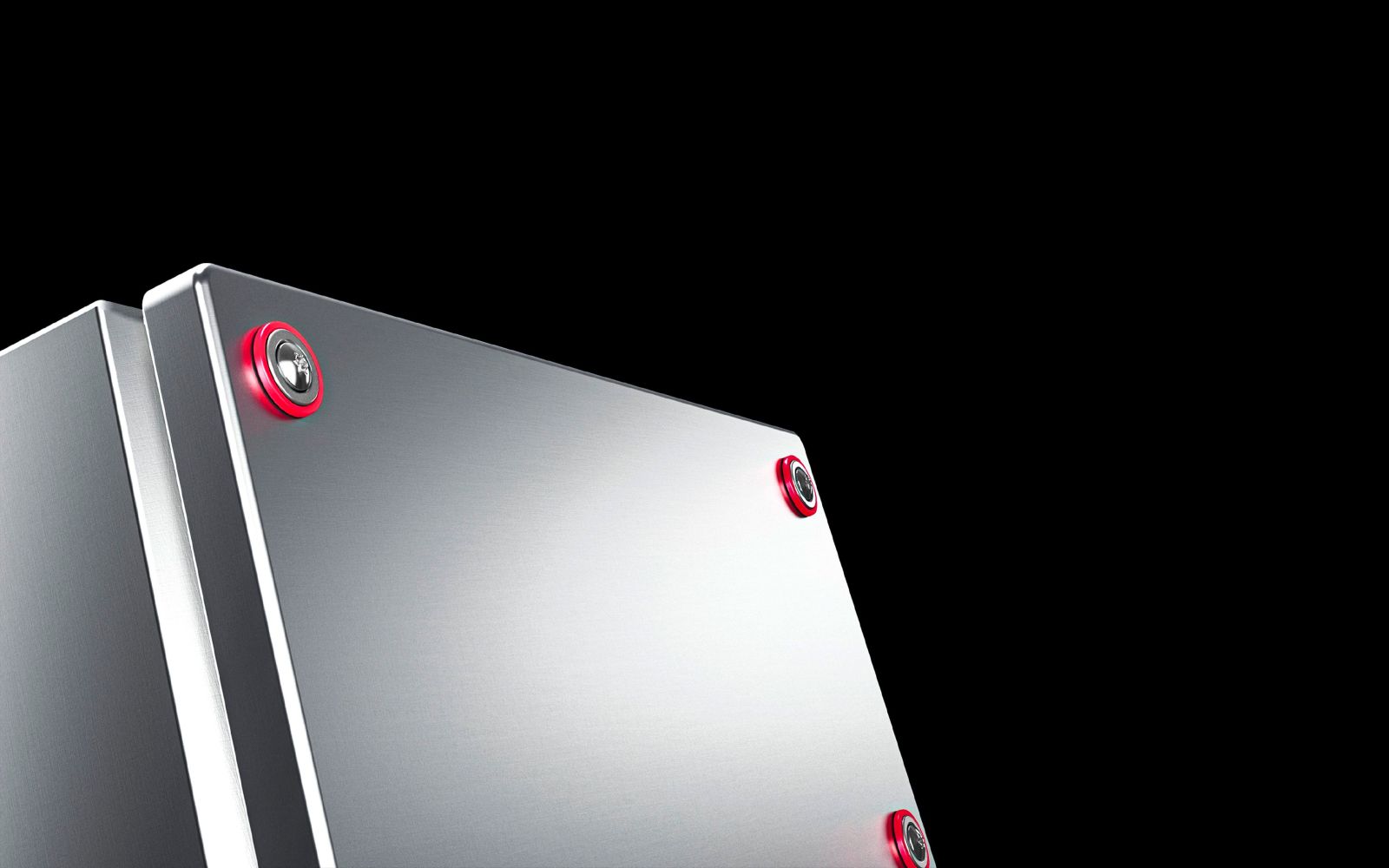

Mounting is done via the integrated quick-release fasteners, which allow easy and secure attachment of the lid. Wall mounting is achieved through the provided holes and can be supported by wall mounting brackets or mounting brackets. For mounting on support rails, special mounting clips and support rails are available. Grounding is achieved via the integrated protective conductor connection in the enclosure and the grounding bolt in the lid, ensuring safe and reliable grounding.

Operational Advantages

The terminal box offers high mechanical stability, corrosion resistance, and protection against environmental influences. The easy mounting and removal of the lid via quick-release fasteners enable quick maintenance and inspection. The integrated grounding and tight sealing ensure safe and reliable operation in critical applications. The use of stainless steel 1.4301 (AISI 304) ensures long service life and low maintenance costs. The approvals according to IP 66, NEMA, and UL 50E allow use in various markets and environments. The QR code on the enclosure, lid, and type plate enables unique identification and easy access to relevant product information and documentation, facilitating traceability and maintenance.

General
MaterialHousing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal
Surface protectionHousing and cover: fine grinding, grit 180
Scope of deliveryHousing with cover, quick-release fastener including plastic inserts
Width300 mm
Height200 mm
Depth80 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
LockNumber of locks: 4
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)9,23


Product data sheet
Datasheet for Rittal 1563000, EAN: 4028177919198
