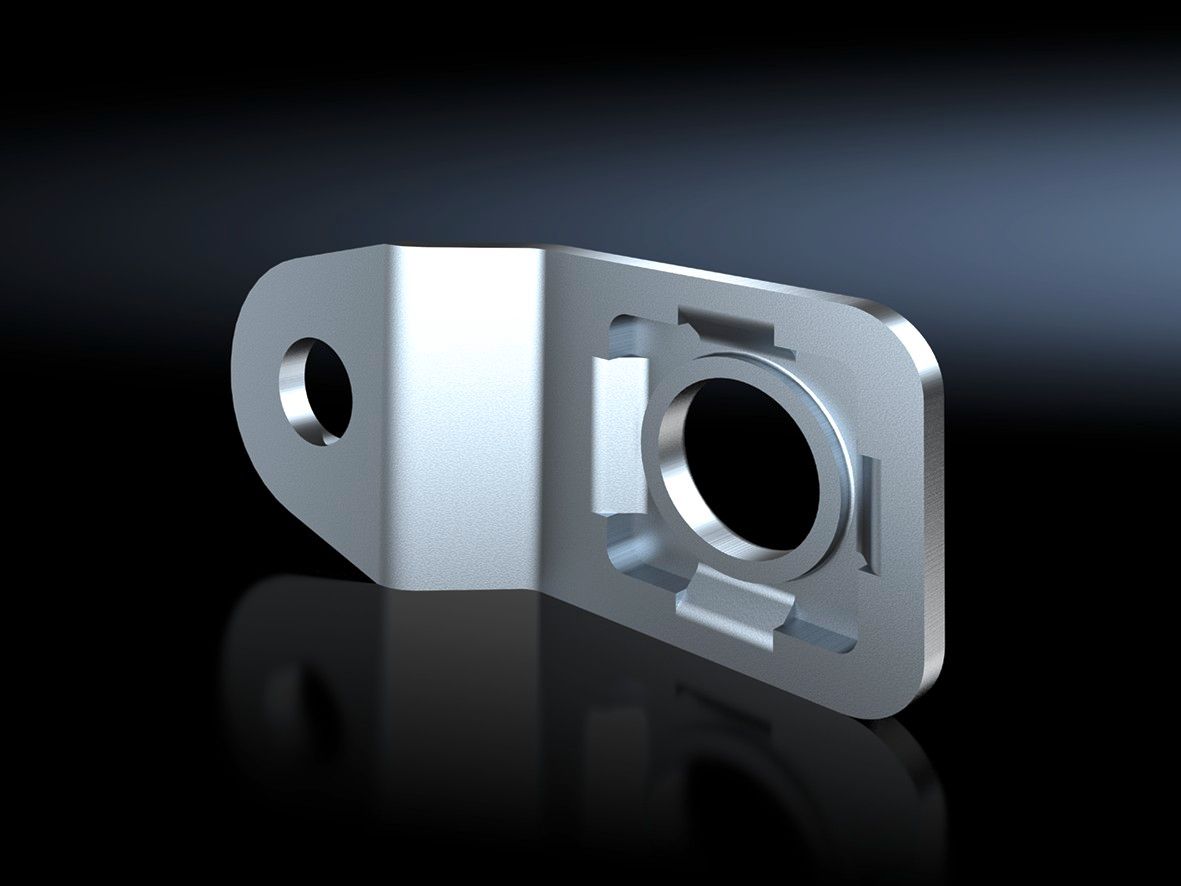

Rittal 1594010 SZ wall mounting bracket, stainless steel 1.4301 (AISI 304)

Your rating:
Average rating
product review for Rittal 1594010 SZ wall mounting bracket, stainless steel 1.4301 (AISI 304)
( 4.8 / 5 ) 4 ratings
Rittal 1594010
This image may differ from the desired article.
Rittal 1594010Rittal 1594010Rittal 1594010
22,94 EUR
( 27,30 EUR incl. VAT )
≈ £19.20  |  ≈ $25.21
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1594010 SZ wall mounting bracket, stainless steel 1.4301 (AISI 304)
Datasheet:file_download Download
Lieske Part No.:1778282
Mfg Part No: 1594010
UPC/EAN: 4028177938083
Weight:0.152 kg
Type:KX 1594010

Product information for Rittal 1594010:

The SZ wall mounting bracket from manufacturer Rittal, type KX 1594010, is a mounting component specifically developed for stainless steel enclosures. It is designed for the secure wall mounting of enclosures of types AX stainless steel and KX stainless steel. The product is made of stainless steel 1.4301 (AISI 304), a material known for its high corrosion resistance and mechanical strength, making it suitable for industrial and hygienic applications. The bracket ensures a wall clearance of 10 mm, enabling sufficient air circulation and accessibility for maintenance work.

Applications

The wall mounting bracket is primarily designed for use in environments where stainless steel enclosures are preferred due to their hygienic and corrosion-resistant properties, for example in the food industry, pharmaceutical industry, or chemical production. The mounting is done on smooth walls, where the bracket provides the necessary stability for installing the enclosures. Due to the material selection, it is also suitable for outdoor use, provided that environmental conditions do not compromise the enclosure’s protection rating.

Functions and Equipment in Detail

The bracket is supplied with mounting hardware required for installation on the wall. The mounting is done using screws included in the delivery scope. The bracket itself is designed to attach to the rear side of the stainless steel enclosures, where the enclosures themselves do not have drill holes for wall mounting. This is intended for protection rating and hygiene reasons, to maintain the integrity of the enclosure surface and its protection rating.

Technology Explained Simply

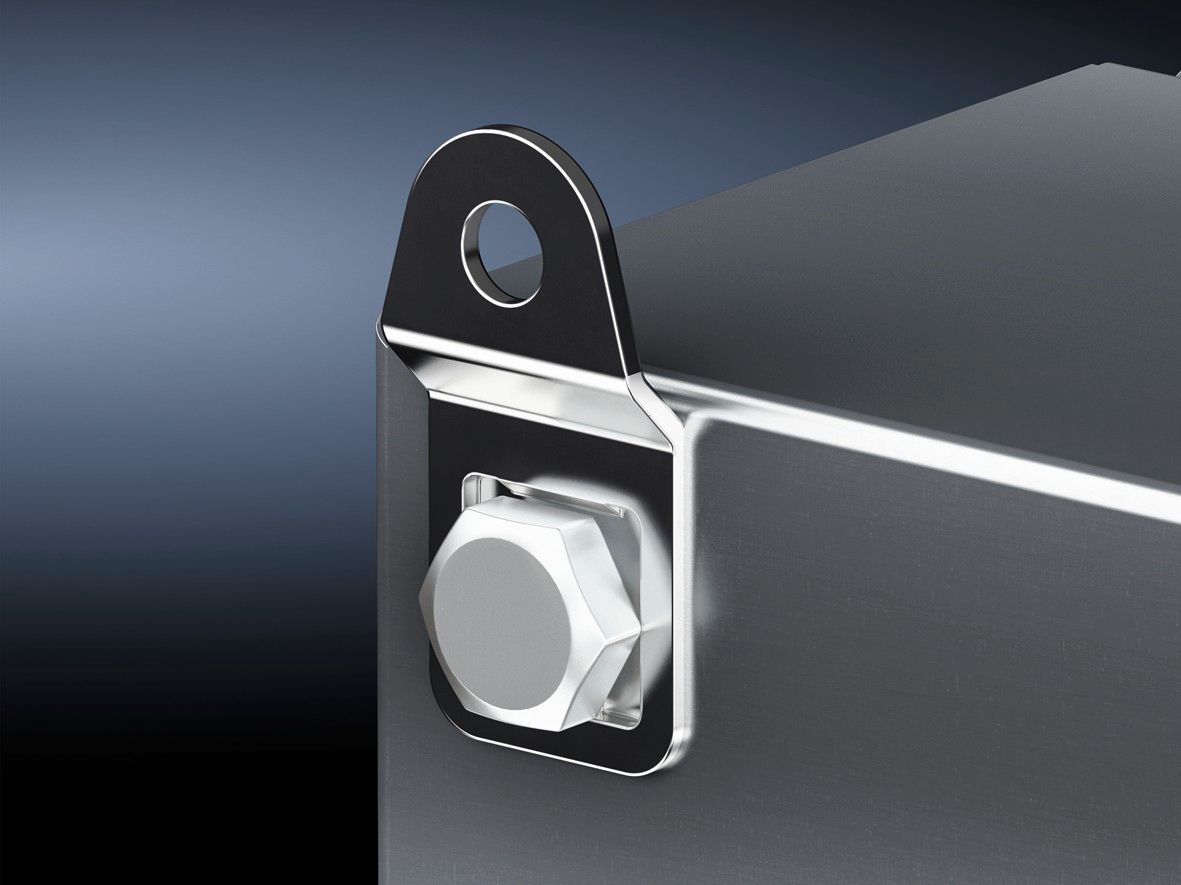

The wall mounting bracket consists of a flat metallic profile that is attached to the rear of the enclosure. The connection is made through pre-drilled holes in the bracket, which correspond to the mounting points of the enclosure. The bracket ensures that the enclosure is positioned parallel to the wall and maintains a defined clearance of 10 mm from the wall surface. This clearance is important to ensure sufficient ventilation and to avoid mechanical stress from direct contact. The material stainless steel 1.4301 (AISI 304) is known for its high resistance to moisture, salt, and chemical influences, ensuring long-term stability of the mounting in demanding environments.

Compatibility and Accessories

The wall mounting bracket is specifically designed for enclosure types AX stainless steel and KX stainless steel. These enclosures are part of the Rittal system and are available in various sizes and configurations. The bracket is not intended for other enclosure types or materials. Use with other enclosures is not recommended, as mounting points and mechanical load capacity are not guaranteed. Compatibility is limited to the specified stainless steel enclosures.

Mounting and Installation

Installation is carried out in two steps: first, the bracket is mounted to the wall using the included screws. Then, the stainless steel enclosure is hung onto the bracket and secured with screws. The mounting is done at the designated holes in the bracket, which align with the mounting points of the enclosure. The installation requires no additional tools other than a screwdriver or electric screwdriver. The process is simple and does not require special skills.

Advantages in Operation

The wall mounting bracket provides a stable and secure mounting of stainless steel enclosures to the wall. The defined wall clearance of 10 mm ensures sufficient ventilation and facilitates maintenance. The use of stainless steel 1.4301 (AISI 304) guarantees high corrosion resistance and long service life, even in moist or aggressive environments. The mounting is done without damaging the enclosure surface, as no drill holes need to be made in the enclosures themselves. This is particularly important for applications where hygiene and the enclosure’s protection rating are critical.

The packaging unit includes 4 pieces of the wall mounting bracket, sufficient for mounting multiple enclosures or as spare parts. The bracket is easy to install and requires no special tools or skills. Use is limited to the specified enclosure types, and there are no further compatibility details for other products.

General
MaterialStainless steel 1.4301 (AISI 304)
Scope of deliveryIncluding mounting hardware
Wall distance10 mm
NoteFor protection and hygiene reasons, the stainless steel enclosures have no holes for wall mounting.
Suitable forHousing type: AX stainless steel, KX stainless steel


Product data sheet
Datasheet for Rittal 1594010, EAN: 4028177938083

Questions & answers

What is the delivery time of Rittal 1594010 SZ wall mounting bracket, stainless steel 1.4301 (AISI 304)?

The article Rittal 1594010 SZ wall mounting bracket, stainless steel 1.4301 (AISI 304) is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1594010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1594010 SZ wall mounting bracket, stainless steel 1.4301 (AISI 304) always at the best possible price. We can give you a discount of 2% on Rittal 1594010 SZ wall mounting bracket, stainless steel 1.4301 (AISI 304) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
