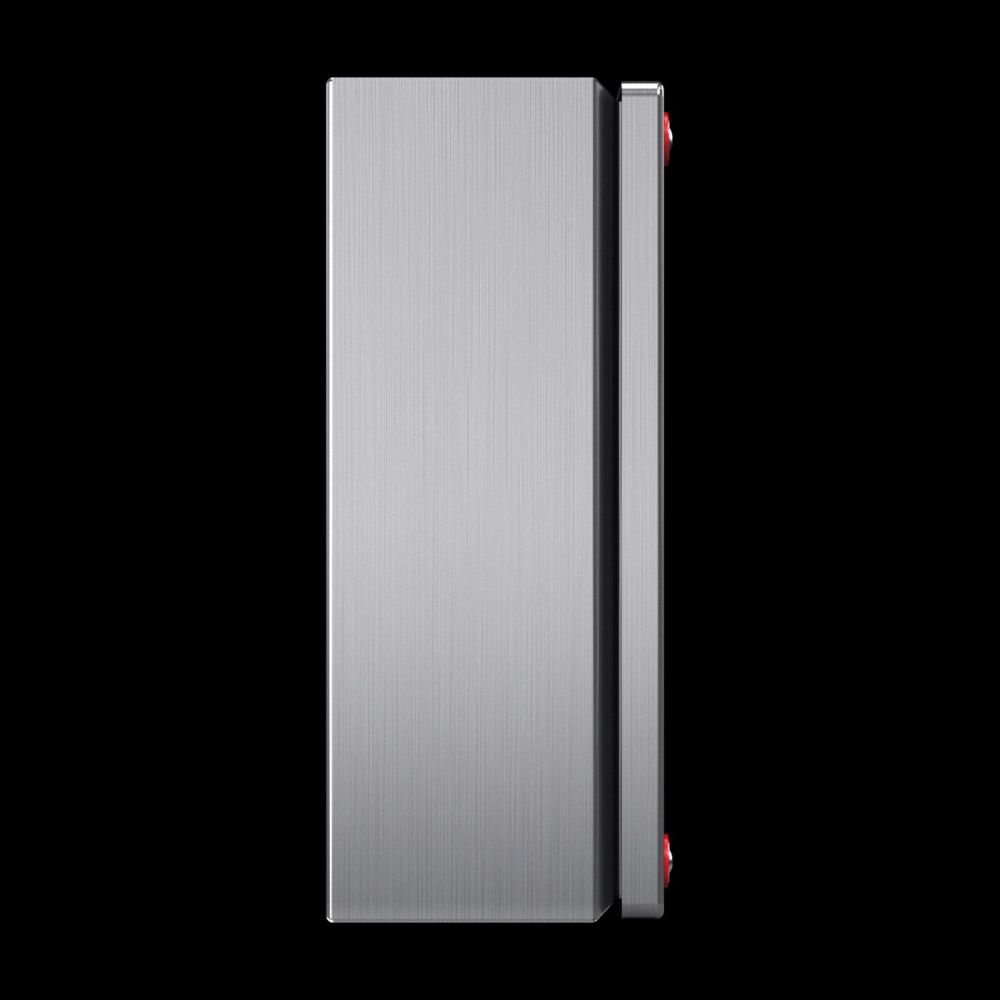

Rittal 1565000 terminal box KX, stainless steel 1.4301, without mounting plate

Your rating:
Average rating
product review for Rittal 1565000 terminal box KX, stainless steel 1.4301, without mounting plate
( 4 / 5 ) 1 ratings
Rittal 1565000
This image may differ from the desired article.
Rittal 1565000Rittal 1565000Rittal 1565000Rittal 1565000Rittal 1565000Rittal 1565000Rittal 1565000Rittal 1565000Rittal 1565000Rittal 1565000
-10% 164,22 EUR 183,20 EUR
( 195,42 EUR incl. VAT )
≈ £137.45  |  ≈ $180.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1565000 terminal box KX, stainless steel 1.4301, without mounting plate
Datasheet:file_download Download
Lieske Part No.:1778293
Mfg Part No: 1565000
UPC/EAN: 4028177919068
Weight:2.131 kg
Type:KX 1565000

Product information for Rittal 1565000:

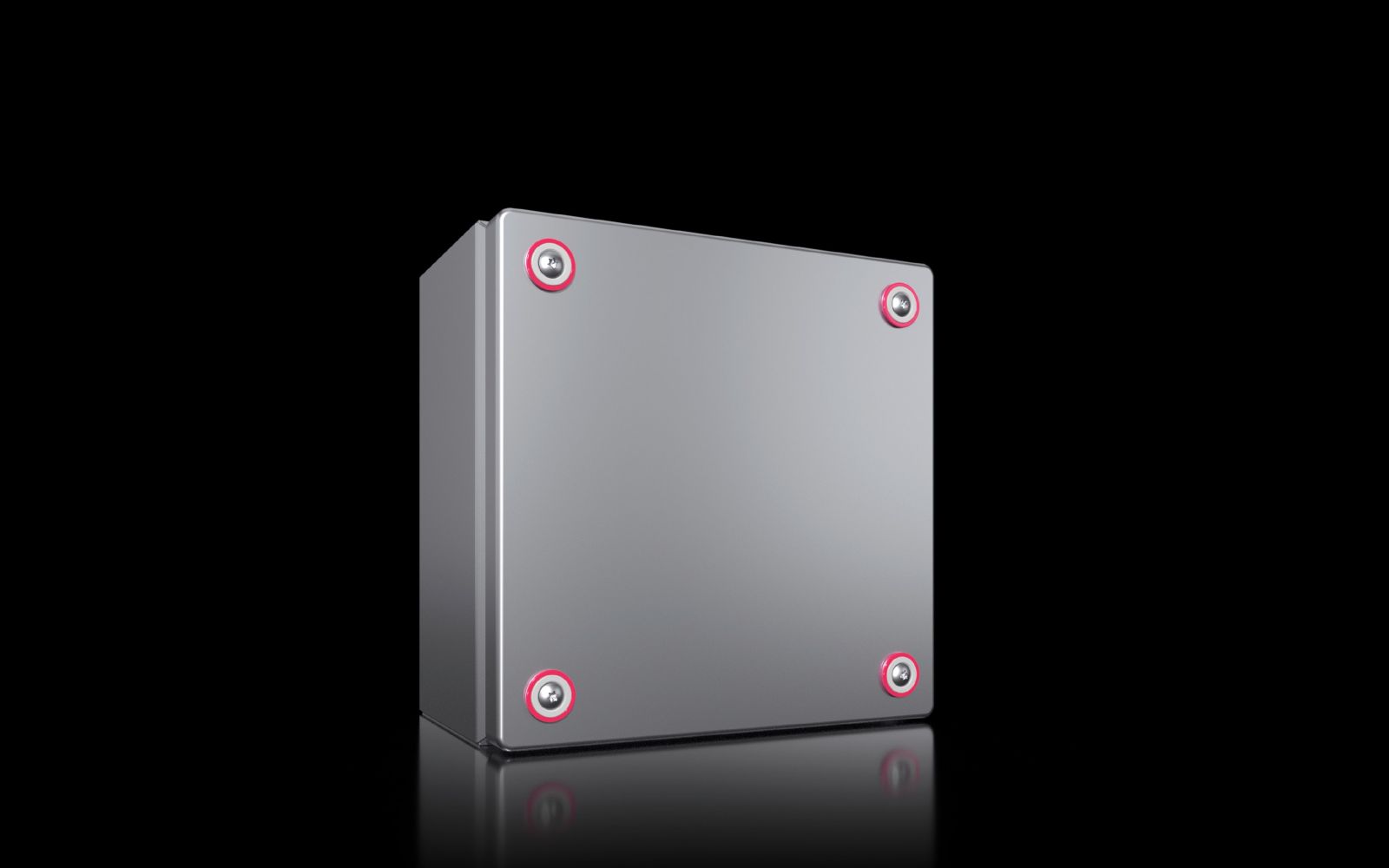

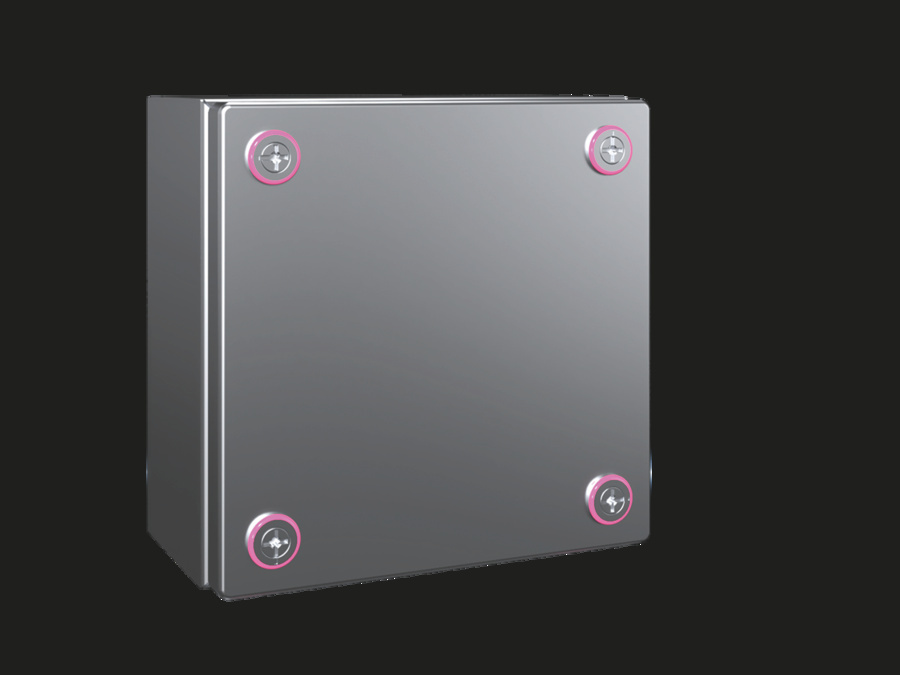

The KX 1565000 is a terminal box from the brand Rittal, made of stainless steel 1.4301 (AISI 304), with dimensions width 200 mm, height 200 mm and depth 120 mm. It is designed for use in industrial applications where high mechanical stability, corrosion resistance and protection against environmental influences are required. The enclosure is made as a single piece, bent and welded, resulting in a stable and tight construction. The surface is brush-finished with a grit of 180, providing a uniform, easy-to-clean and aesthetically pleasing appearance.

Applications
This terminal box is suitable for use in electrical and automation technology, particularly in environments with high requirements for protection rating. It can be used in manufacturing, process industry, machine building or building automation, where electrical components, terminals or small control units need to be protected against dust, splashing water and mechanical influences. The protection rating IP 66 according to EN 60 529 ensures dust-tightness and protection against heavy splashing water, making it suitable for outdoor use as well. Additionally, it meets protection ratings NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X and NEMA 12, as well as type ratings according to UL 50E (Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12), enabling international use in various standard regions.

Functions and Equipment in Detail

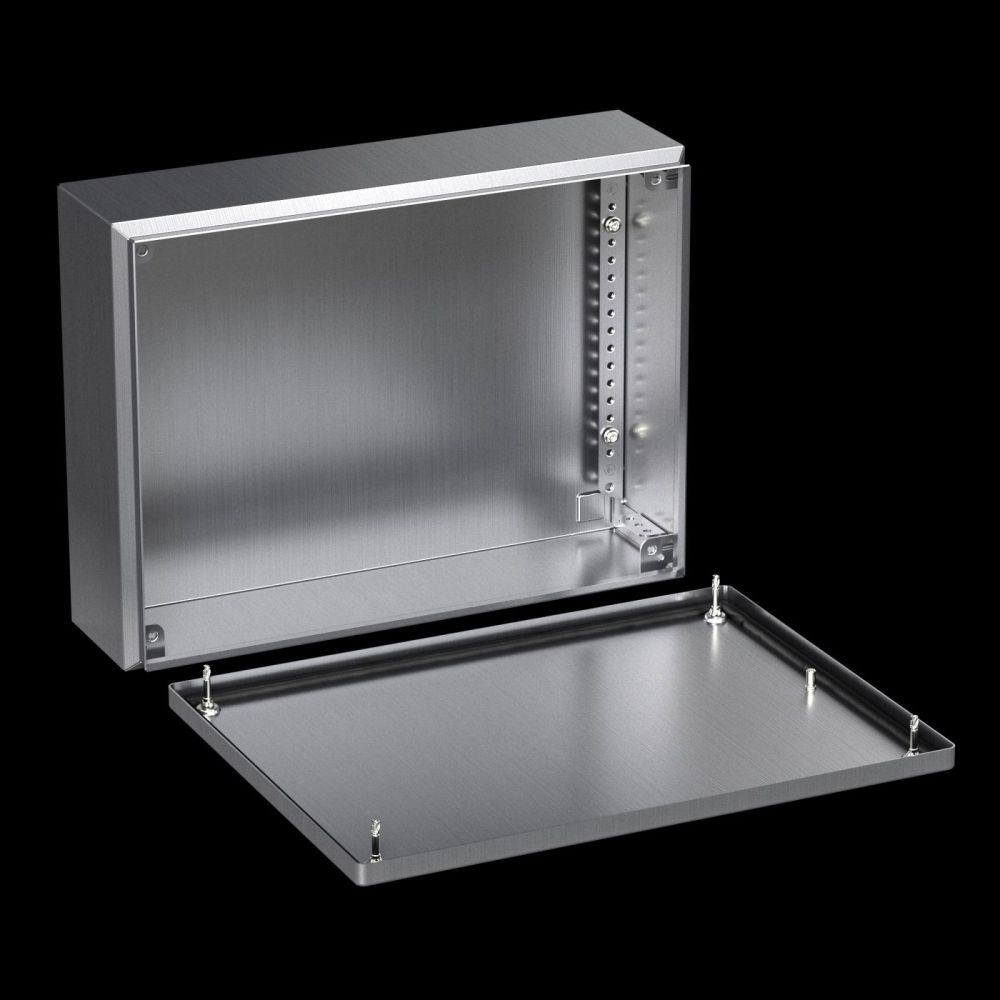

The enclosure is equipped with a lid featuring a continuous foamed PU seal to ensure a tight seal. The seal provides effective protection against dust and moisture. The lid is secured using four quick-release fasteners, each fitted with plastic bushings, allowing for secure and quick assembly. The material thickness of both the enclosure and the lid is 1.25 mm, ensuring high mechanical strength and long-term stability. Inside the enclosure, a protective earth connection is integrated, and earthing is achieved via a bolt in the lid, enabling simple and reliable earthing.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance, especially against moisture, salt spray and chemical influences. The brush-finished surface with grit 180 offers good abrasion resistance and is easy to clean. The protection rating IP 66 means the enclosure is dust-tight and protected against heavy splashing water, making it suitable for use in damp or wet environments. The NEMA and UL approvals extend the application range to countries with corresponding standards, particularly in North America. The continuous PU seal ensures a tight seal that maintains its function even under temperature fluctuations.

Compatibility and Accessories

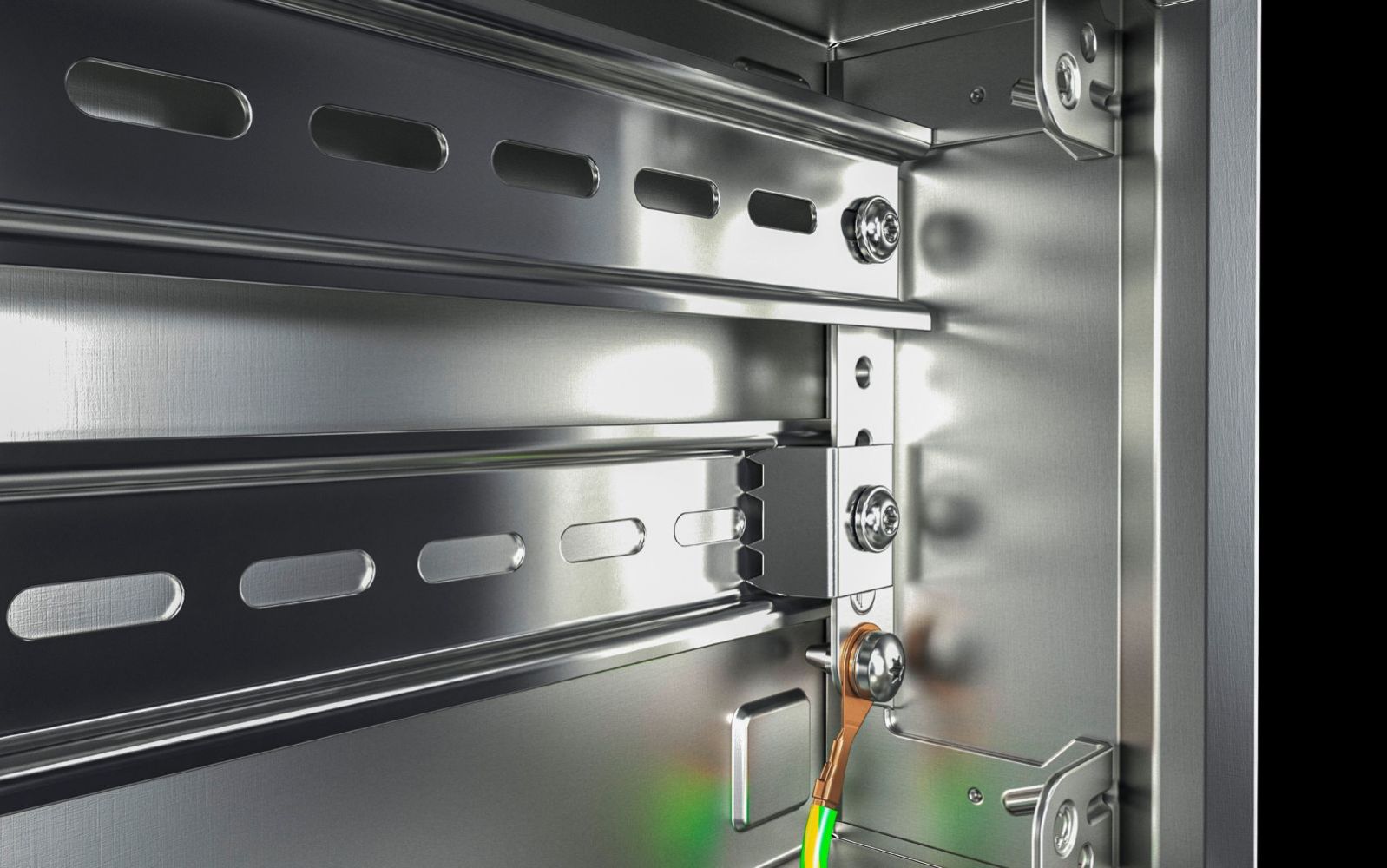

The terminal box can be extended with various accessories to meet specific requirements. These include mounting clips for support rails, support rails in formats TH 35/7,5/TS 35/15, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, baying sets for models AX, KX, AE and KL, drilling screws type ST 4,8 L9,5 mm, mounting brackets, stainless steel 1.4301 wall mounting brackets, SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, earthing straps M6-M6 with a cross-section of 10 mm², mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and SZ wall mounting brackets made of stainless steel 1.4301. These accessories enable flexible mounting on walls, masts or support rails and integration into existing systems.

Mounting and Installation

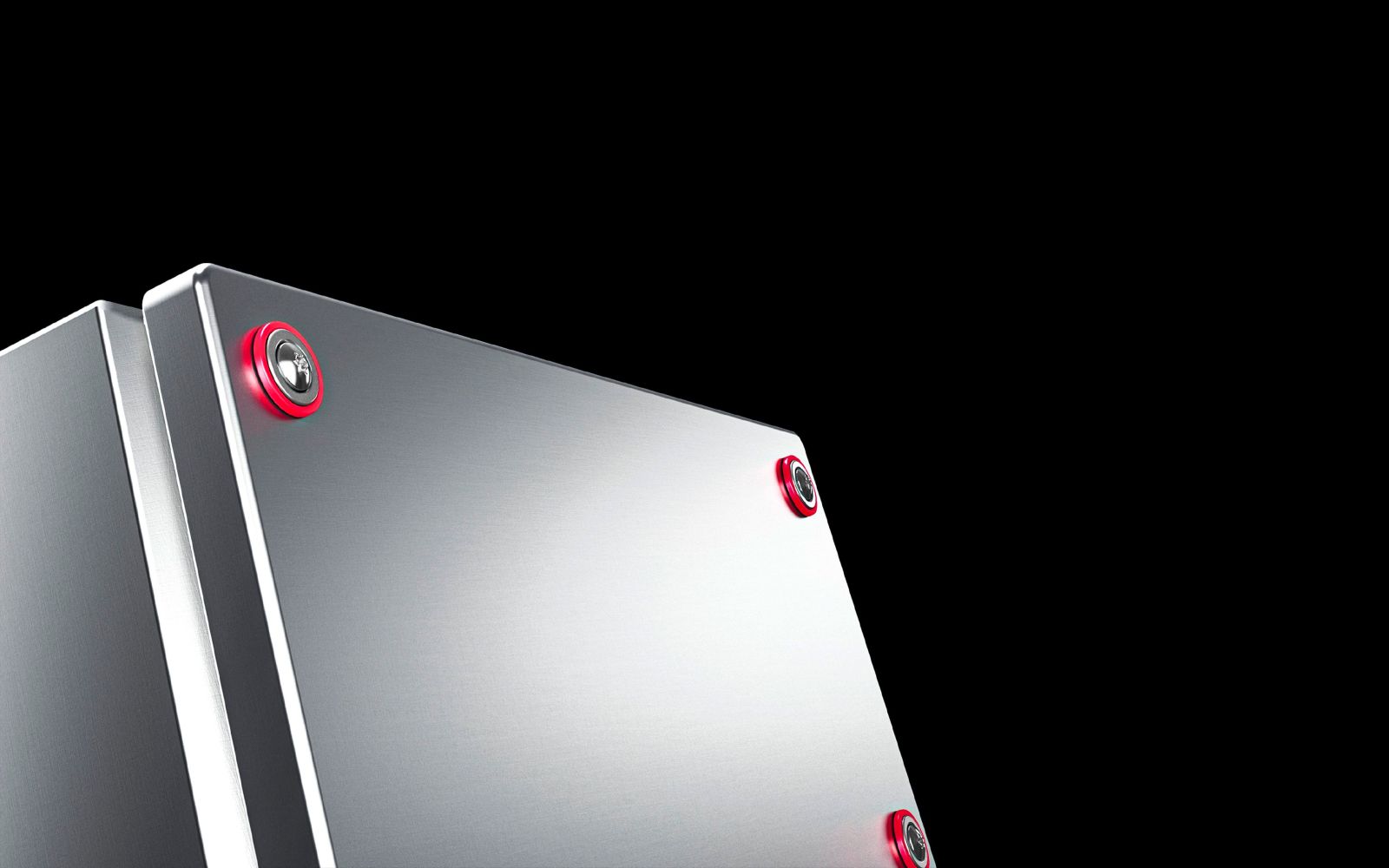

Mounting is done using the included quick-release fasteners, which allow for easy and secure attachment of the lid. Mounting on support rails is possible using mounting clips or support rails, which are available in various lengths and formats. The mounting claw for the second mounting level enables vertical arrangement of multiple enclosures. The integrated earthing via the bolt in the lid simplifies the electrical connection to the protective earth conductor.

Operational Advantages
The KX 1565000 offers high reliability due to its robust stainless steel construction and tight sealing. The quick mounting and dismounting via quick-release fasteners reduces installation time. The integrated earthing and protective earth connection ensure a safe electrical connection. The universal compatibility with various accessories enables flexible adaptation to different application scenarios. The protection rating IP 66 and NEMA approvals extend the application range to demanding environments. The surface finish with brush finish grit 180 is easy to clean and offers good abrasion resistance. A QR code on the enclosure, lid and nameplate enables unique identification and easy access to product information and documentation.

General
MaterialHousing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal
Surface protectionHousing and cover: fine grinding, grit 180
Scope of deliveryHousing with cover, quick-release fastener including plastic inserts
Width200 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
LockNumber of locks: 4
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)8,96


Product data sheet
Datasheet for Rittal 1565000, EAN: 4028177919068

Questions & answers

What is the delivery time of Rittal 1565000 terminal box KX, stainless steel 1.4301, without mounting plate?

The article Rittal 1565000 terminal box KX, stainless steel 1.4301, without mounting plate is currently in stock

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1565000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1565000 terminal box KX, stainless steel 1.4301, without mounting plate always at the best possible price. We can give you a discount of 2% on Rittal 1565000 terminal box KX, stainless steel 1.4301, without mounting plate if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
