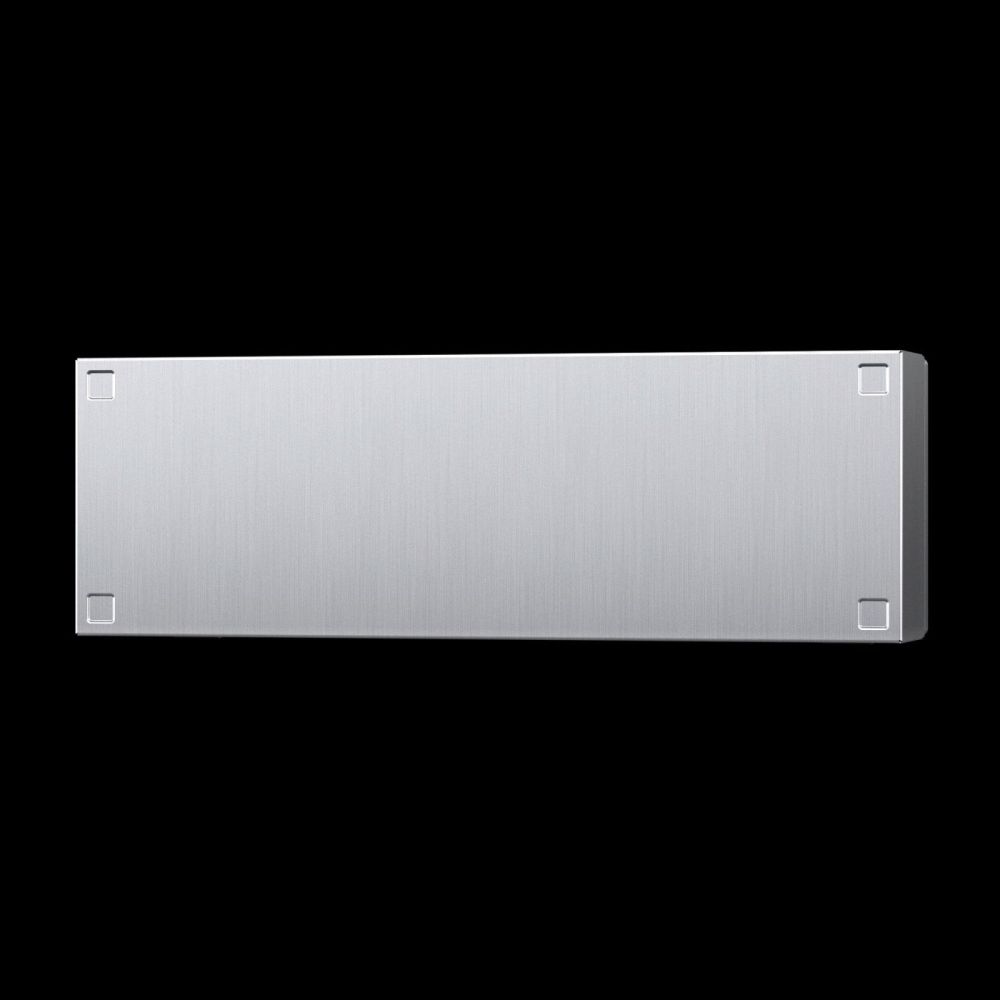

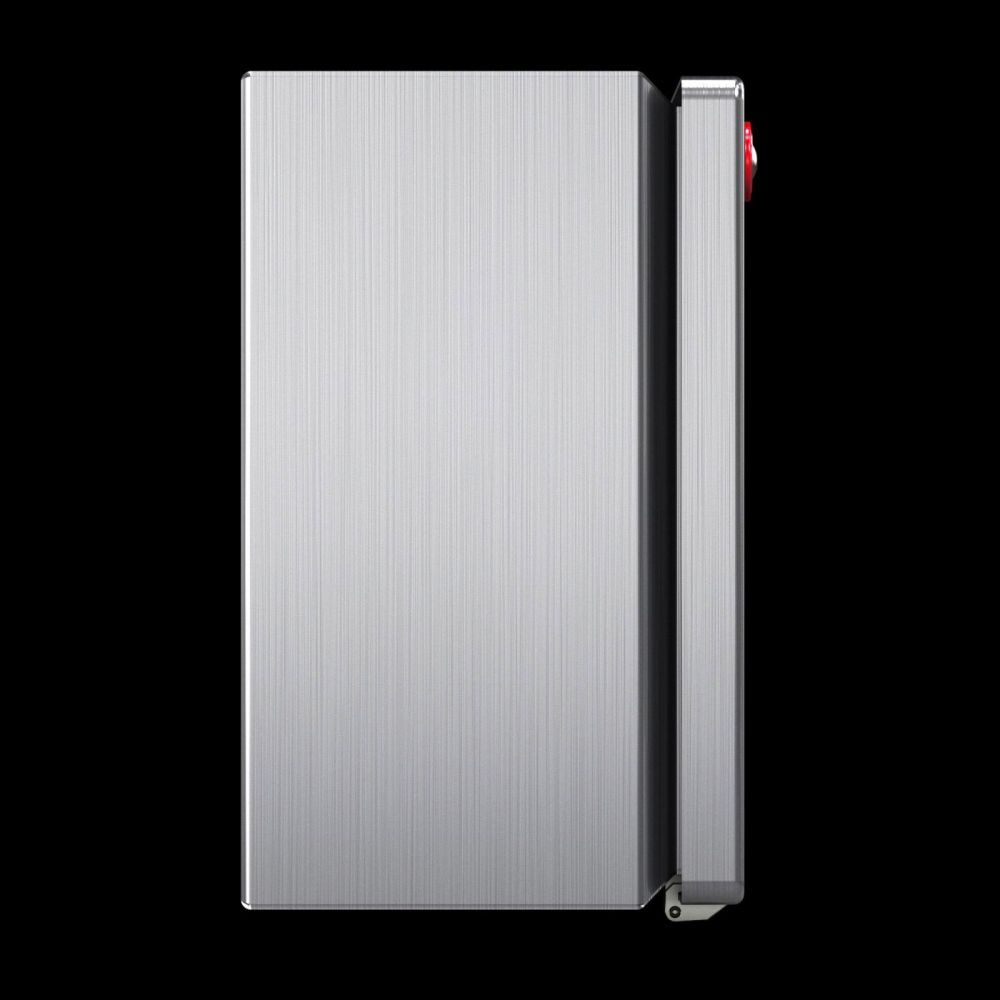

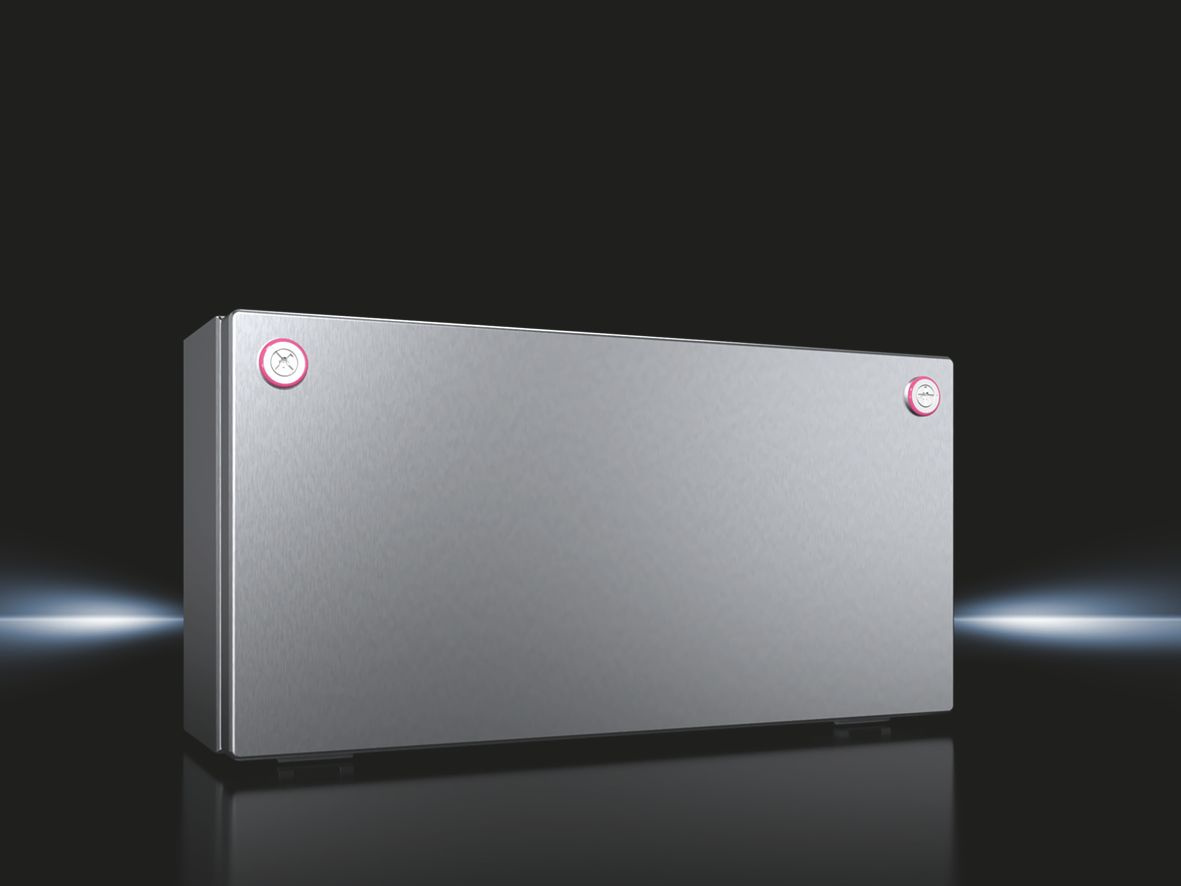

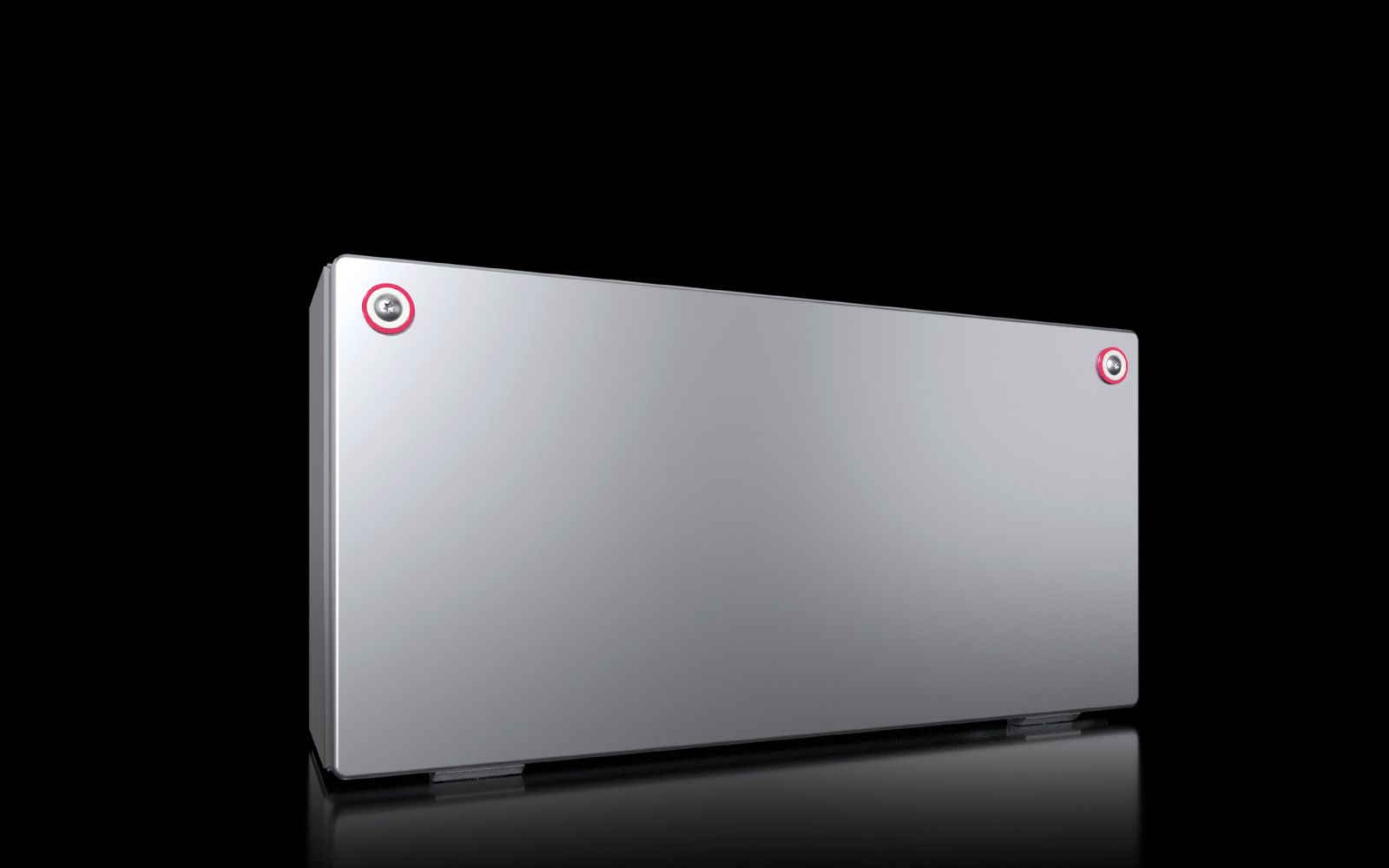

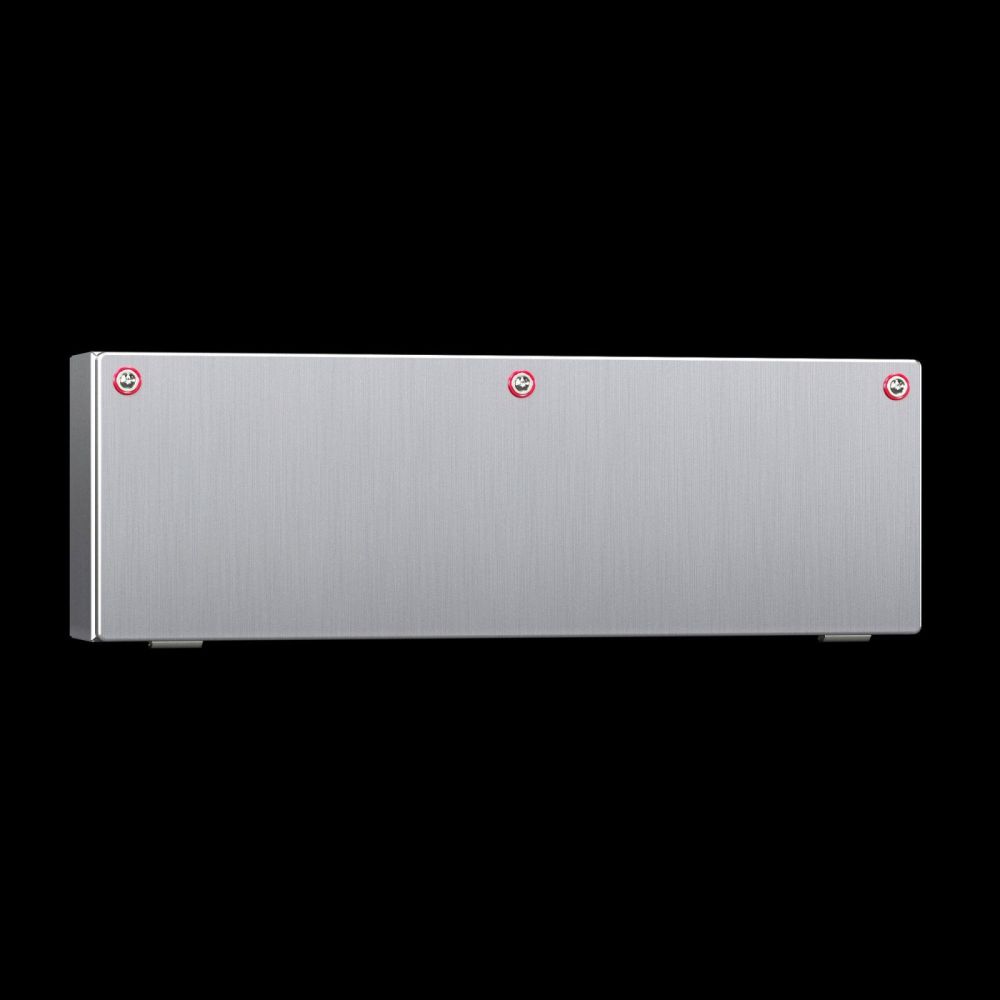

Rittal 1585000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 400x200x120 mm

Your rating:
Average rating
product review for Rittal 1585000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 400x200x120 mm
( 4 / 5 ) 2 ratings
Rittal 1585000
This image may differ from the desired article.
Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000Rittal 1585000
222,18 EUR
( 264,39 EUR incl. VAT )
≈ £185.96  |  ≈ $244.18
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1585000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 400x200x120 mm
Datasheet:file_download Download
Lieske Part No.:1778287
Mfg Part No: 1585000
UPC/EAN: 4028177919112
Weight:3.46 kg
Type:KX 1585000

Product information for Rittal 1585000:

The Rittal KX 1585000 is a bus housing made of stainless steel 1.4301 (AISI 304), designed for use in industrial applications where high mechanical load capacity and protection against environmental influences are required. The housing has dimensions of width 400 mm, height 200 mm, and depth 120 mm, and is equipped with a hinged lid that allows easy and quick access to the interior. The construction consists of a one-piece, flanged, and welded body, providing a stable and durable structure. A continuous protective channel is integrated at the lid opening, together with a continuously foamed PU seal, ensuring effective protection against dust and water.

Applications
This housing is designed for use in environments where high requirements for protection class are specified. It is suitable for outdoor use as well as in industrial environments with increased humidity, splashing water, or dust exposure. The protection class IP 66 according to EN 60 529 ensures complete protection against dust and heavy splashing water from any direction. Additionally, the housing meets protection classes NEMA 1, NEMA 3R, NEMA 4, NEMA 4X, and NEMA 12, as well as type ratings according to UL 50E: Type 1, Type 3R, Type 4, Type 4X, and Type 12, confirming its suitability for various industrial and outdoor applications.

Functions and Equipment in Detail

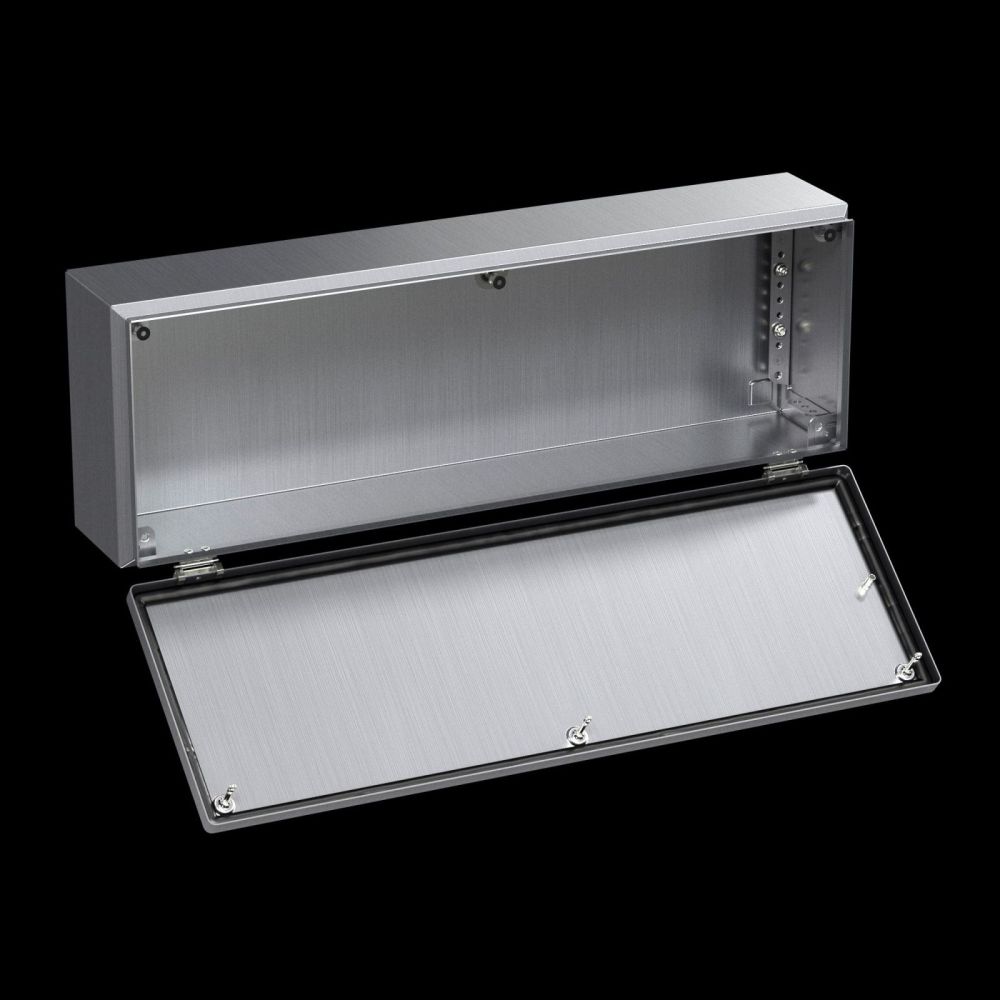

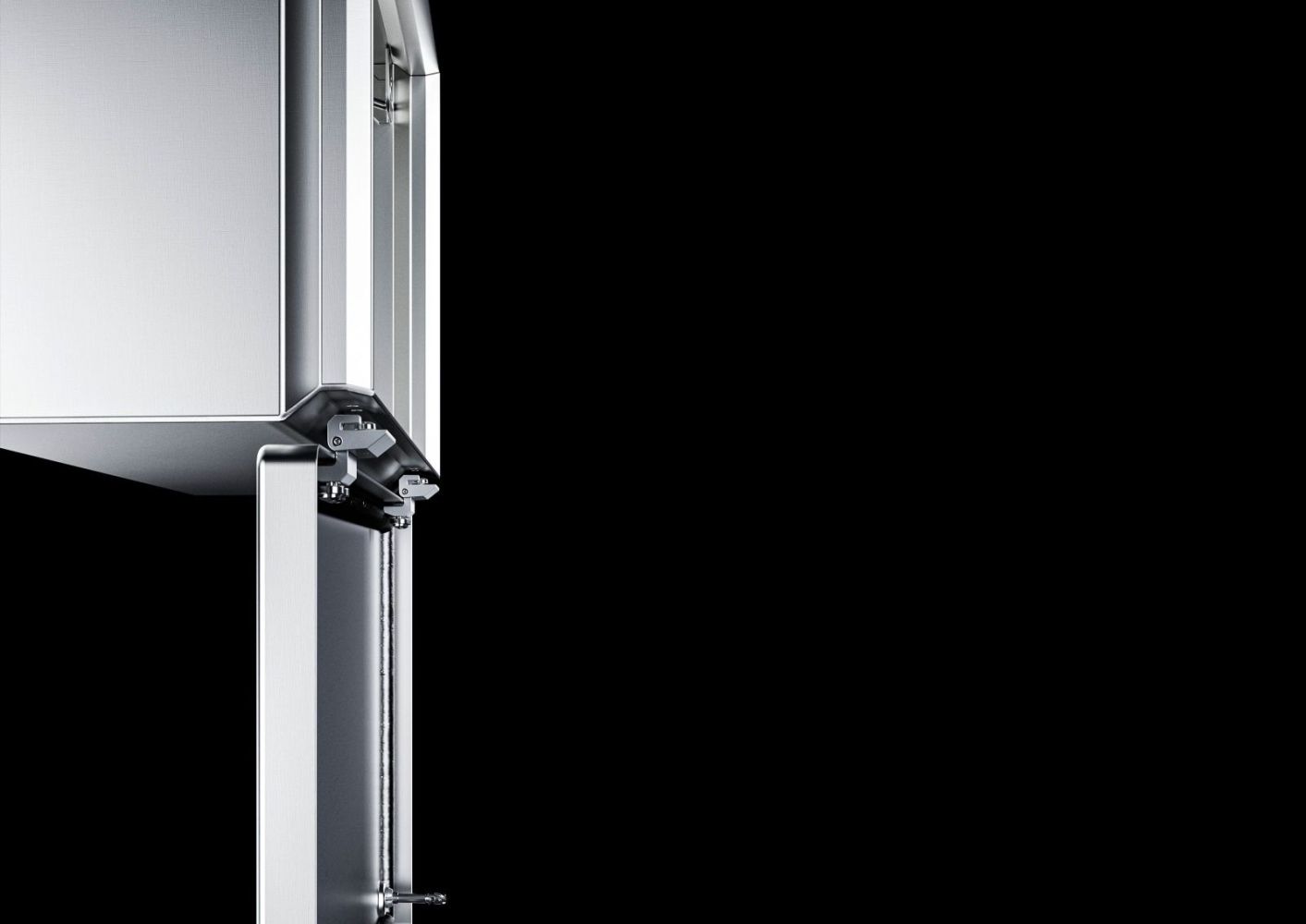

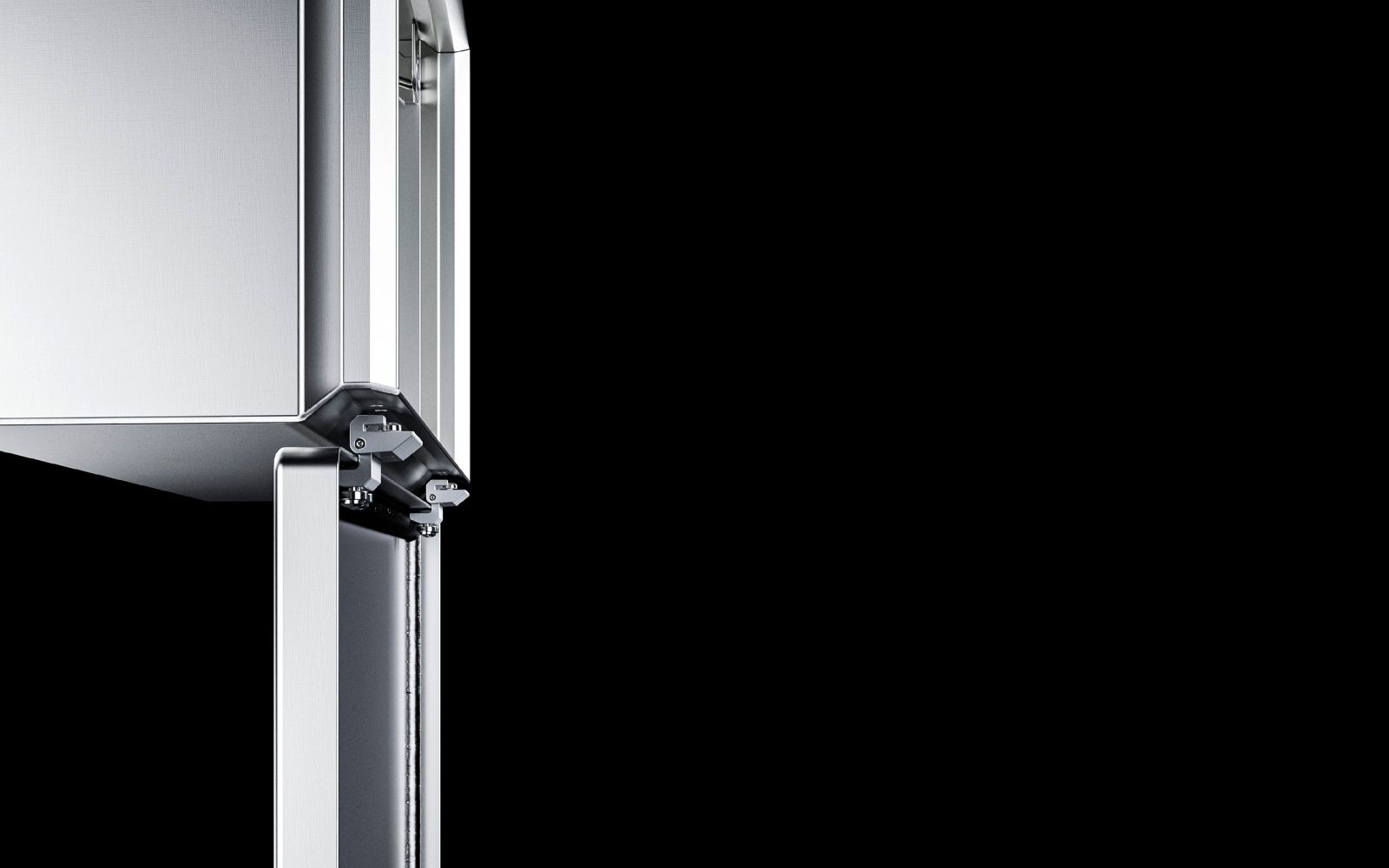

The housing features 180° hinges made of zinc die-cast, enabling full opening of the lid and thus ensuring optimal accessibility for installation, maintenance, and inspection. The hinges are chrome-plated, providing an additional corrosion protection layer. Fastening is achieved via quick-release latches, supplied with plastic bushings, to enable secure and rapid closure. The housing includes a protective earth conductor connection, and the lid grounding is achieved via a bolt, ensuring a secure electrical connection.

Technology Explained Simply
The use of stainless steel 1.4301 (AISI 304) as the base material offers high corrosion resistance and mechanical strength, making the housing suitable for demanding environments. The surface of the housing and lid is brushed with a grit of 180, resulting in a uniform, robust, and easy-to-clean surface. The continuously foamed PU seal ensures a tight closure, supporting the IP 66 protection class. The material thickness of 1.25 mm for both housing and lid ensures sufficient stability and resistance to mechanical loads.

Compatibility and Accessories

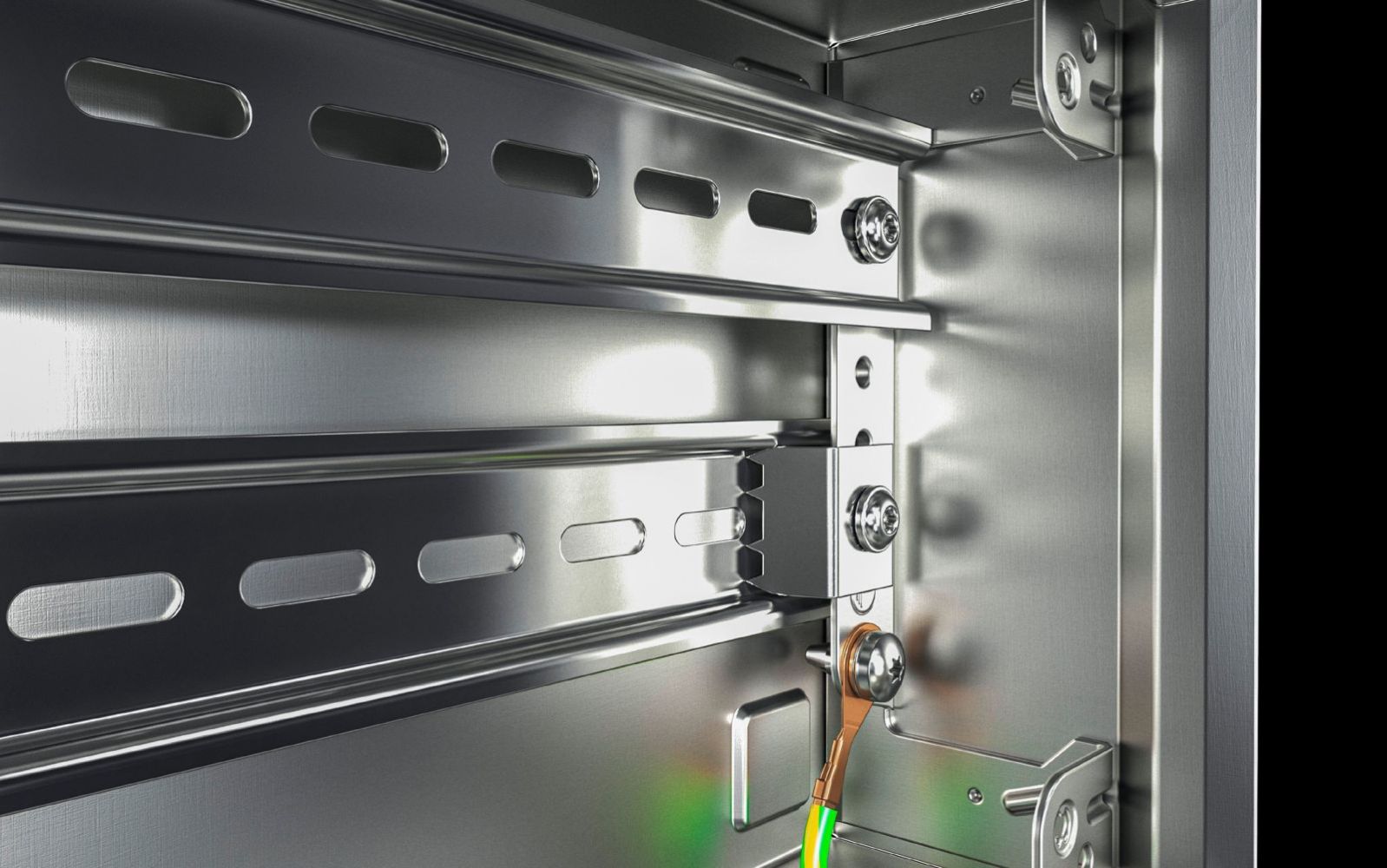

The housing is compatible with various accessories that facilitate installation and integration into existing systems. These include mounting clips for support rails, mounting brackets, condensate drains, baying sets for AX, KX, AE, and KL, ST 4.8 L9.5 mm screws, mounting brackets, TH 35/7.5/35/15 support rails (length 387 mm), SZ pressure equalization plugs made of stainless steel 1.4305, AX mast mounting brackets, earthing straps M6-M6 with cross-section 10 mm², mounting plates for terminal boxes and bus housings KX, mounting claw for a second mounting level, and SZ wall mounting brackets made of stainless steel 1.4301 (AISI 304). These components enable flexible and application-specific installation.

Mounting and Installation
Mounting is performed using the integrated fastening elements and compatible accessories. The support rails and mounting plates allow secure attachment to enclosures or walls. The wall mounting bracket and mounting bracket offer additional installation options. The ST 4.8 L9.5 mm screws are suitable for mounting on various substrates. The mounting claw for the second mounting level allows vertical arrangement of multiple housings.

Operational Advantages
The Rittal KX 1585000 offers high reliability and longevity due to the use of stainless steel and robust construction. The IP 66 protection class and compatible accessories enable flexible and secure installation in various industrial environments. The 180° hinges and quick-release latches simplify maintenance and inspection, while the integrated grounding and protective earth conductor connection ensure electrical safety. The clear identification via QR codes on the body, lid, and nameplate enables easy traceability and quick access to relevant product information and documentation.

General
MaterialEnclosure: stainless steel 1.4301 (AISI 304), cover: stainless steel 1.4301 (AISI 304), continuously foamed PU seal, hinges: zinc die-cast
Surface protectionCabinet and lid: brushed finish, grit 180, 180° hinges: chrome-plated
Scope of deliveryCabinet with lid, 180° hinges, quick-release fastener including plastic bushings
Width400 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 4X, Type 12
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)13,75


Product data sheet
Datasheet for Rittal 1585000, EAN: 4028177919112

Questions & answers

What is the delivery time of Rittal 1585000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 400x200x120 mm?

The article Rittal 1585000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 400x200x120 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1585000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1585000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 400x200x120 mm always at the best possible price. We can give you a discount of 2% on Rittal 1585000 Bus enclosure KX, stainless steel 1.4301, W x H x D: 400x200x120 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
