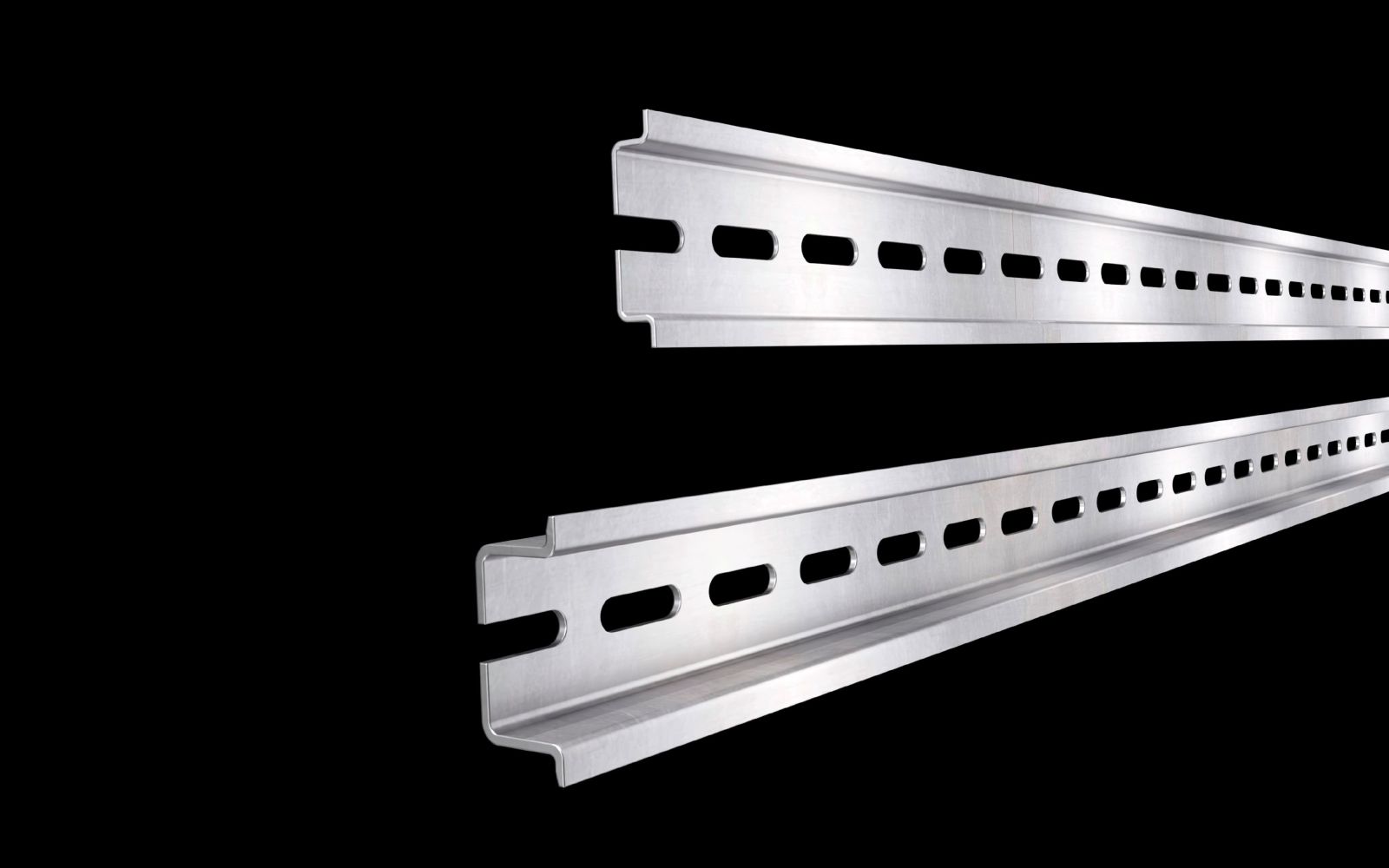

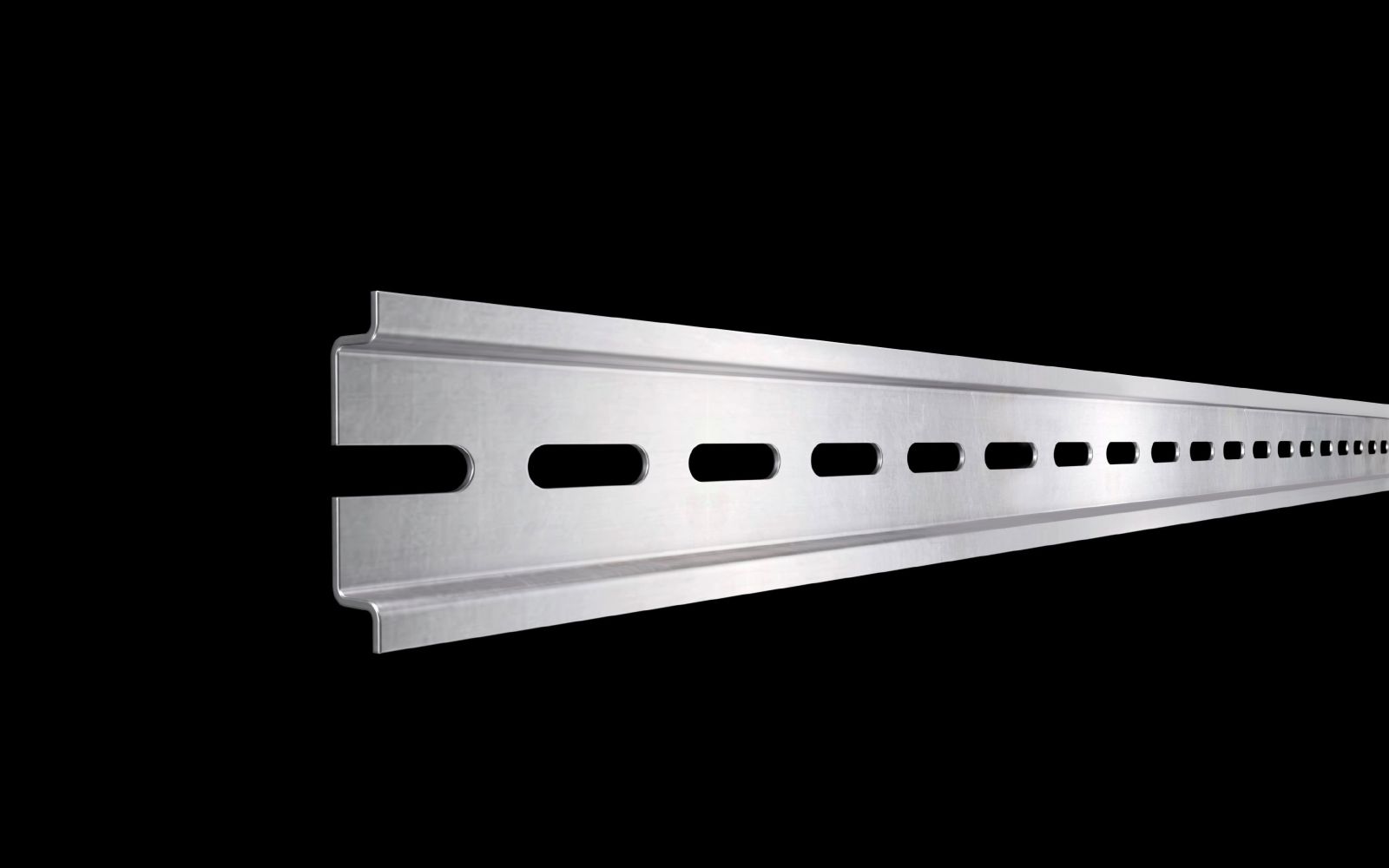

Rittal 2317000 support rail TH 35/7.5/35/15, length 387 mm, for width

Your rating:
Average rating
product review for Rittal 2317000 support rail TH 35/7.5/35/15, length 387 mm, for width
( 4.3 / 5 ) 42 ratings
Rittal 2317000
This image may differ from the desired article.
Rittal 2317000Rittal 2317000Rittal 2317000Rittal 2317000
37,84 EUR
( 45,03 EUR incl. VAT )
≈ £31.67  |  ≈ $41.59
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 2317000 support rail TH 35/7.5/35/15, length 387 mm, for width
Datasheet:file_download Download
Lieske Part No.:849433
Mfg Part No: 2317000
UPC/EAN: 4028177021068
Weight:1.251 kg
Type:SZ 2317000

Product information for Rittal 2317000:

The Rittal SZ 2317000 is a support rail in standard format TH 35/7.5, manufactured in accordance with the standard EN 60 715. It serves as a mounting base for electrical components such as switches, relays, connectors and other parts within enclosures. The rail is made of sheet steel and features a zinc-coated surface, providing good corrosion protection. The length of the support rail is 387 mm and is specifically designed for enclosure widths of 400 mm, ensuring precise fit and secure mounting.

Applications
The support rail is intended for a wide range of enclosure types, particularly for enclosure types AX, KX, AE, KL and KL-HD. These enclosures are widely used in industrial electrical engineering and automation technology, making the SZ 2317000 suitable for use in plant construction, machine building and process automation. The rail enables structured and standardized mounting of components, simplifying maintenance and expansion of enclosures.

Functions and Features in DetailThe rail conforms to the international standard TH 35/7.5, which defines mounting for components in enclosures. The dimension TH 35/7.5 means the rail has a height of 35 mm and a slot depth of 7.5 mm. These dimensions are universally recognized and allow compatibility with a wide range of standard components. The zinc-coated surface provides sufficient protection against environmental influences, especially in indoor installations where corrosion protection is required.

Technical ExplanationThe support rail is inserted into the designated mounting openings of enclosure housings and serves as a fixed mounting surface. The length of 387 mm is precisely matched to a width of 400 mm, enabling optimal use of available space within the enclosure. The zinc coating of the sheet steel surface provides mechanical and chemical protection, extending the service life of the rail. The EN 60 715 standard ensures interoperability with other components also manufactured to this standard.

Compatibility and AccessoriesThe SZ 2317000 is compatible with enclosure types AX, KX, AE, KL and KL-HD, all of which have a width of 400 mm. These enclosures are standard in industrial electrical engineering. The rail can be combined with a wide range of components also designed for TH 35/7.5, such as switches, fuses, connectors and modular units. The use of standardized support rails enables modular and flexible component arrangement within enclosures.

Mounting and InstallationInstallation is carried out by inserting the rail into the designated mounting openings of the enclosure housings. The rail is slid into the side guide slots and secured by the shape of the housing openings. Additional fastening with screws is generally not required, as the rail is securely held in place by the precise fit. Installation is tool-free and can be completed quickly.

Operational AdvantagesUsing the Rittal SZ 2317000 provides a standardized and reliable mounting base, simplifying installation and maintenance of components within enclosures. The exact fit for enclosure widths of 400 mm ensures optimal space utilization. The zinc-coated surface increases the service life of the rail and reduces maintenance frequency. Compatibility with a wide range of enclosure types and components enables flexible and scalable system design.

The packaging unit is 10 pcs, suitable for use in larger projects or when equipping multiple enclosures. The net weight of 1.08 kg per packaging unit refers to the total mass of the 10 rails.

General
ModelTH 35/7,5
Materialsteel sheet
Surface protectionZinc-plated
Length of busbar387 mm
Suitable forHousing type: AX, KX, AE, KL, KL-HD, width: = 400 mm
PCF/VE (Cradle-to-Gate)4.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 2317000, EAN: 4028177021068

Questions & answers

What is the delivery time of Rittal 2317000 support rail TH 35/7.5/35/15, length 387 mm, for width?

The article Rittal 2317000 support rail TH 35/7.5/35/15, length 387 mm, for width is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2317000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2317000 support rail TH 35/7.5/35/15, length 387 mm, for width always at the best possible price. We can give you a discount of 2% on Rittal 2317000 support rail TH 35/7.5/35/15, length 387 mm, for width if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
