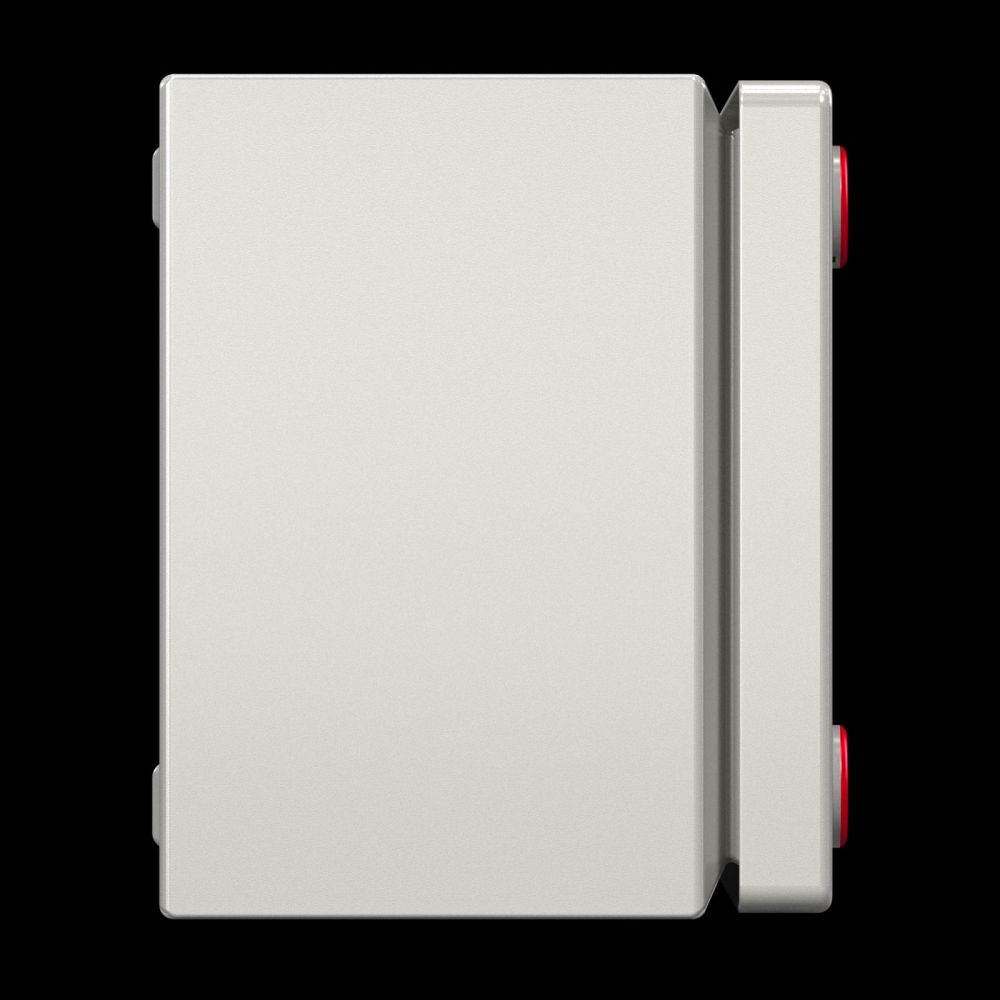

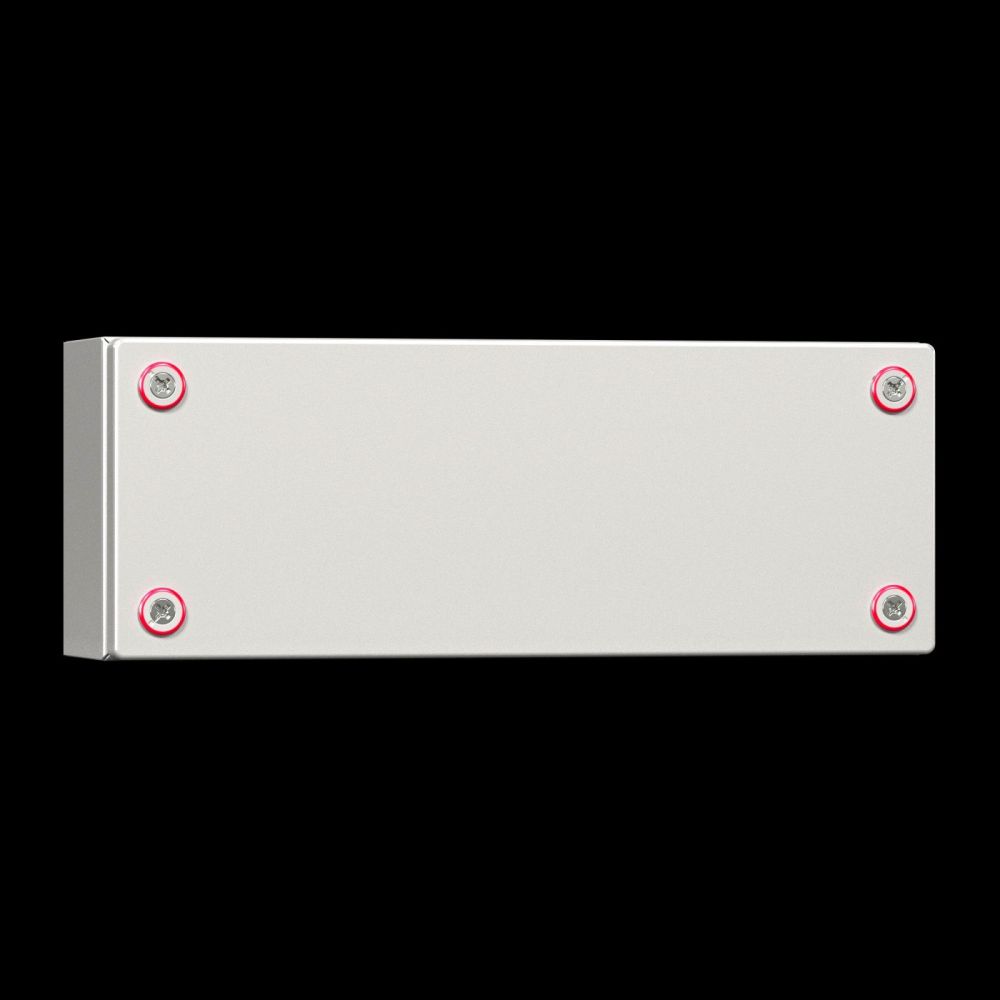

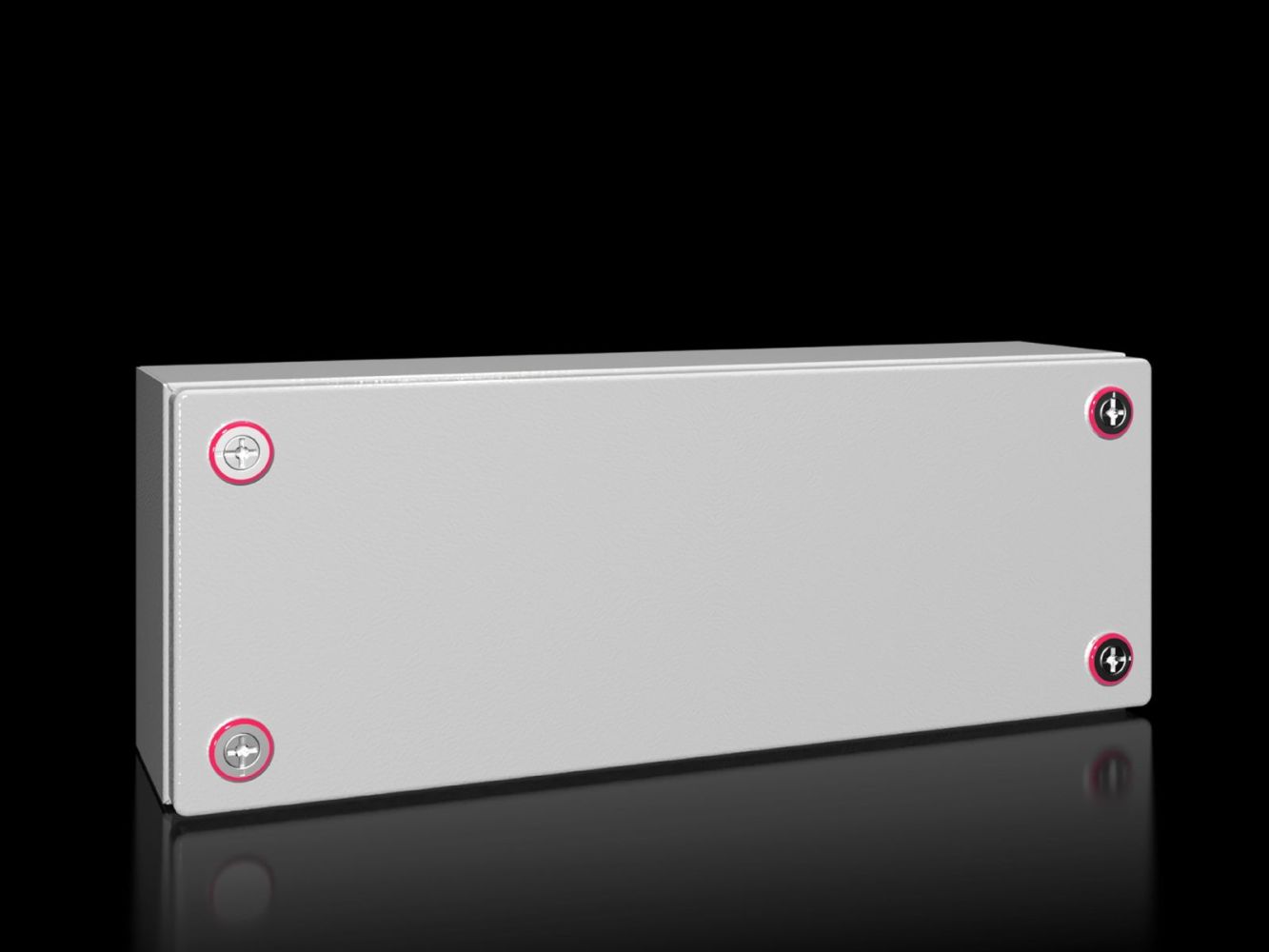

Rittal 1589000 terminal box KX, without gland plate, 400x150x120 mm

Your rating:
Average rating
product review for Rittal 1589000 terminal box KX, without gland plate, 400x150x120 mm
( 4.8 / 5 ) 4 ratings
Rittal 1589000
This image may differ from the desired article.
Rittal 1589000Rittal 1589000Rittal 1589000Rittal 1589000Rittal 1589000Rittal 1589000Rittal 1589000
-10% 38,76 EUR 43,23 EUR
( 46,12 EUR incl. VAT )
≈ £32.44  |  ≈ $42.60
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1589000 terminal box KX, without gland plate, 400x150x120 mm
Datasheet:file_download Download
Lieske Part No.:1598342
Mfg Part No: 1589000
UPC/EAN: 4028177816664
Weight:2.924 kg
Type:KX 1589000

Product information for Rittal 1589000:

The KX 1589000 is an industrial terminal box from the brand Rittal, designed as a small housing made of sheet steel. It serves as a protected enclosure and mounting container for electrical components, terminals, plug connections, or small switching devices in industrial installations. The housing is supplied without a gland plate and without a mounting plate, enabling flexible integration into existing systems. Dimensions are 400 mm width, 150 mm height, and 120 mm depth, providing a compact yet adequately sized design for small control systems.

Small housing with high protection rating ensures safe operation in demanding environments. The protection rating IP 66 according to EN 60 529 guarantees dust-tight and water-tight sealing, even under heavy spray water, enabling use in outdoor areas or humid production environments. Additionally, the housing complies with protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 4, and Type 12. These certifications ensure suitability for various industrial and application areas, particularly in environments with moisture, dust, or light spray water. The IK code IK08 indicates high mechanical resistance against impacts and vibrations.

Sheet steel construction with a material thickness of 1.25 mm for housing and lid ensures a stable and robust design. The surface is dip-primed, externally powder-coated, and finished with a textured paint in RAL 7035, providing high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The continuously foamed PU seal between housing and lid ensures tight sealing and supports the IP 66 protection rating.

Functions and equipment in detail include a housing with lid and a mini push-button lock, enabling secure and quick closure. The rear wall of the housing features knockouts suitable for mounting wall brackets. Both housing and lid incorporate a protective earth connection via U-bracket, enabling simple and reliable earthing. A printed QR code on housing, lid, and nameplate allows unique identification and easy access to relevant product information, as well as traceability of individual parts.

Compatibility and accessories include various add-ons suitable for use in the Rittal system. These include mounting clips for support rails, plug-throughs, pressure equalization plugs, mounting angles, condensate drains, baying sets for AX, KX, AE, KL, drill screws, mounting brackets, support rails TH 35/7.5/35/15, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting claws for second mounting level, and wall mounting brackets. These components enable flexible and application-specific mounting and integration of the terminal box into existing enclosure systems.

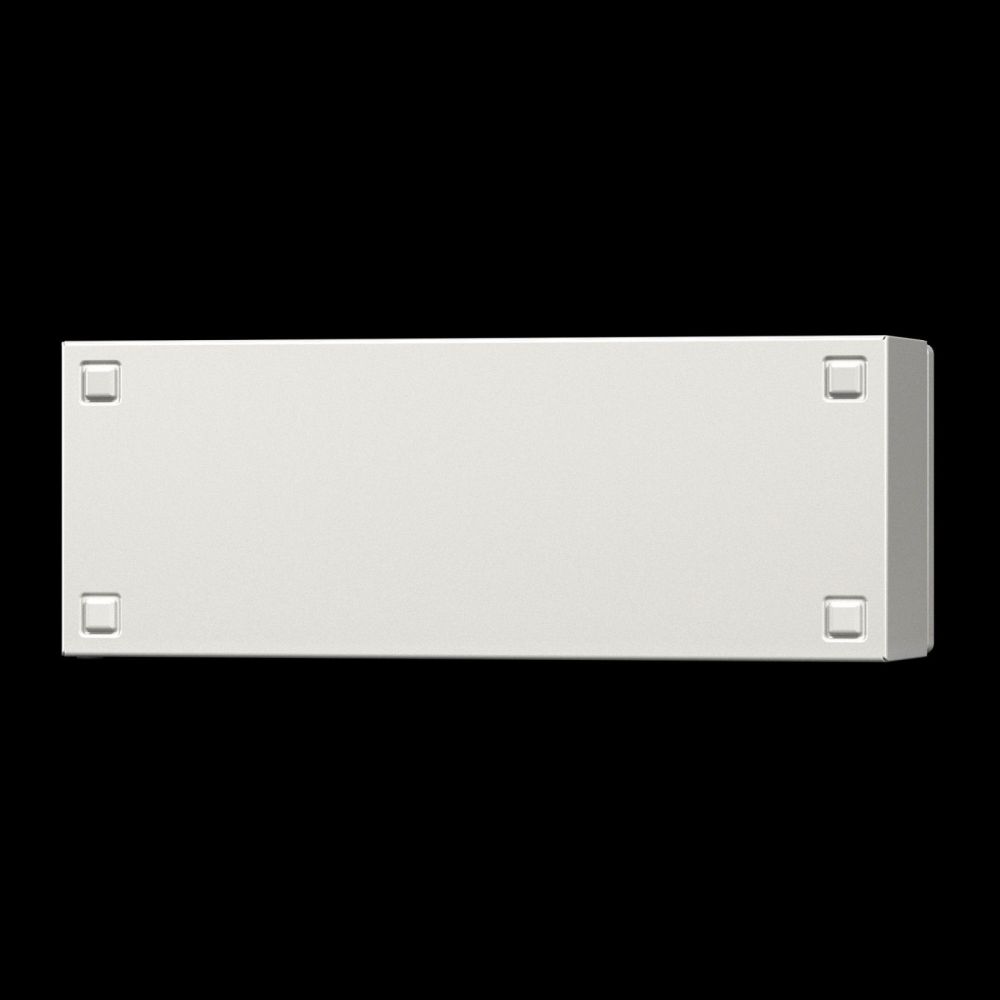

Mounting and installation are performed via the integrated knockouts on the rear wall, designed for attaching wall brackets. The use of mounting clips, support rails, or mounting brackets allows flexible fastening to various substrates. The provided fastening elements and robust construction ensure secure and durable installation.

Operational advantages include high protection rating, mechanical stability, and easy mounting. The combination of IP 66, IK08, and NEMA/UL certifications makes the KX 1589000 suitable for diverse operating conditions, particularly in industrial electrical engineering, automation technology, and environments with increased requirements for protection and safety. The surface coating ensures long service life and resistance to environmental influences. Integrated earthing elements and the QR code support safe operation and maintenance.

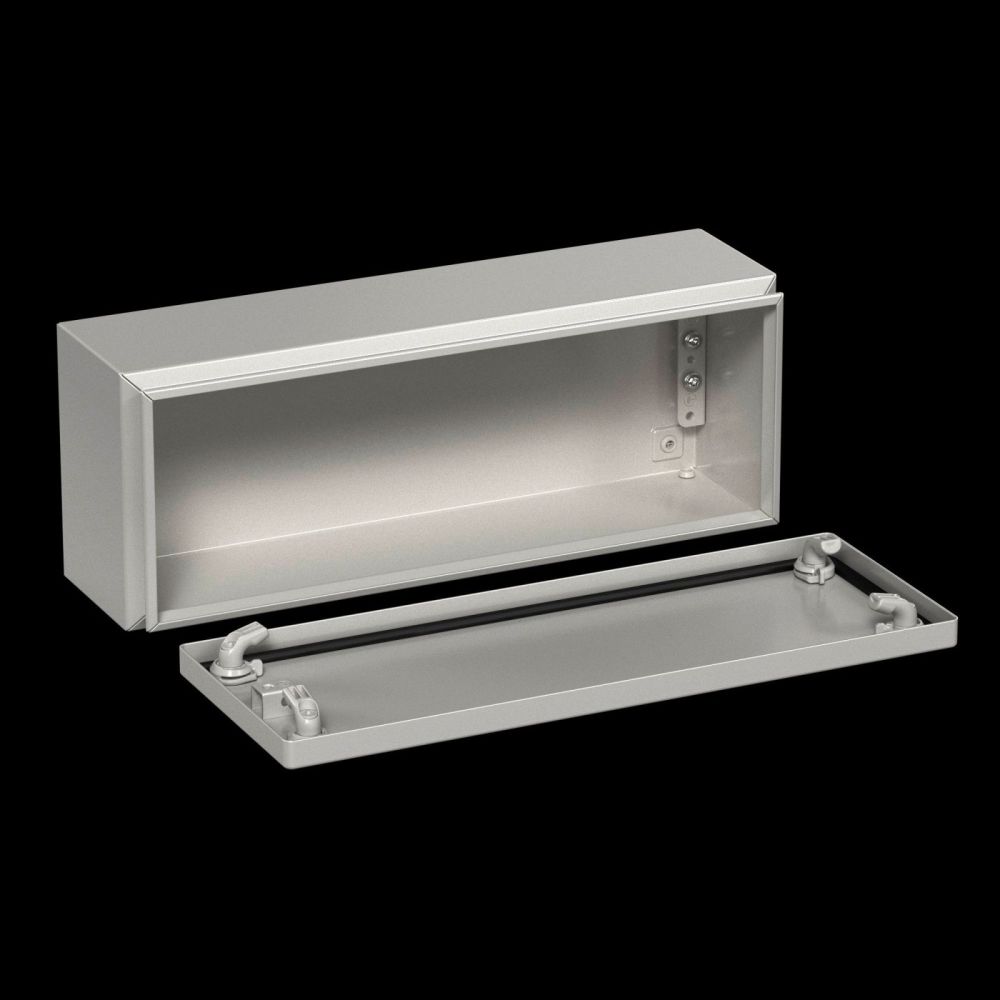

The delivery includes the housing with lid and a mini push-button lock.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width400 mm
Height150 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)29.87 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1589000, EAN: 4028177816664
