Rittal 1576800 mounting plate for terminal box KX, bus enclosure KX

Your rating:
Average rating
product review for Rittal 1576800 mounting plate for terminal box KX, bus enclosure KX
( 4.4 / 5 ) 7 ratings
Rittal 1576800
This image may differ from the desired article.
Rittal 1576800Rittal 1576800Rittal 1576800
9,01 EUR 9,09 EUR
( 10,72 EUR incl. VAT )
≈ £7.54  |  ≈ $9.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1576800 mounting plate for terminal box KX, bus enclosure KX
Datasheet:file_download Download
Lieske Part No.:1598347
Mfg Part No: 1576800
UPC/EAN: 4028177925410
Weight:0.751 kg
Type:KX 1576800

Product information for Rittal 1576800:

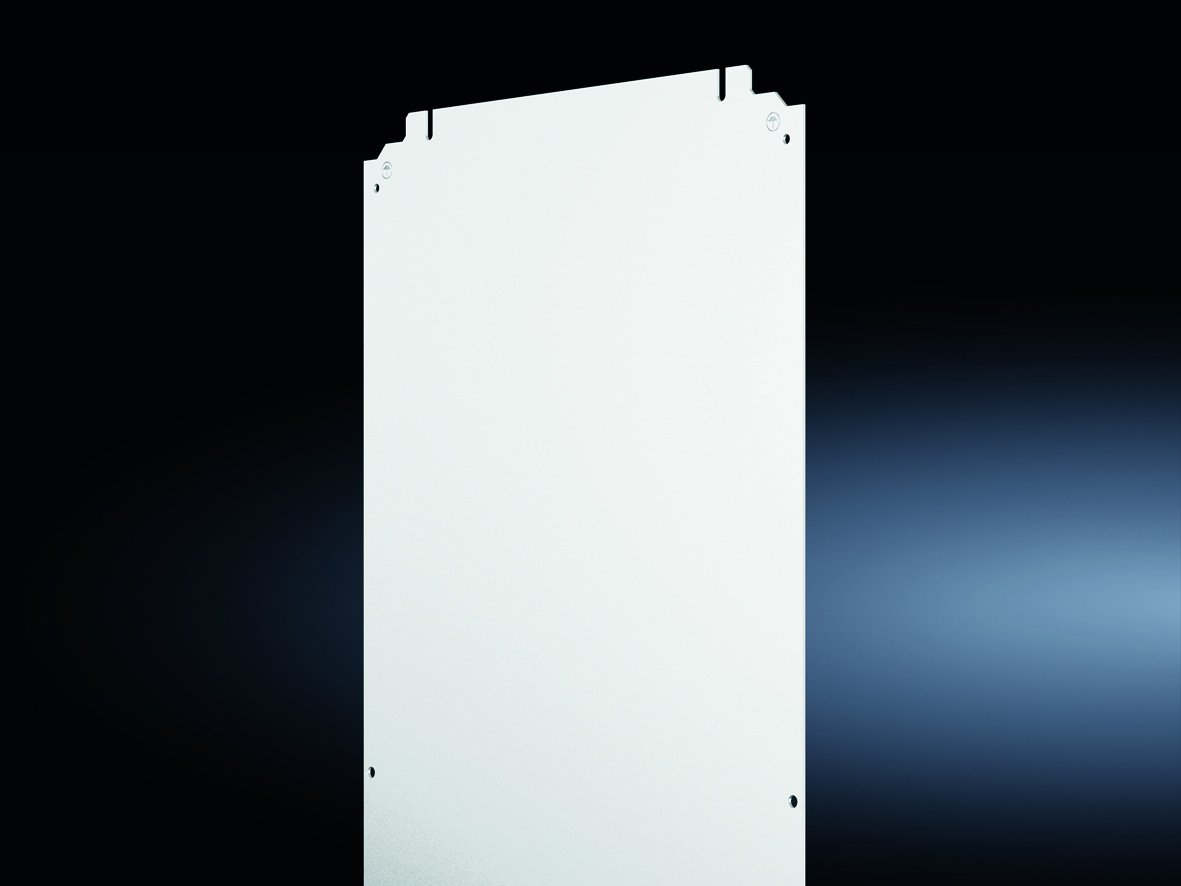

The Rittal KX 1576800 is a mounting plate made of steel sheet, specifically designed for the installation of components outside enclosures and housings. It serves as a stable base for mounting terminal boxes KX, bus housings KX, and terminal boxes HD. The plate is designed for enclosures with a width of 400 mm and a height of 150 mm, while the dimensions of the mounting plate itself are not explicitly stated. The material consists of 2 mm thick steel sheet, galvanized to prevent corrosion and ensure a longer service life in industrial applications.

Mounting plate

The mounting plate enables the installation of electrical components outside the enclosure, which is particularly advantageous when space is limited inside the control cabinet or when better accessibility of components is required. The use of steel sheet with a thickness of 2 mm ensures sufficient mechanical stability to securely support mounted components. The galvanized surface provides protection against moisture and oxidation, supporting usability in various environments, including slightly damp or industrial areas.

Applications

The mounting plate is primarily intended for use in electrical and automation technology, where terminal boxes KX, bus housings KX, or terminal boxes HD are mounted. It is suitable, for example, for installing connectors, fuses, relays, or other components that are to be mounted outside the enclosure to relieve internal space or improve maintenance access. Its use is common in industrial manufacturing, building automation, or power supply technology.

Functions and equipment in detail

The mounting plate is designed for enclosures with dimensions width 400 mm and height 150 mm. This means the plate itself does not include screws, but relies on the fastening elements already present in the enclosure. The plate is made of steel sheet with a thickness of 2 mm, and the surface is galvanized, providing corrosion protection.

Technology explained simply

The use of steel sheet with a thickness of 2 mm ensures sufficient strength to transfer mechanical loads from mounted components. The galvanized surface protects the material from external influences such as moisture or humidity, extending the service life of the mounting plate. The mounting is done outside the enclosure, relieving internal space and improving accessibility to components. The fastening is done using screws included in the enclosure, allowing the mounting plate to be directly attached to the enclosure.

Compatibility and accessories

The mounting plate is compatible with terminal boxes KX, bus housings KX, and terminal boxes HD. It is specifically designed for enclosures with a width of 400 mm and a height of 150 mm. As accessories, the range includes ST 4.8 L9.5 mm drill screws in a pack of 300 pieces, which are not part of the mounting plate’s delivery. The fastening screws for the mounting plate itself are, according to the manufacturer, included in the accessories of the respective enclosure.

Mounting and installation

The mounting is done outside the enclosure, attaching the mounting plate to the enclosure. The fastening is done using the screws included in the enclosure, which are intended for mounting the plate. The mounting plate is thus a supplementary component used in combination with a suitable enclosure.

Operational advantages

The mounting plate enables efficient use of available space in the control cabinet by mounting components outside the enclosure. This reduces internal loading and improves accessibility for maintenance and installation work. The use of galvanized steel sheet ensures high mechanical stability and a long service life, even under industrial conditions. Compatibility with various enclosure types increases flexibility in planning and installing control cabinets.

General
MaterialSheet steel, 2 mm
Surface protectionZinc-plated
Suitable for housing typeTerminal box KX, Bus enclosure KX, Terminal box HD
Suitable forEnclosure type: terminal box KX, bus enclosure KX, terminal box HD, width: = 400 mm, height: = 150 mm


Product data sheet
Datasheet for Rittal 1576800, EAN: 4028177925410
