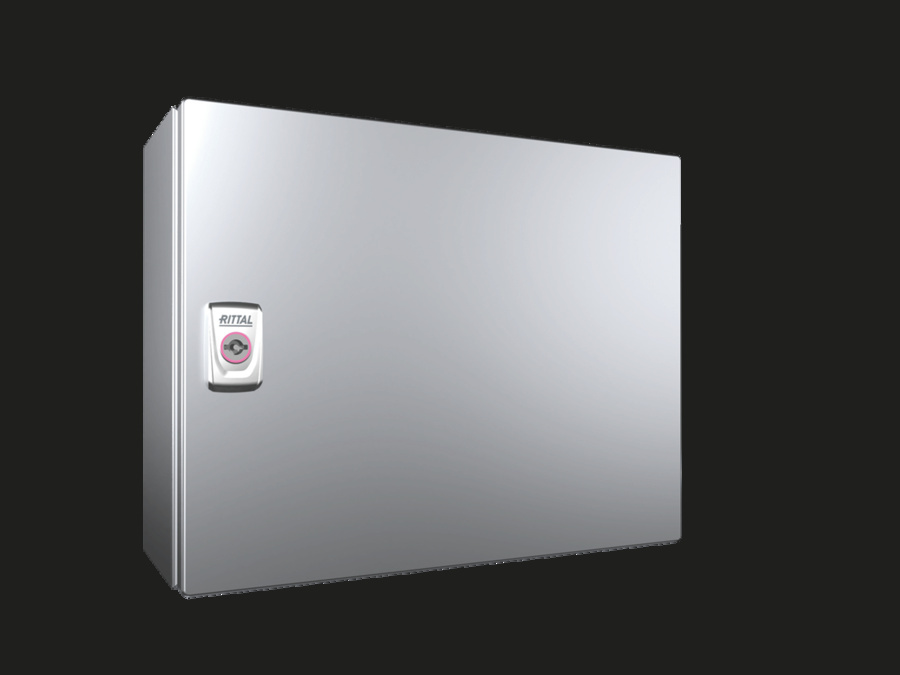

Rittal 1588000 KX E-Box, 380x300x155 mm, stainless steel 1.4301, with mounting holes,

Your rating:
Average rating
product review for Rittal 1588000 KX E-Box, 380x300x155 mm, stainless steel 1.4301, with mounting holes,
( 4.5 / 5 ) 2 ratings
Rittal 1588000
This image may differ from the desired article.
Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000Rittal 1588000
210,34 EUR 218,74 EUR
( 250,30 EUR incl. VAT )
≈ £176.05  |  ≈ $231.16
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 1588000 KX E-Box, 380x300x155 mm, stainless steel 1.4301, with mounting holes,
Datasheet:file_download Download
Lieske Part No.:1778284
Mfg Part No: 1588000
UPC/EAN: 4028177919143
Weight:6.5 kg
Type:KX 1588000

Product information for Rittal 1588000:

The Rittal KX 1588000 is an industrial E-Box made of stainless steel, designed for use in demanding environments where high mechanical stability, corrosion resistance, and protection against dust and water are required. The enclosure is made of a single piece of bent and welded stainless steel 1.4301 (AISI 304), resulting in a stable and durable construction. The dimensions are 380 mm (width) × 300 mm (height) × 155 mm (depth), with the mounting plate measuring 365 mm × 275 mm. The surface of the enclosure and door is finished with a linear satin finish, grain 180, providing a uniform, easy-to-clean, and aesthetically pleasing appearance. The mounting plate is made of galvanized steel sheet, offering additional corrosion protection.

Applications

The E-Box is suitable for use in industrial electrical engineering, machine building, process automation, and environments with increased requirements for environmental resistance. The protection rating IP 65 according to EN 60 529 ensures complete protection against dust and splashing water, enabling use even in outdoor environments. The type ratings according to UL 50E (Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12) confirm suitability for various industrial and commercial applications, particularly in damp, dusty, or mildly corrosive environments.

Functions and Equipment in Detail

The enclosure features a single-door construction with right-side-mounted 180° hinges, providing optimal access to the interior. The door is fitted with a continuous foamed PU seal, ensuring a tight closure and supporting the IP 65 protection rating. The closure is achieved via a cam lock with a 3 mm double-barrel lock insert, manufactured according to DIN 43668. This lock provides secure and easy operation and allows integration of various locking systems. The mounting plate and cam lock with double-barrel lock insert are included in the delivery scope.

Technology Explained Simply

The material thickness of 1.25 mm for the enclosure and door ensures high mechanical strength and resistance to mechanical stress. The stainless steel material 1.4301 (AISI 304) is known for its high corrosion resistance, particularly against moisture and mild chemicals, extending the enclosure’s lifespan in demanding environments. The continuous protective flange around the door opening prevents ingress of liquids and particles, supporting the protective function. Earthing is achieved via a bolt on the door, ensuring a secure electrical connection to the enclosure body.

Compatibility and Accessories

The E-Box is compatible with a wide range of accessories that extend its use in various application scenarios. These include mounting clips for support rails, lock inserts made of zinc die-cast, mounting brackets, condensate drains, drilling screws, mounting brackets, stainless steel pressure equalization plugs, mast mounting fixtures, earthing straps, and mini comfort handles. These components enable flexible mounting and adaptation to specific requirements, such as wall, support rail, or mast mounting.

Mounting and Installation

Mounting is performed using the included mounting plate, which enables secure fastening to walls or other substructures. The holes in the mounting plate are arranged to ensure stable and centered installation. The 180° hinges allow full door opening, facilitating access to installed components. The integrated earthing and protective conductor connection in the enclosure support compliance with electrical safety regulations.

Operational Advantages

The KX 1588000 offers high long-term stability and resistance to environmental influences due to its stainless steel construction. The IP 65 protection rating and UL type ratings ensure reliable operation in demanding environments. The integrated mounting plate and cam lock reduce installation time and simplify setup. The 180° hinges and continuous seal ensure optimal accessibility and tightness. The use of stainless steel 1.4301 (AISI 304) guarantees high corrosion resistance, increasing maintenance-free operation and service life. A QR code on the enclosure, door, and nameplate enables unique identification and easy access to relevant product information and documentation.

General
MaterialHousing: stainless steel, door: stainless steel, continuous foamed PU seal, mounting plate: sheet steel, stainless steel 1.4301 (AISI 304)
Surface protectionEnclosure and cover: Brushed finish, grit 180, mounting plate: galvanized
Scope of deliveryMounting plate, pre-lubricated lock with 3 mm double-barrel insert
Width380 mm
Height300 mm
Depth155 mm
Mounting plate dimensions (W x H)365 mm x 275 mm
Degree of protection IP according to EN 60 529IP 65
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Plate thickness cabinet1,25 mm
Door material thickness1,25 mm
LockNumber of locks: 1
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)24,04


Product data sheet
Datasheet for Rittal 1588000, EAN: 4028177919143

Questions & answers

What is the delivery time of Rittal 1588000 KX E-Box, 380x300x155 mm, stainless steel 1.4301, with mounting holes, ?

The article Rittal 1588000 KX E-Box, 380x300x155 mm, stainless steel 1.4301, with mounting holes, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1588000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 1588000 KX E-Box, 380x300x155 mm, stainless steel 1.4301, with mounting holes, always at the best possible price. We can give you a discount of 2% on Rittal 1588000 KX E-Box, 380x300x155 mm, stainless steel 1.4301, with mounting holes, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
