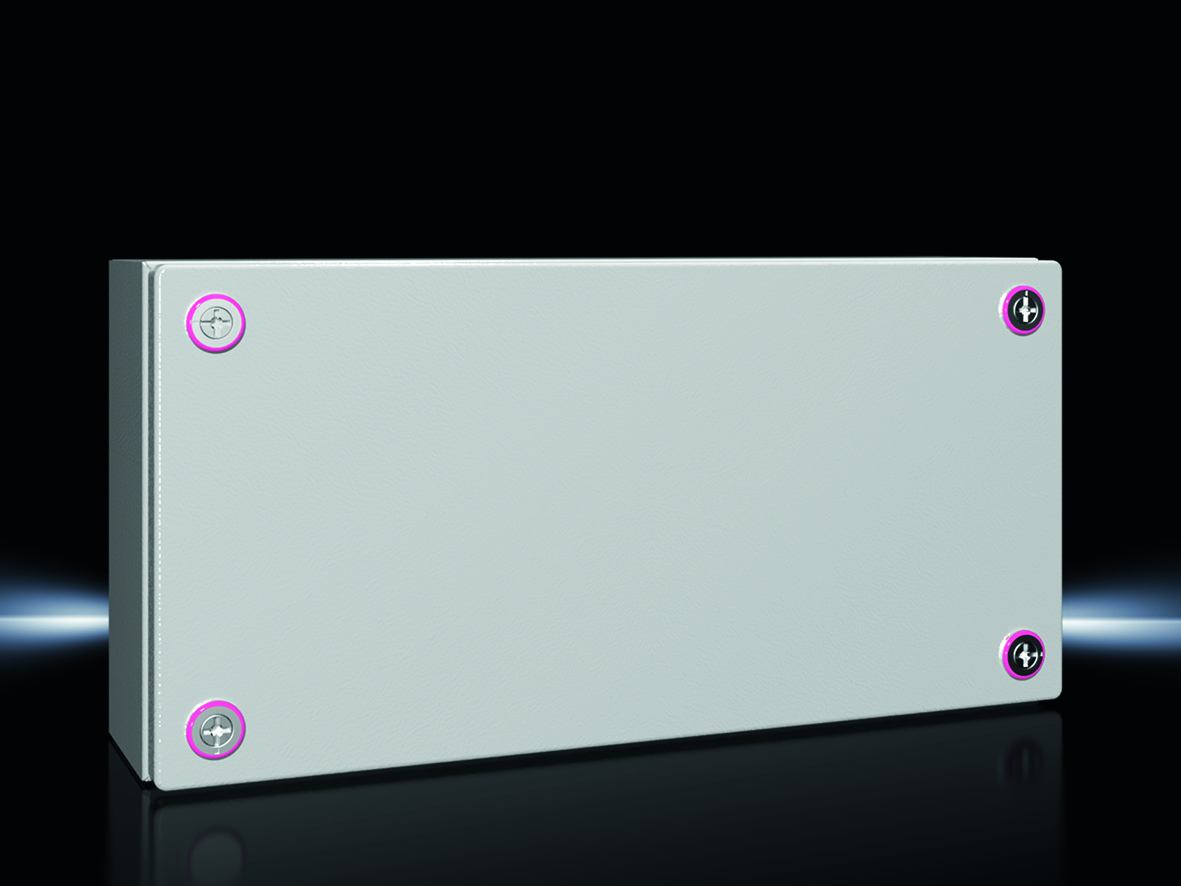

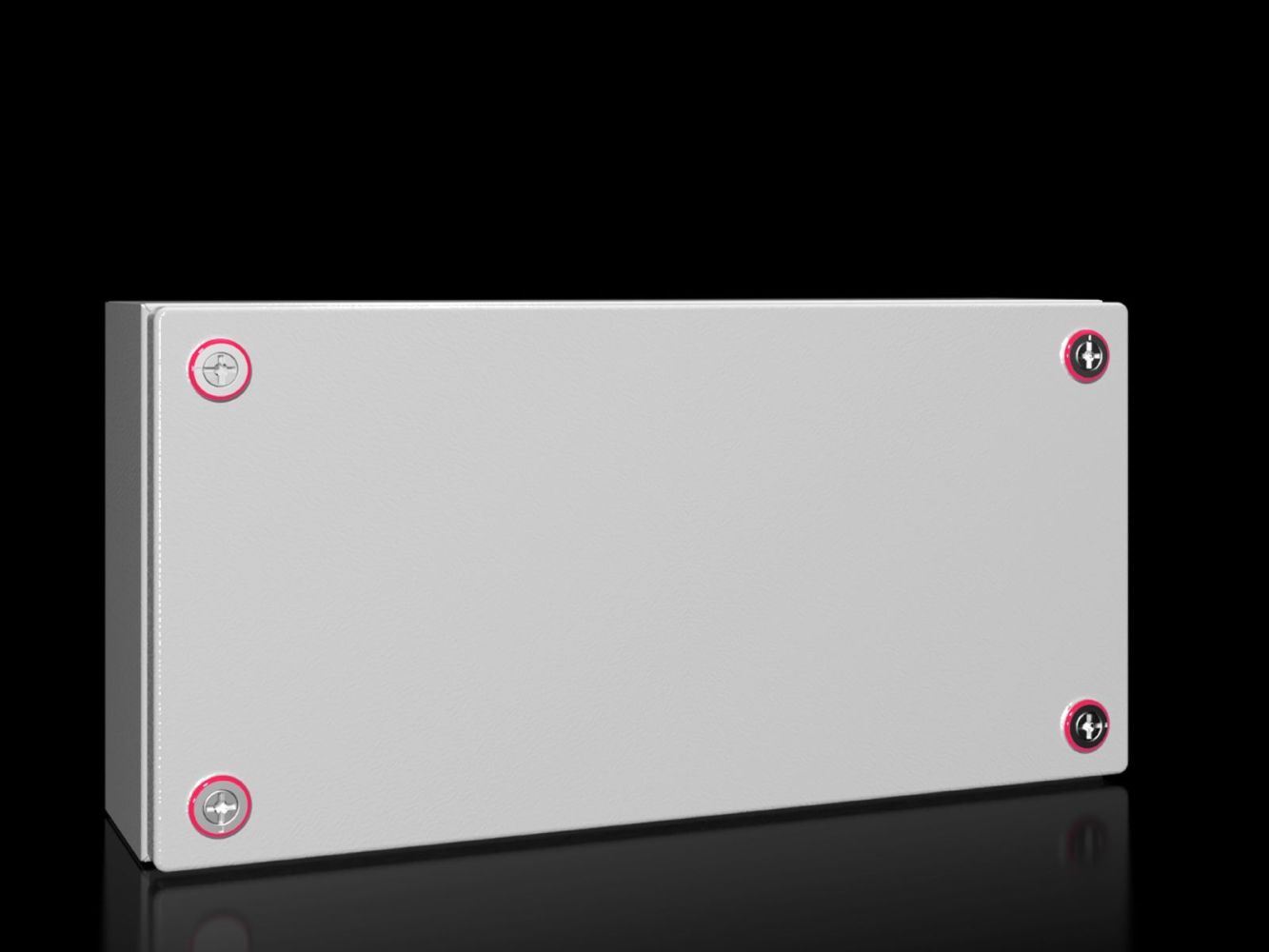

Rittal 1504000 terminal box KX, without gland plate 400x200x120 mm
|
41,27 EUR 41,29 EUR |
|
|
( 49,11 EUR incl. VAT ) ≈ £34.54 | ≈ $45.36 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1598166 |
| Mfg Part No: | 1504000 |
| UPC/EAN: | 4028177816183 |
| Weight: | 3.46 kg |
| Type: | KX 1504000 |
Product information for Rittal 1504000:
Applications
The terminal box is suitable for use in environments with high requirements for mechanical and environmental protection class. It is frequently used in industrial electrical engineering, automation technology, or building automation, where secure and durable installation of connection and switching units is required. The high protection rating allows use both indoors and outdoors, for example in production halls, machine installations, or in supply and disposal technology.
Functions and Equipment in Detail
The housing is made of a single piece of bent and welded sheet steel with a material thickness of 1.25 mm for both the housing and the lid. The lid is fitted with a continuous foamed PU seal, ensuring a tight seal. Fastening is achieved via a mini-quick-release latch, enabling secure and rapid closure. Inside, a protective earth conductor connection is integrated in the housing and via a U-bracket in the lid, allowing for simple and reliable earthing. The rear wall features knockouts for wall mounting brackets, facilitating installation on walls or other structures.
Technology Explained Simply
The protection rating IP 66 according to EN 60 529 means the housing is dust-tight and protected against heavy splashing water, making it suitable for use in damp or wet environments. The protection ratings NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, as well as the type rating according to UL 50E (Type 1, Type 3R, Type 4, Type 12), confirm suitability for various industrial application scenarios, particularly in the USA and Canada. The IK code IK08 indicates high mechanical resistance against impacts and vibrations. The surface coating with nanoceramic and electrophoretic dip priming provides additional corrosion protection, especially in aggressive environments.
Compatibility and Accessories
Various accessories are available to extend and adapt the terminal box. These include mounting clips for support rails, plug-throughs (e.g. SZ 2400500), pressure equalization plugs M12x1.5, mounting angles, condensate drains, drilling screws type ST 4.8 L9.5 mm, flat mounting brackets, support rails TH 35/7.5/35/15 (length 387 mm), spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates for terminal boxes and bus housings (1564800), mounting claws for a second mounting level, and wall mounting brackets for AX sheet steel KX AX-IT EL 1590010. These components enable individual adaptation to specific mounting and installation requirements.
Mounting and Installation
Mounting is performed via the pre-drilled knockouts in the rear wall, designed for wall mounting brackets. The use of mounting angles or mounting brackets allows flexible fastening to various substrates. The support rails TH 35/7.5/35/15 can be used for installing components inside the housing. The drilling screws type ST 4.8 L9.5 mm are suitable for fastening components inside. Mounting can be done without additional tools, provided the designated fastening elements are used.
Advantages in Operation
The terminal box offers a high mechanical and environmental protection class, enabling long service life and low maintenance frequency. The simple earthing via integrated protective earth conductor connections reduces installation time and increases safety. The powder-coated surface in RAL 7035 ensures an attractive appearance and simultaneous resistance to environmental influences. The integrated PU seal ensures a tight seal that remains intact even after frequent opening and closing. The use of sheet steel with a material thickness of 1.25 mm ensures a stable and robust construction.
Scope of Delivery
The product is delivered with housing, lid, and mini-quick-release latch. The specifications regarding surface, material thickness, protection rating, and dimensions are included in the technical features and correspond to the manufacturer’s specifications. The packaging unit is 1 piece.
| General | |
| Material | Housing: steel sheet, cover: steel sheet, continuously foamed PU seal |
| Surface protection | Housing and cover: dip primed, externally powder coated, textured lacquer |
| Colour | RAL 7035 |
| Scope of delivery | housing with cover, mini-quick-release latch |
| Width | 400 mm |
| Height | 200 mm |
| Depth | 120 mm |
| Degree of protection IP according to EN 60 529 | IP 66 |
| NEMA degree of protection | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Type rating according to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK code | IK08 |
| Material thickness cover | 1,25 mm |
| Plate thickness cabinet | 1,25 mm |
| Base material | steel sheet |
| PCF/VE (Cradle-to-Gate) | 31.44 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 1504000 terminal box KX, without gland plate 400x200x120 mm?
The article Rittal 1504000 terminal box KX, without gland plate 400x200x120 mm is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1504000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1504000 terminal box KX, without gland plate 400x200x120 mm always at the best possible price. We can give you a discount of 2% on Rittal 1504000 terminal box KX, without gland plate 400x200x120 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
