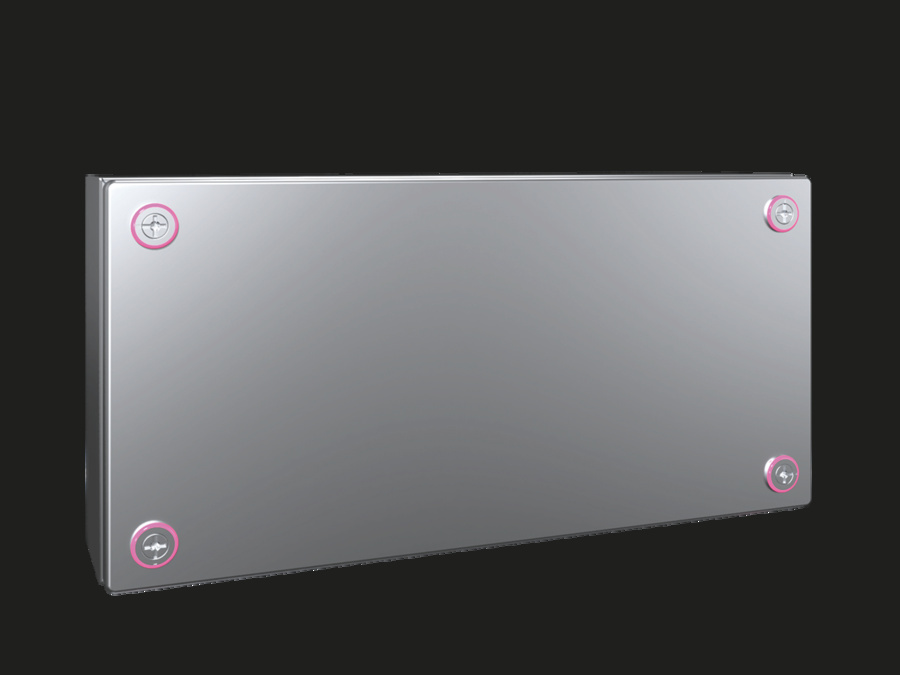

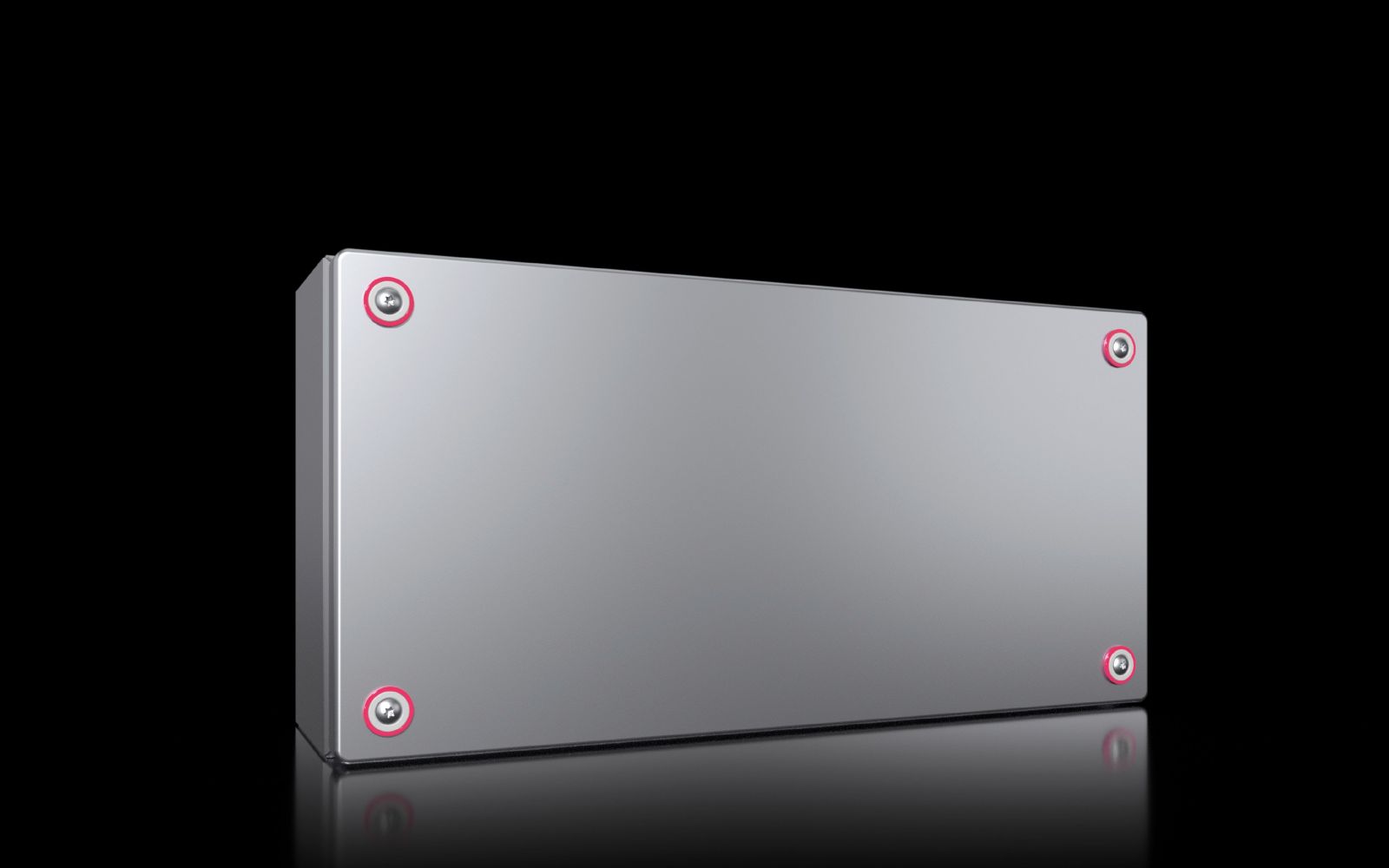

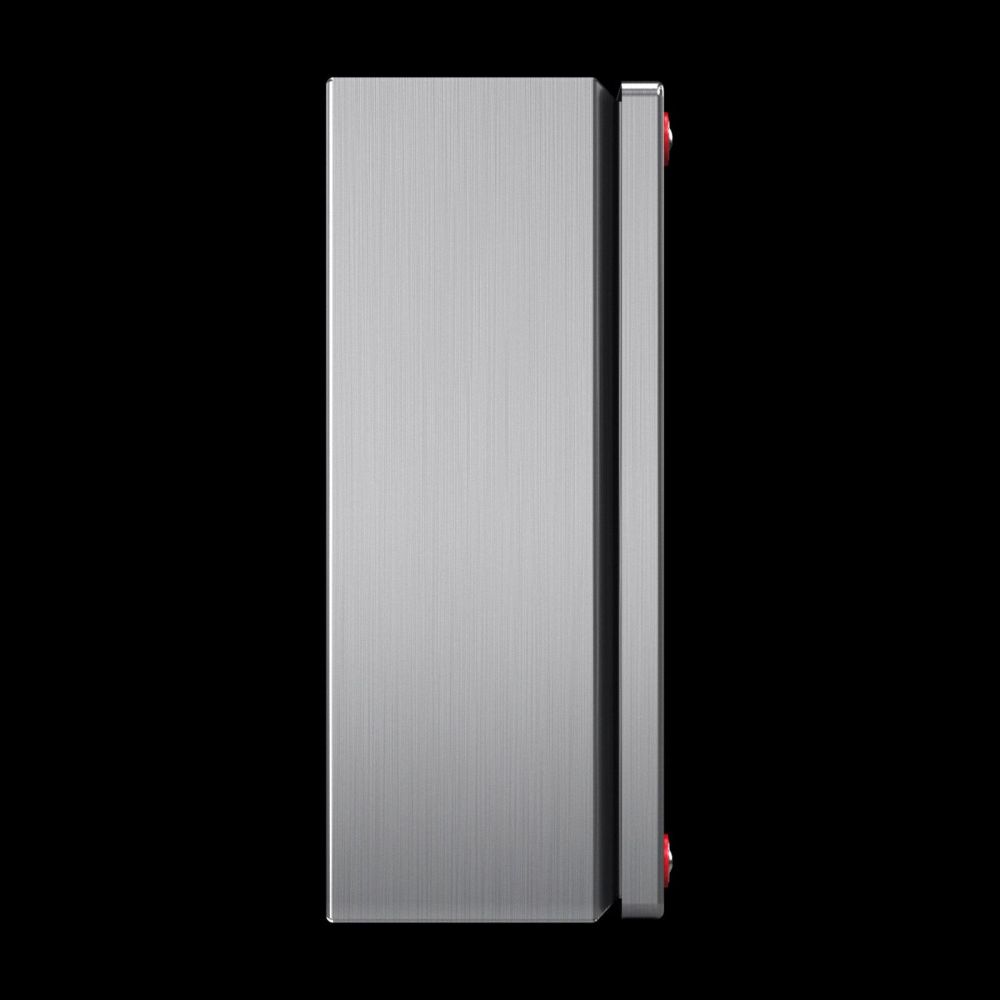

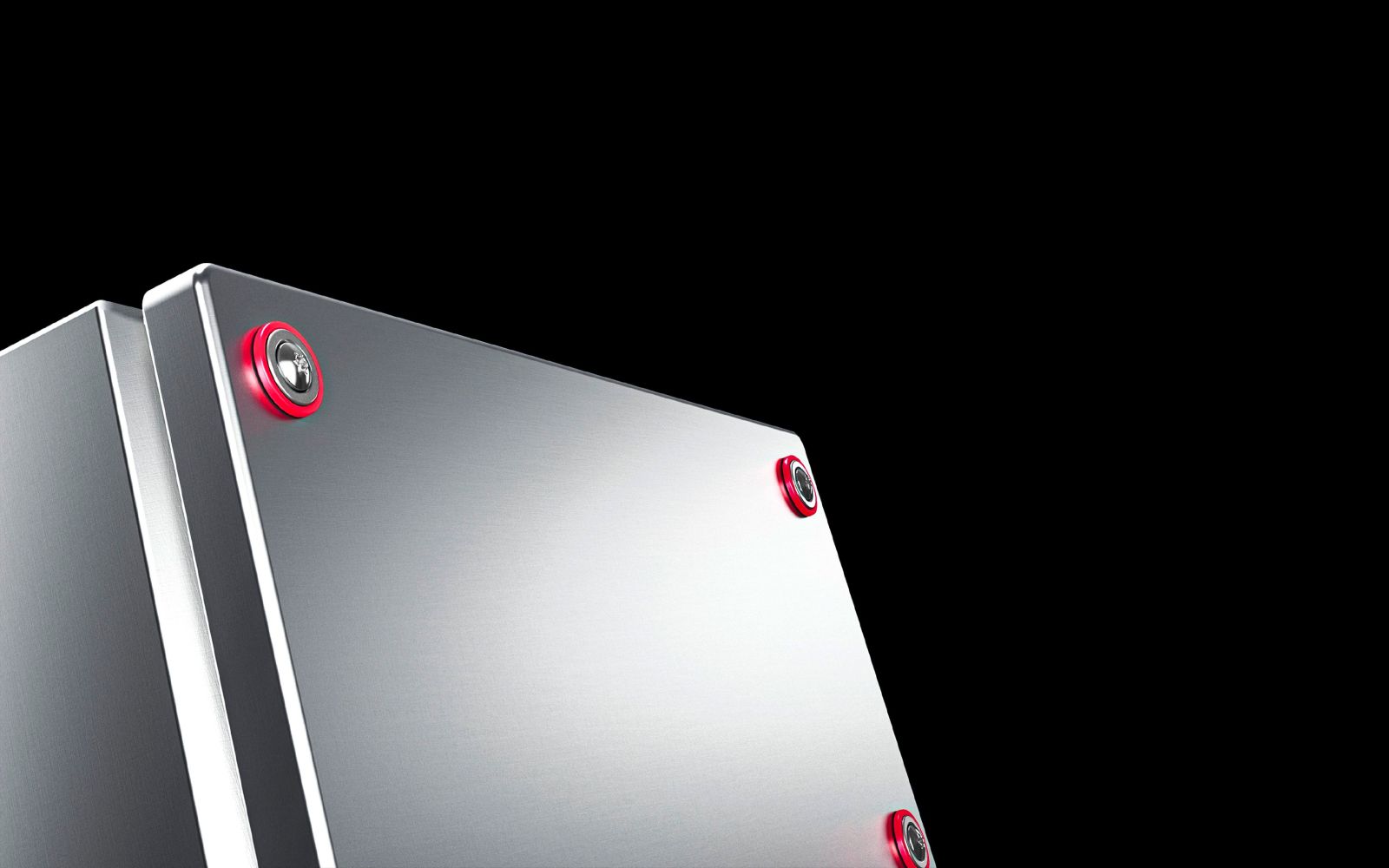

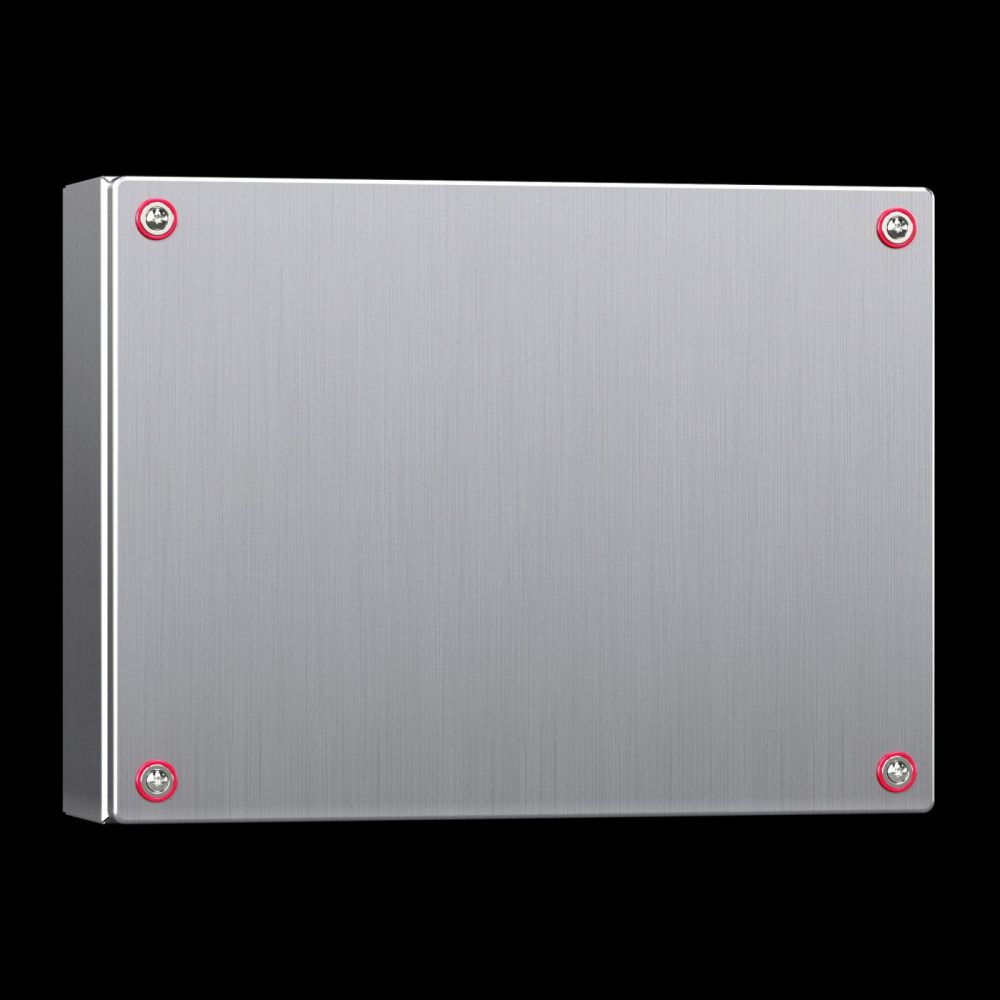

Rittal 1568000 terminal box KX, stainless steel 1.4301, without mounting plate

Your rating:
Average rating
product review for Rittal 1568000 terminal box KX, stainless steel 1.4301, without mounting plate
( 5 / 5 ) 1 ratings
Rittal 1568000
This image may differ from the desired article.
Rittal 1568000Rittal 1568000Rittal 1568000Rittal 1568000Rittal 1568000Rittal 1568000Rittal 1568000Rittal 1568000Rittal 1568000Rittal 1568000
-10% 197,23 EUR 220,01 EUR
( 234,70 EUR incl. VAT )
≈ £165.08  |  ≈ $216.76
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 1568000 terminal box KX, stainless steel 1.4301, without mounting plate
Datasheet:file_download Download
Lieske Part No.:1980360
Mfg Part No: 1568000
UPC/EAN: 4028177919082
Weight:3.4 kg
Type:KX 1568000

Product information for Rittal 1568000:

The KX 1568000 is a terminal box made of stainless steel 1.4301 (AISI 304) from manufacturer Rittal, designed for use in industrial plants and in the field of electrical engineering. With dimensions of width 400 mm, height 200 mm, and depth 120 mm, it provides sufficient space for small to medium-sized switching and connection components. The enclosure consists of a single, folded and welded piece of stainless steel, resulting in a stable and durable construction. The surface is brushed with a grit of 180, ensuring a uniform, easy-to-clean, and corrosion-resistant finish. The lid is fitted with a continuous foamed PU seal, providing a tight seal against dust and moisture.

Applications
This terminal box is suitable for use in environments subject to high mechanical stress, humidity, or dust accumulation. It is particularly suitable for outdoor use, in manufacturing technology, automation technology, or process industry. The protection rating IP 66 according to EN 60 529 guarantees complete dust tightness and protection against strong splashing water from any direction, making it suitable for use in wet or dusty environments. Additionally, the enclosure meets protection ratings NEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, and NEMA 12, as well as Type ratings according to UL 50E: Type 1, Type 3R, Type 3RX, Type 4, Type 4X, and Type 12, enabling international use in various standard regions.

Functions and Equipment in Detail

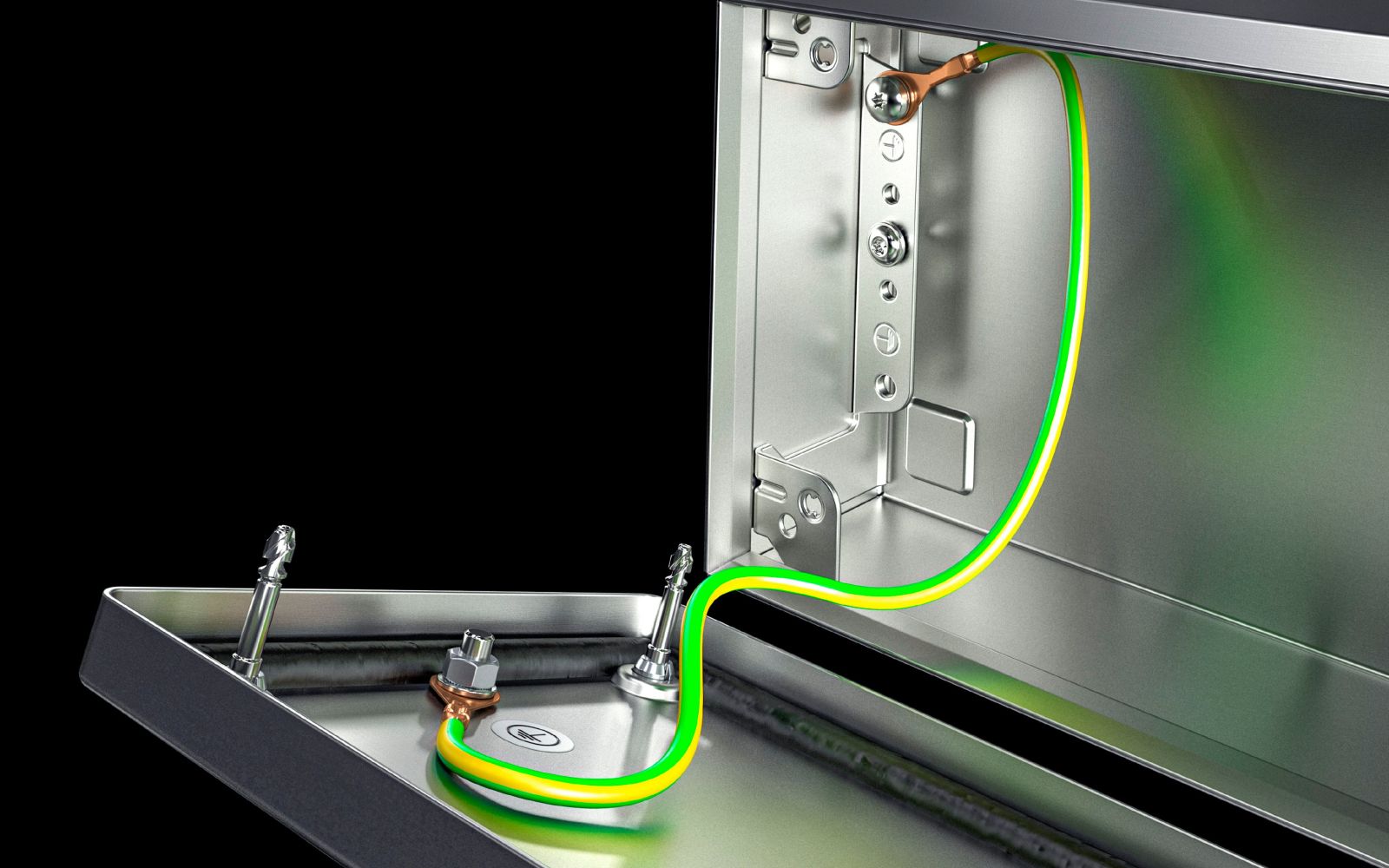

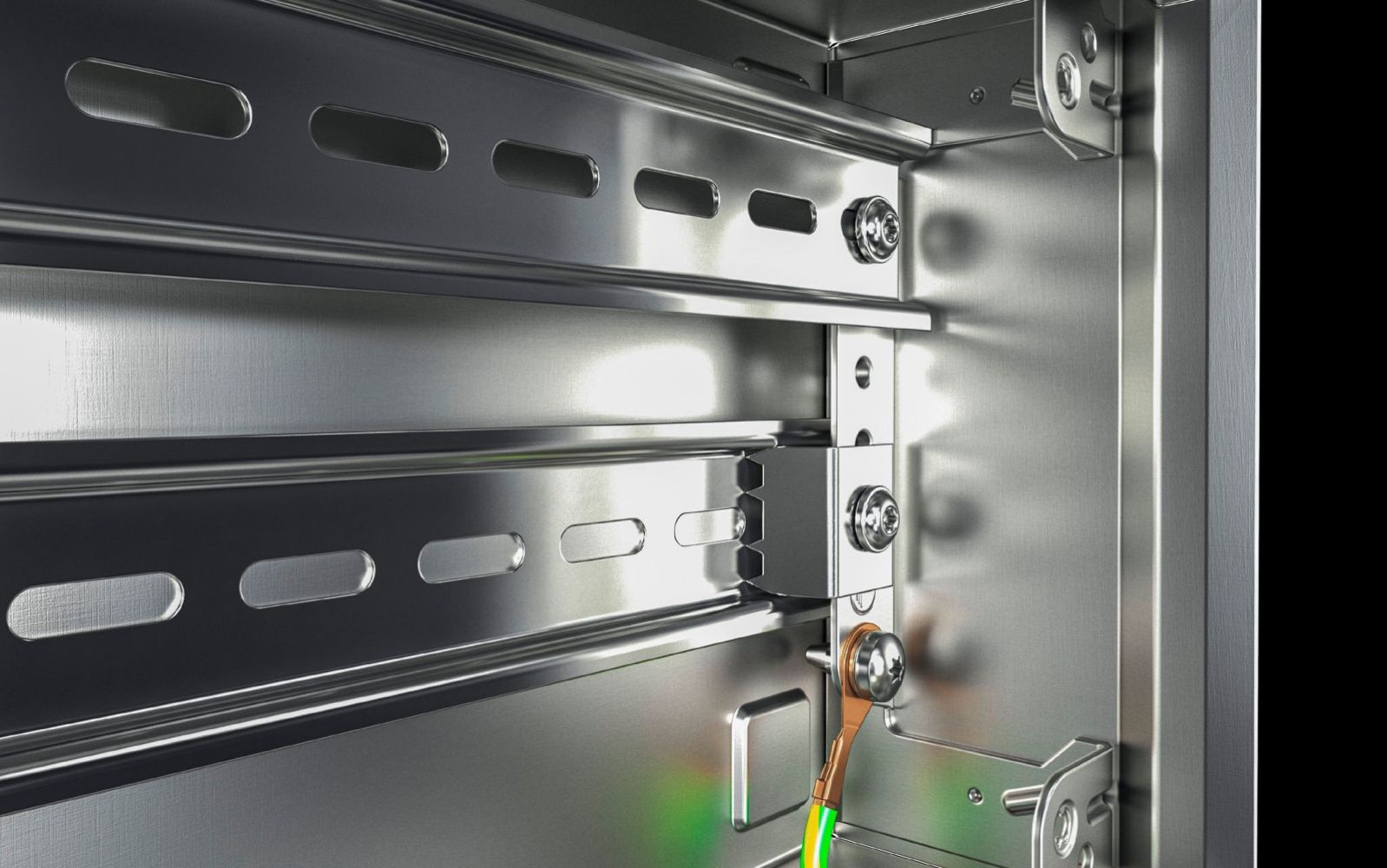

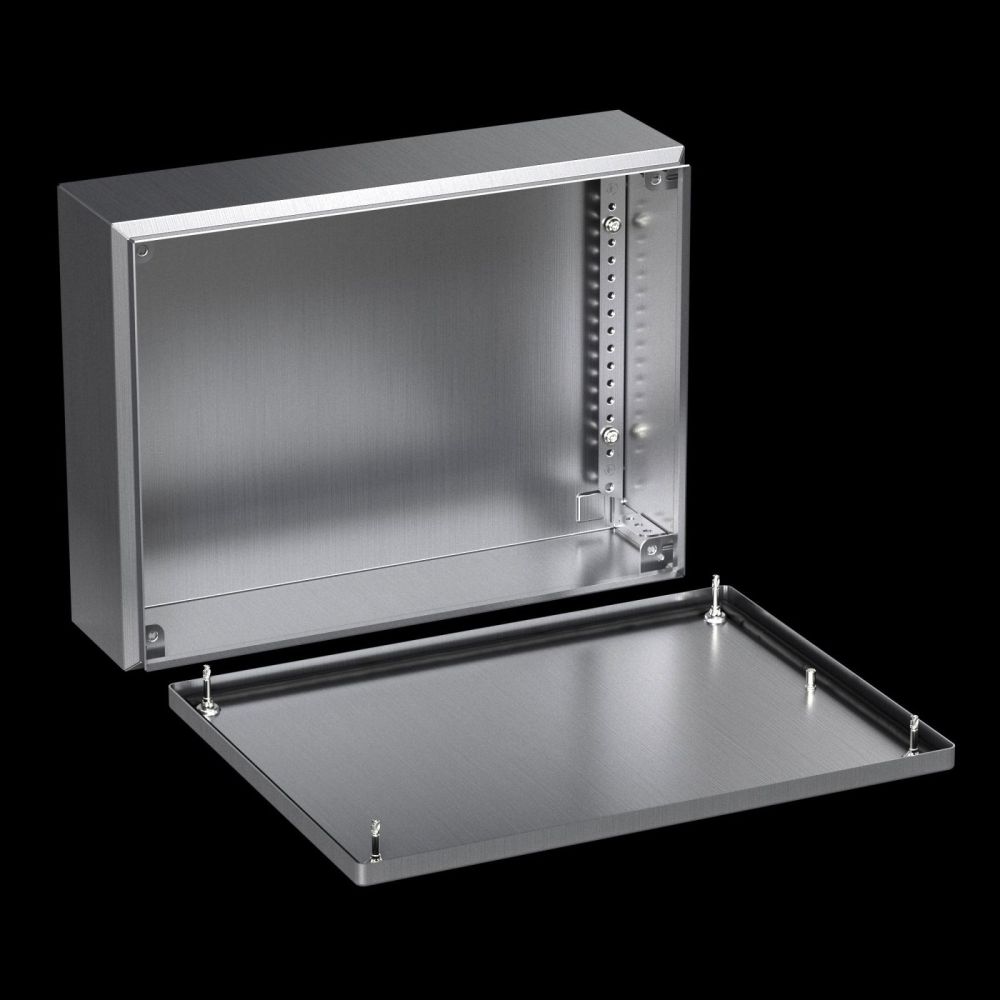

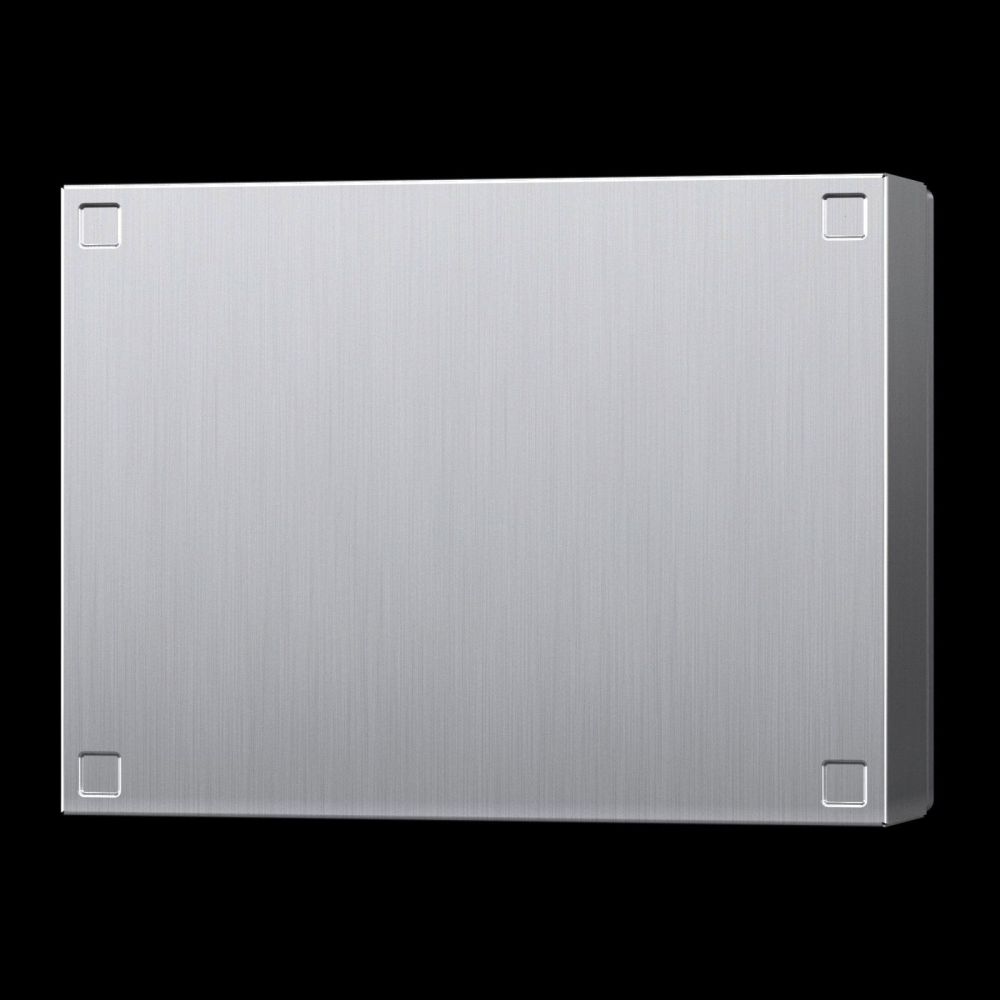

The enclosure features a closed rear panel area, enabling stable mounting of components. Inside, a protective earth connection is integrated to ensure safe earthing. The lid includes an earthing bolt, allowing for easy and reliable connection to the protective conductor. The locking mechanism consists of four quick-release latches equipped with plastic bushings, enabling secure and rapid mounting and removal of the lid. The material thickness of 1.25 mm for both the enclosure and lid ensures high mechanical stability and resistance to external influences.

Technology Explained Simply
The stainless steel 1.4301 (AISI 304) material used is known for its high corrosion resistance and mechanical strength, making the terminal box particularly suitable for use in harsh environments. The continuous PU seal ensures a tight seal that maintains its function even under temperature fluctuations. The IP 66 rating means the enclosure is dust-tight and protected against splashing water from any direction, making it suitable for outdoor use or in humid indoor environments. The NEMA and UL certifications extend the application range to countries that recognize these standards.

Compatibility and Accessories
Various accessories are available for this terminal box to extend its functionality. These include mounting clips for support rails, mounting brackets, stainless steel 1.4404 lid hinges, condensate drains, baying sets for connecting with other enclosures from the KX and AX series, ST 4,8 L9,5 mm screws, mounting brackets, stainless steel 1.4301 wall mounting angles, TH 35/7,5/35/15 support rails, SZ pressure equalization plugs, AX mast mounting brackets, M6-M6 earthing straps with cross-section 10 mm² in various lengths, mounting plates for terminal boxes and bus enclosures, mounting claws for a second mounting level, and SZ wall mounting brackets. These components enable flexible and application-specific mounting and integration into existing systems.

Mounting and Installation
The terminal box can be mounted on walls, beams, or other structures. Wall mounting is done using the supplied wall mounting angles or special mounting brackets. Mounting plates and support rails allow integration into enclosure systems. The quick-release latches facilitate opening and closing the lid, making maintenance and component installation more efficient. The integrated earthing on the lid and enclosure ensures a safe electrical connection.

Operational Advantages
The KX 1568000 offers high mechanical stability, corrosion resistance, and protection against environmental influences. The easy mounting and maintenance via quick-release latches, along with integrated earthing, increase operational safety and reduce installation time. The use of stainless steel 1.4301 ensures a long service life even in demanding environments. The clear identification via QR codes on the enclosure, lid, and nameplate enables easy identification and traceability of individual parts, which is beneficial for documentation and maintenance.

General
MaterialHousing: Stainless steel 1.4301 (AISI 304), Cover: Stainless steel 1.4301 (AISI 304), continuous foamed PU seal
Surface protectionHousing and cover: fine grinding, grit 180
Scope of deliveryHousing with cover, quick-release fastener including plastic inserts
Width400 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 3RX, NEMA 4, NEMA 4X, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
LockNumber of locks: 4
Base materialStainless steel 1.4301 (AISI 304)
PCF/VE (Cradle-to-Gate)13,68


Product data sheet
Datasheet for Rittal 1568000, EAN: 4028177919082
